Toyota Corolla (CHINA)
2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General
Discontinued model
Data version 2017-08

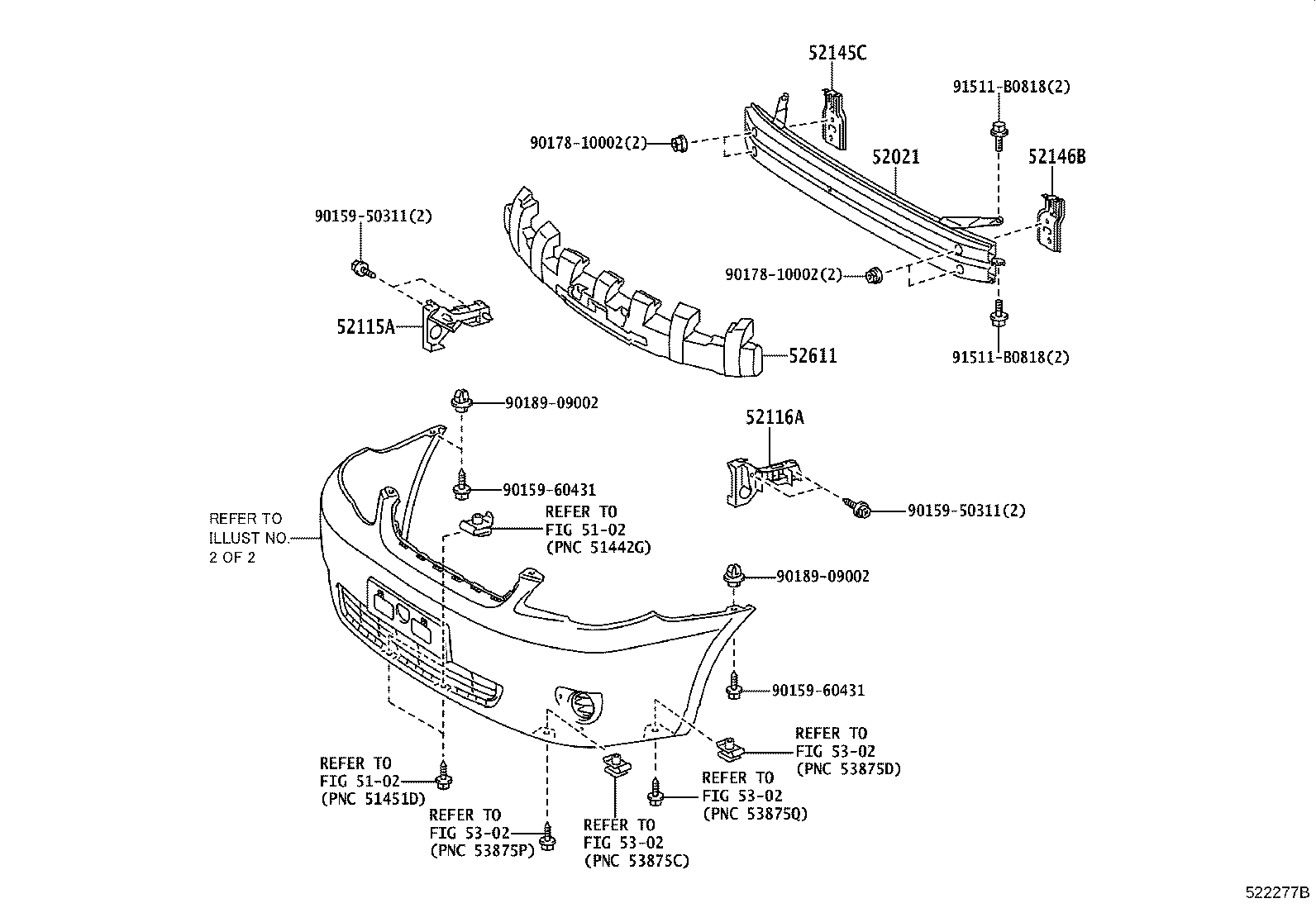

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52021 — Reinforcement Sub-assy, Front Bumper | ||||
| 52021-02110 |
Reinforcement Sub-assy, Front Bumper
2004-02 → 2007-05
ended
|
ZZE122 | — | |
| 52021-02110 |
Reinforcement Sub-assy, Front Bumper
2007-05 → 2012-10
ended
|
ZRE120 | — | |
| 52021-YK010 |
Reinforcement Sub-assy, Front Bumper
2012-10 → —
|
ZRE120 | — | |
| 52115A — Support, Front Bumper Side, RH | ||||
| 52115-02090 |
Support, Front Bumper Side, RH
2006-01 → 2007-05
ended
|
ZZE122 | — | |
| 52115-12400 |
Support, Front Bumper Side, RH
2004-02 → 2006-01
ended
|
ZZE122 | — | |
| 52115-02090 |
Support, Front Bumper Side, RH
2007-05 → 2012-10
ended
|
ZRE120 | — | |
| 52115-YK010 |
Support, Front Bumper Side, RH
2012-10 → 2017-02
ended
|
ZRE120 | — | |
| 52116A — Support, Front Bumper Side, LH | ||||
| 52116-02090 |
Support, Front Bumper Side, LH
2006-01 → 2007-05
ended
|
ZZE122 | — | |
| 52116-12360 |
Support, Front Bumper Side, LH
2004-02 → 2006-01
ended
|
ZZE122 | — | |
| 52116-02090 |
Support, Front Bumper Side, LH
2007-05 → 2012-10
ended
|
ZRE120 | — | |
| 52116-YK010 |
Support, Front Bumper Side, LH
2012-10 → —
|
ZRE120 | — | |
| 52145C — Bracket, Front Bumper Side Mounting, RH | ||||
| 52145-02060 |
Bracket, Front Bumper Side Mounting, RH
2004-02 → 2007-05
ended
|
ZZE122 | — | |
| 52145-02060 |
Bracket, Front Bumper Side Mounting, RH
2007-05 → 2012-10
ended
|
ZRE120 | — | |
| 52145-YK010 |
Bracket, Front Bumper Side Mounting, RH
2012-10 → —
|
ZRE120 | — | |
| 52146B — Bracket, Front Bumper Side Mounting, LH | ||||
| 52146-02050 |
Bracket, Front Bumper Side Mounting, LH
2004-02 → 2007-05
ended
|
ZZE122 | — | |
| 52146-02050 |
Bracket, Front Bumper Side Mounting, LH
2007-05 → 2012-10
ended
|
ZRE120 | — | |
| 52146-02050 |
Bracket, Front Bumper Side Mounting, LH
2012-10 → —
|
ZRE120 | — | |
| 52611 — Absorber, Front Bumper Energy | ||||
| 52611-02080 |
Absorber, Front Bumper Energy
2004-02 → 2006-08
ended
|
ZZE122 | — | |
| 52611-02180 |
Absorber, Front Bumper Energy
2006-09 → 2007-05
ended
|
ZZE122 | — | |
| 52611-02180 |
Absorber, Front Bumper Energy
2007-05 → 2010-05
ended
|
ZRE120 | — | |
| 52611-YK010 |
Absorber, Front Bumper Energy
2010-05 → 2012-10
ended
|
ZRE120 | — | |
| 52611-YK020 |
Absorber, Front Bumper Energy
2012-10 → —
|
ZRE120 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
