Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

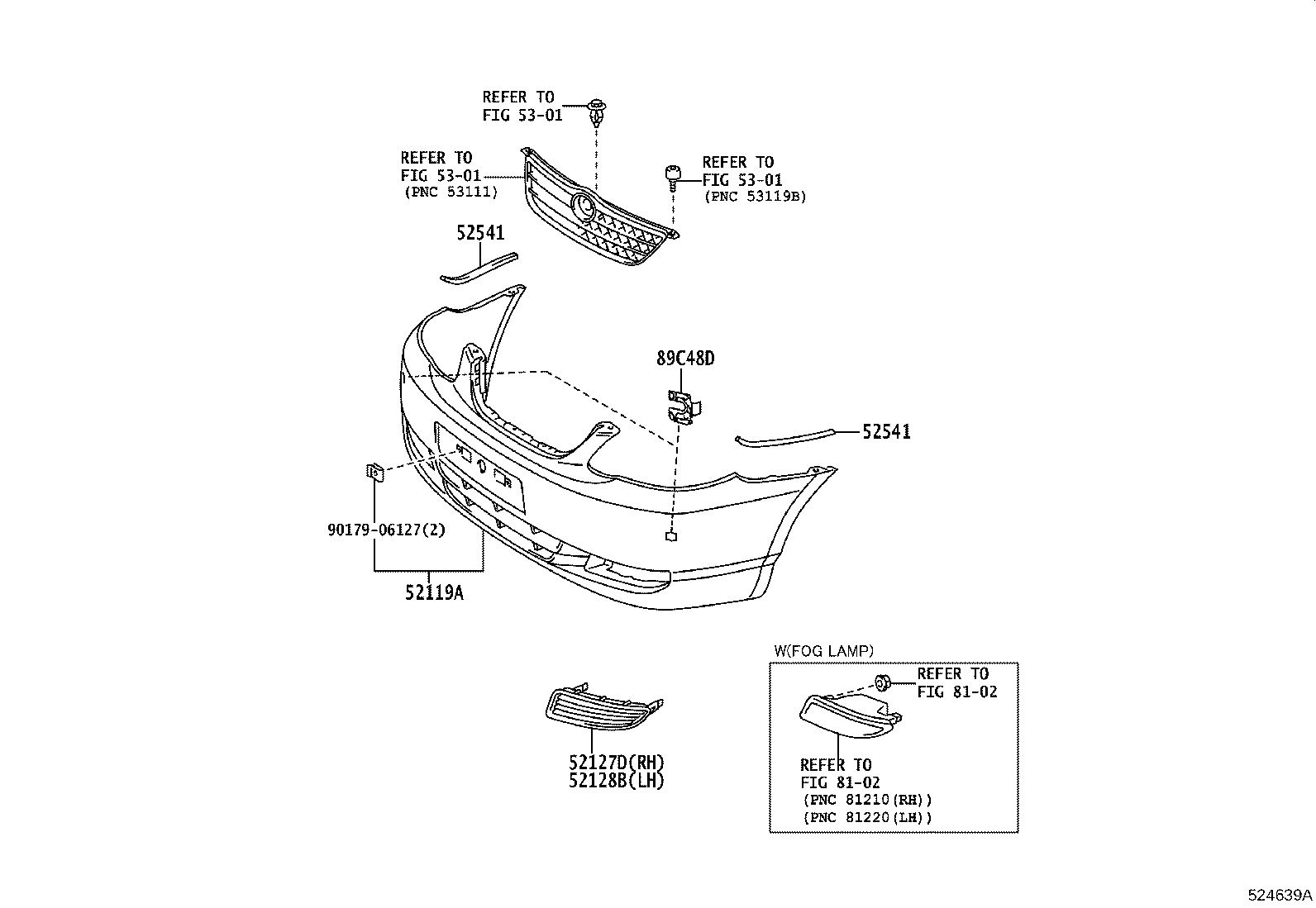

Exploded illustration 524639A 52541 — PROTECTOR, FRONT BUMPER (3 parts) 52541 — PROTECTOR, FRONT BUMPER (3 parts) 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (1 parts) 9017906127 — not listed in this catalogue 52119A — COVER, FRONT BUMPER (7 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (4 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (4 parts) 5301 — not listed in this catalogue 8102 — not listed in this catalogue 8102 — not listed in this catalogue 5301 — not listed in this catalogue 5301 — not listed in this catalogue
524639A · 6 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
52119A — Cover, Front Bumper
52119-02930 note Cover, Front Bumper
2005-06 → 2007-05 ended
ZZE122 GLXI —
52119-02930 note Cover, Front Bumper
2004-02 → 2007-05 ended
ZZE122 GLI —
52119-02931 note Cover, Front Bumper
2004-02 → 2007-05 ended
ZZE122 GLXI —
52119-02944 note Cover, Front Bumper
2004-08 → 2007-05 ended
ZZE122 GLXS —
52119-02930 note Cover, Front Bumper
2007-05 → 2010-05 ended
ZRE120 —
52119-YK900 note Cover, Front Bumper
2010-05 → 2012-10 ended
ZRE120 —
52119-YK901 note Cover, Front Bumper
2012-10 → 2017-02 ended
ZRE120 —
52127D — Cover, Front Bumper Hole, RH
52127-02110 Cover, Front Bumper Hole, RH
2006-01 → 2007-05 ended
ZZE122 5F GLI —
52127-02250 Cover, Front Bumper Hole, RH
2007-05 → 2010-05 ended
ZRE120 5F —
52127-YK010 Cover, Front Bumper Hole, RH
2010-05 → 2012-10 ended
ZRE120 5F —
52127-YK020 Cover, Front Bumper Hole, RH
2012-10 → —
ZRE120 5F —
52128B — Cover, Front Bumper Hole, LH
52128-02100 Cover, Front Bumper Hole, LH
2006-01 → 2007-05 ended
ZZE122 5F GLI —
52128-02280 Cover, Front Bumper Hole, LH
2007-05 → 2010-05 ended
ZRE120 5F —
52128-YK010 Cover, Front Bumper Hole, LH
2010-05 → 2012-10 ended
ZRE120 5F —
52128-YK020 Cover, Front Bumper Hole, LH
2012-10 → —
ZRE120 5F —
52541 — Protector, Front Bumper
52541-02010 Protector, Front Bumper
2004-02 → 2007-05 ended
ZZE122 —
52541-02010 Protector, Front Bumper
2007-05 → 2012-10 ended
ZRE120 —
52541-02010 Protector, Front Bumper
2012-10 → —
ZRE120 —
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-50010 Retainer, Ultrasonic Sensor, Front Corner
2004-02 → 2007-05 ended
ZZE122 GLXI,GLXS —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
