Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

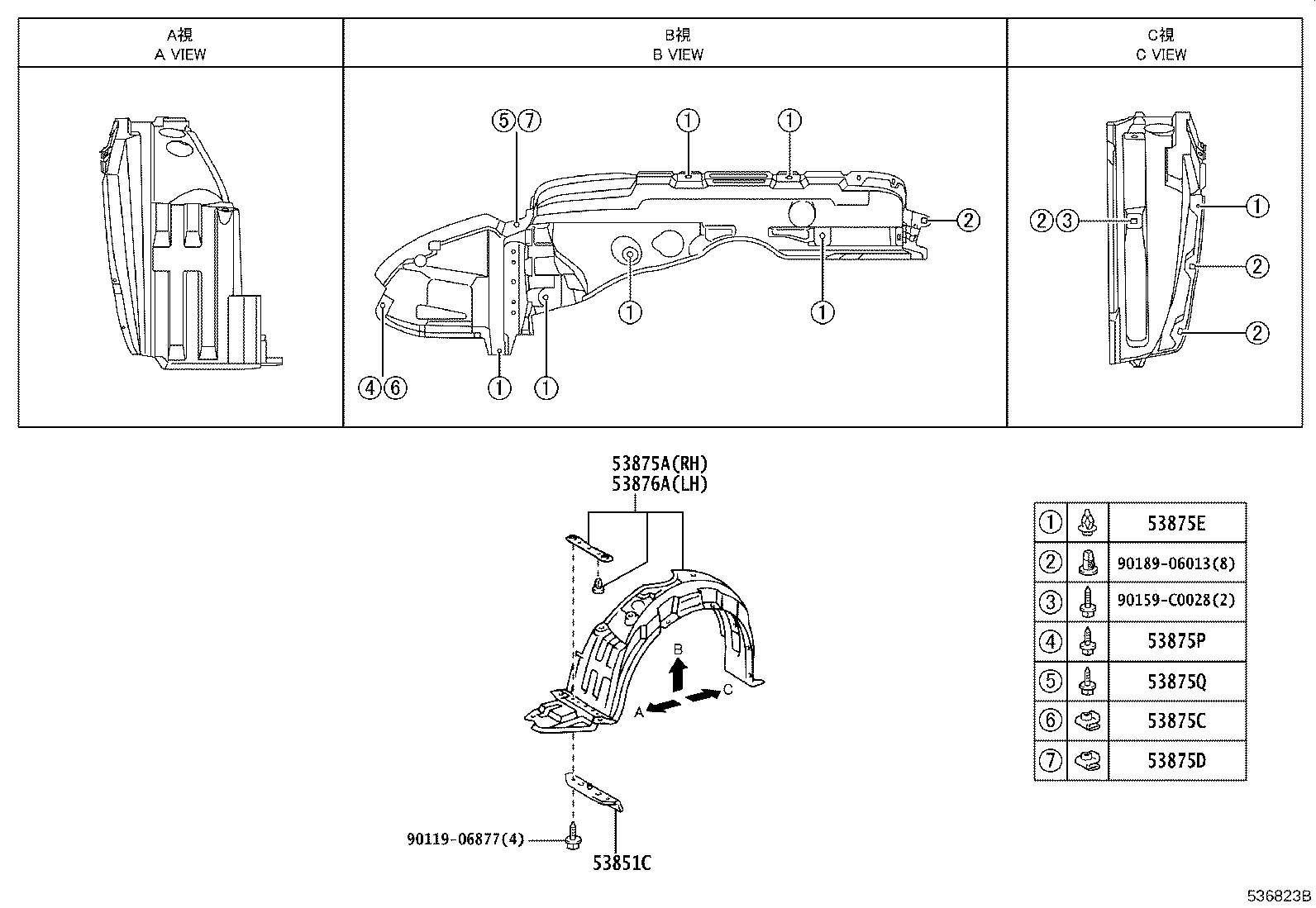

Exploded illustration 536823B 90159C0028 — not listed in this catalogue 9018906013 — not listed in this catalogue 53875A — LINER, FRONT FENDER, RH (5 parts) 53876A — LINER, FRONT FENDER, LH (5 parts) 53851C — PAD, FRONT WHEEL OPENING EXTENSION, NO.1 (4 parts) 9011906877 — not listed in this catalogue 53875E — CLIP, FRONT FENDER LINER, NO.3 (3 parts) 53875C — CLIP, FRONT FENDER LINER (3 parts) 53875D — CLIP, FRONT FENDER LINER, NO.2 (3 parts) 53875P — SCREW, NO.1 (4 parts) 53875Q — SCREW, NO.2 (4 parts)
536823B · 8 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
53851C — Pad, Front Wheel Opening Extension, NO.1
53851-13010 Pad, Front Wheel Opening Extension, NO.1
2004-02 → 2007-05 ended
ZZE122 —
53851-13010 Pad, Front Wheel Opening Extension, NO.1
2007-05 → 2012-10 ended
ZRE120 —
53851-13010 Pad, Front Wheel Opening Extension, NO.1
2012-10 → 2014-03 ended
ZRE120 —
53851-YK010 Pad, Front Wheel Opening Extension, NO.1
2014-04 → —
ZRE120 —
53875A — Liner, Front Fender, RH
53875-12340 Liner, Front Fender, RH
2004-02 → 2007-05 ended
ZZE122 —
53875-12340 Liner, Front Fender, RH
2007-05 → 2010-05 ended
ZRE120 —
53875-YK010 Liner, Front Fender, RH
2010-05 → 2012-10 ended
ZRE120 —
53875-YK010 Liner, Front Fender, RH
2012-10 → 2016-02 ended
ZRE120 —
53875-YK010 Liner, Front Fender, RH
2016-02 → —
ZRE120 —
53875C — Clip, Front Fender Liner
90467-05138 Clip, Front Fender Liner
2004-02 → 2007-05 ended
ZZE122 —
90467-05138 Clip, Front Fender Liner
2007-05 → 2012-10 ended
ZRE120 —
90467-05138 Clip, Front Fender Liner
2012-10 → 2017-02 ended
ZRE120 —
53875D — Clip, Front Fender Liner, NO.2
90467-05138 Clip, Front Fender Liner, NO.2
2004-02 → 2007-05 ended
ZZE122 —
90467-05138 Clip, Front Fender Liner, NO.2
2007-05 → 2012-10 ended
ZRE120 —
90467-05138 Clip, Front Fender Liner, NO.2
2012-10 → 2017-02 ended
ZRE120 —
53875E — Clip, Front Fender Liner, NO.3
90467-10183 Clip, Front Fender Liner, NO.3
2004-02 → 2007-05 ended
ZZE122 —
90467-10183 Clip, Front Fender Liner, NO.3
2007-05 → 2012-10 ended
ZRE120 —
90467-10183 Clip, Front Fender Liner, NO.3
2012-10 → 2017-02 ended
ZRE120 —
53875P — Screw, NO.1
90159-60488 Screw, NO.1
2004-02 → 2007-05 ended
ZZE122 —
90159-60488 Screw, NO.1
2007-05 → 2010-01 ended
ZRE120 —
90159-C0012 Screw, NO.1
2010-01 → 2012-10 ended
ZRE120 —
90159-C0012 Screw, NO.1
2012-10 → 2017-02 ended
ZRE120 —
53875Q — Screw, NO.2
90159-60488 Screw, NO.2
2004-02 → 2007-05 ended
ZZE122 —
90159-60488 Screw, NO.2
2007-05 → 2010-01 ended
ZRE120 —
90159-C0012 Screw, NO.2
2010-01 → 2012-10 ended
ZRE120 —
90159-C0012 Screw, NO.2
2012-10 → 2017-02 ended
ZRE120 —
53876A — Liner, Front Fender, LH
53876-12330 Liner, Front Fender, LH
2004-02 → 2007-05 ended
ZZE122 —
53876-12330 Liner, Front Fender, LH
2007-05 → 2010-05 ended
ZRE120 —
53876-YK010 Liner, Front Fender, LH
2010-05 → 2012-10 ended
ZRE120 —
53876-YK010 Liner, Front Fender, LH
2012-10 → 2016-02 ended
ZRE120 —
53876-YK010 Liner, Front Fender, LH
2016-02 → —
ZRE120 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
