Toyota Corolla (CHINA)
2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General
Discontinued model
Data version 2017-08

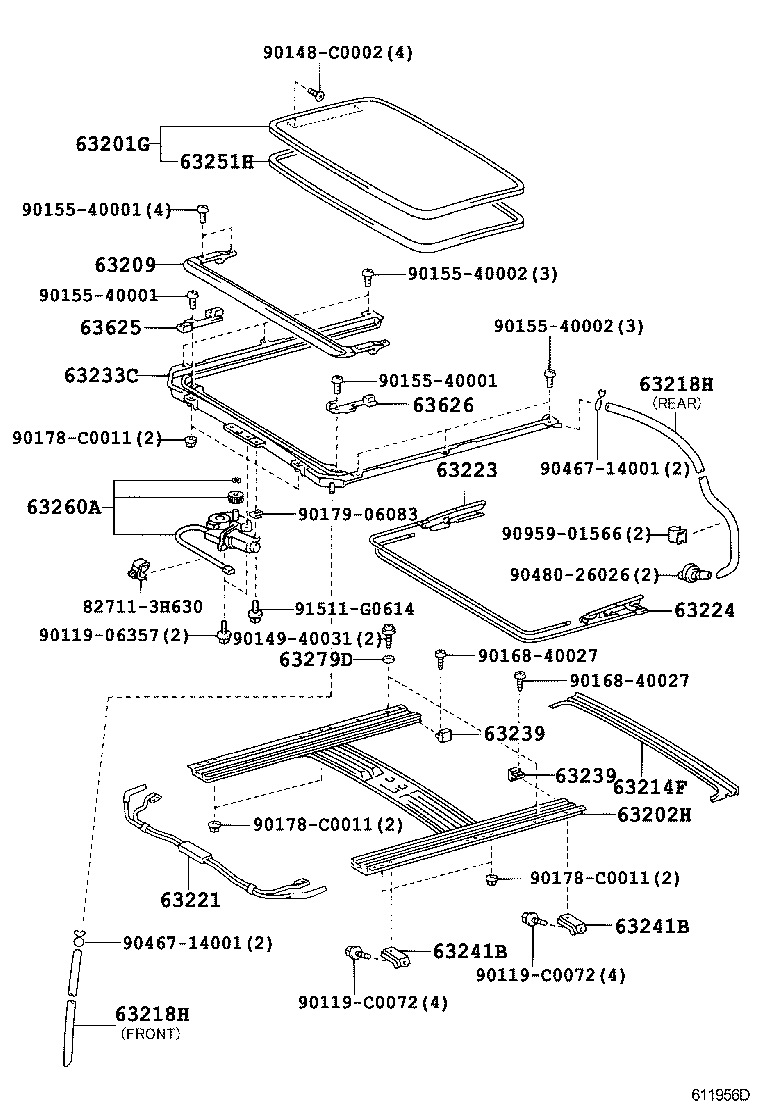

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-12262 note |
Glass Sub-assy, Sliding Roof
2004-02 → 2007-05
ended
|
ZZE122 GLXI,GLXS | — | |
| 63201-12262 note |
Glass Sub-assy, Sliding Roof
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63201-YK011 note |
Glass Sub-assy, Sliding Roof
2012-10 → —
|
ZRE120 | — | |
| 63202H — Rail Sub-assy, Slide Roof | ||||
| 63202-02030 |
Rail Sub-assy, Slide Roof
2004-02 → 2007-04
ended
|
ZZE122 GLXI,GLXS | — | |
| 63202-02030 |
Rail Sub-assy, Slide Roof
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63209 — Panel Sub-assy, Roof Wind Deflector | ||||
| 63209-12170 |
Panel Sub-assy, Roof Wind Deflector
2004-02 → 2007-04
ended
|
ZZE122 GLXI,GLXS | — | |
| 63209-12170 |
Panel Sub-assy, Roof Wind Deflector
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63214F — Channel, Roof Drip, Rear | ||||
| 63214-02030 |
Channel, Roof Drip, Rear
2004-02 → 2007-04
ended
|
ZZE122 GLXI,GLXS | — | |
| 63214-02030 |
Channel, Roof Drip, Rear
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63218H — Hose, Sliding Roof Drain | ||||
| 63249-12320 note |
Hose, Sliding Roof Drain
2004-02 → 2007-05
ended
|
ZZE122 GLXI,GLXS | — | |
| 63249-12330 note |
Hose, Sliding Roof Drain
2004-02 → 2005-03
ended
|
ZZE122 GLXI,GLXS | — | |
| 63249-12331 note |
Hose, Sliding Roof Drain
2005-04 → 2007-05
ended
|
ZZE122 GLXI,GLXS | — | |
| 63249-12320 note |
Hose, Sliding Roof Drain
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63249-12331 note |
Hose, Sliding Roof Drain
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63249-12320 note |
Hose, Sliding Roof Drain
2012-10 → 2013-03
ended
|
ZRE120 | — | |
| 63249-12331 note |
Hose, Sliding Roof Drain
2012-10 → —
|
ZRE120 | — | |
| 63249-YK010 note |
Hose, Sliding Roof Drain
2013-03 → —
|
ZRE120 | — | |
| 63221 — Casing, Sliding Roof Cable Guide | ||||
| 63221-12100 |
Casing, Sliding Roof Cable Guide
2004-02 → 2007-04
ended
|
ZZE122 GLXI,GLXS | — | |
| 63221-12100 |
Casing, Sliding Roof Cable Guide
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63223 — Cable, Sliding Roof Drive, RH | ||||
| 63223-02030 |
Cable, Sliding Roof Drive, RH
2004-02 → 2007-04
ended
|
ZZE122 GLXI,GLXS | — | |
| 63223-02031 |
Cable, Sliding Roof Drive, RH
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63224 — Cable, Sliding Roof Drive, LH | ||||
| 63224-02030 |
Cable, Sliding Roof Drive, LH
2004-02 → 2007-04
ended
|
ZZE122 GLXI,GLXS | — | |
| 63224-02031 |
Cable, Sliding Roof Drive, LH
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63233C — Panel, Sliding Roof Housing | ||||
| 63233-02030 |
Panel, Sliding Roof Housing
2004-02 → 2007-04
ended
|
ZZE122 GLXI,GLXS | — | |
| 63233-02030 |
Panel, Sliding Roof Housing
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63239 — Stopper, Sliding Roof Panel | ||||
| 63239-12030 |
Stopper, Sliding Roof Panel
2004-02 → 2007-05
ended
|
ZZE122 GLXI,GLXS | — | |
| 63239-12030 |
Stopper, Sliding Roof Panel
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63241B — Bracket, Sliding Roof Housing, NO.1 | ||||
| 63241-12110 |
Bracket, Sliding Roof Housing, NO.1
2004-02 → 2007-05
ended
|
ZZE122 GLXI,GLXS | — | |
| 63241-12110 |
Bracket, Sliding Roof Housing, NO.1
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63251H — Weatherstrip, Sliding Roof | ||||
| 63251-12161 |
Weatherstrip, Sliding Roof
2004-02 → 2007-05
ended
|
ZZE122 GLXI,GLXS | — | |
| 63251-12161 |
Weatherstrip, Sliding Roof
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63251-02050 |
Weatherstrip, Sliding Roof
2012-10 → 2016-11
ended
|
ZRE120 | — | |
| 63251-YK010 |
Weatherstrip, Sliding Roof
2016-12 → 2017-02
ended
|
ZRE120 | — | |
| 63260A — Gear Sub-assy, Sliding Roof Drive | ||||
| 63260-12110 |
Gear Sub-assy, Sliding Roof Drive
2004-02 → 2007-04
ended
|
ZZE122 GLXI,GLXS | — | |
| 63260-12110 |
Gear Sub-assy, Sliding Roof Drive
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63260-YK900 |
Gear Sub-assy, Sliding Roof Drive
2012-10 → 2017-02
ended
|
ZRE120 | — | |
| 63279D — Stopper, Sliding Roof Guide Rail | ||||
| 63279-12030 |
Stopper, Sliding Roof Guide Rail
2004-02 → 2007-04
ended
|
ZZE122 GLXI,GLXS | — | |
| 63279-12030 |
Stopper, Sliding Roof Guide Rail
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63625 — Block, Sliding Roof Guide, RH | ||||
| 63625-12050 |
Block, Sliding Roof Guide, RH
2004-02 → 2007-04
ended
|
ZZE122 GLXI,GLXS | — | |
| 63625-12050 |
Block, Sliding Roof Guide, RH
2009-10 → 2012-10
ended
|
ZRE120 | — | |
| 63626 — Block, Sliding Roof Guide, LH | ||||
| 63626-12050 |
Block, Sliding Roof Guide, LH
2004-02 → 2007-04
ended
|
ZZE122 GLXI,GLXS | — | |
| 63626-12050 |
Block, Sliding Roof Guide, LH
2009-10 → 2012-10
ended
|
ZRE120 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
