Toyota Corolla (CHINA)
2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General
Discontinued model
Data version 2017-08

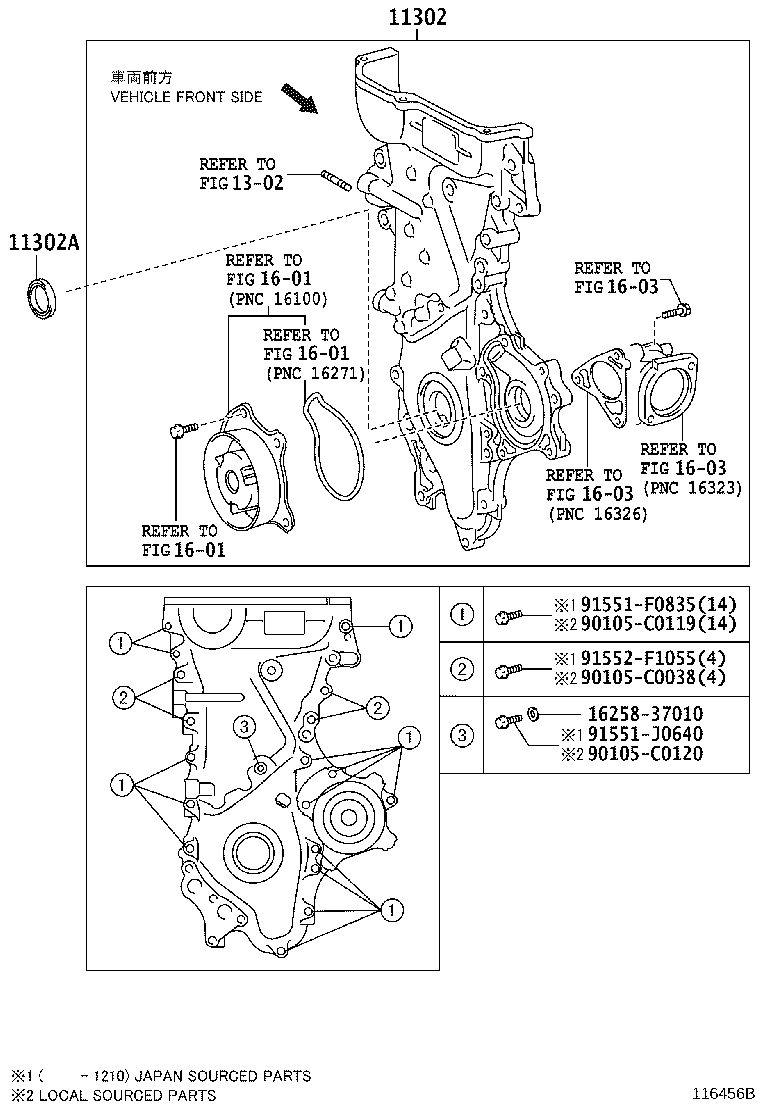

Timing Gear Cover & Rear End Plate
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301A | Pin, Straight(FOR TIMING GEAR CASE) |
| 11301K | Sensor, Crank Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302A | Seal, Oil(FOR TIMING CHAIN OR BELT COVER) |
| 19941C | Clamp, Cord(FOR CRANK POSITION SENSOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
