Toyota Corolla (CHINA)
2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General
Discontinued model
Data version 2017-08

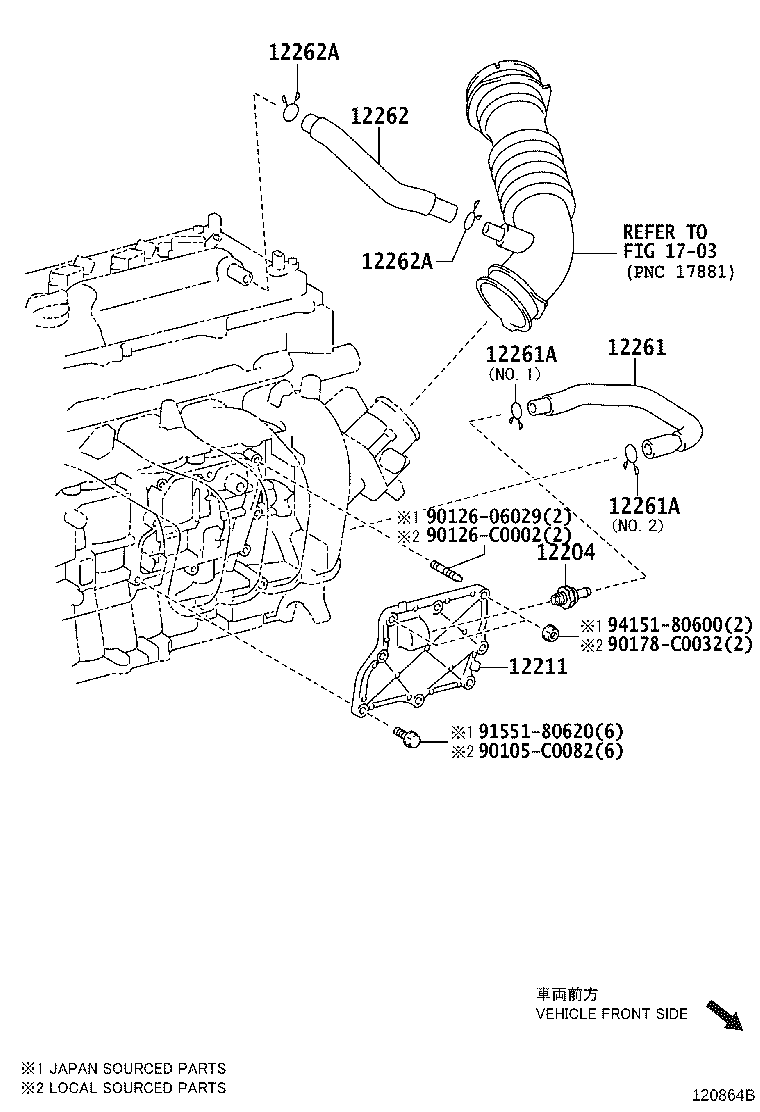

Ventilation Hose
6 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12211 | Case, Ventilation, NO.1 |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
