Engine Oil Pump

10 part groups · 2 illustrations

Illustrations

Figure 150784C

150784C 2004-02 → —

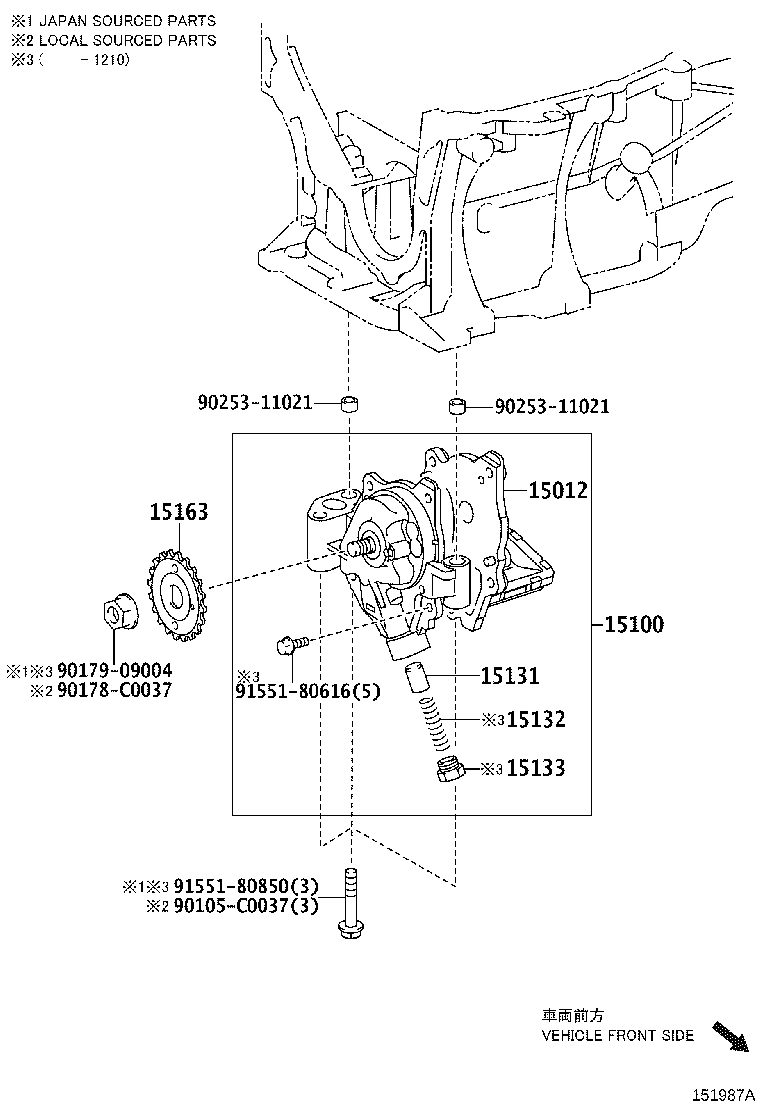

Figure 151987A

151987A 2007-05 → —

Part groups

PNC	Description
15012	Cover Sub-assy, Oil Pump
15100	Pump Assy, Oil
15100A	Pin, Ring(FOR OIL PUMP SET)
15104	Strainer Sub-assy, Oil
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15149	Gasket, Oil Strainer Flange
15163	Gear, Oil Pump Drive Shaft
15193	Gasket, Oil Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
