Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

15 part groups · 4 illustrations

Illustrations

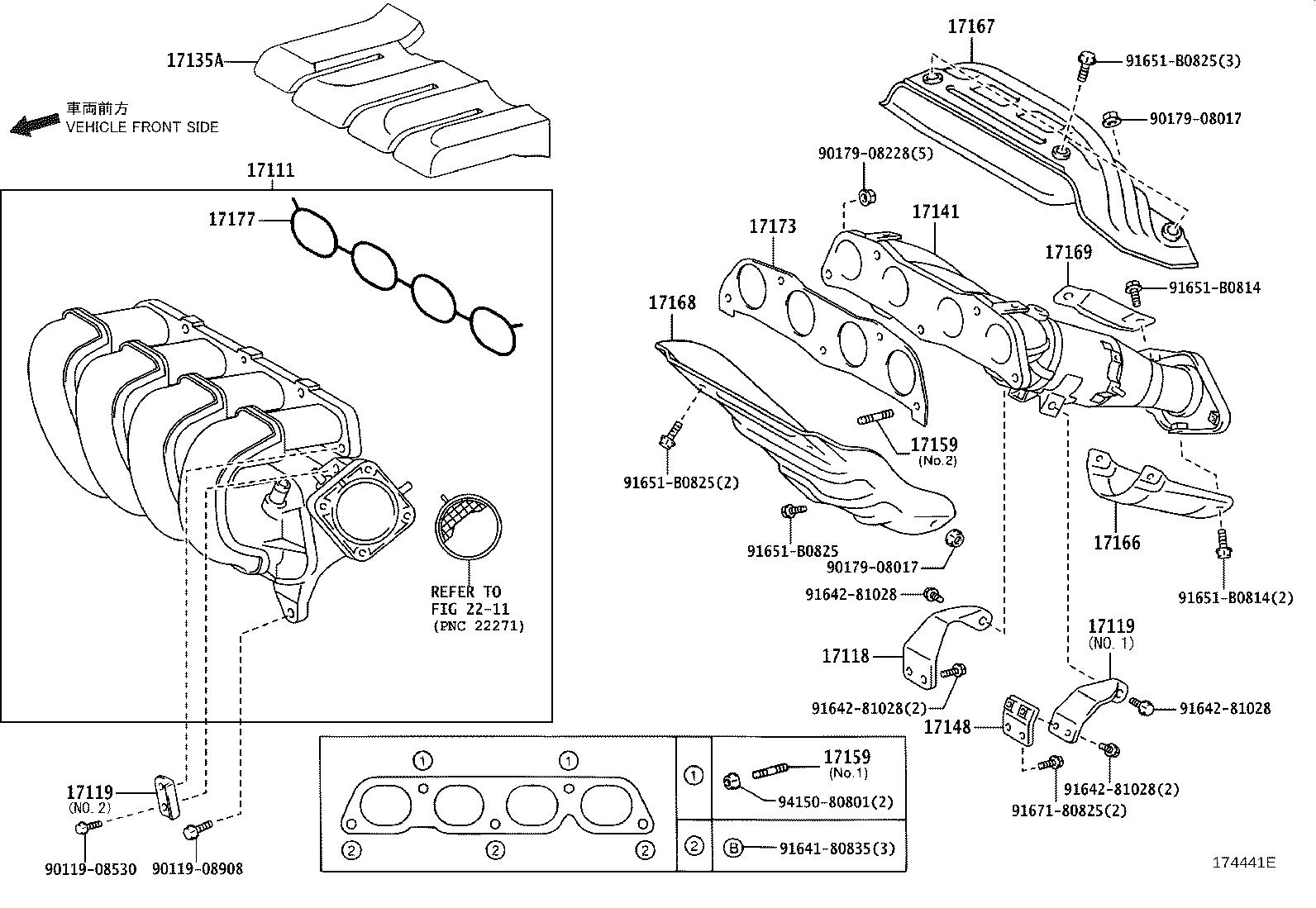

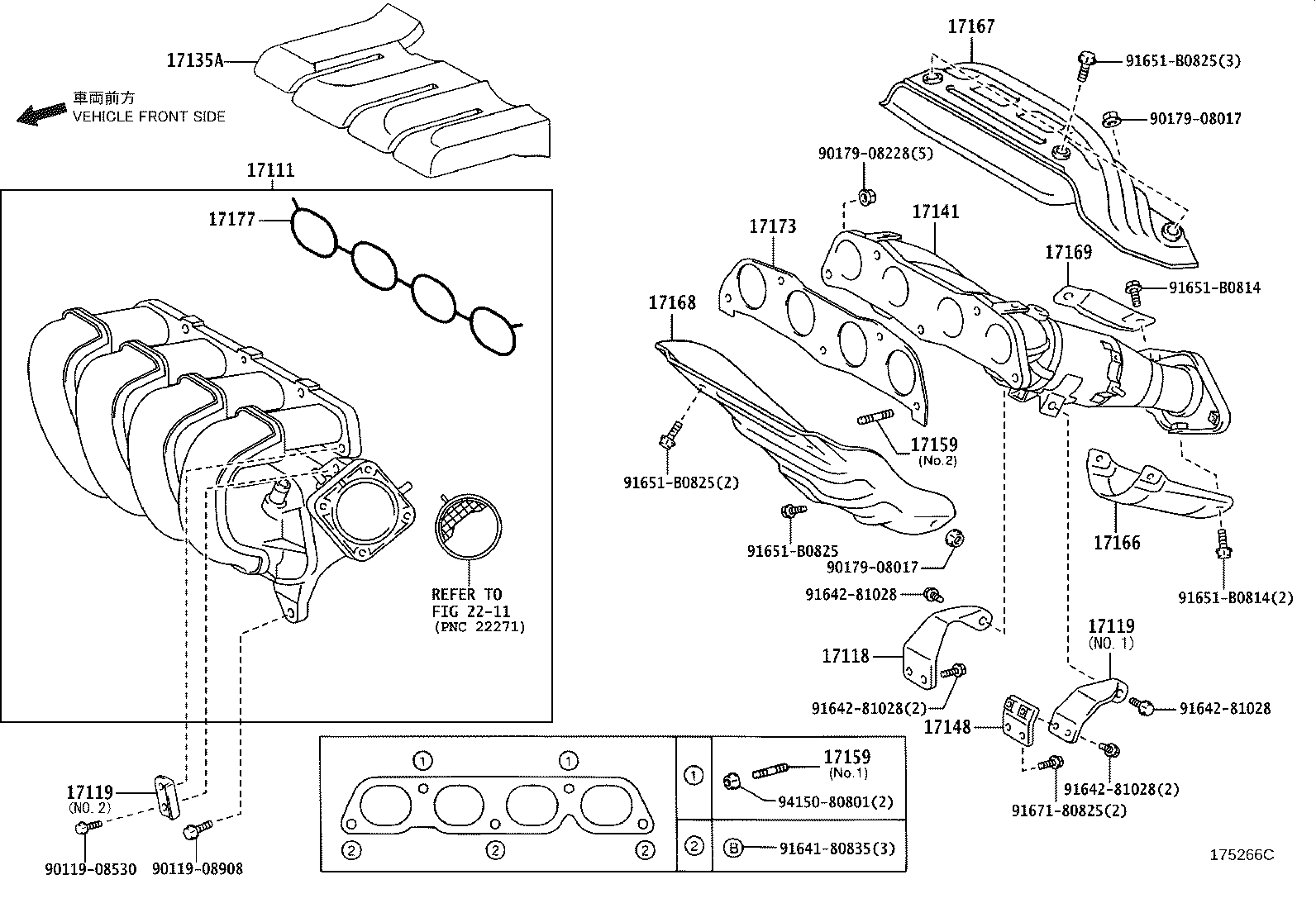

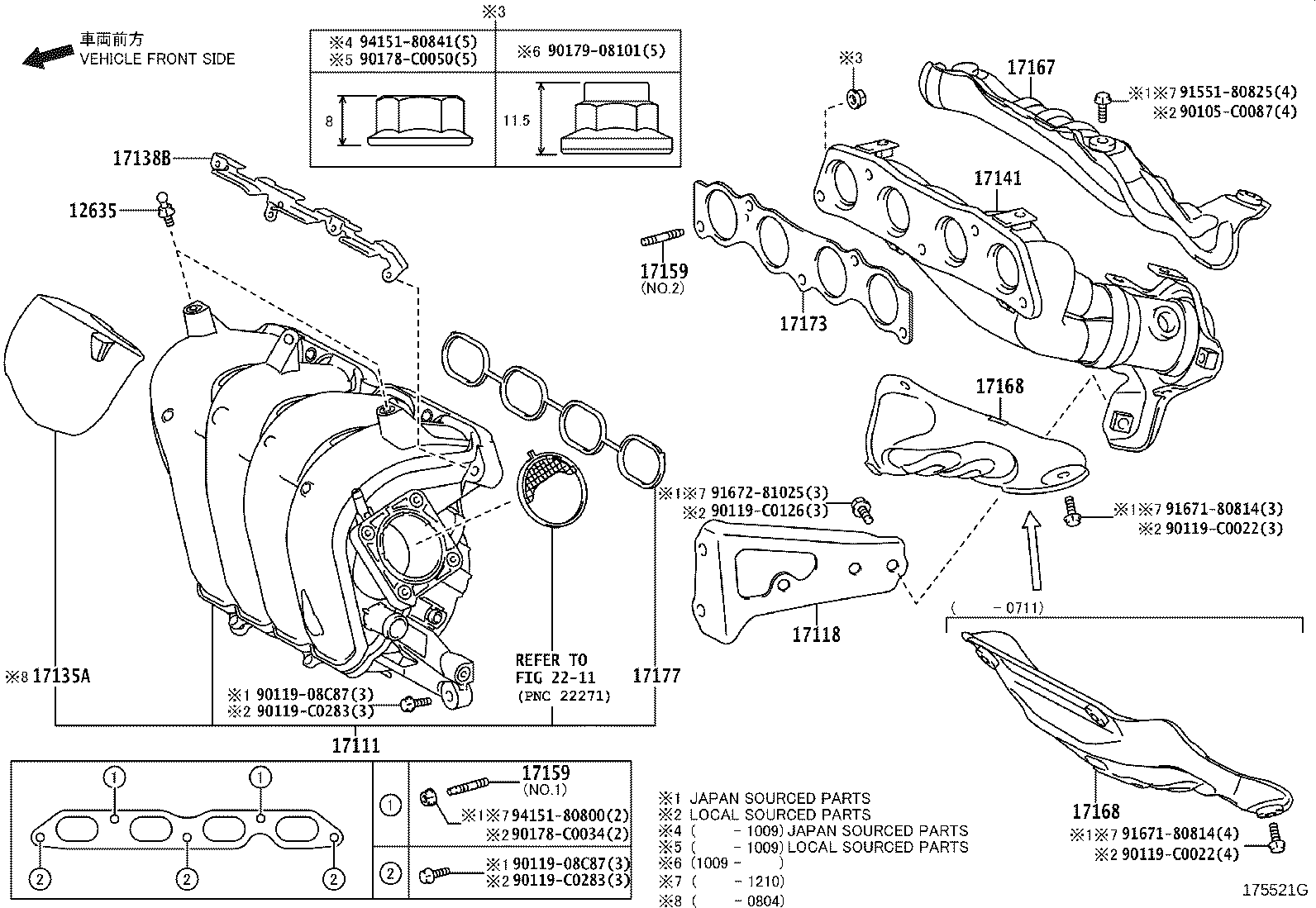

Figure 173940E 173940E 2004-02 → 2006-06 Figure 174441E 174441E 2005-07 → 2006-06 Figure 175266C 175266C 2006-06 → 2007-05 Figure 175521G 175521G 2007-05 → —

Part groups

PNCDescription
12635 Joint, Engine Cover
17111 Manifold, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17166 Insulator, Exhaust Manifold Heat,NO.4
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
