Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

6 part groups · 2 illustrations

Illustrations

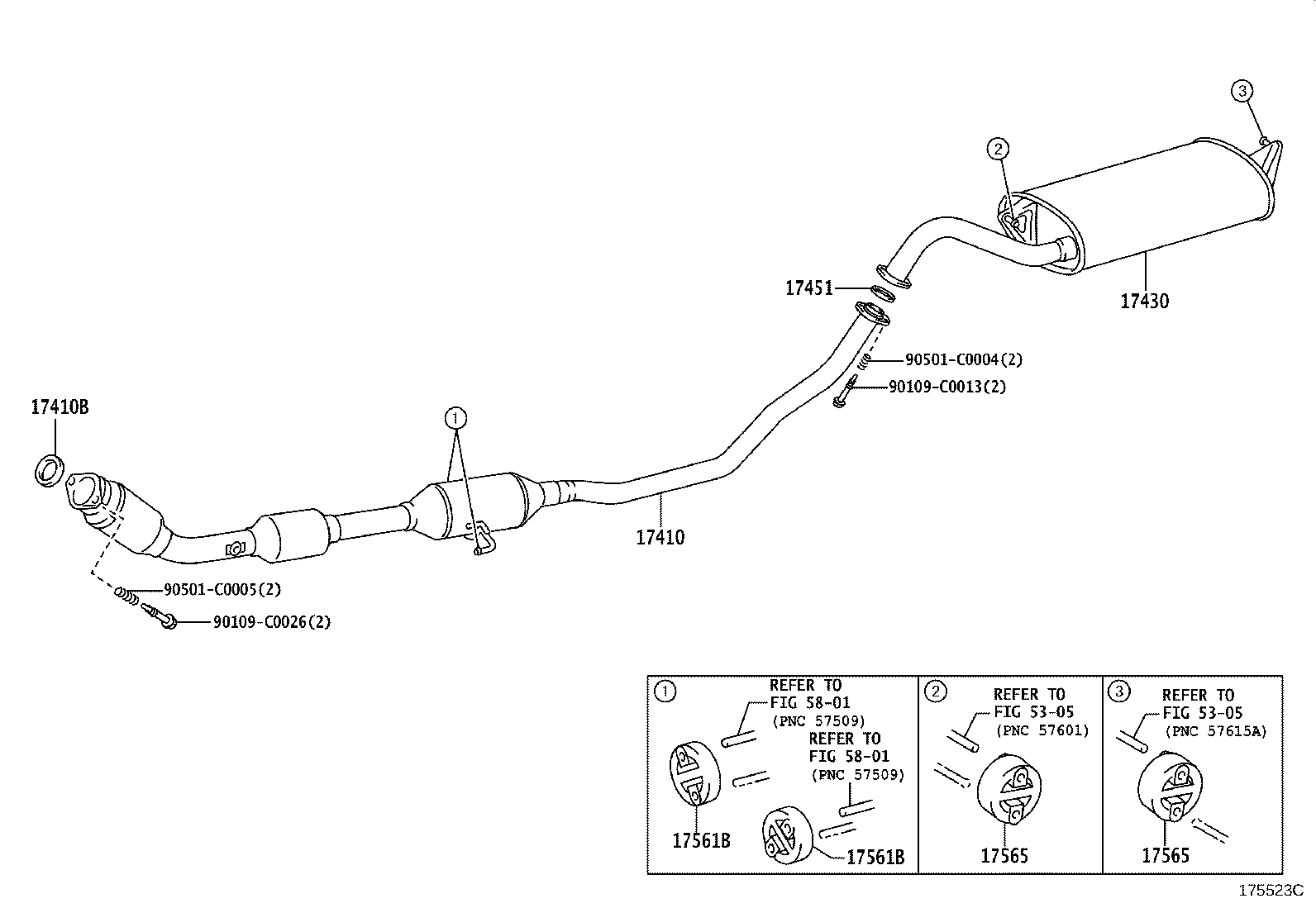

Figure 173951C 173951C 2004-02 → 2007-05 Figure 175523C 175523C 2007-05 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17561B Support, Exhaust Pipe, NO.1
17565 Support, Exhaust Pipe, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
