Toyota Corolla (CHINA)
2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General
Discontinued model
Data version 2017-08

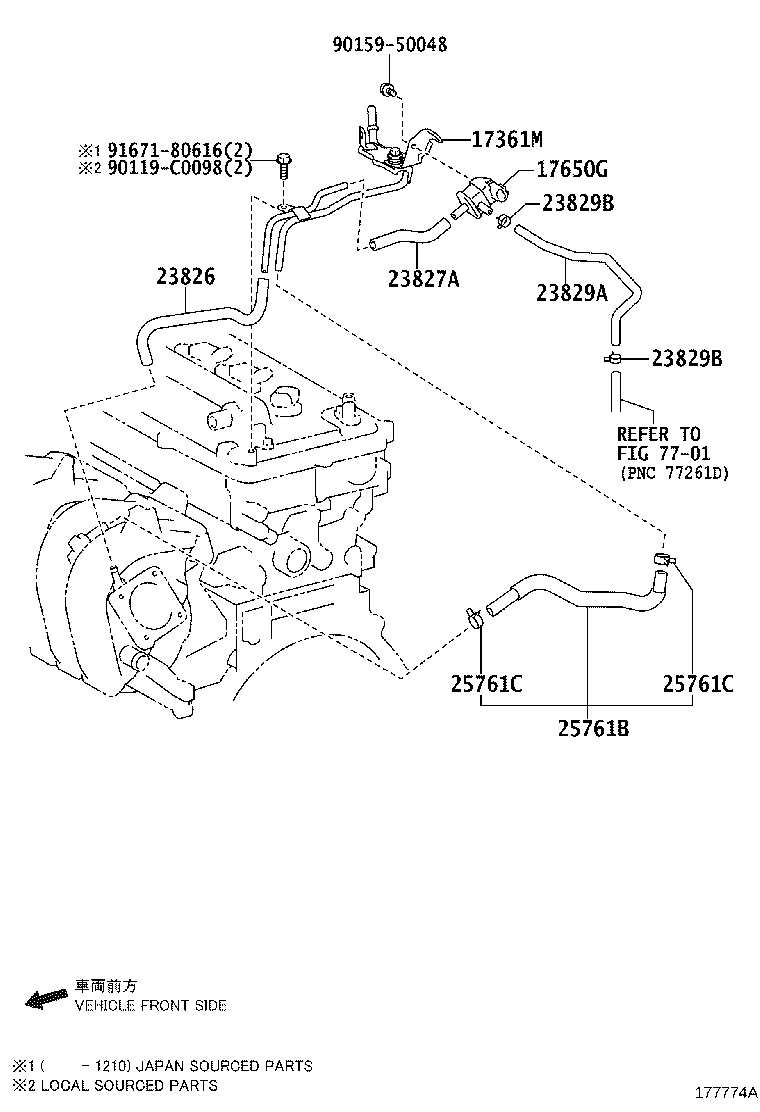

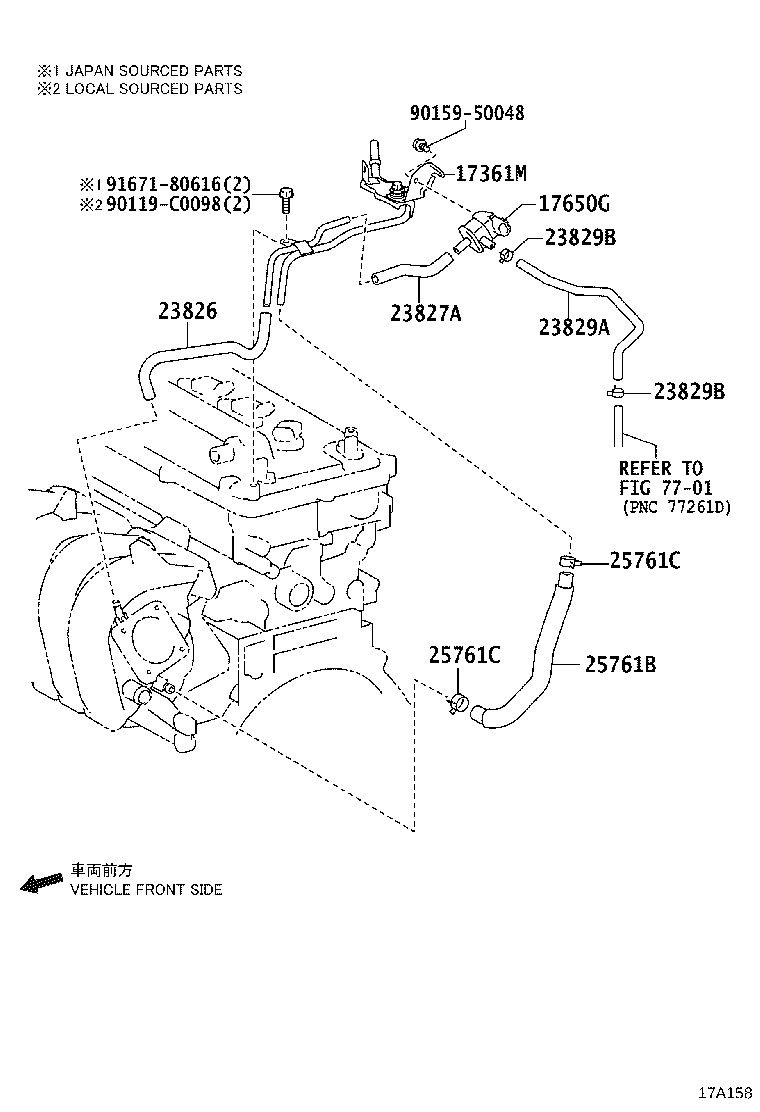

Vacuum Piping
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17361M | Tube, Air |
| 17650E | Valve, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23829 | Hose, Fuel Vapor Feed, NO.3 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 25761B | Hose, Vaccum Transmitting, NO.1 |
| 25761C | Clip(VACCUM TRANSMITTING HOSE NO.1) |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
