Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

11 part groups · 4 illustrations

Illustrations

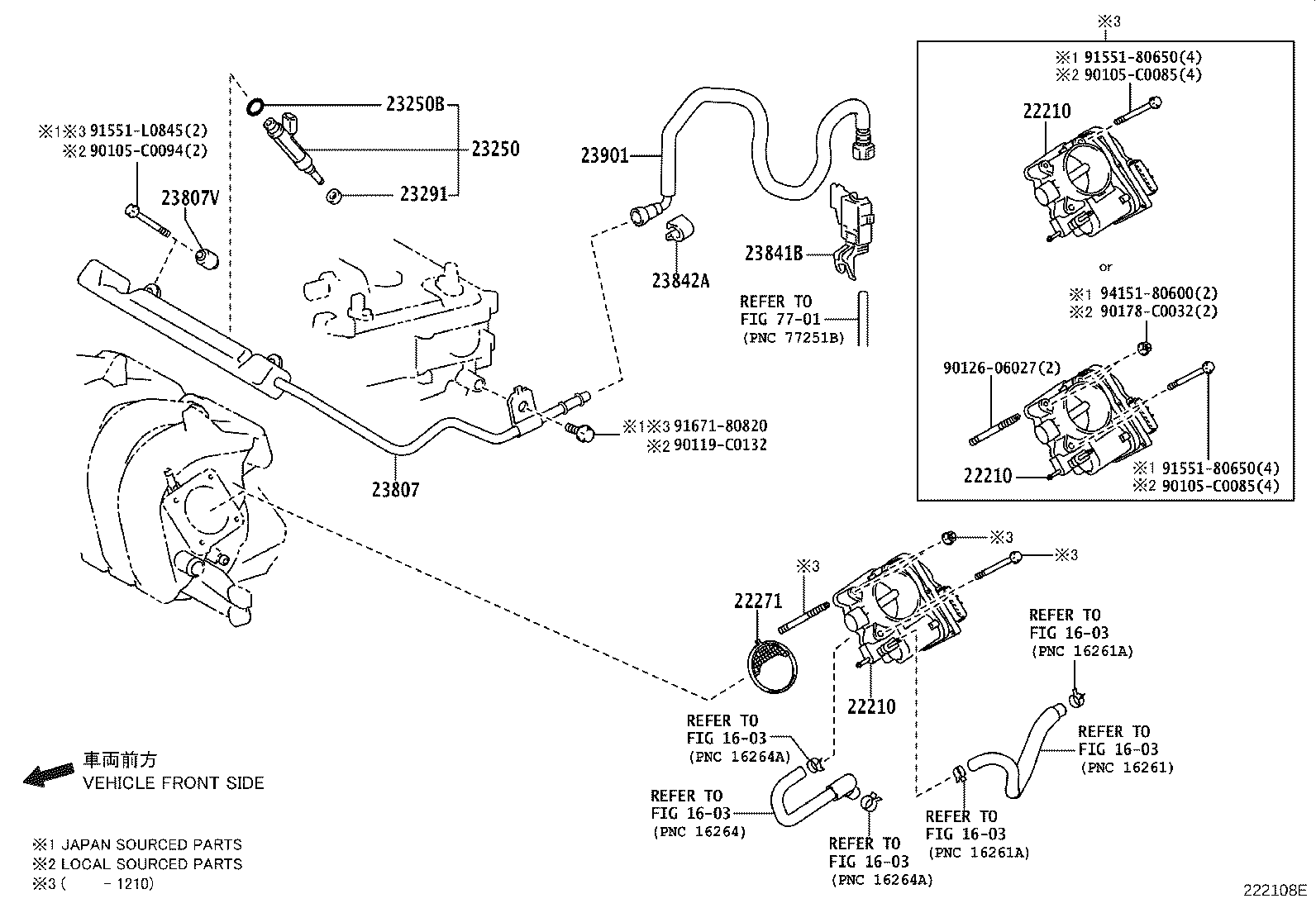

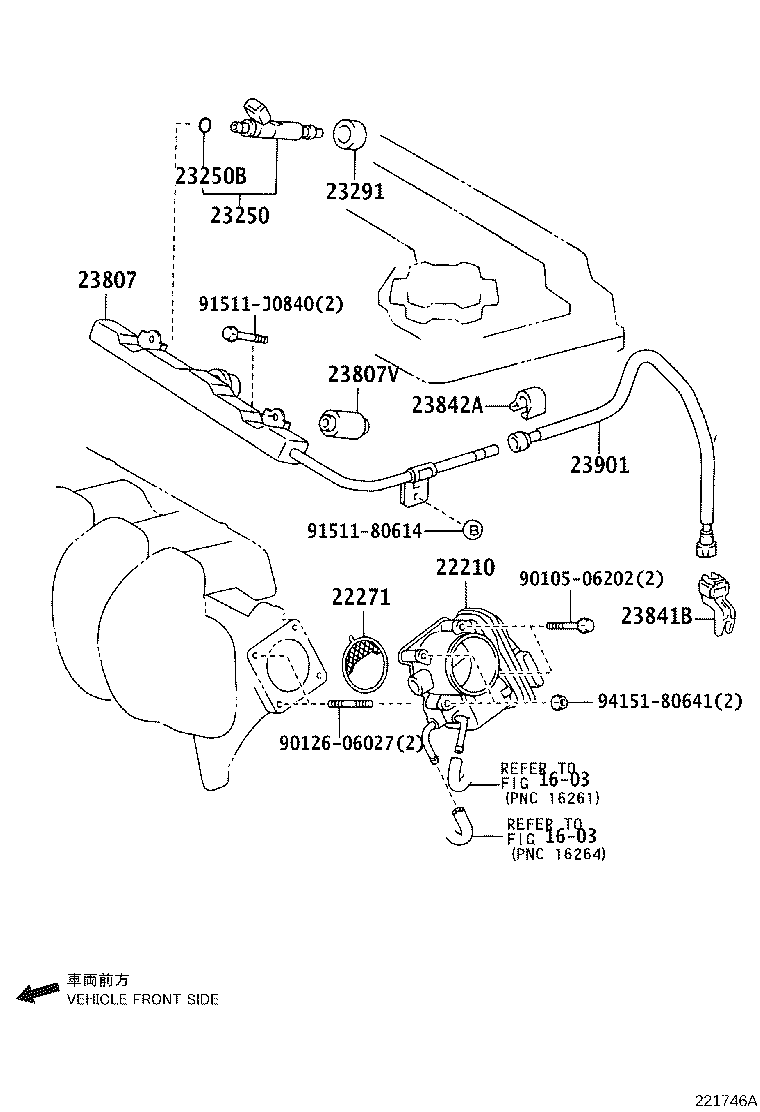

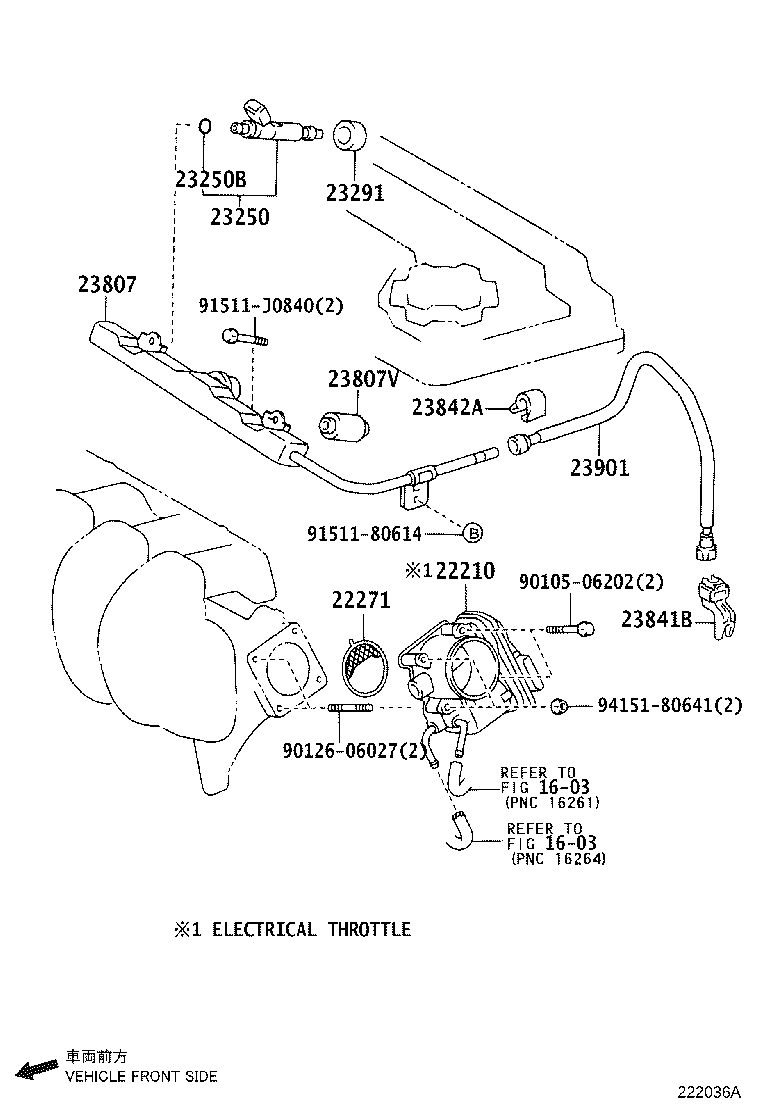

Figure 221545G 221545G 2004-02 → 2006-06 Figure 222036A 222036A 2005-06 → 2006-06 Figure 221746A 221746A 2006-06 → 2007-05 Figure 222108E 222108E 2007-05 → —

Part groups

PNCDescription
22210 Body Assy, Throttle
22267 Bracket, Throttle Body
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23291 Insulator, Injector Vibration
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
