Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

15 part groups · 3 illustrations

Illustrations

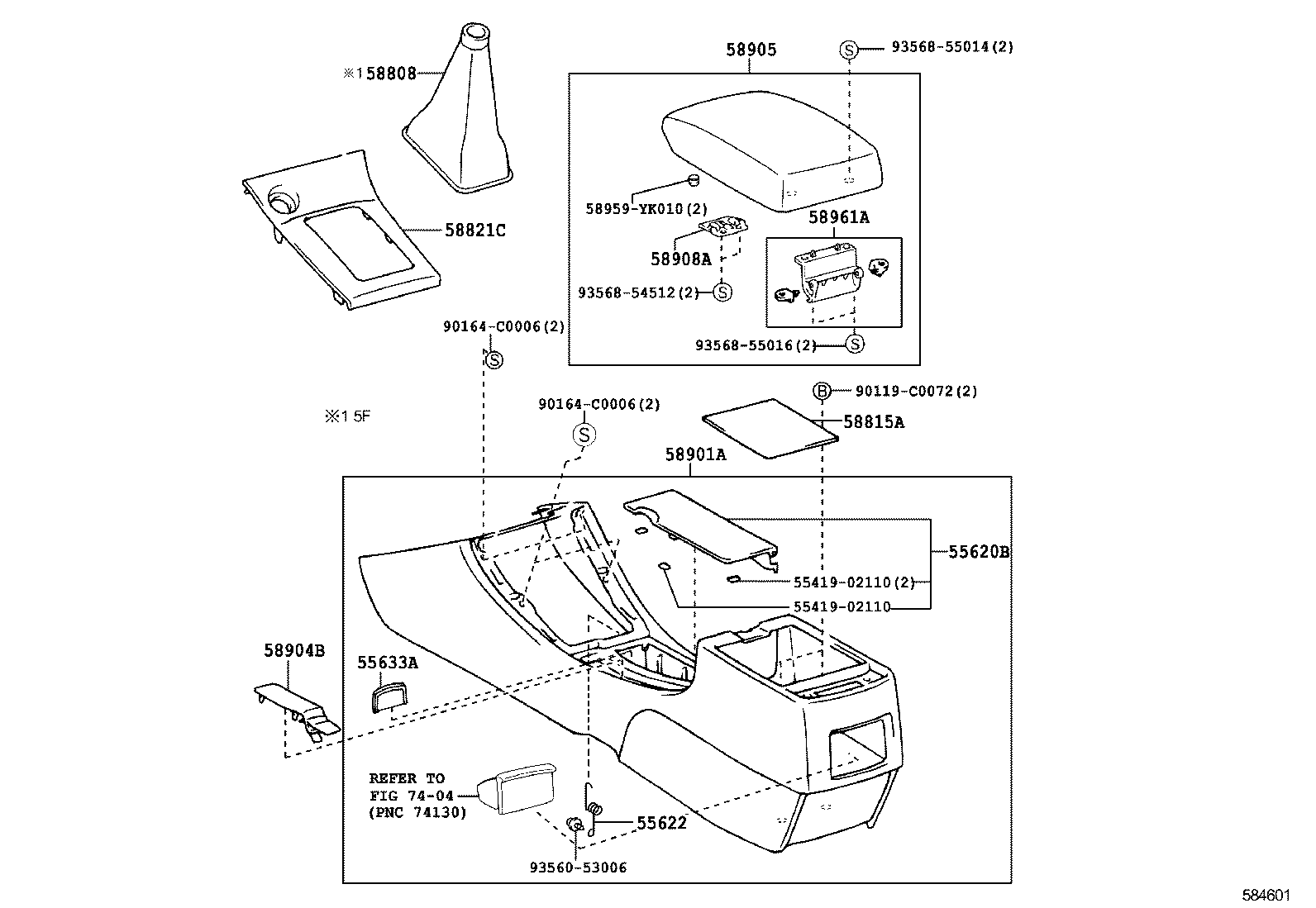

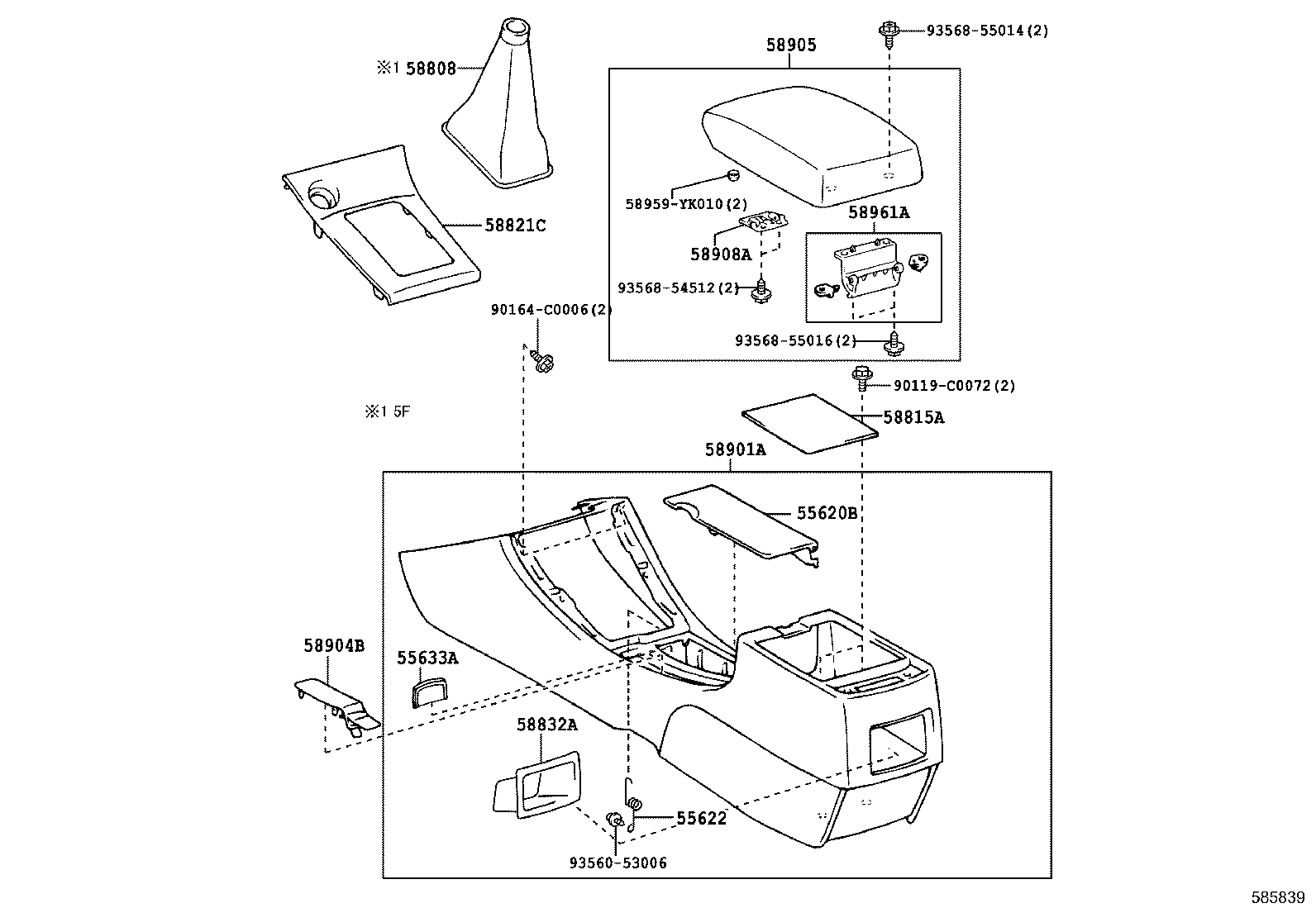

Figure 581947K 581947K 2004-02 → 2012-10 Figure 584601 584601 2012-10 → 2015-12 Figure 585839 585839 2015-12 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
55620B Holder, Instrument Panel Cup
55622 Spring, Instr Panel Cup Holder, NO.1
55633A Support, Instrument Panel Cup Holder, NO.1
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58821C Panel, Console, Upper
58832A Garnish, Console Upper Panel, Rear
58901A Box Sub-assy, Console, Rear
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58961A Hinge, Console Compartment Door Male
58972A Base, Console Compartment Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
