Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

34 part groups · 4 illustrations

Illustrations

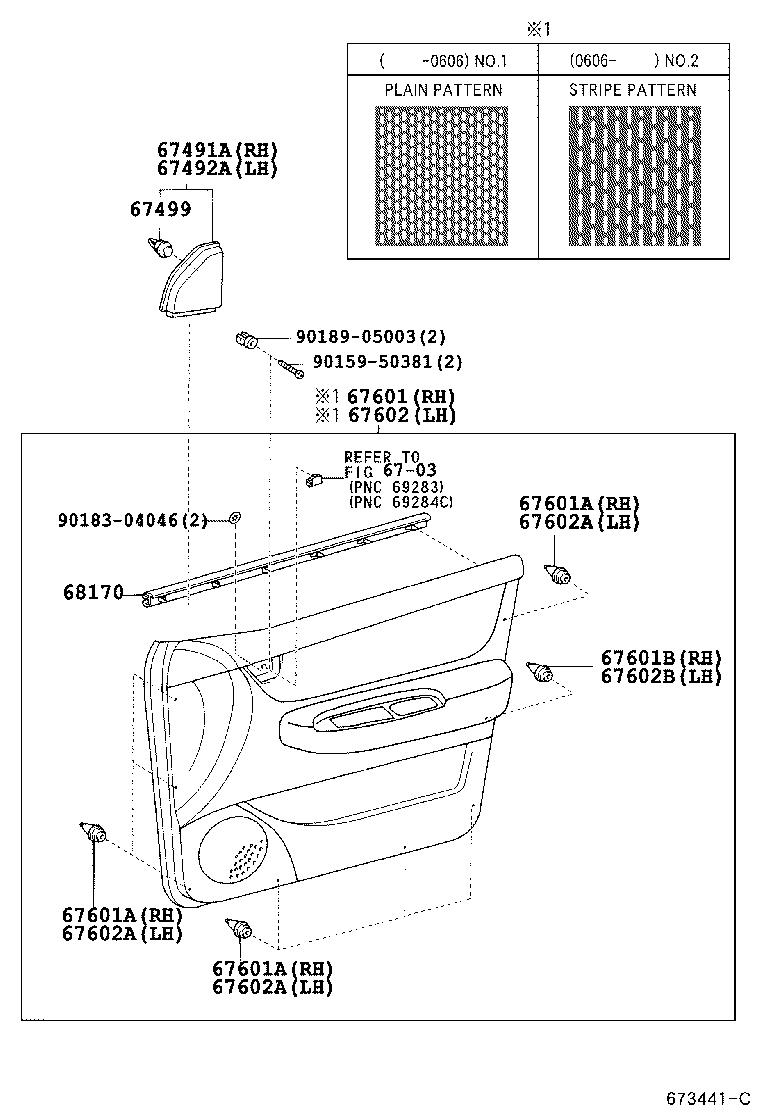

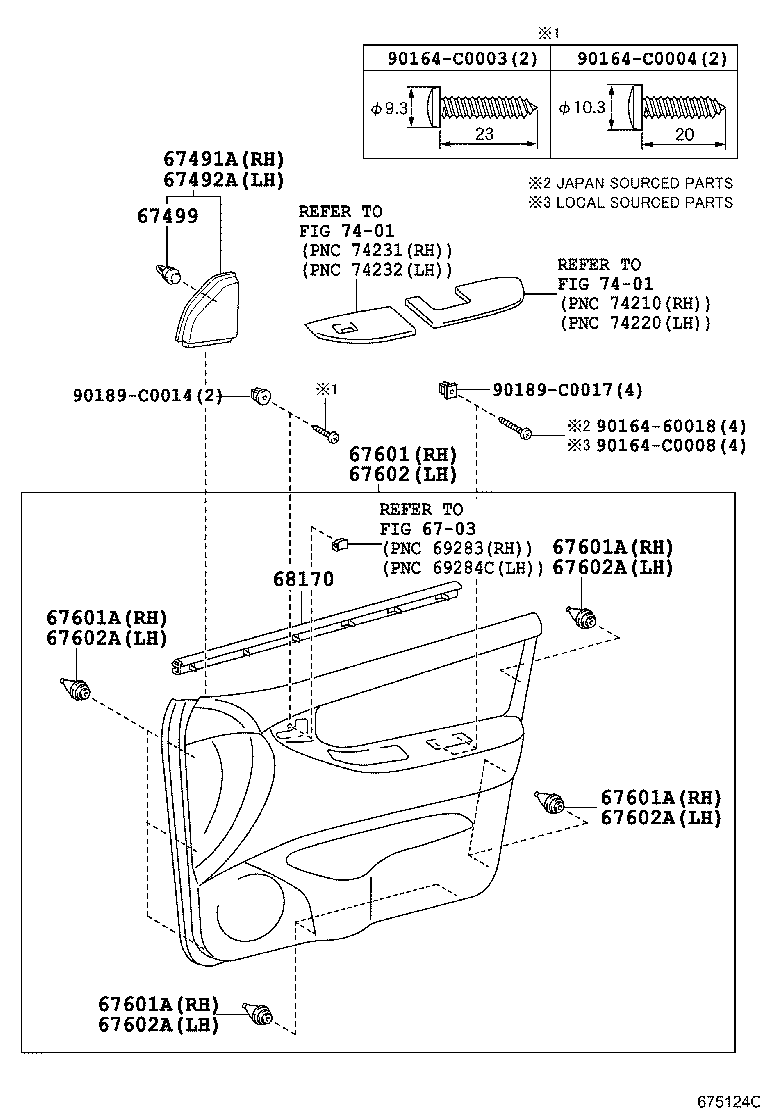

Figure 673444G 673444G 2004-02 → — Figure 673441C 673441C 2004-02 → 2007-05 Figure 675124C 675124C 2007-05 → — Figure 674121D 674121D 2004-02 → 2012-10

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491A Garnish, Front Door Lower Frame Bracket, RH
67492A Garnish, Front Door Lower Frame Bracket, LH
67499 Retainer, Front Door Lower Frame Bracket Garnish
67601 Board Sub-assy, Front Door Trim, RH
67601A Retainer(FOR FRONT DOOR TRIM BOARD)
67601B Clip(FOR FRONT DOOR TRIM BOARD)
67602 Board Sub-assy, Front Door Trim, LH
67602A Retainer, Door Trim, LH
67602B Retainer, Door Trim, NO.2 LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67869B Clip, Front Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68145A Cushion, Front Door Window
68151C Run, Front Door Glass, LH
68170 Weatherstrip Assy, Front Door Glass, Inner
68610B Check Assy, Front Door, RH
68620 Check Assy, Front Door, LH
74217A Reinforcement, Door Armrest, Front RH
74218 Reinforcement, Door Armrest, Front LH
75921C Tape, Black Out, NO.1 RH
75922M Tape, Black Out, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
