Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

17 part groups · 3 illustrations

Illustrations

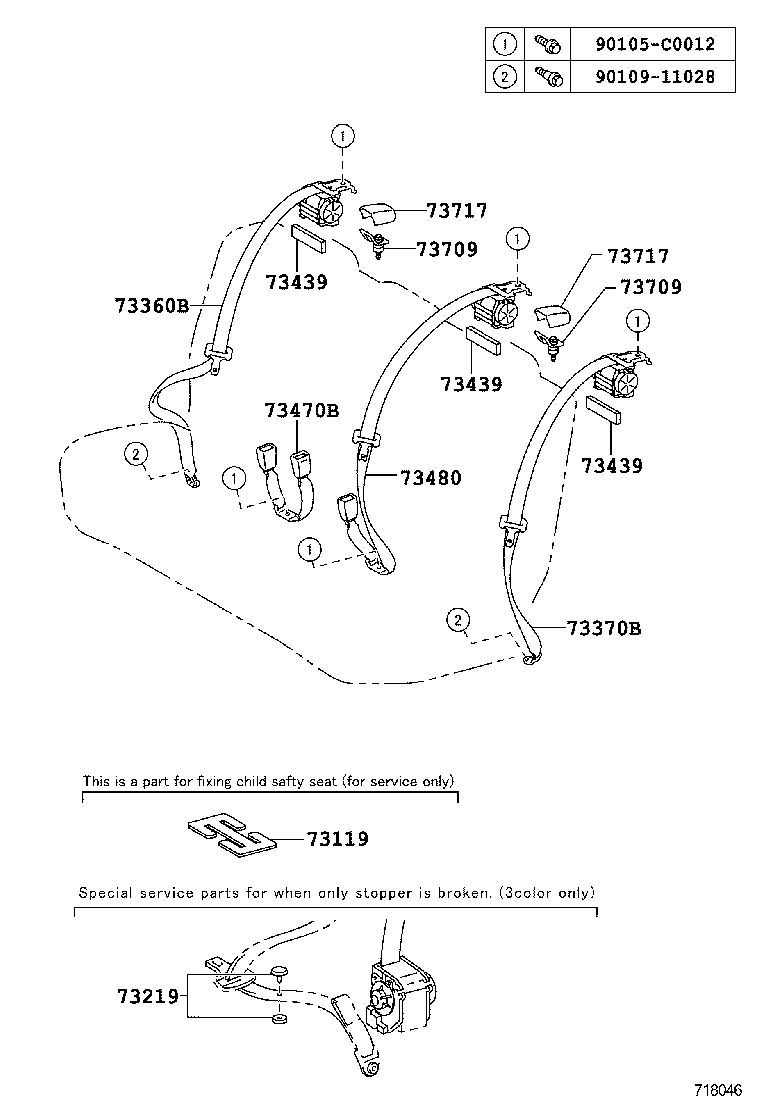

Figure 713179C 713179C 2004-02 → — Figure 713178B 713178B 2004-02 → 2012-10 Figure 718046 718046 2012-10 → —

Part groups

PNCDescription
73119 Plate, Seat Belt Webbing Clip
73135 Cover, Shoulder Belt Anchorage Plate
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73360B Belt Assy, Rear Seat, Outer
73370B Belt Assy, Rear Seat, Outer
73439 Cushion, Rear Seat Belt Retractor
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73709 Bracket Sub-assy, Tether Anchor
73717 Cover, Child Restraint Seat Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
