Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

7 part groups · 3 illustrations

Illustrations

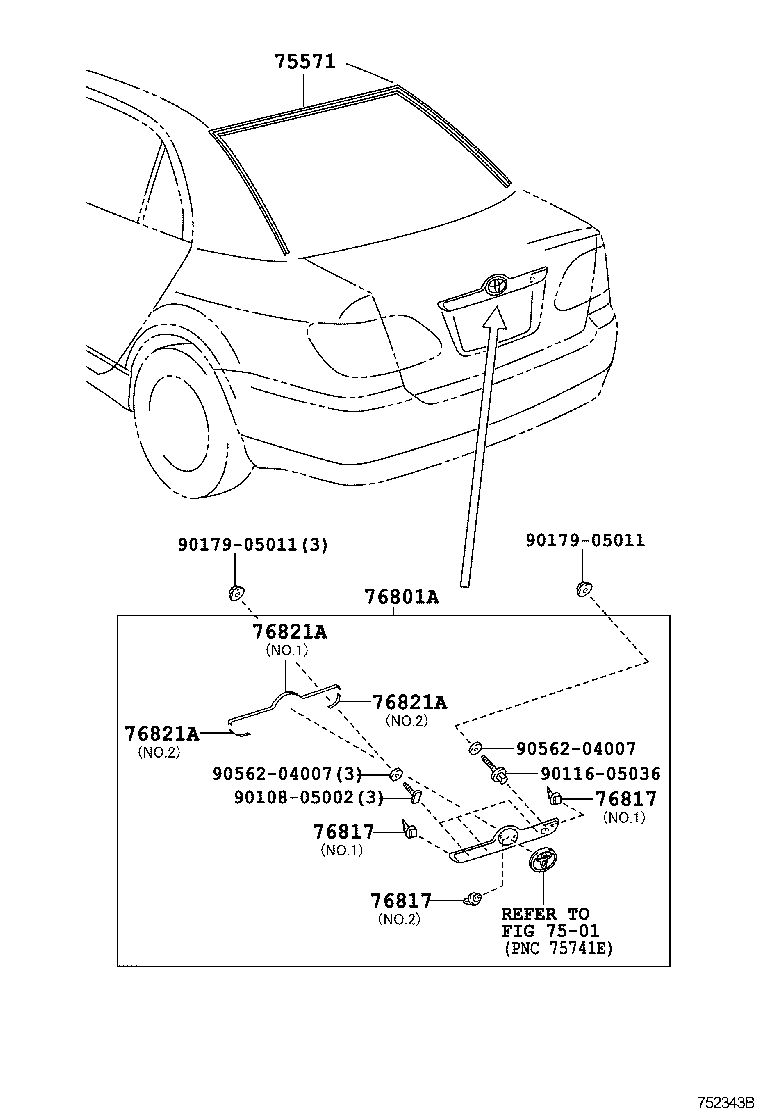

Figure 751278A 751278A 2004-02 → 2010-05 Figure 752343B 752343B 2010-05 → 2012-10 Figure 752757 752757 2012-10 → —

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76811B Garnish, Luggage Compartment Door, Outside
76817 Clip, Back Door Outside Garnish
76818A Pad, Luggage Garnish, NO.1
76821A Protector, Luggage Compartment Door Outside Garnish
76826 Retainer, Back Door Garnish, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
