Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

28 part groups · 13 illustrations

Illustrations

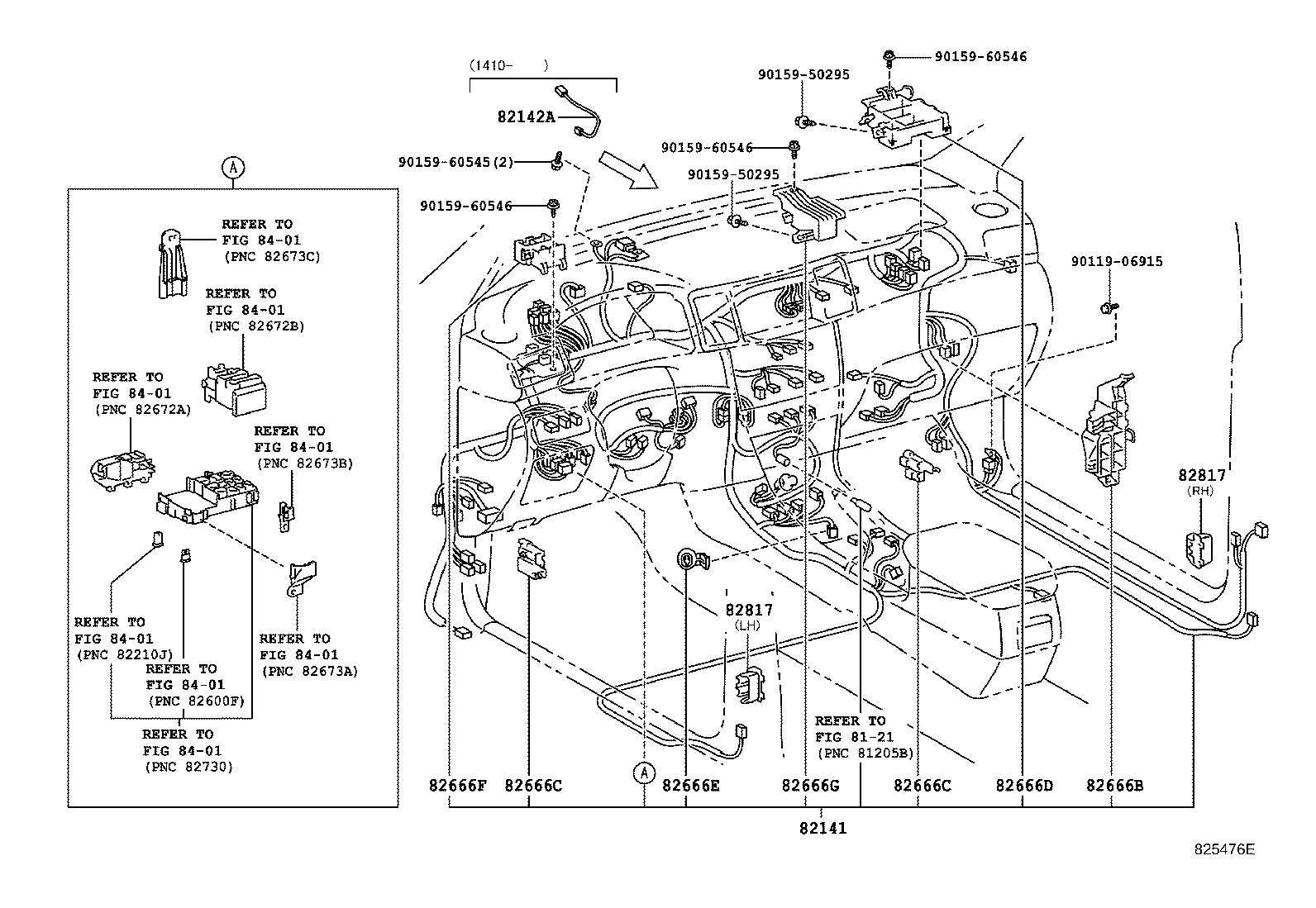

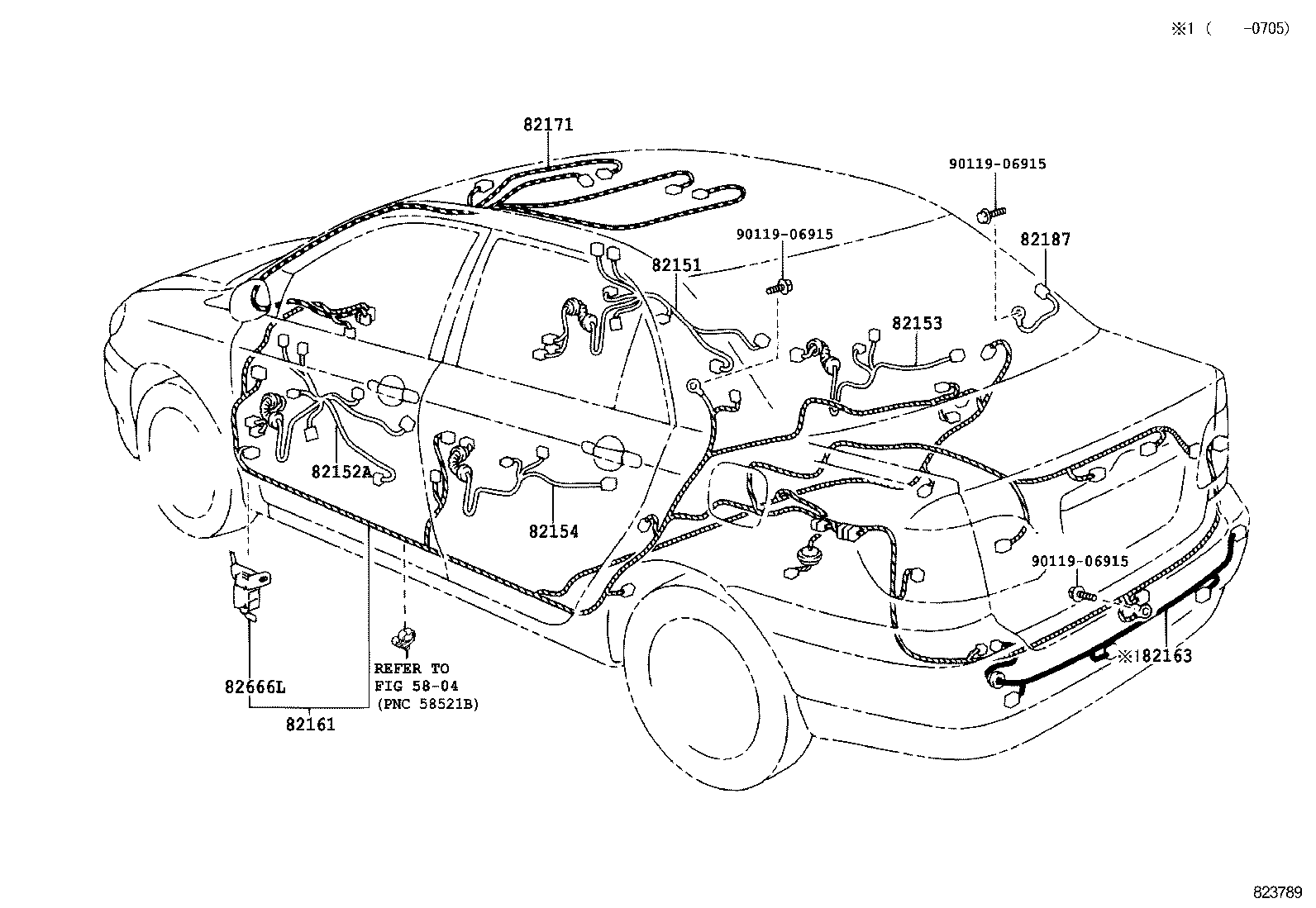

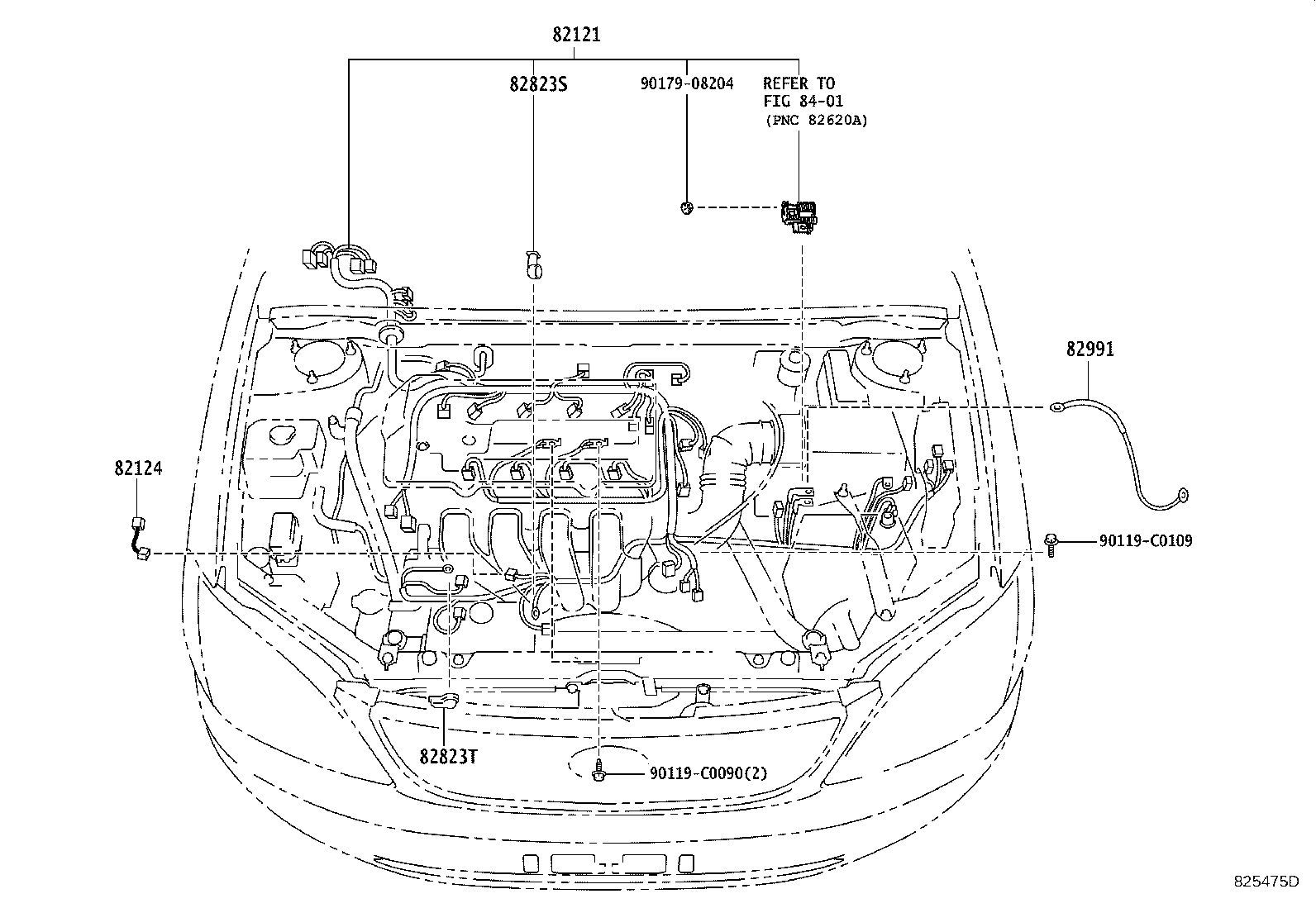

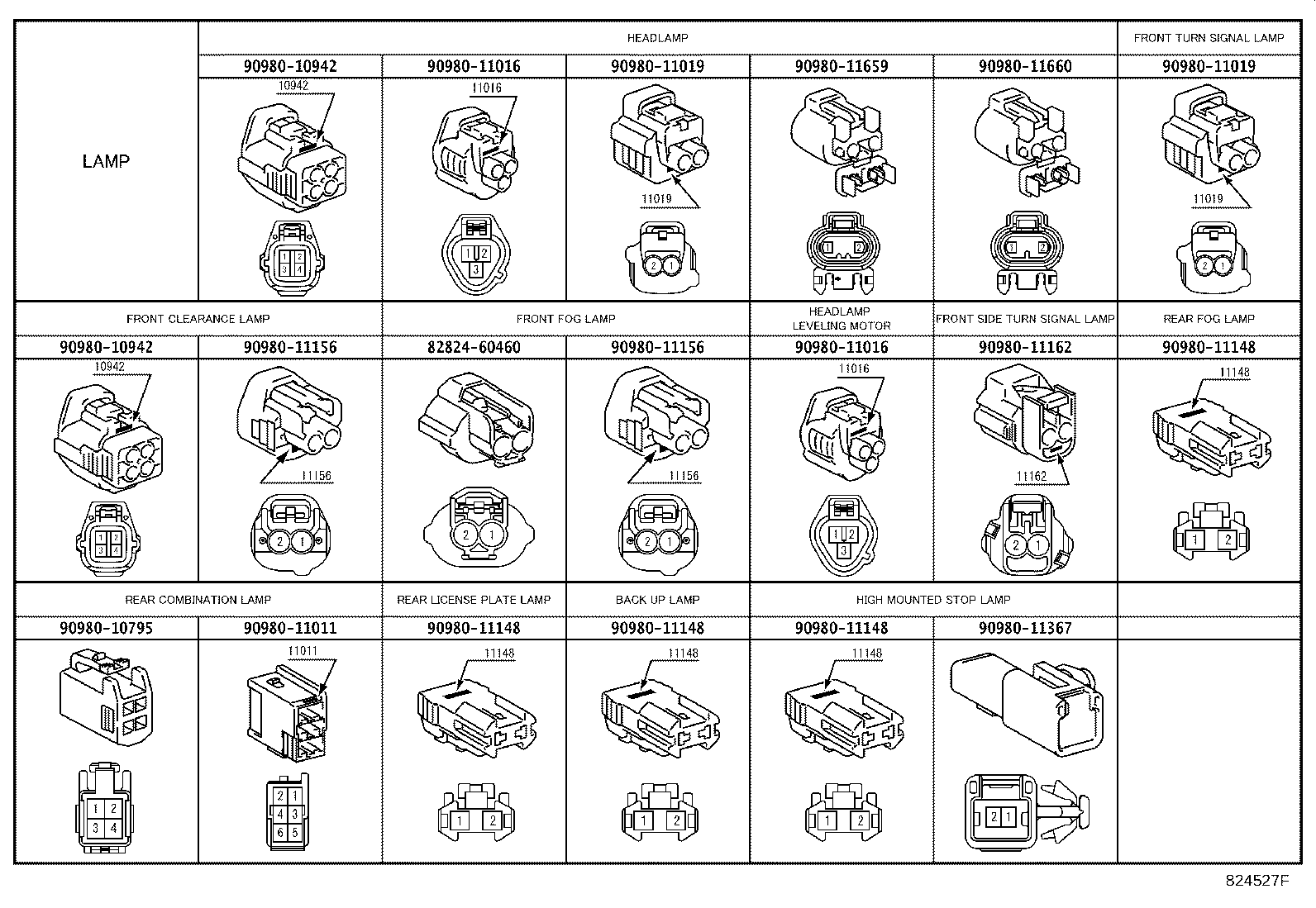

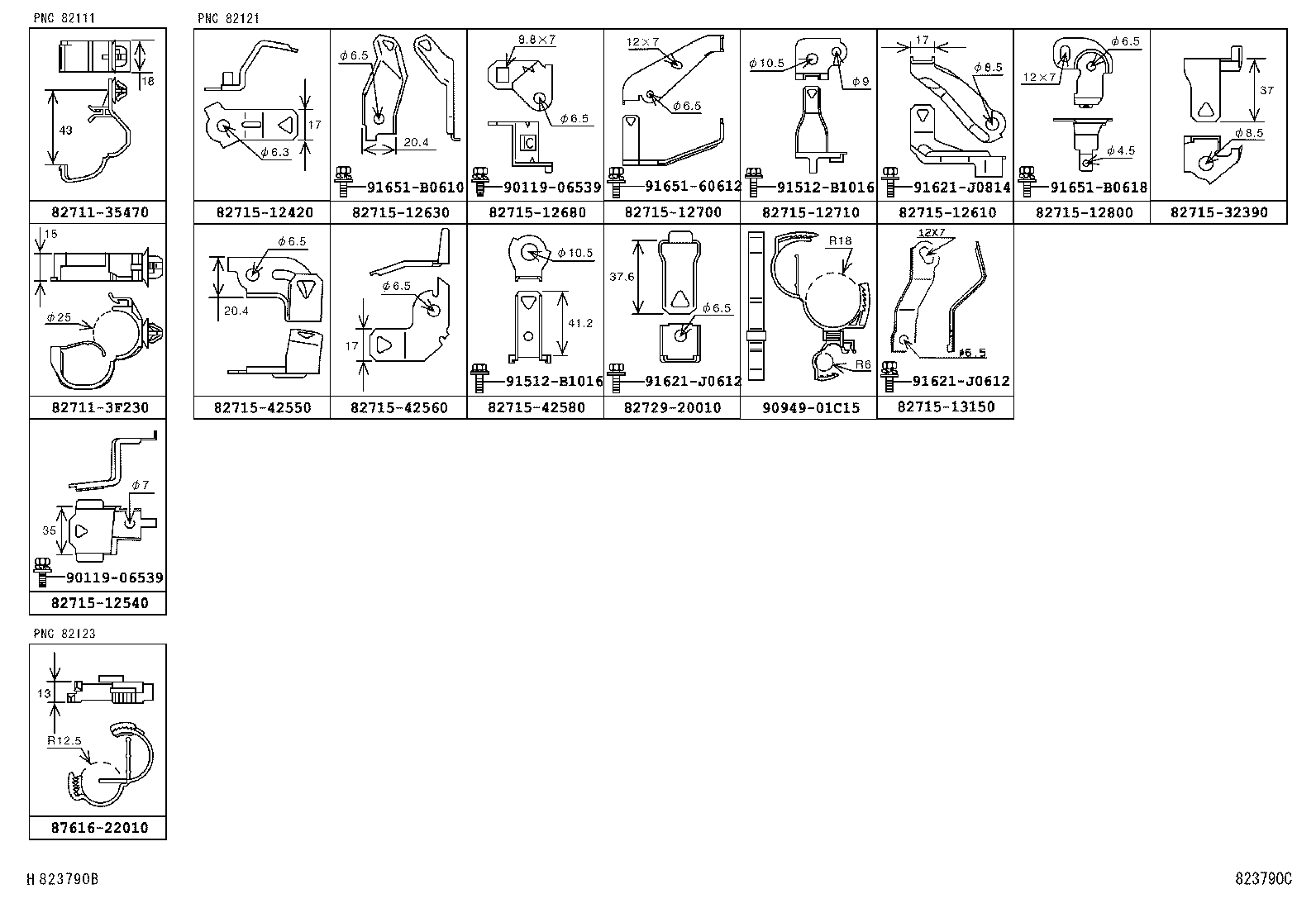

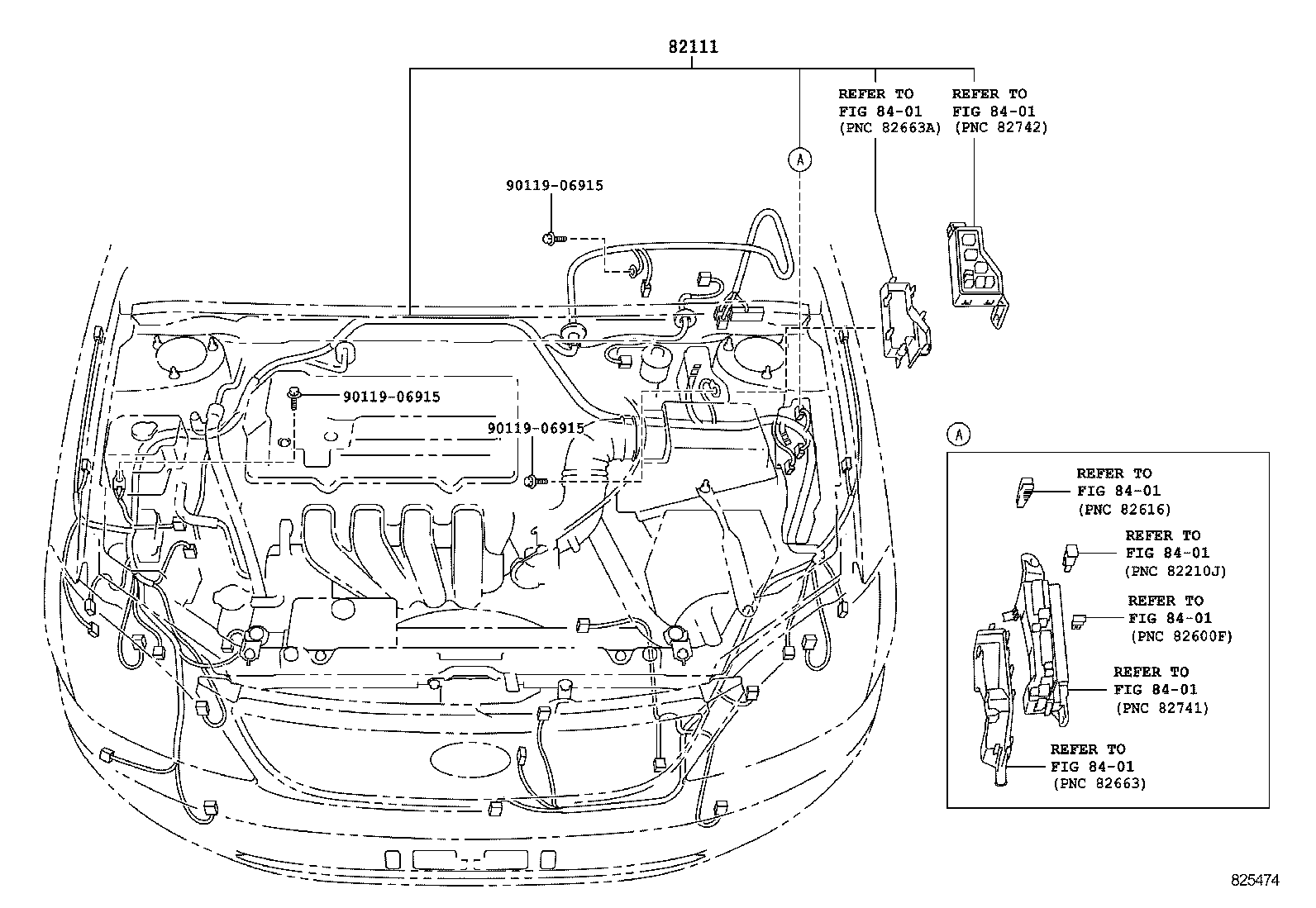

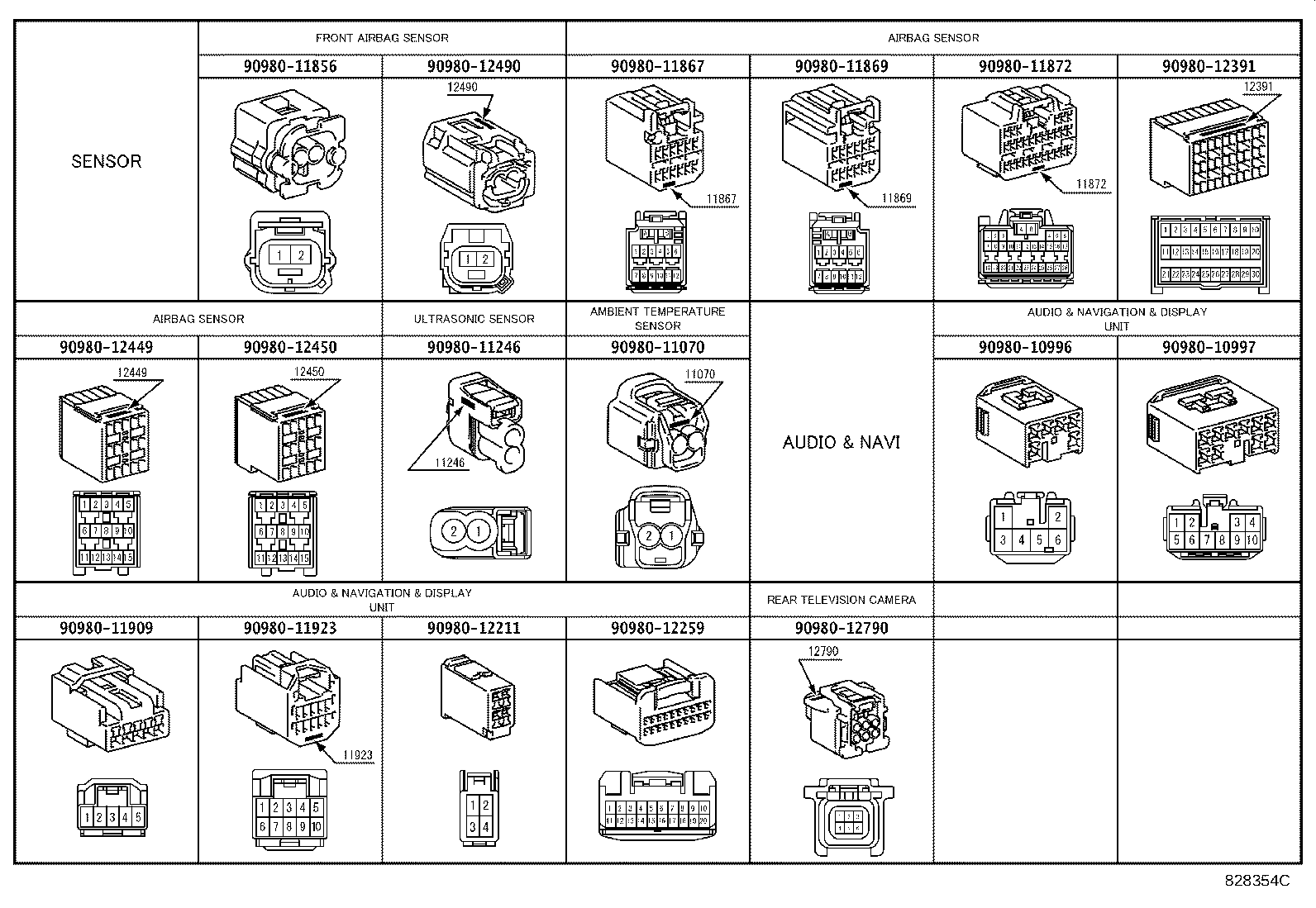

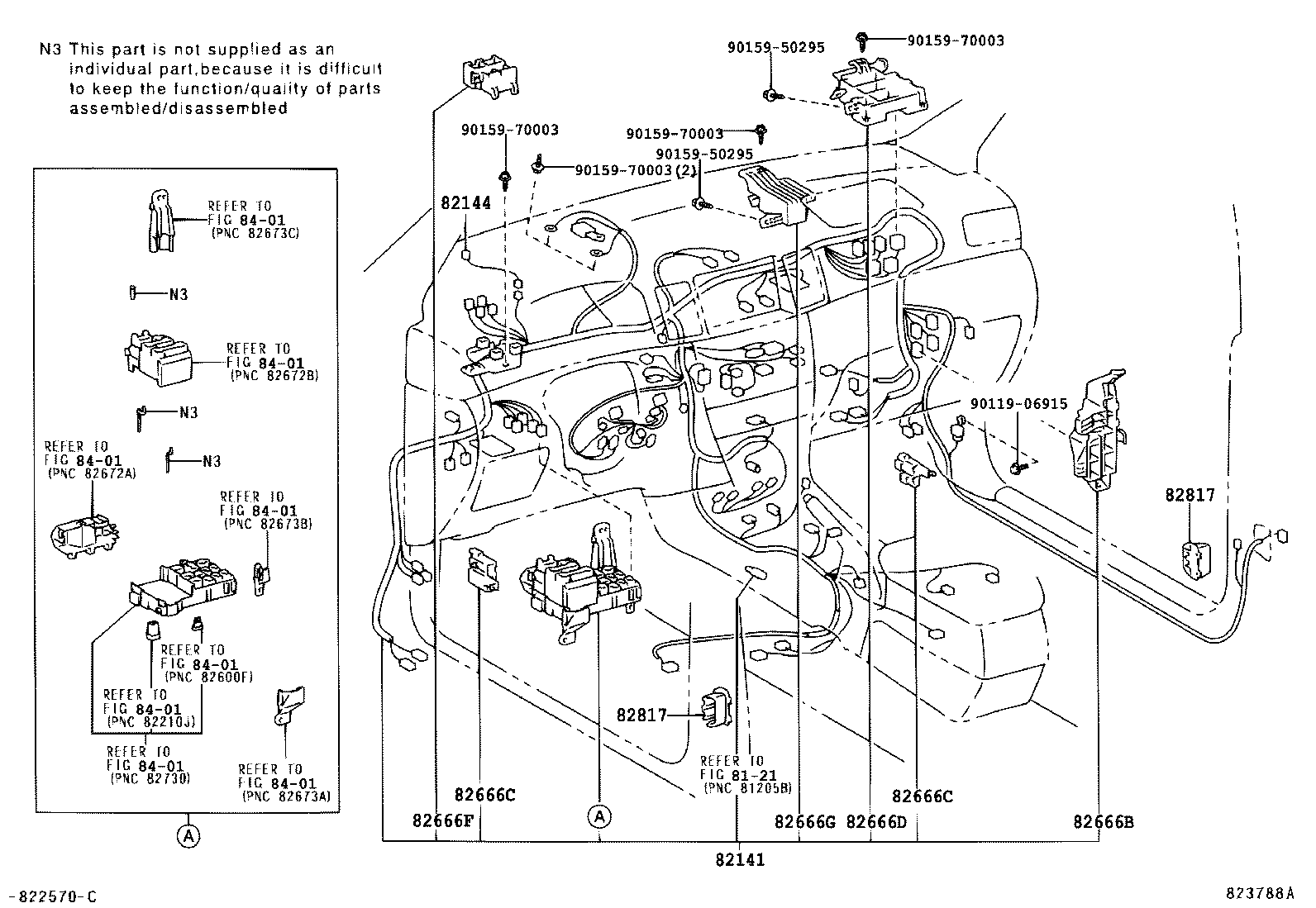

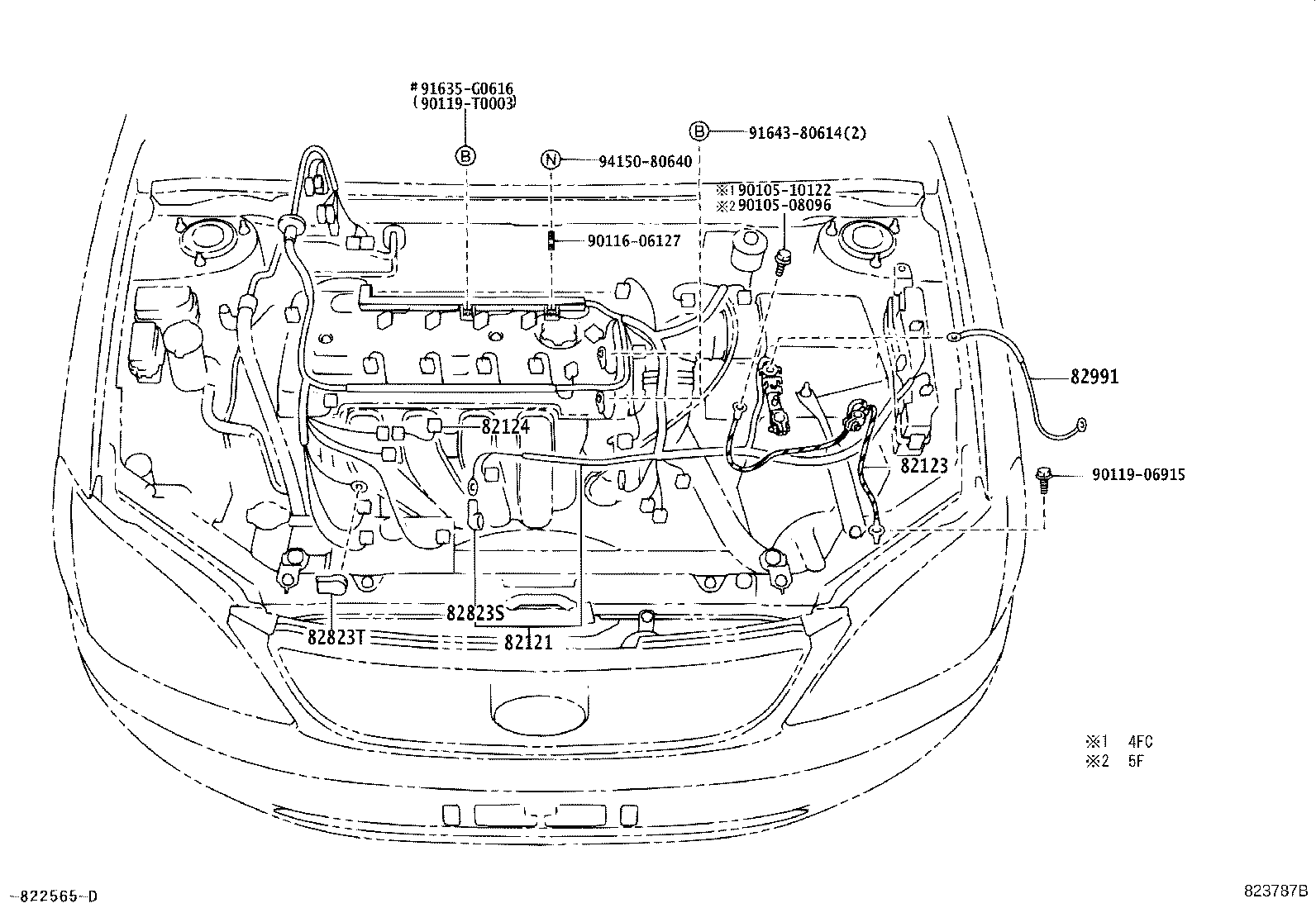

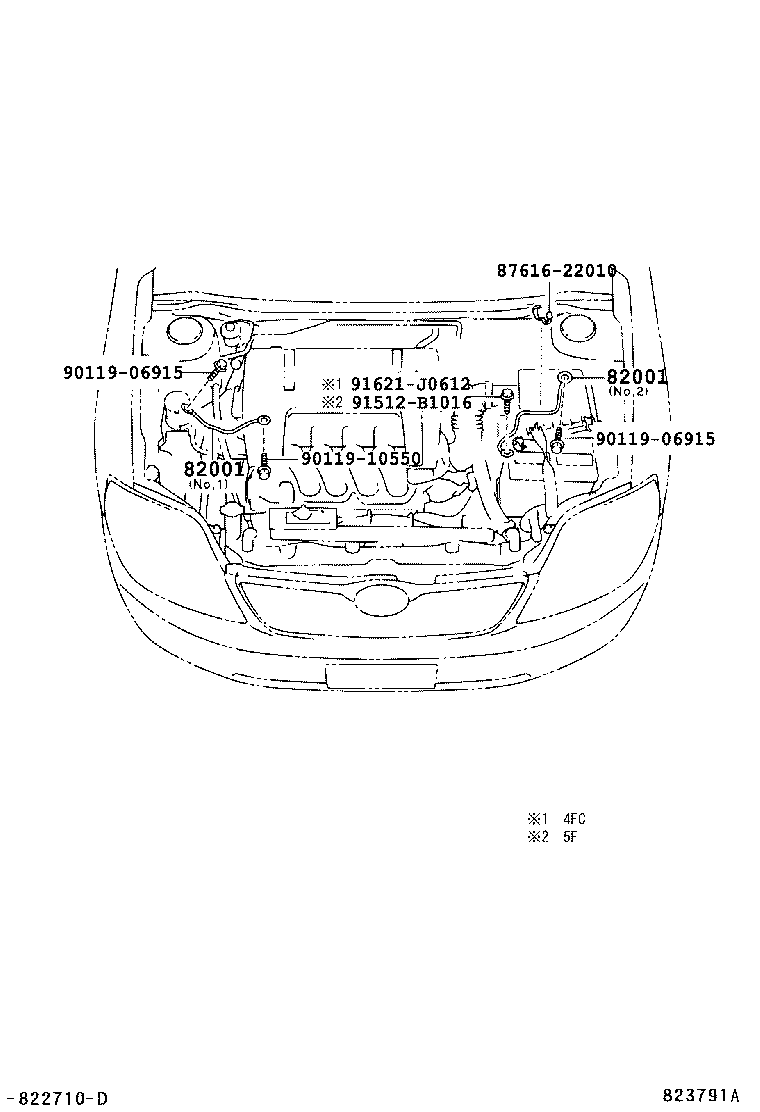

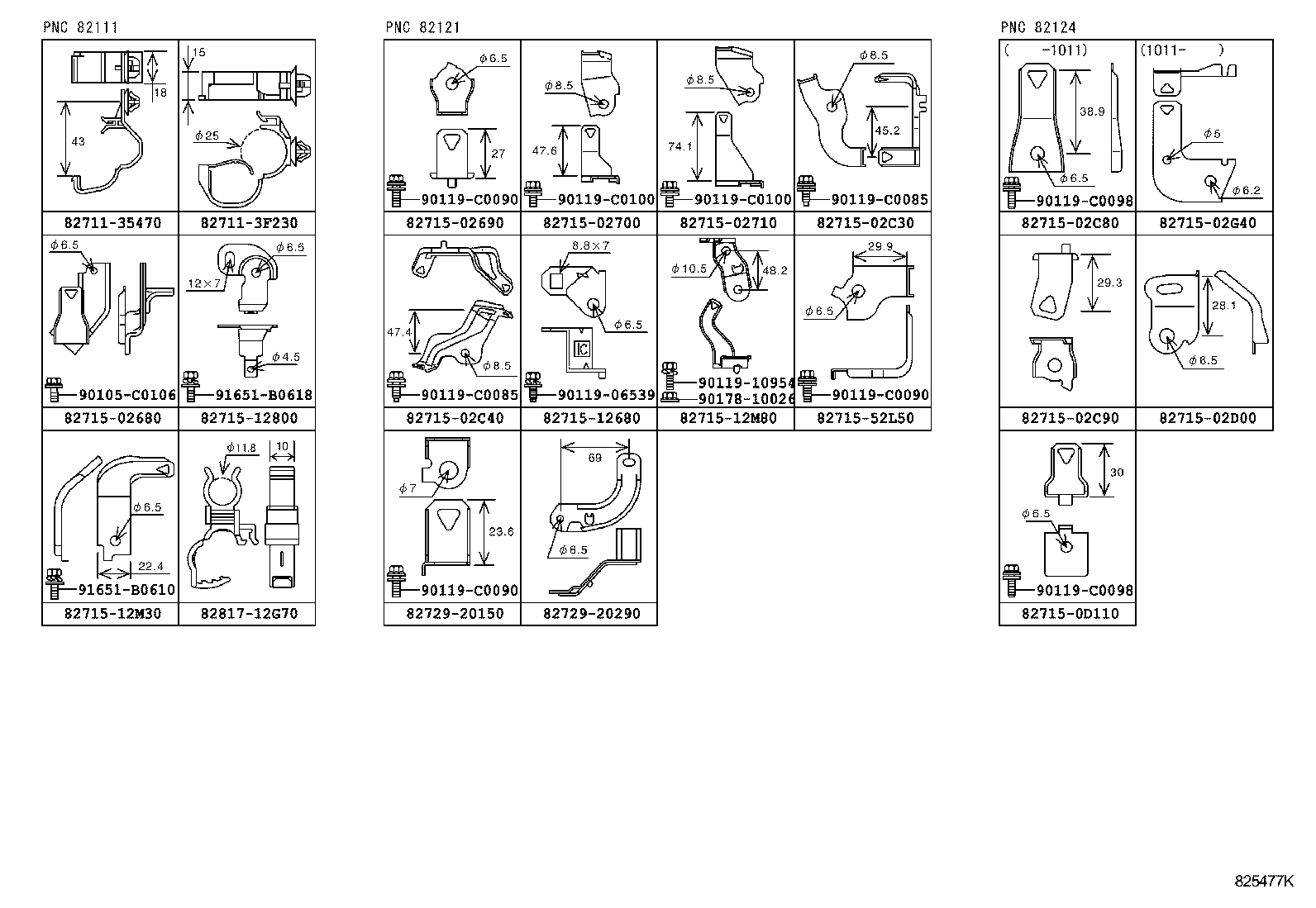

Figure 823786A 823786A 2004-02 → 2007-05 Figure 825474 825474 2007-05 → — Figure 823787B 823787B 2004-02 → 2007-05 Figure 825475D 825475D 2007-05 → — Figure 823788A 823788A 2004-02 → 2007-05 Figure 825476E 825476E 2007-05 → — Figure 823789B 823789B 2004-02 → — Figure 823790C 823790C 2004-02 → 2007-05 Figure 825477K 825477K 2007-05 → — Figure 823791A 823791A 2004-02 → 2007-05 Figure 824527F 824527F 2004-02 → — Figure 828354C 828354C 2004-02 → — Figure 82F226 82F226 2004-02 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82817 Protector, Wiring Harness, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
