Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

86 part groups · 14 illustrations

Illustrations

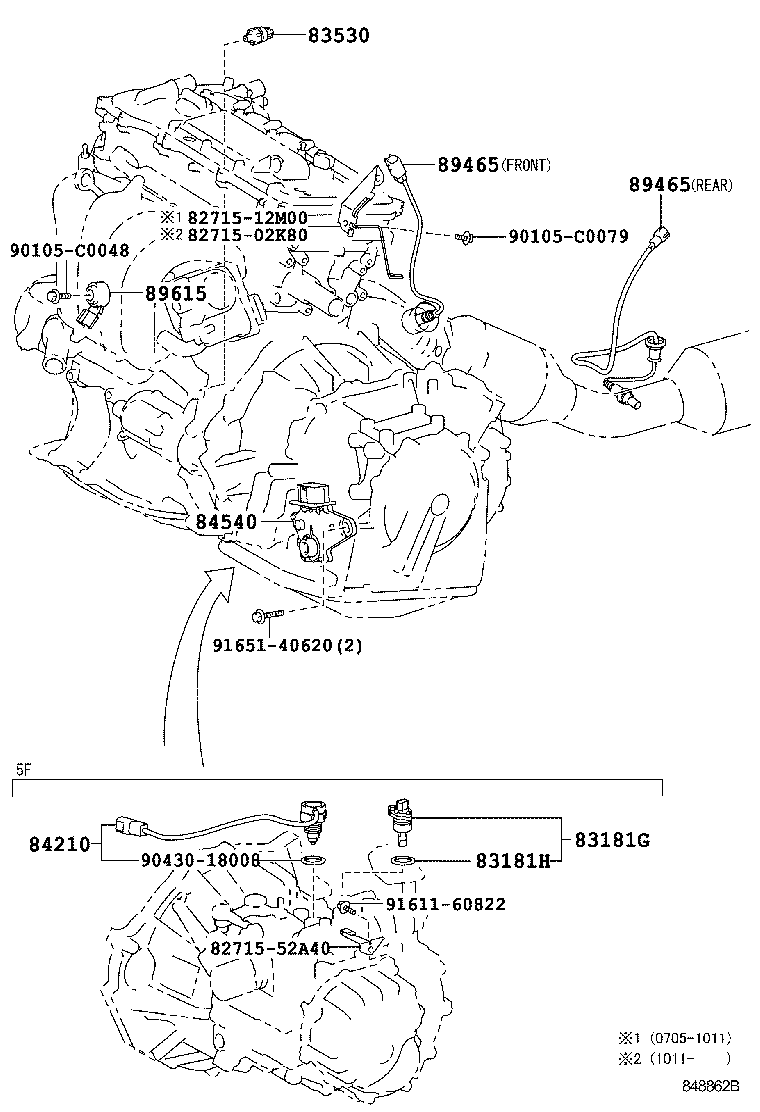

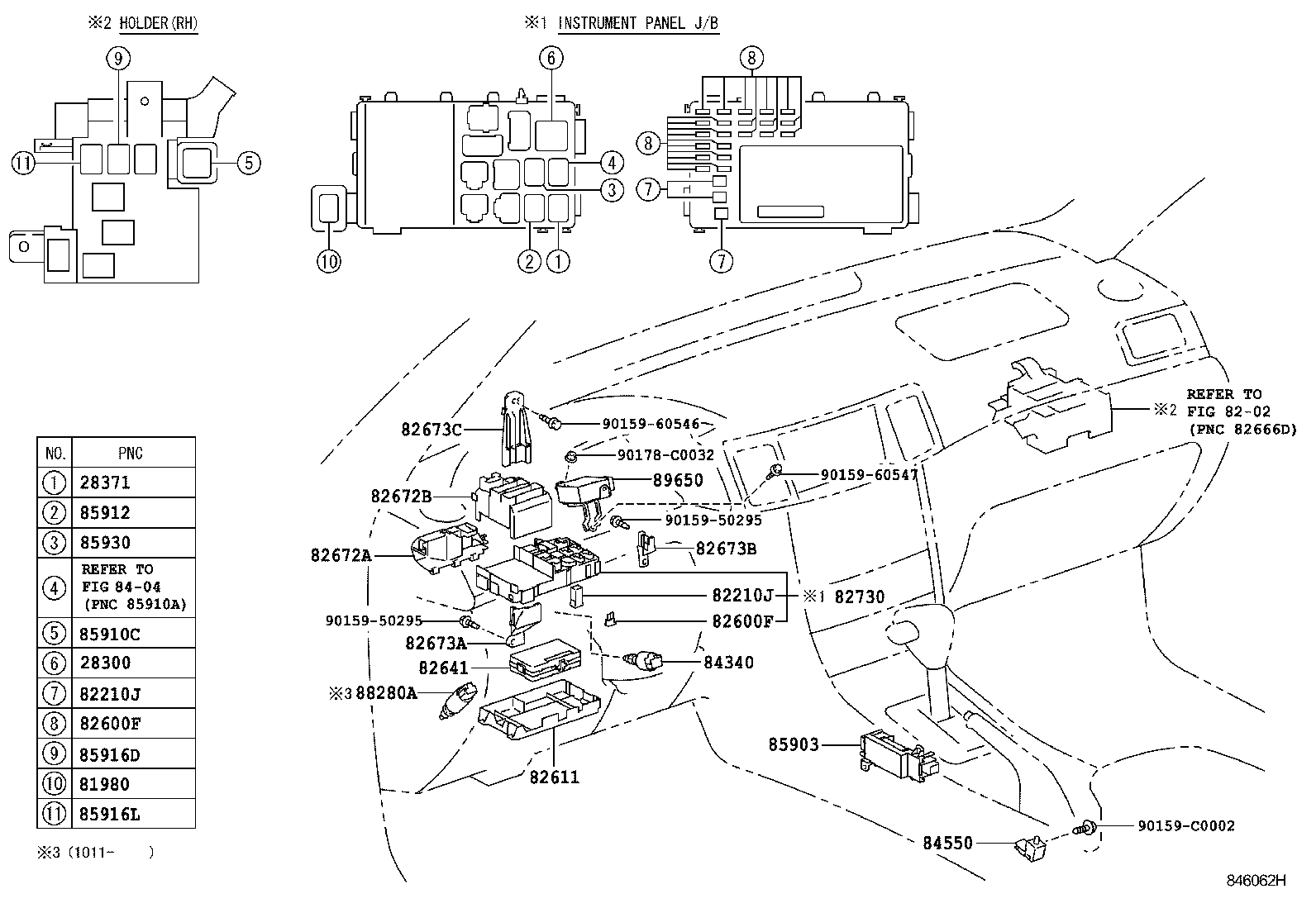

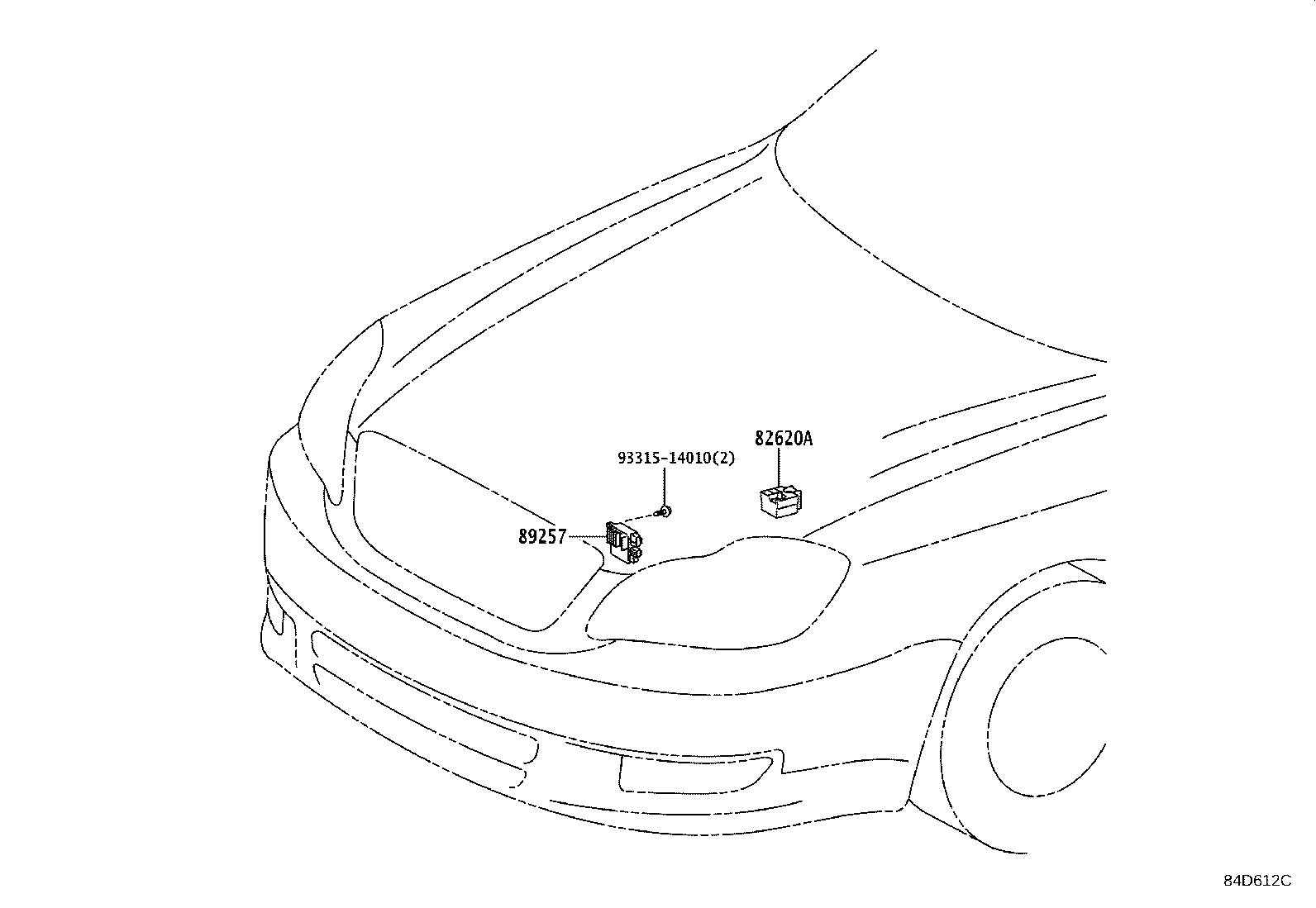

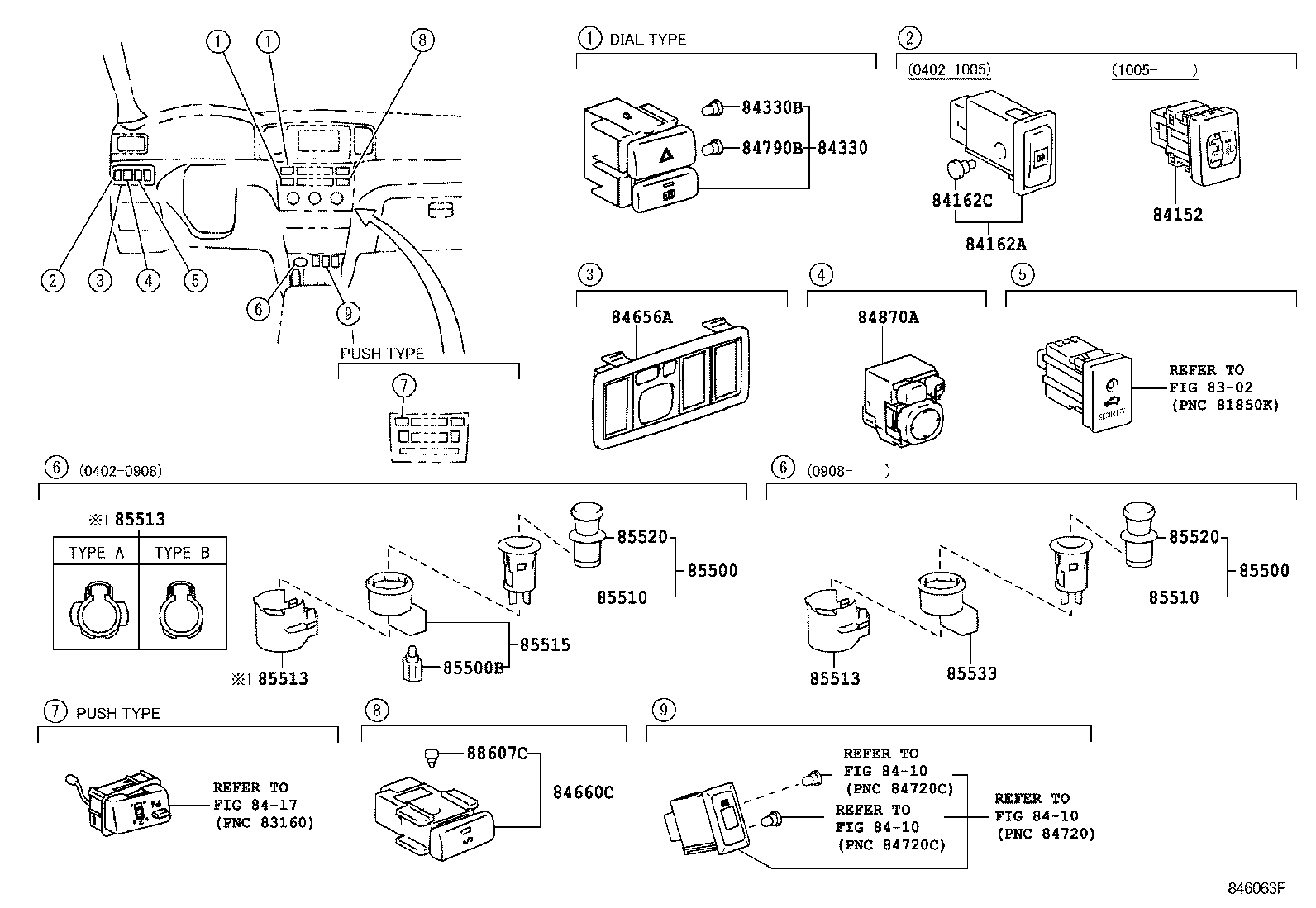

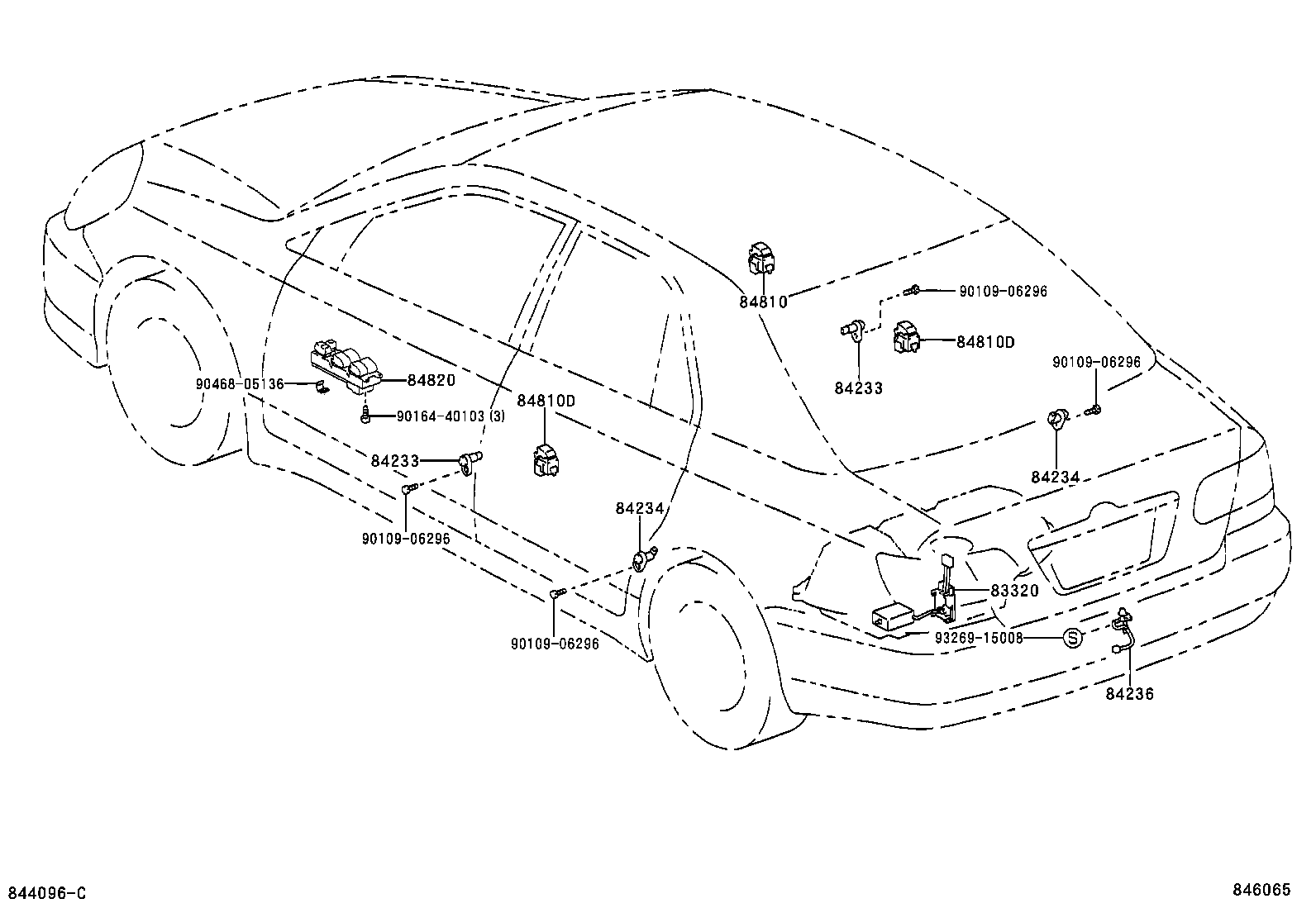

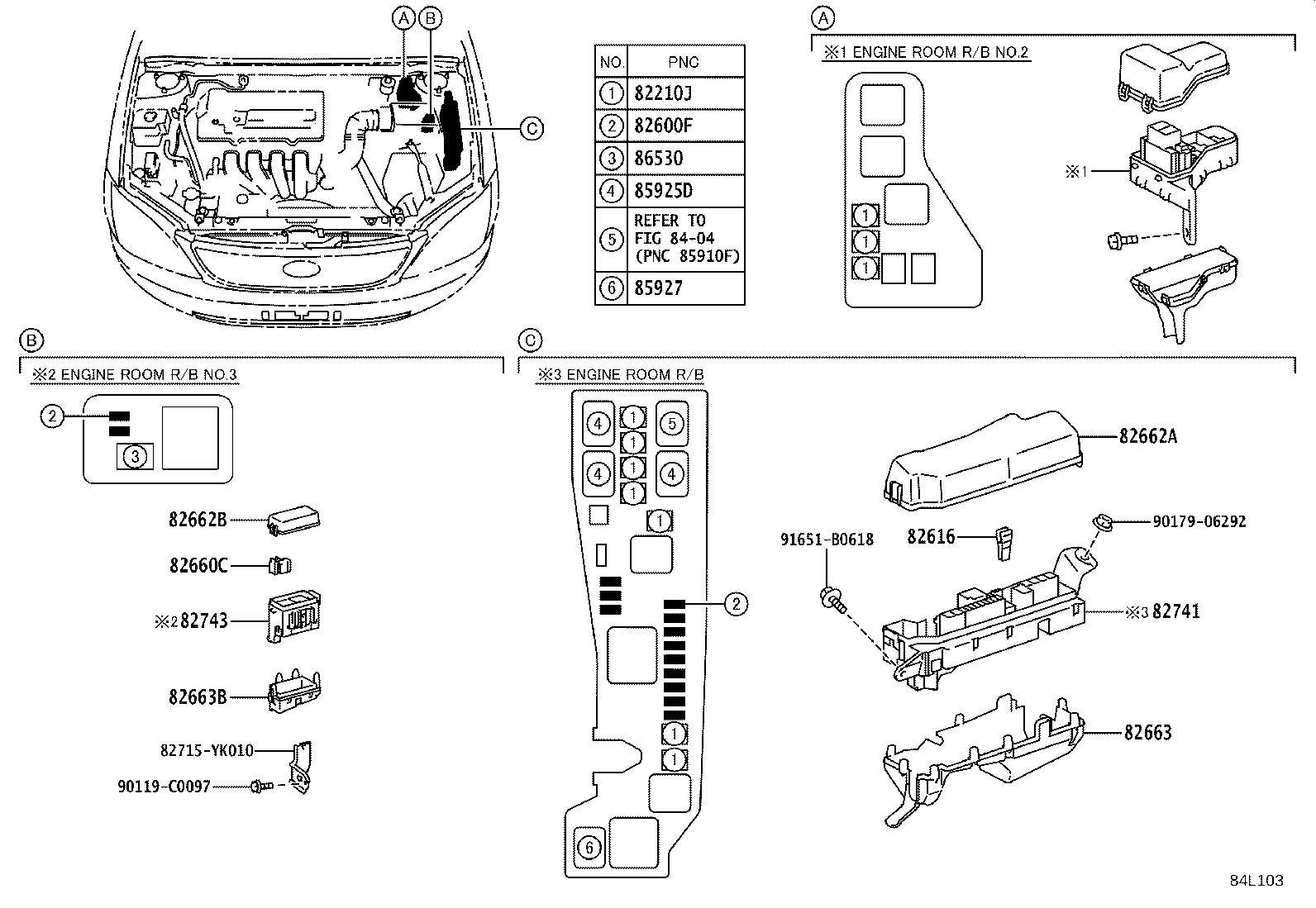

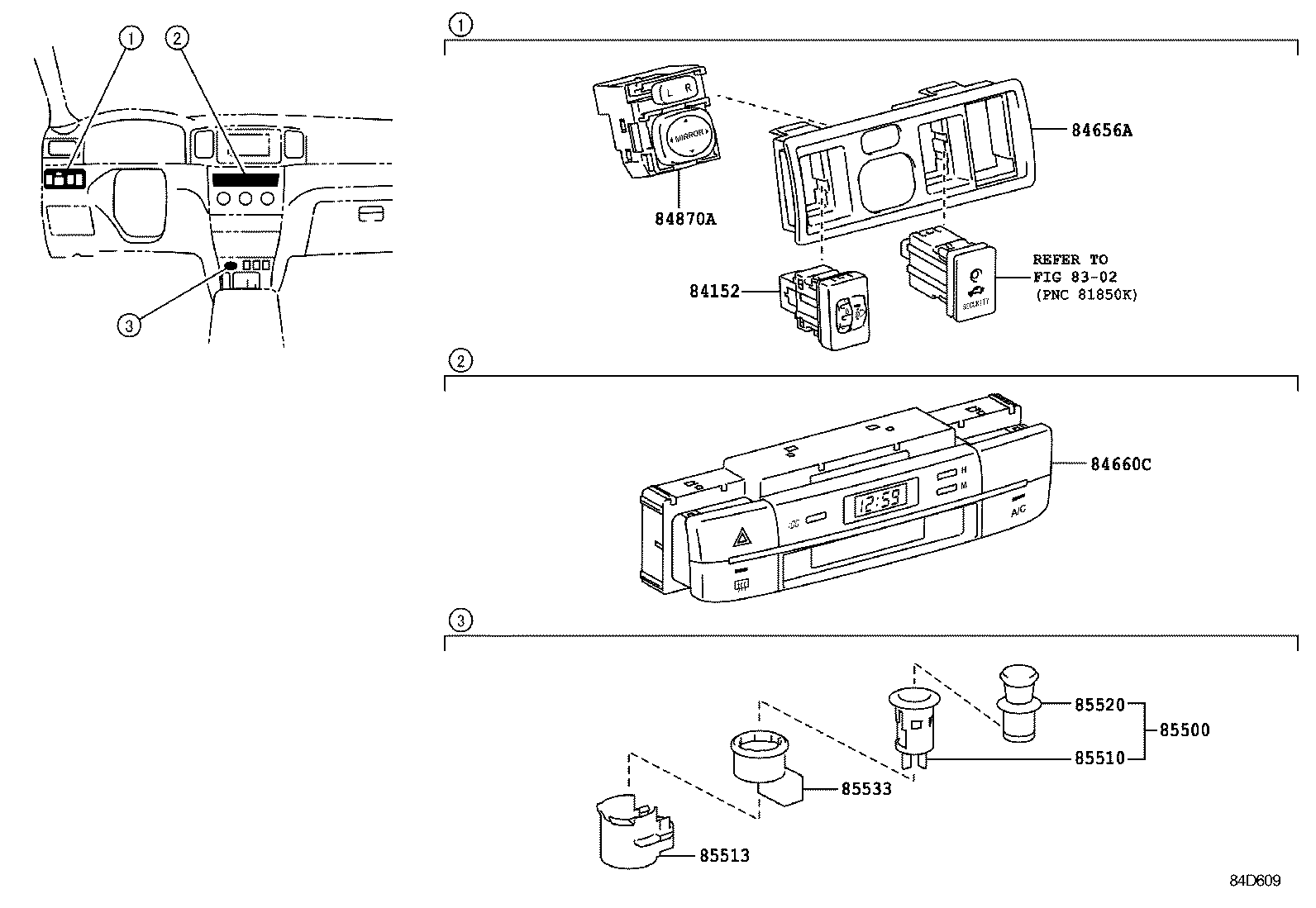

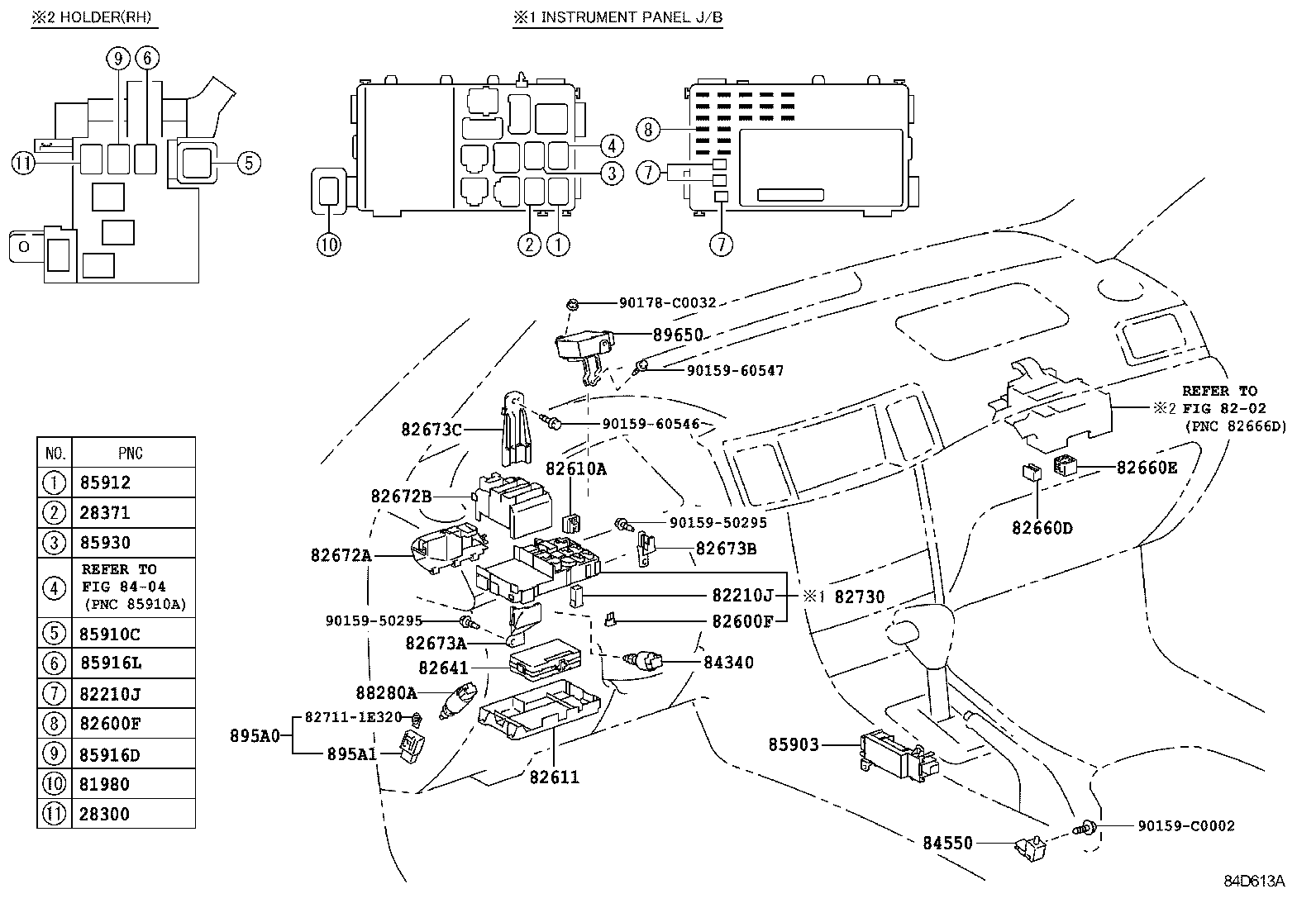

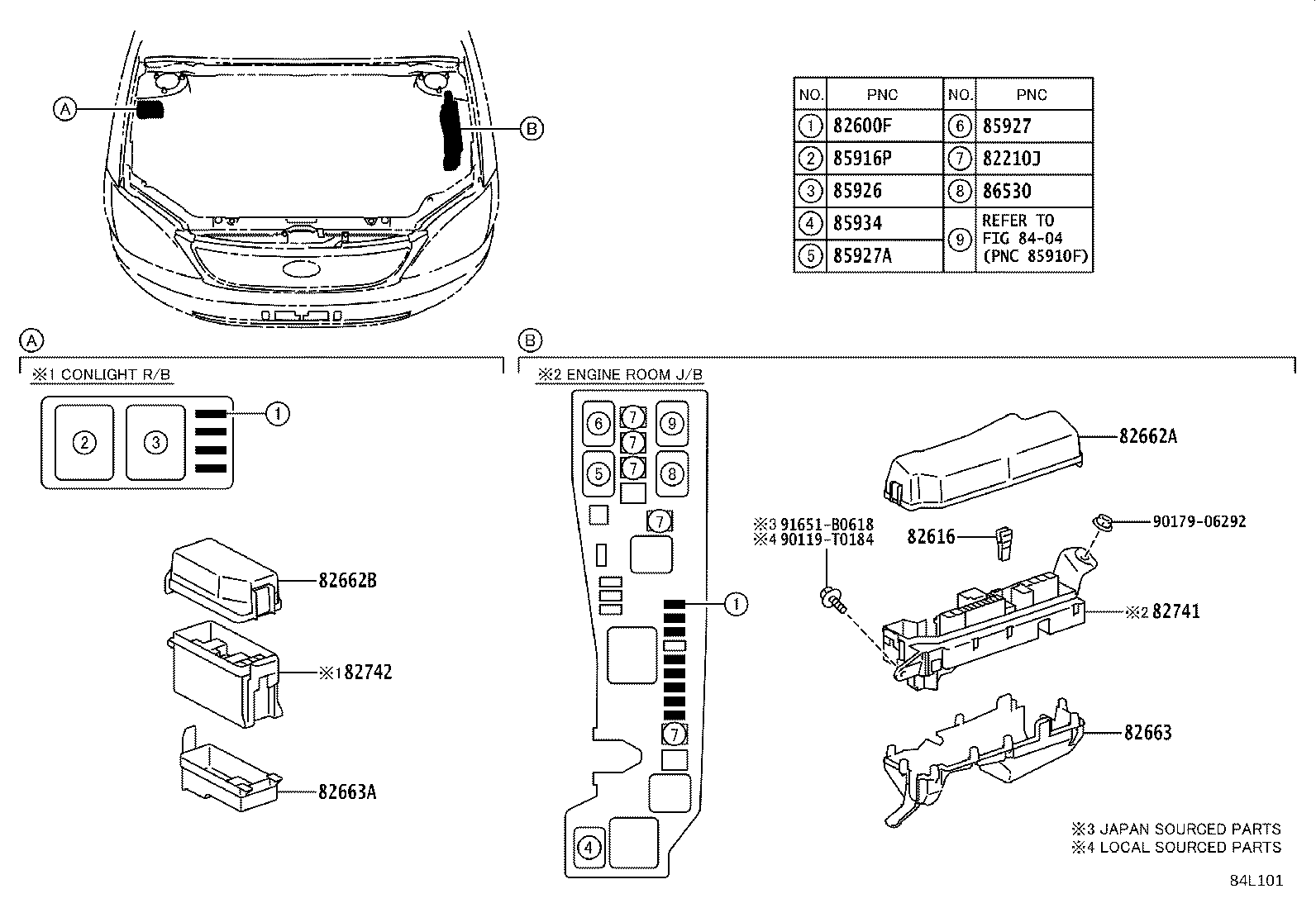

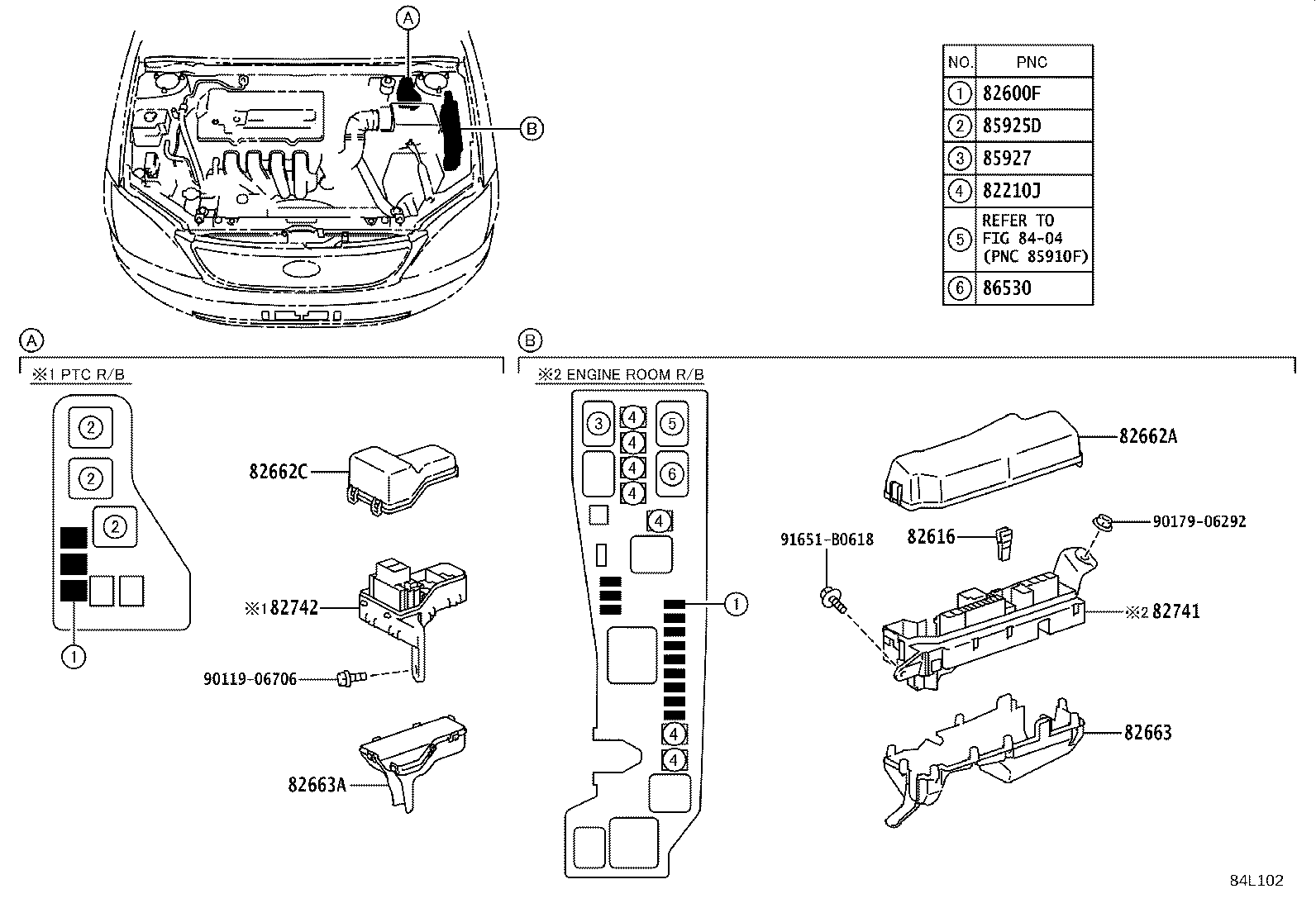

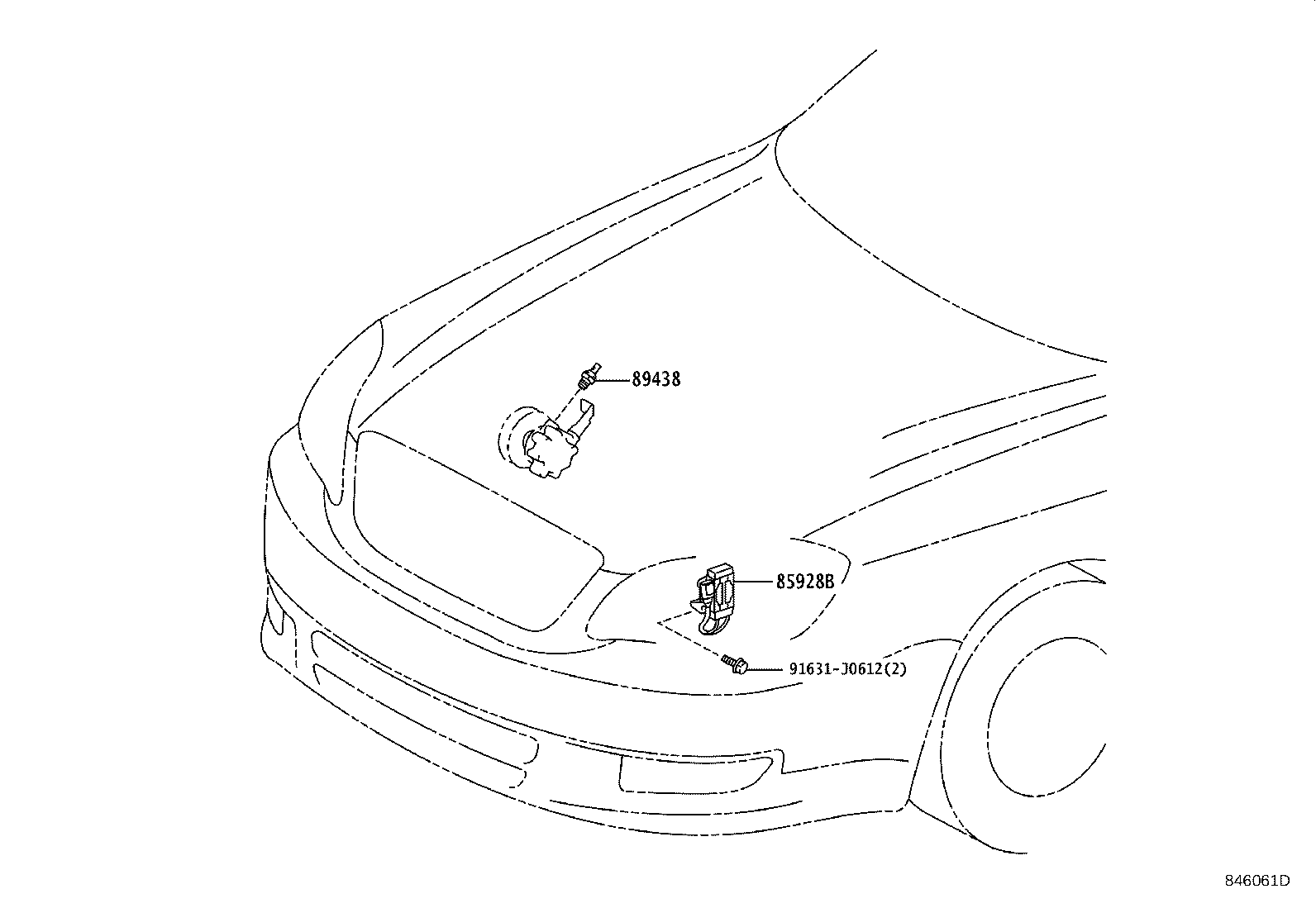

Figure 846060D 846060D 2004-02 → 2007-05 Figure 848862B 848862B 2007-05 → — Figure 846061D 846061D 2004-02 → 2007-05 Figure 848869B 848869B 2007-05 → 2012-10 Figure 84D612C 84D612C 2012-10 → — Figure 84L101 84L101 2004-02 → 2007-05 Figure 84L102 84L102 2007-05 → 2012-10 Figure 84L103 84L103 2012-10 → — Figure 846062H 846062H 2004-02 → 2012-10 Figure 84D613A 84D613A 2012-10 → — Figure 846063F 846063F 2004-02 → 2012-10 Figure 84D609 84D609 2012-10 → — Figure 846064C 846064C 2004-02 → — Figure 846065 846065 2004-02 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82611 Cover, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82641 Relay, Integration NO.1
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82672A Cover, Junction Block
82672B Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82743 Block, Engine Room Relay, NO.3
83181G Sensor, Speedometer
83181H Ring, O (FOR SPEEDOMETER SENSOR)
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84162A Switch, Rear Fog Lamp
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84660C Switch, Cooler
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85510 Socket & Retainer Assy, Cigarlighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85903 Computer Sub-assy, Shift Lock Control
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85925D Relay, Ptc Heater
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85928B Resistor, Cooling Fan
85930 Relay Assy, Power Window
85934 Relay, Magnet-clutch
86530 Relay Assy, Horn
88280A Switch Assy, Clutch
88607C Lamp Sub-assy, Indicator
89257 Computer, Cooling Fan
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
895A0 Relay Assy, Stop Lamp Control
895A1 Relay, Stop Lamp Control
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
