Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

7 part groups · 5 illustrations

Illustrations

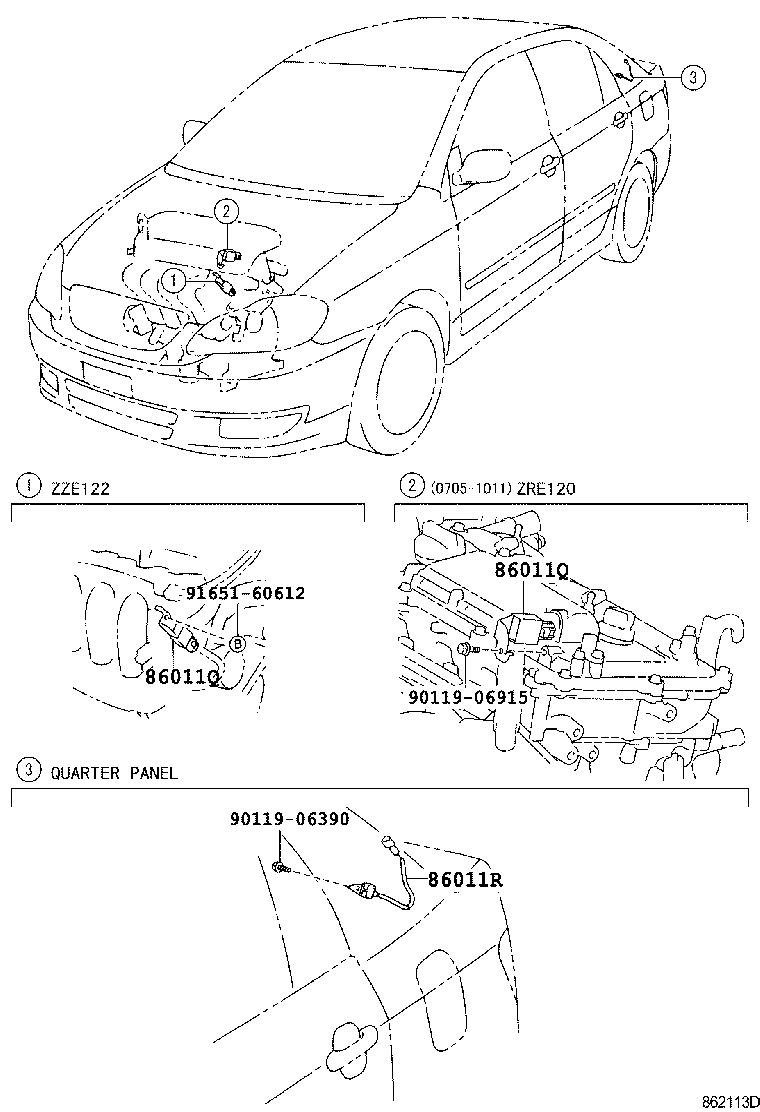

Figure 866728 866728 2004-02 → 2012-10 Figure 866728 866728 2012-10 → — Figure 865726 865726 2004-02 → — Figure 862113D 862113D 2004-02 → 2012-10 Figure 862113D 862113D 2012-10 → —

Part groups

PNCDescription
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
86221D Panel, Radio Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
