Toyota Corolla (CHINA)

2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General

Discontinued model Data version 2017-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

32 part groups · 6 illustrations

Illustrations

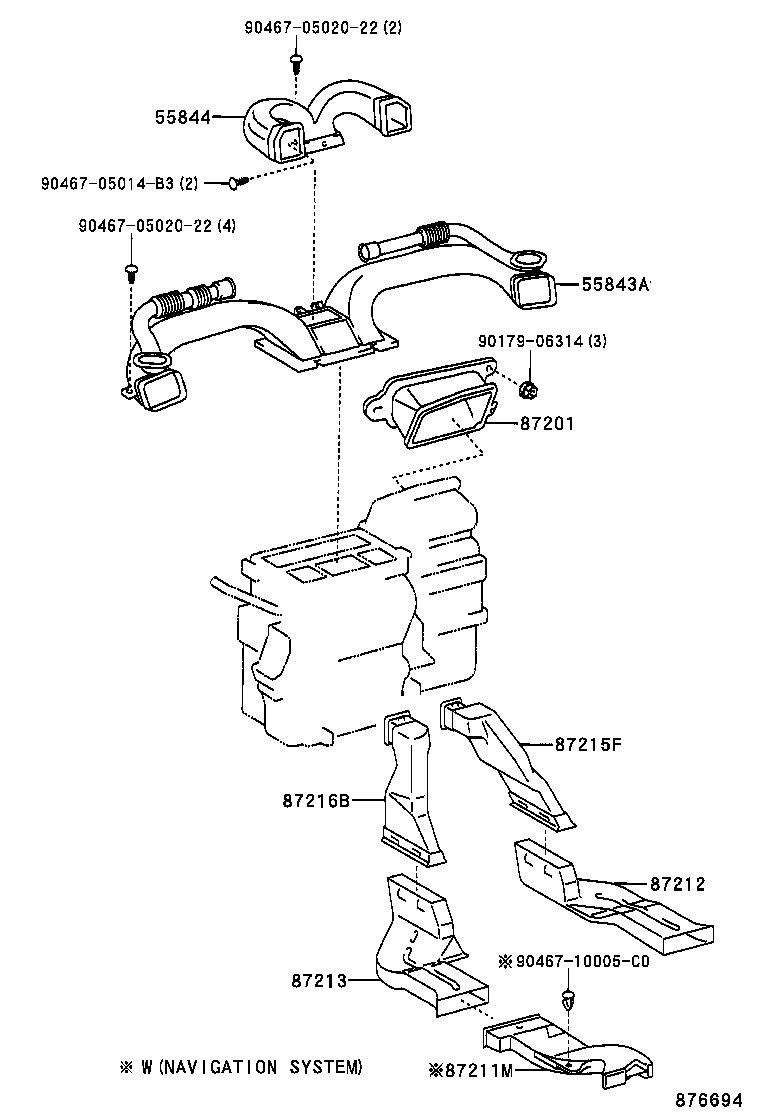

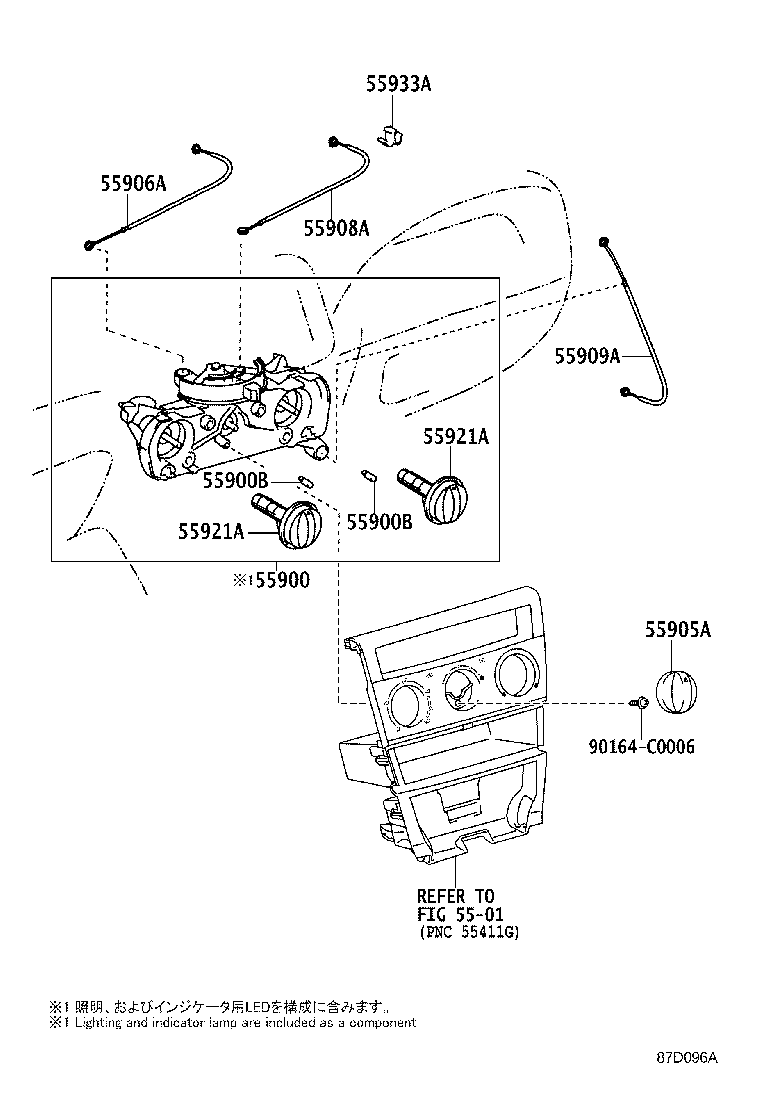

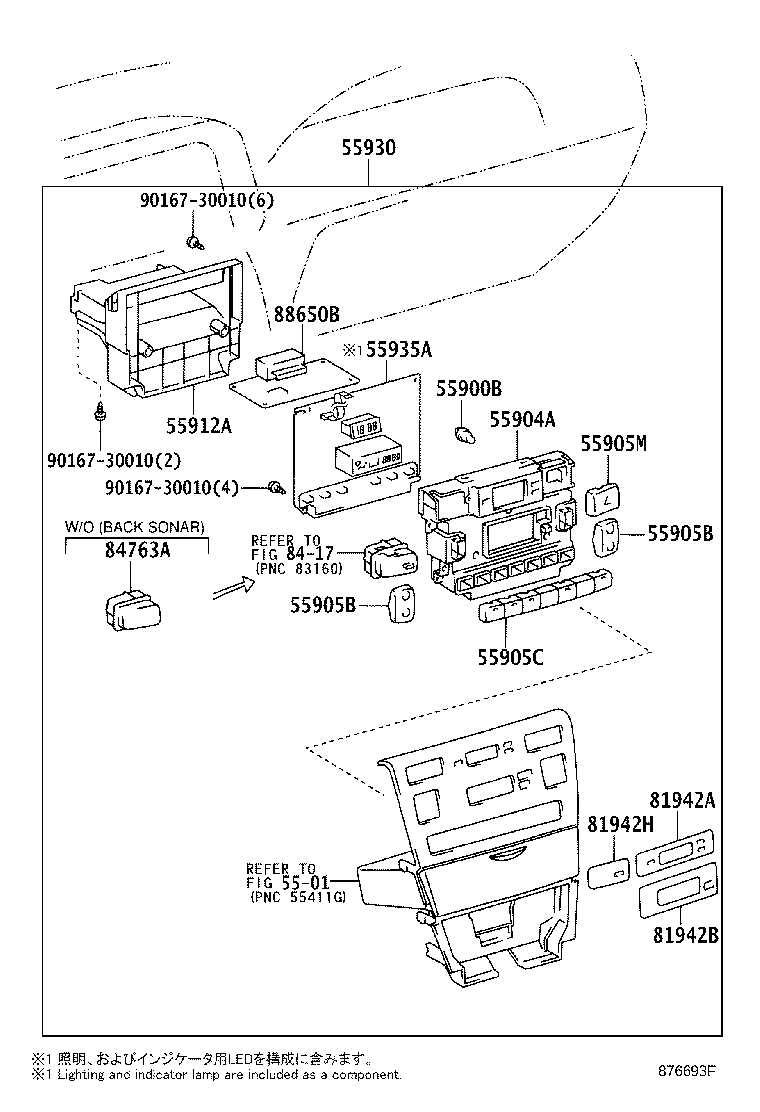

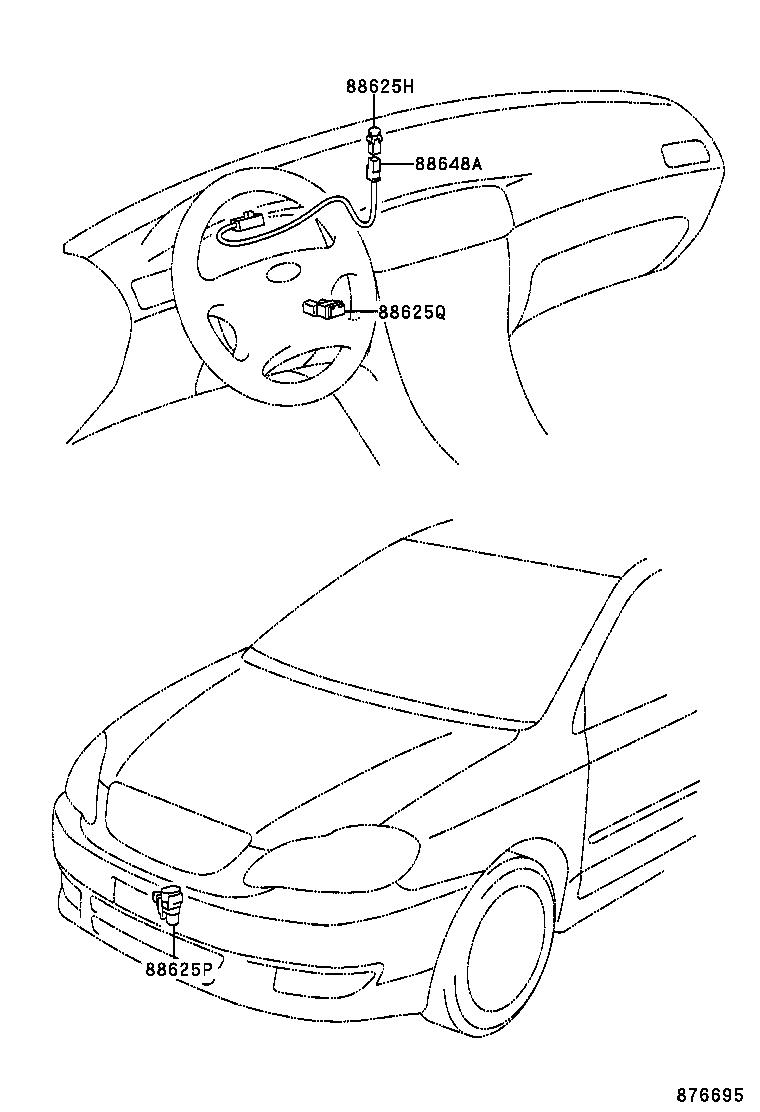

Figure 876692C 876692C 2004-02 → 2007-05 Figure 876692C 876692C 2007-05 → 2012-10 Figure 87D096A 87D096A 2012-10 → — Figure 876693F 876693F 2004-02 → — Figure 876694 876694 2004-02 → — Figure 876695 876695 2004-02 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55904A Housing Sub-assy, Heater Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905M Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55912A Housing, Heater Control
55921A Retainer, Heater Control
55930 Control Assy, Center Cluster Module
55933A Clamp, Heater Control Cable
55935A Circuit, Center Cluster Module
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
84763A Plate, Switch
87201 Duct Sub-assy, Air, NO.1
87211M Duct, Foot Air, Rear
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88648A Wiring, Cooler
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
