Toyota Corolla (CHINA)
2004-02 → 2017-02 · chassis ZRE120,ZZE122 · catalogue 150310 · General
Discontinued model
Data version 2017-08

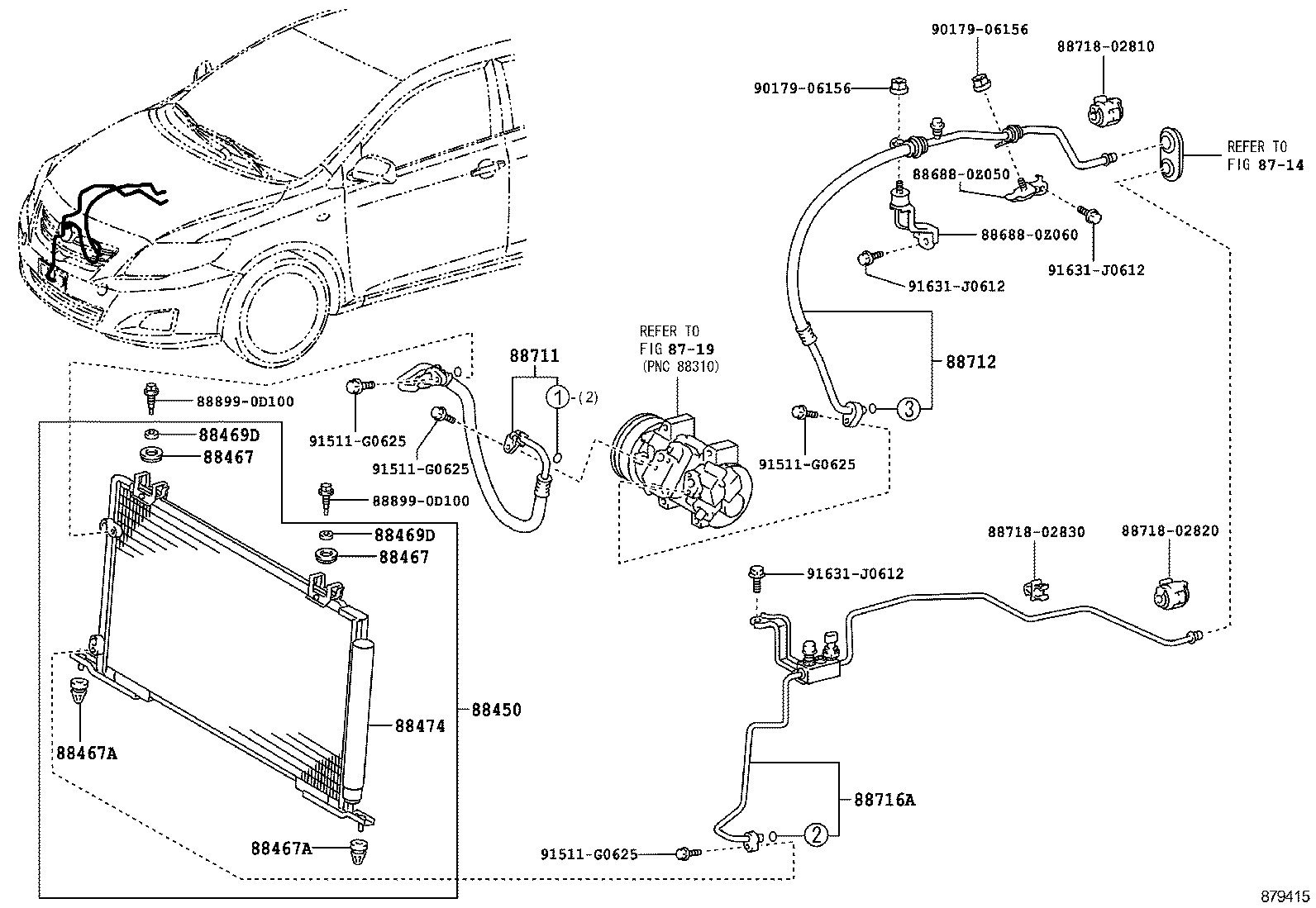

Heating & Air Conditioning - Cooler Piping
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88450 | Condenser Assy, W/Receiver |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88467A | Cushion, Cooler Condenser, NO.2 |
| 88469D | Collar, Condenser Bracket, NO.1 |
| 88474 | Dryer, Cooler |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
