Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · General

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

28 part groups · 11 illustrations

Illustrations

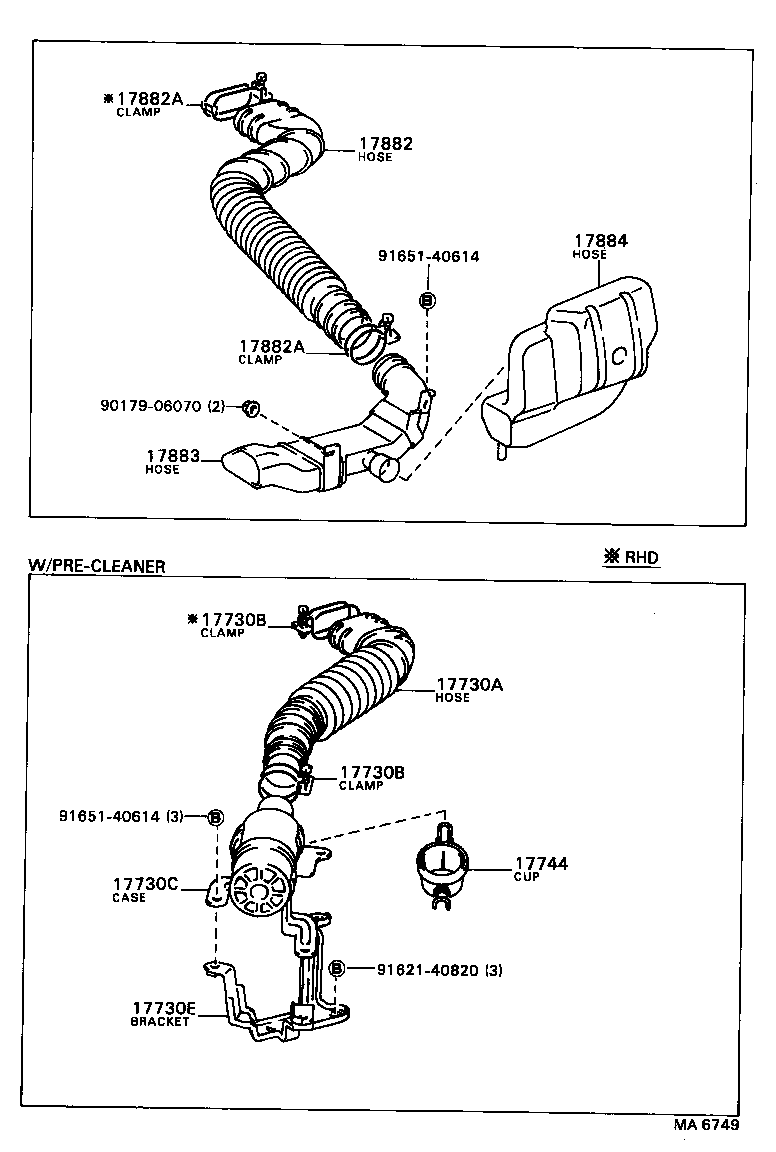

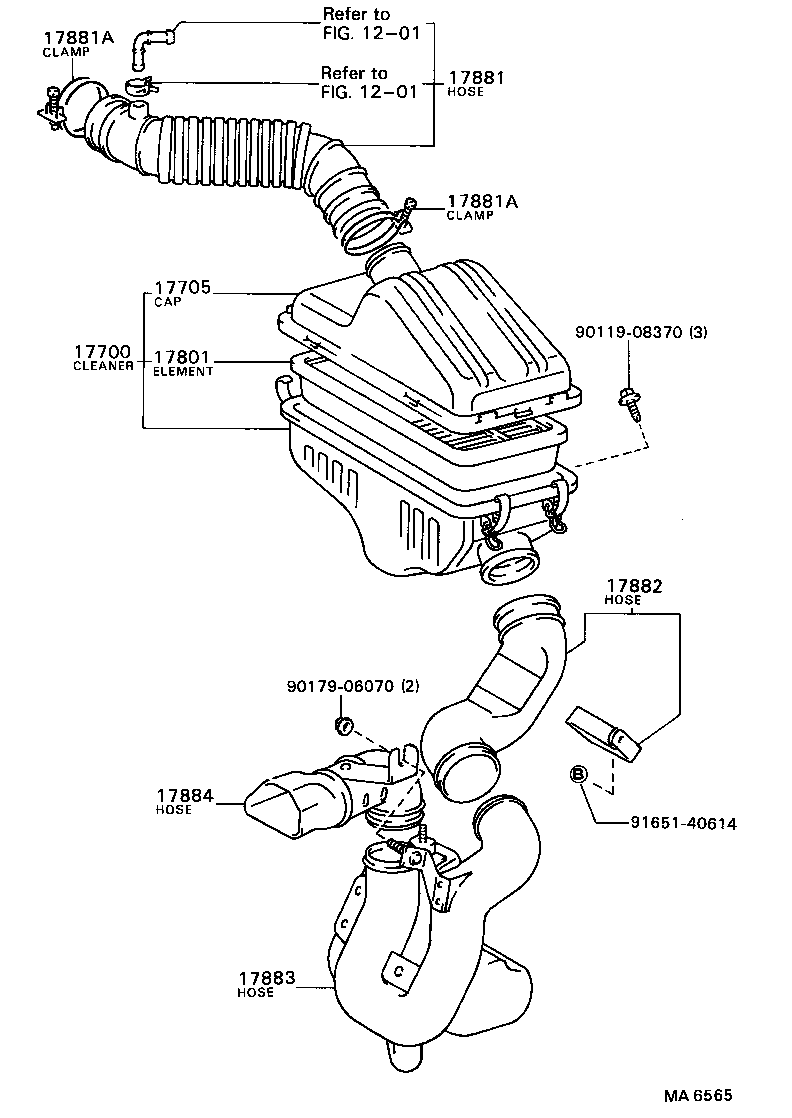

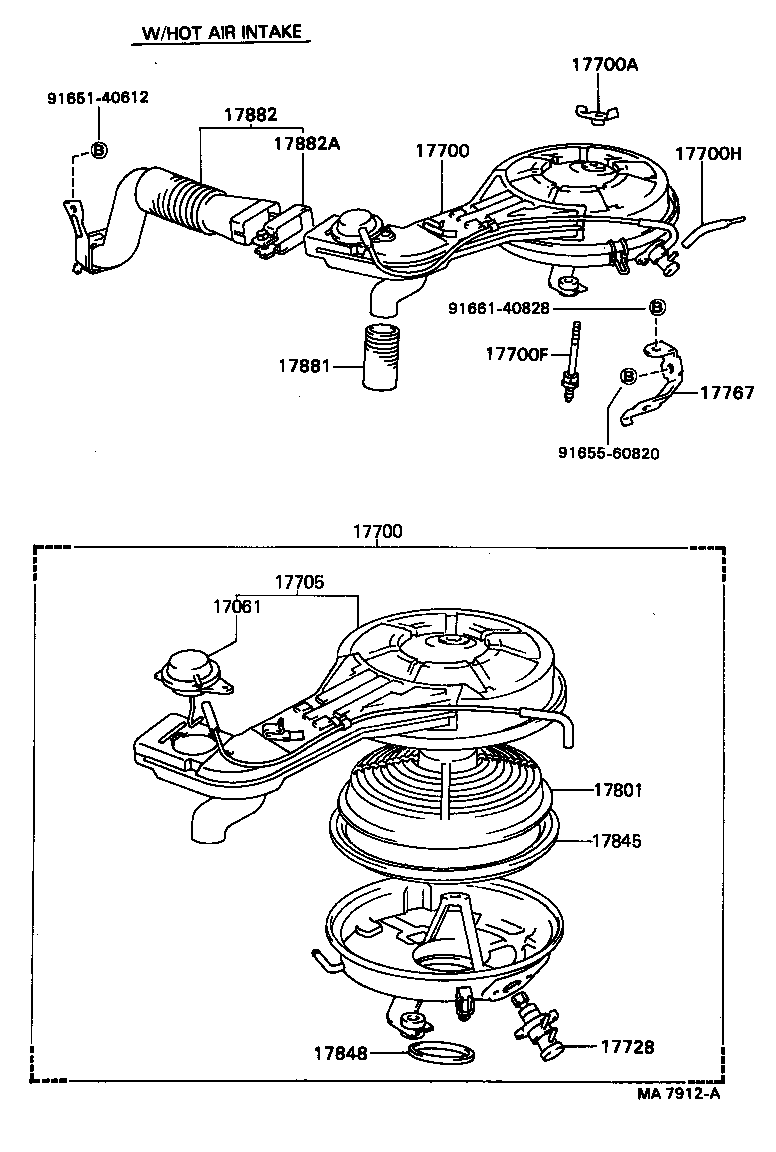

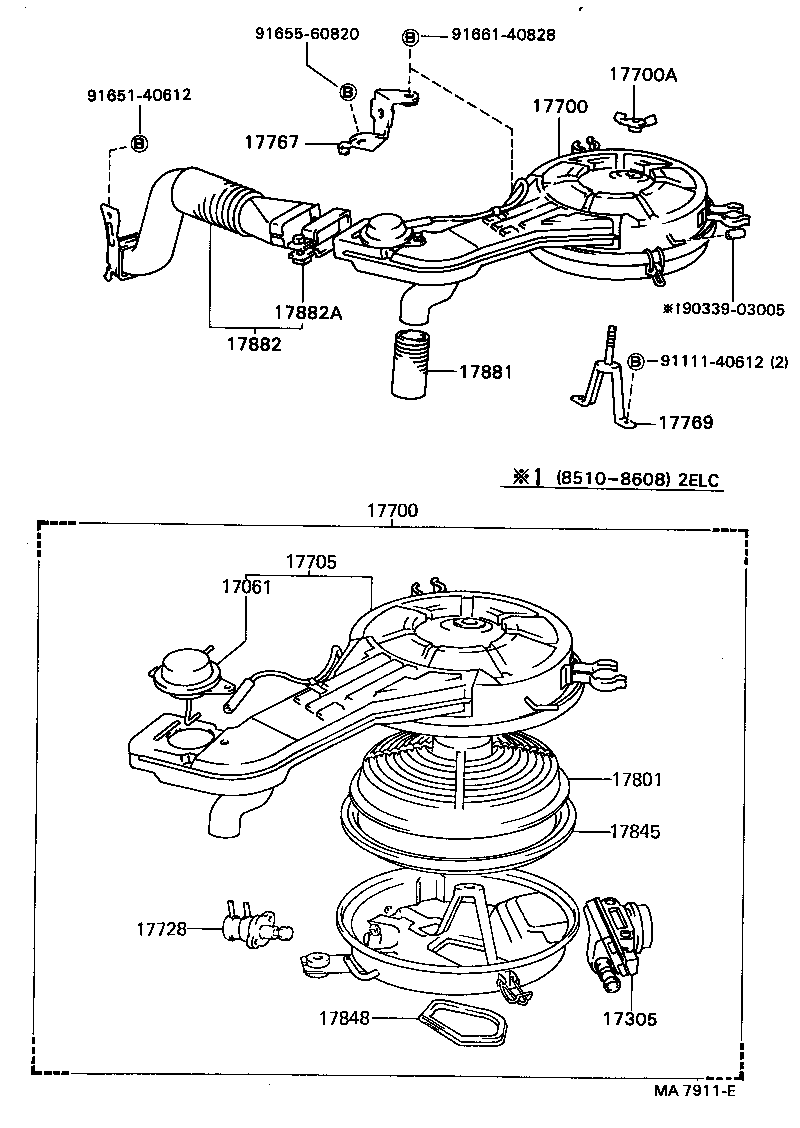

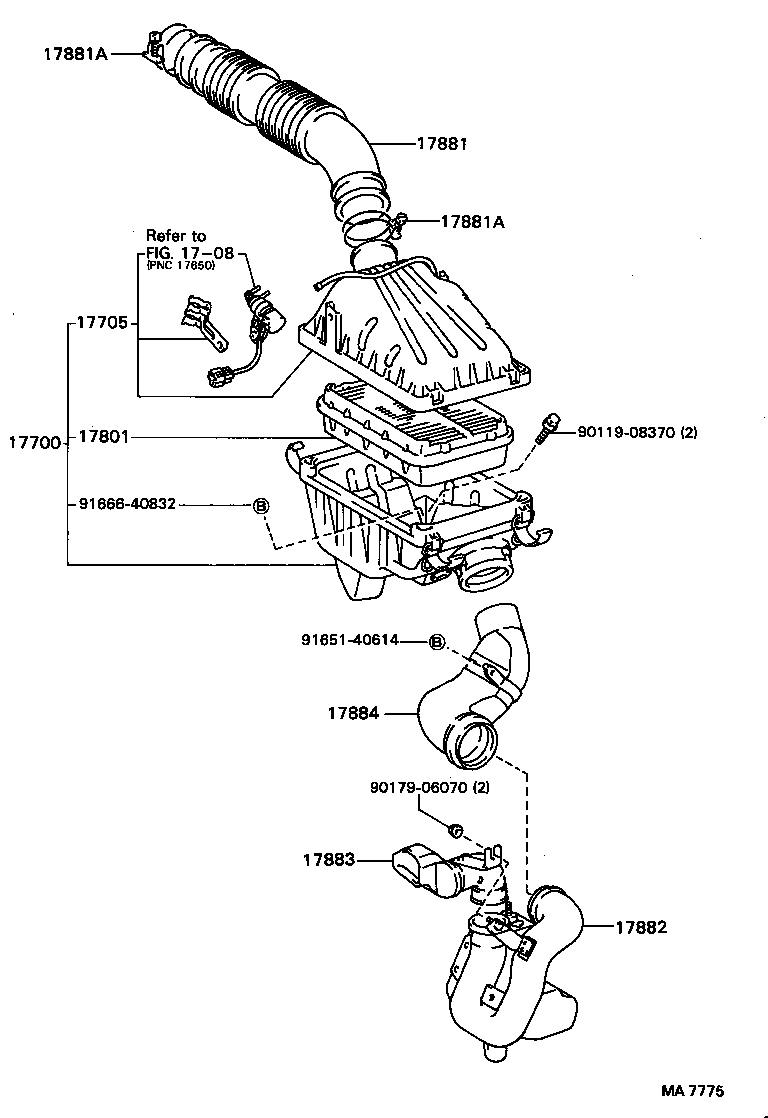

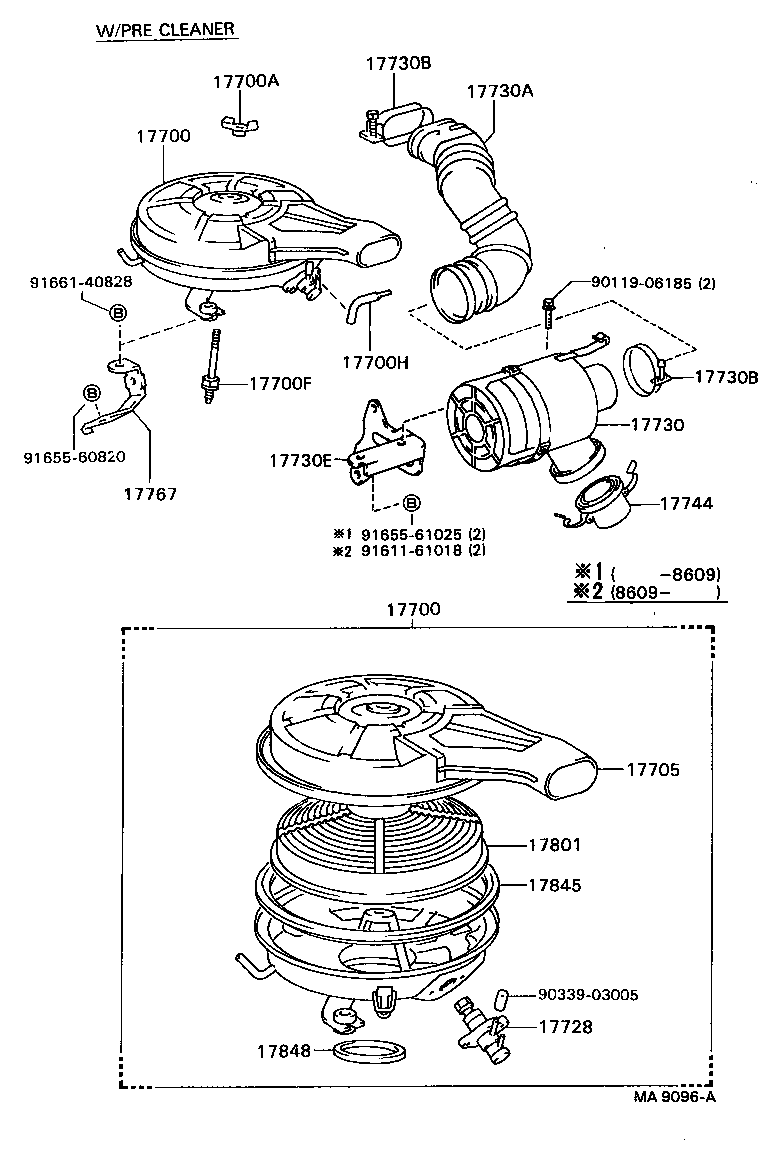

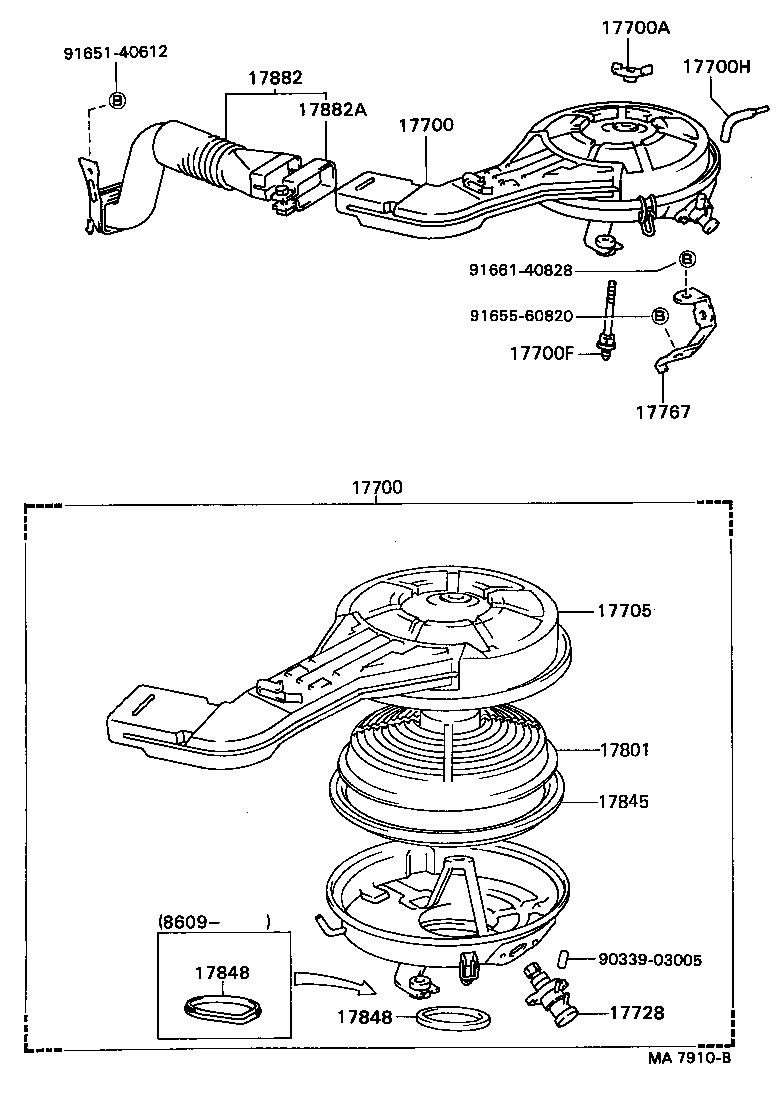

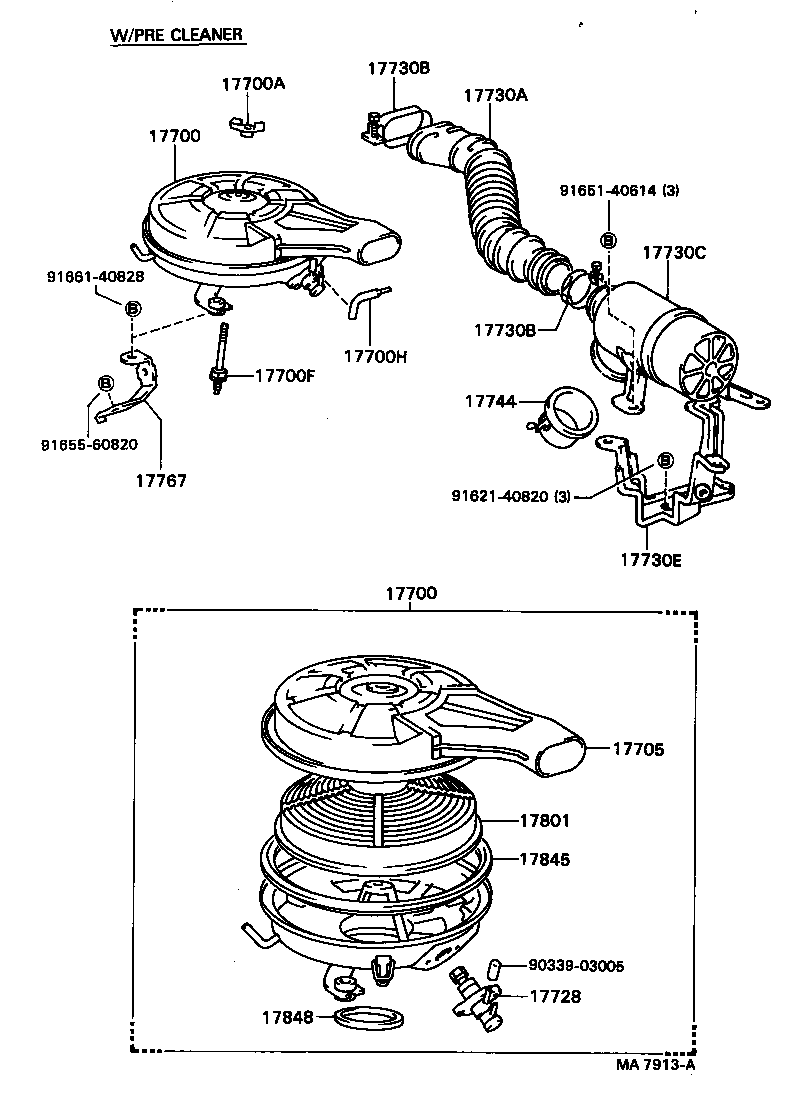

Figure MA6748C MA6748C 1983-05 → — Figure MA6749 MA6749 1983-05 → — Figure MA7775 MA7775 1984-10 → — Figure MA6565 MA6565 1983-05 → — Figure MA7910B MA7910B 1984-10 → — Figure MA7911E MA7911E 1984-10 → — Figure MA7911E MA7911E 1985-09 → — Figure MA7912A MA7912A 1984-10 → — Figure MA7912A MA7912A 1986-05 → — Figure MA7913A MA7913A 1984-10 → 1986-05 Figure MA9096A MA9096A 1986-05 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17305 Valve Sub-assy, Reed
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700H Hose, Air
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17728 Valve, Thermostatic
17730 Precleaner Assy, Air W/Hose
17730A Hose, Precleaner
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17730C Case, Precleaner
17730E Bracket, Precleaner, NO.1
17744 Cup, Precleaner
17767 Bracket, Air Cleaner
17769 Support, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17884 Hose, Air Cleaner, NO.4
25710D Valve Assy, Air Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
