Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · General

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Distributor

33 part groups · 13 illustrations

Illustrations

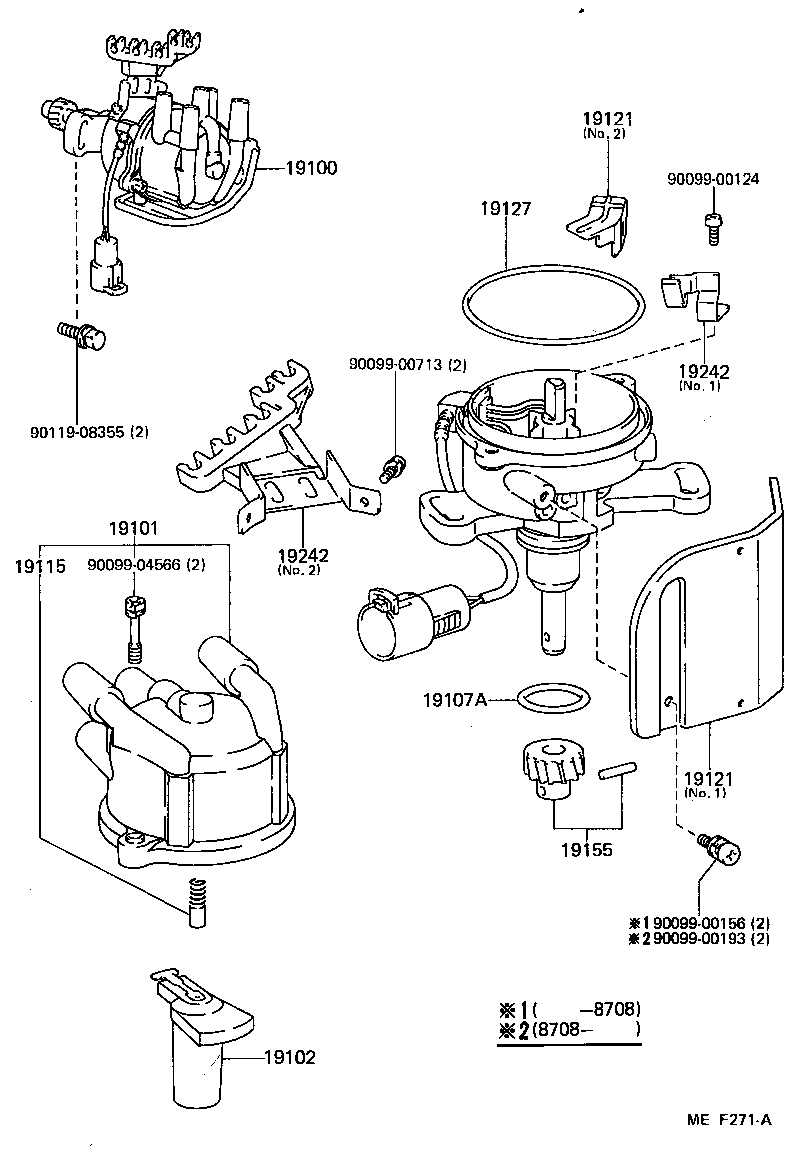

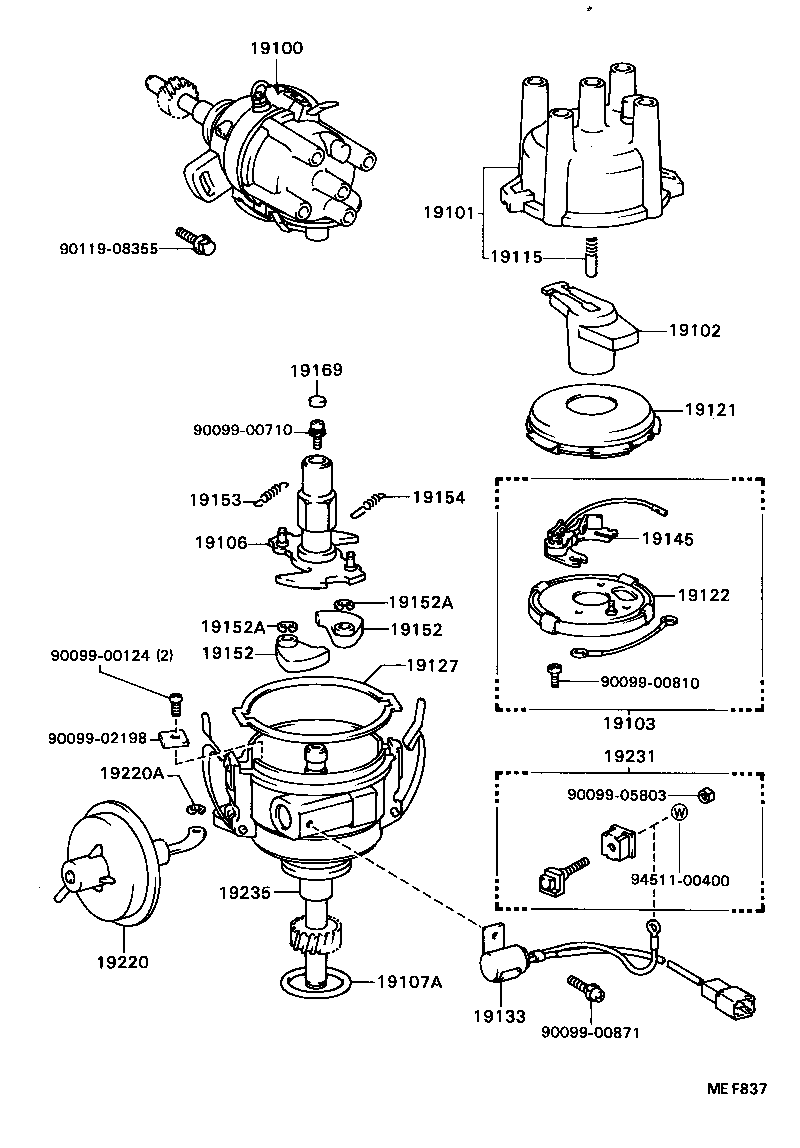

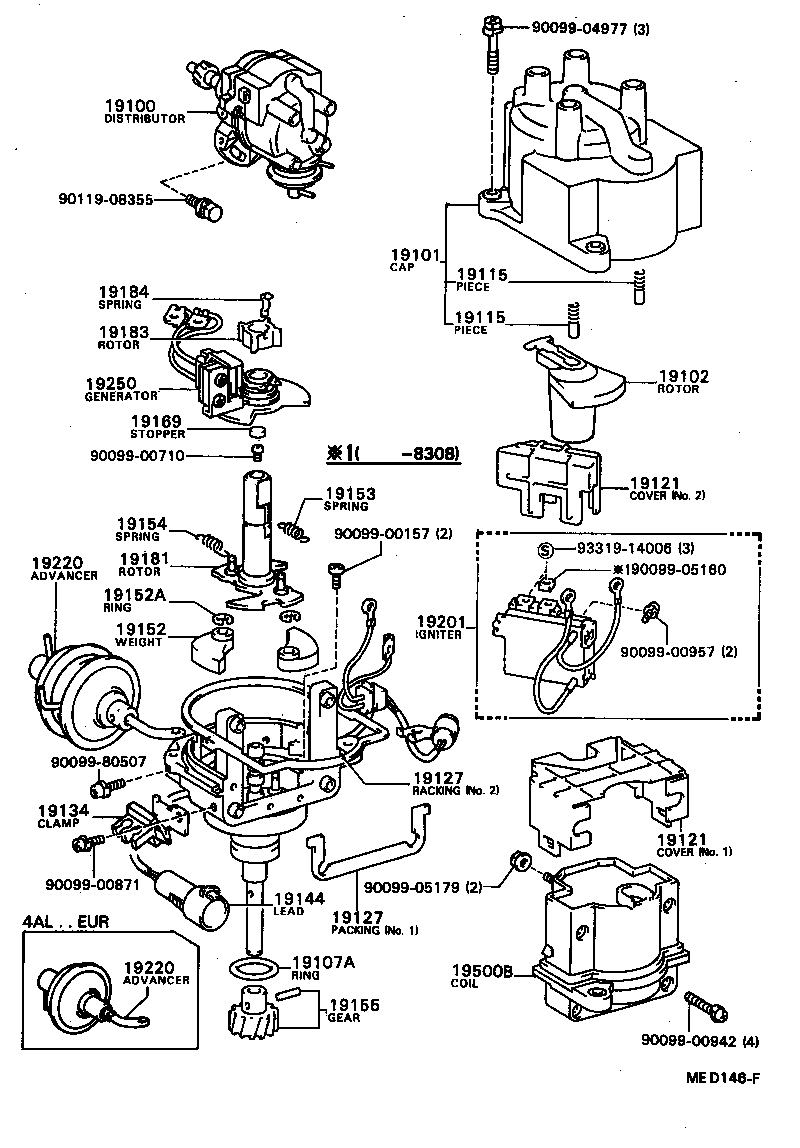

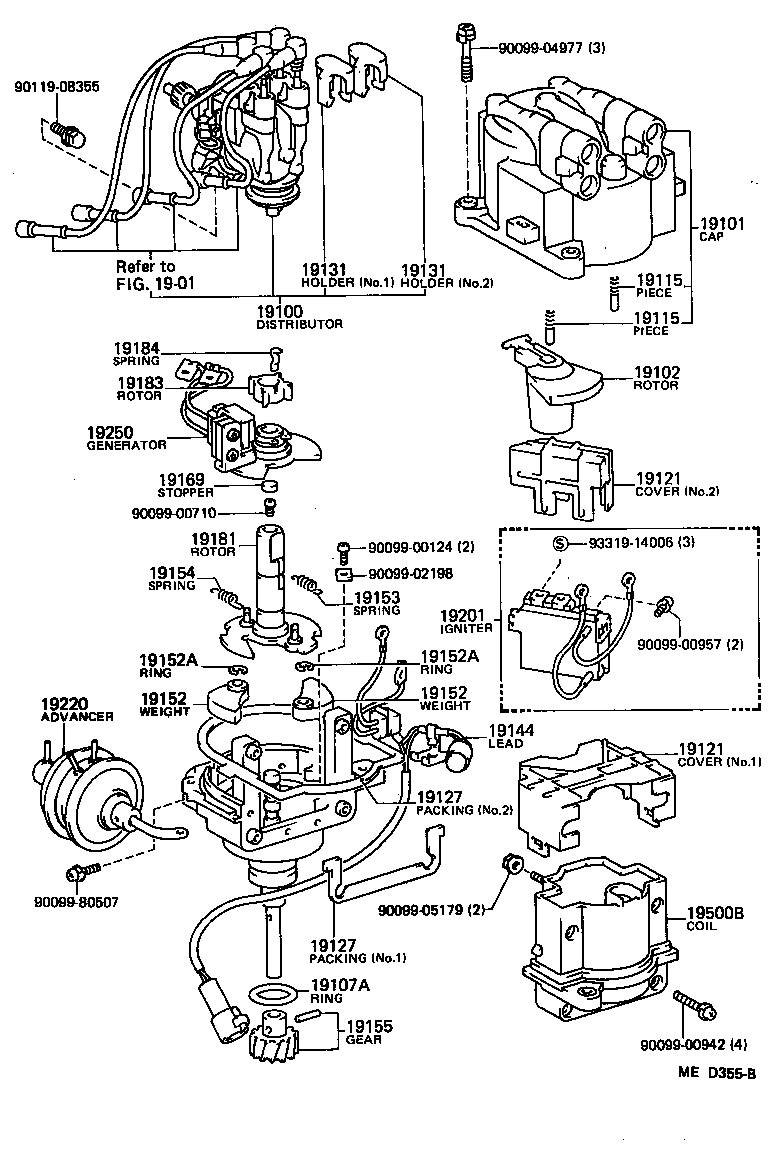

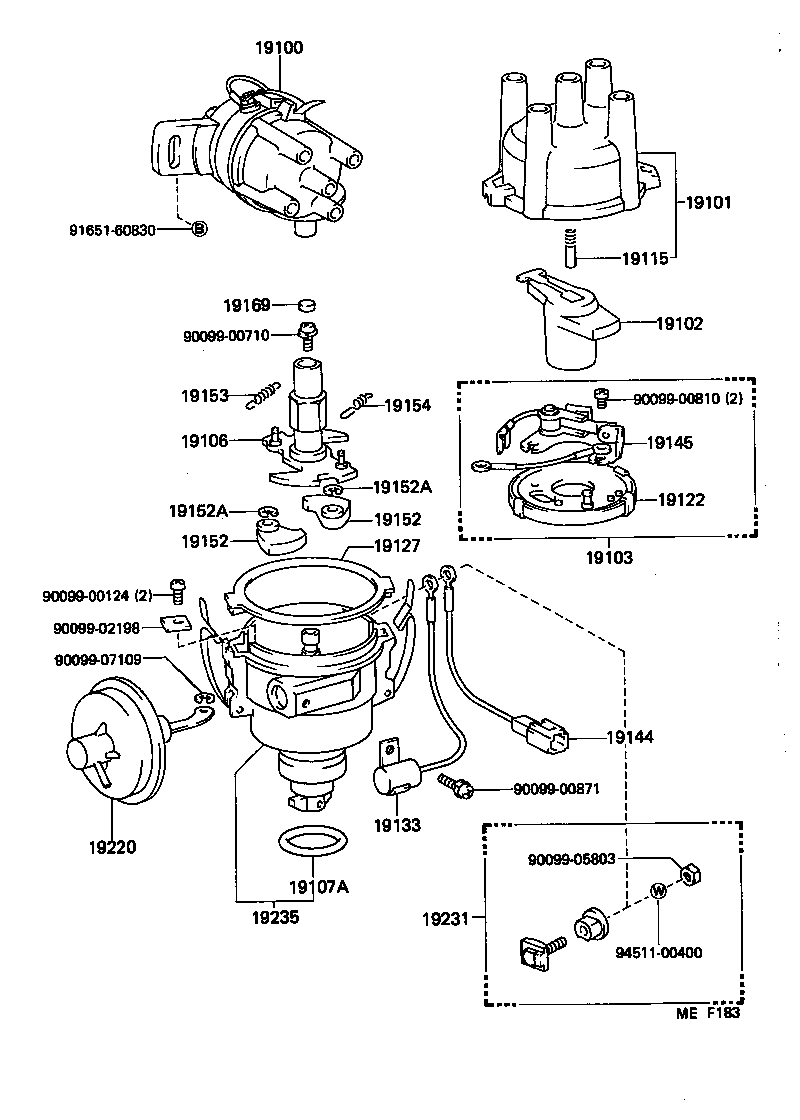

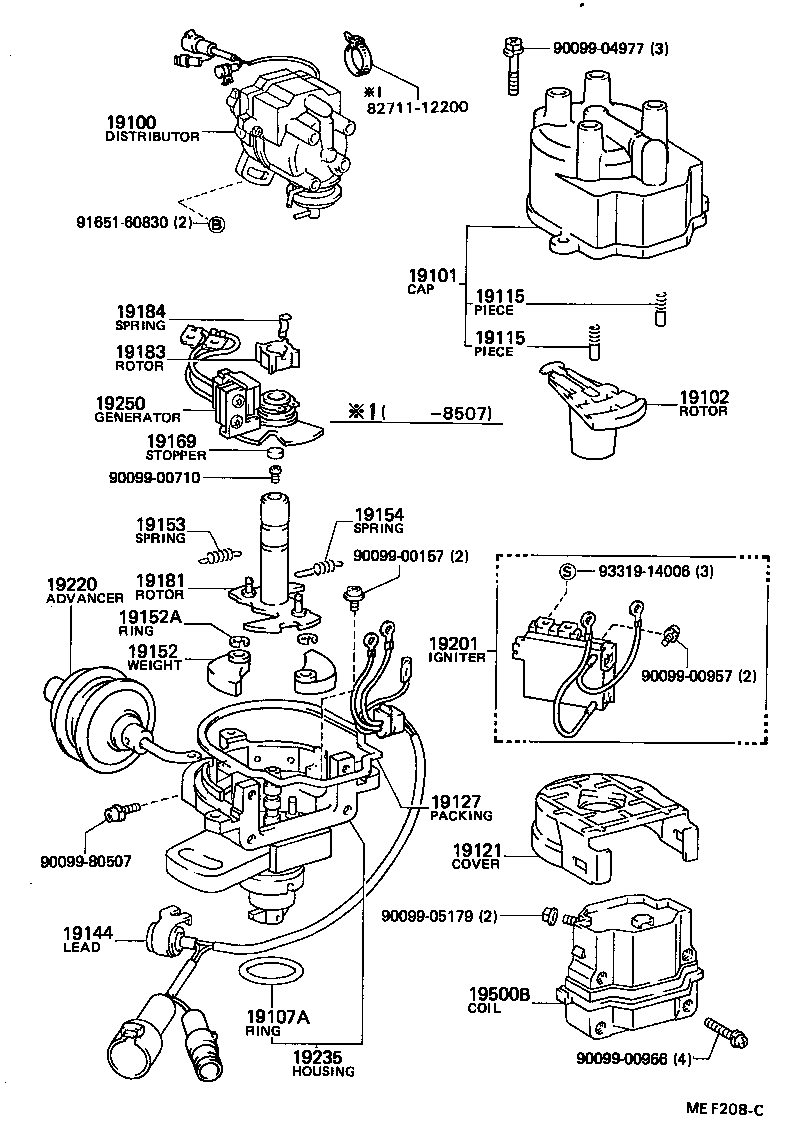

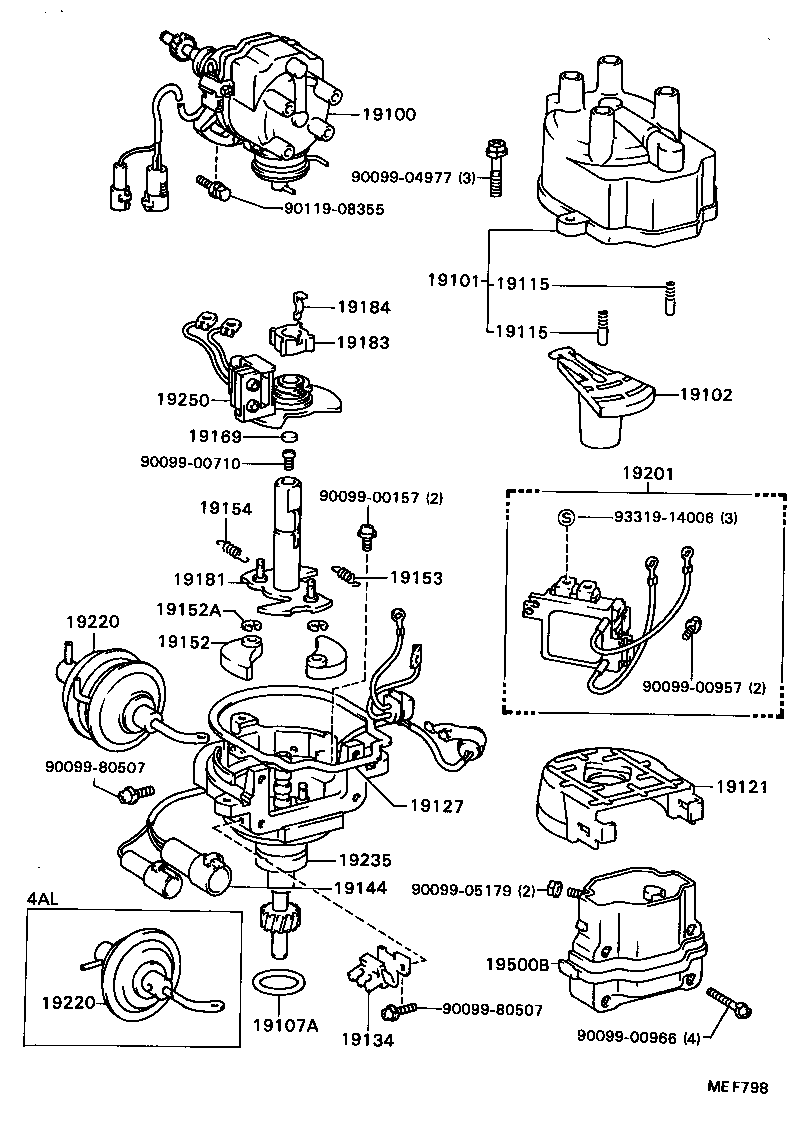

Figure MED145 MED145 1983-05 → 1985-05 Figure MED145 MED145 1983-05 → 1986-05 Figure MED145 MED145 1986-05 → — Figure MEF837 MEF837 1985-05 → 1986-05 Figure MED146F MED146F 1983-05 → 1985-05 Figure MEF798 MEF798 1985-05 → — Figure MED355B MED355B 1985-04 → 1985-05 Figure MED355B MED355B 1985-05 → — Figure MEF271A MEF271A 1984-10 → — Figure MEF183 MEF183 1984-10 → 1986-05 Figure MEF183 MEF183 1986-05 → — Figure MEF208C MEF208C 1984-10 → — Figure MEF208C MEF208C 1986-05 → —

Part groups

PNCDescription
19100 Distributor Assy
19101 Cap Sub-assy, Distributor
19102 Rotor Sub-assy, Distributor
19103 Breaker Sub-assy, Distributor
19106 Cam Sub-assy, Distributor
19107A Ring, O, Distributor Housing
19115 Piece, Distributor Cap, Center
19121 Cover, Dust Proof
19122 Plate, Stationary, Distributor
19127 Packing, Dust Proof
19131 Holder, Cord
19133 Condenser, Distributor
19134 Clamp Assy, Distributor
19137 Spring Sub-assy, Damper
19144 Lead, Distributor Breaker
19145 Point, Distributor
19152 Weight, Governor
19152A Ring, Snap(FOR GOVERNOR WEIGHT)
19153 Spring, Governor, A
19154 Spring, Governor, B
19155 Gear, Spiral, Distributor
19169 Stopper, Cam Grease
19181 Rotor, Distributor, Signal
19183 Rotor, Signal
19184 Spring, Rotor Set
19201 Igniter
19220 Advancer Assy, Vacuum, Distributor
19220A Ring, Snap(FOR DISTRIBUTOR VACUUM ADVANCER)
19231 Terminal, Distributor
19235 Housing, Distributor
19242 Clamp, Cord
19250 Generator Assy, Signal
19500B Coil Assy, Ignition
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
