Toyota Corolla Sed/LB

1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · General

Discontinued model Data version 1989-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

22 part groups · 2 illustrations

Illustrations

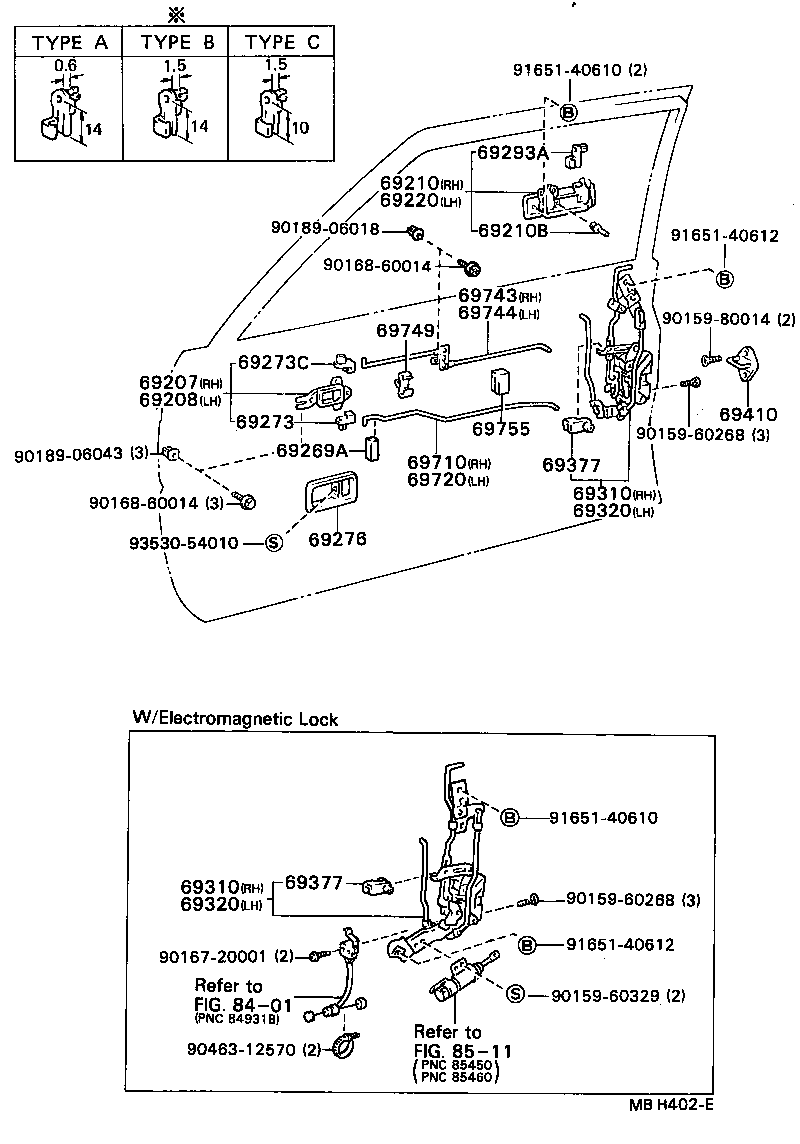

Figure MBF226G MBF226G 1983-05 → — Figure MBH402E MBH402E 1984-10 → —

Part groups

PNCDescription
69207 Handle Sub-assy, Front Door Inside, RH
69208 Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69210B Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
69220 Handle Assy, Front Door Outside, LH
69269A Seal, Door Inside Handle NO.1(FOR FRONT DOOR)
69273 Snap, Door Inside Handle Rod
69273C Snap, Door Inside Handle Link
69276 Bezel, Front Door Inside Handle
69293A Snap, Front Door Outside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69377 Snap, Front Door Lock Control Rod
69410 Plate Assy, Front Door Lock Striker
69710 Link Assy, Front Door Open Control, RH
69720 Link Assy, Front Door Open Control, LH
69736A Guide, Front Door Lock Link
69743 Link, Front Door Locking Control, NO.1 RH
69744 Link, Front Door Locking Control, NO.1 LH
69747A Button, Door Locking(FOR FRONT DOOR)
69749 Clamp, Front Door Lock Link
69755 Silencer, Front Door Lock Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
