Toyota Corolla Sed/LB
1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · General
Discontinued model
Data version 1989-05

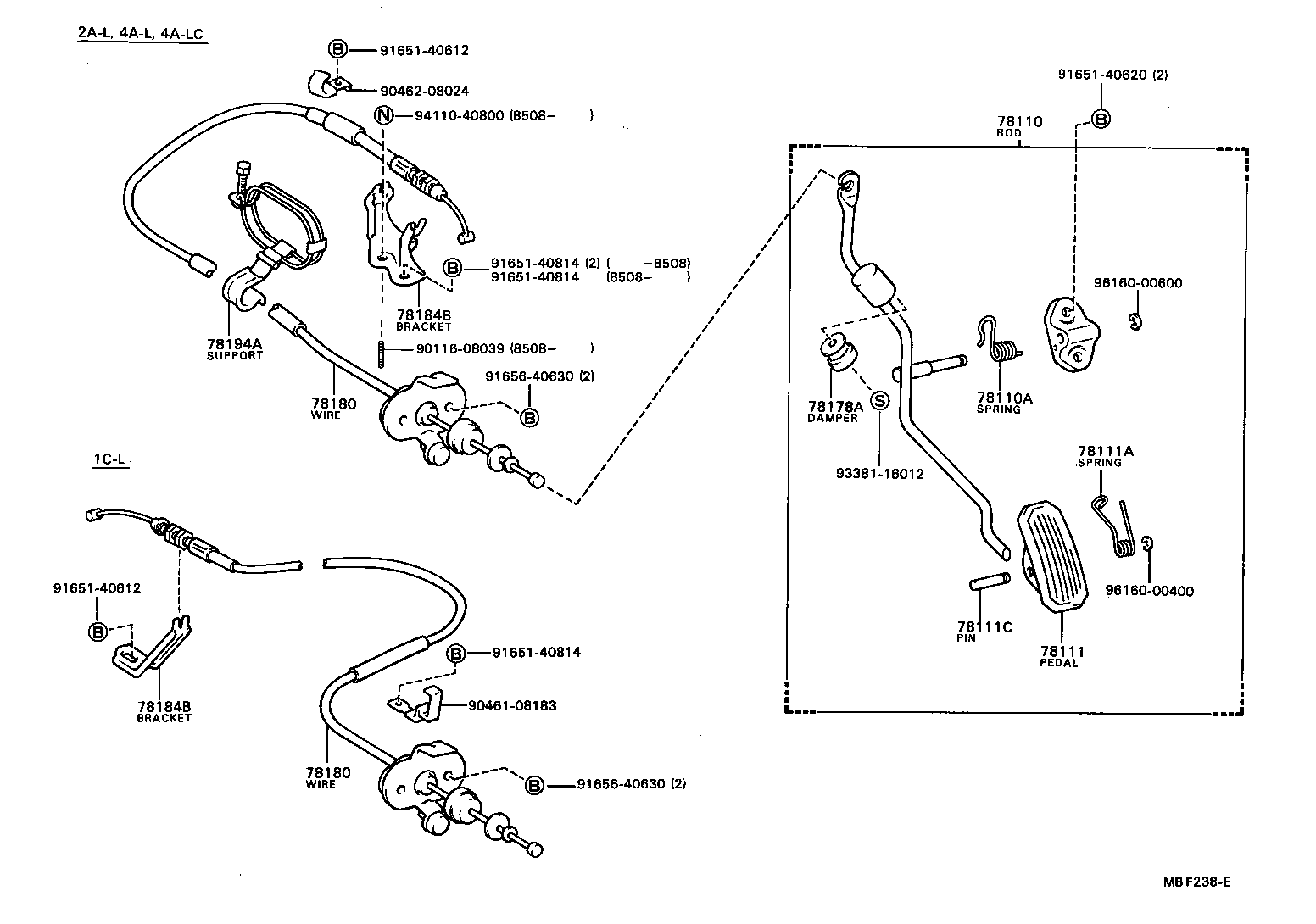

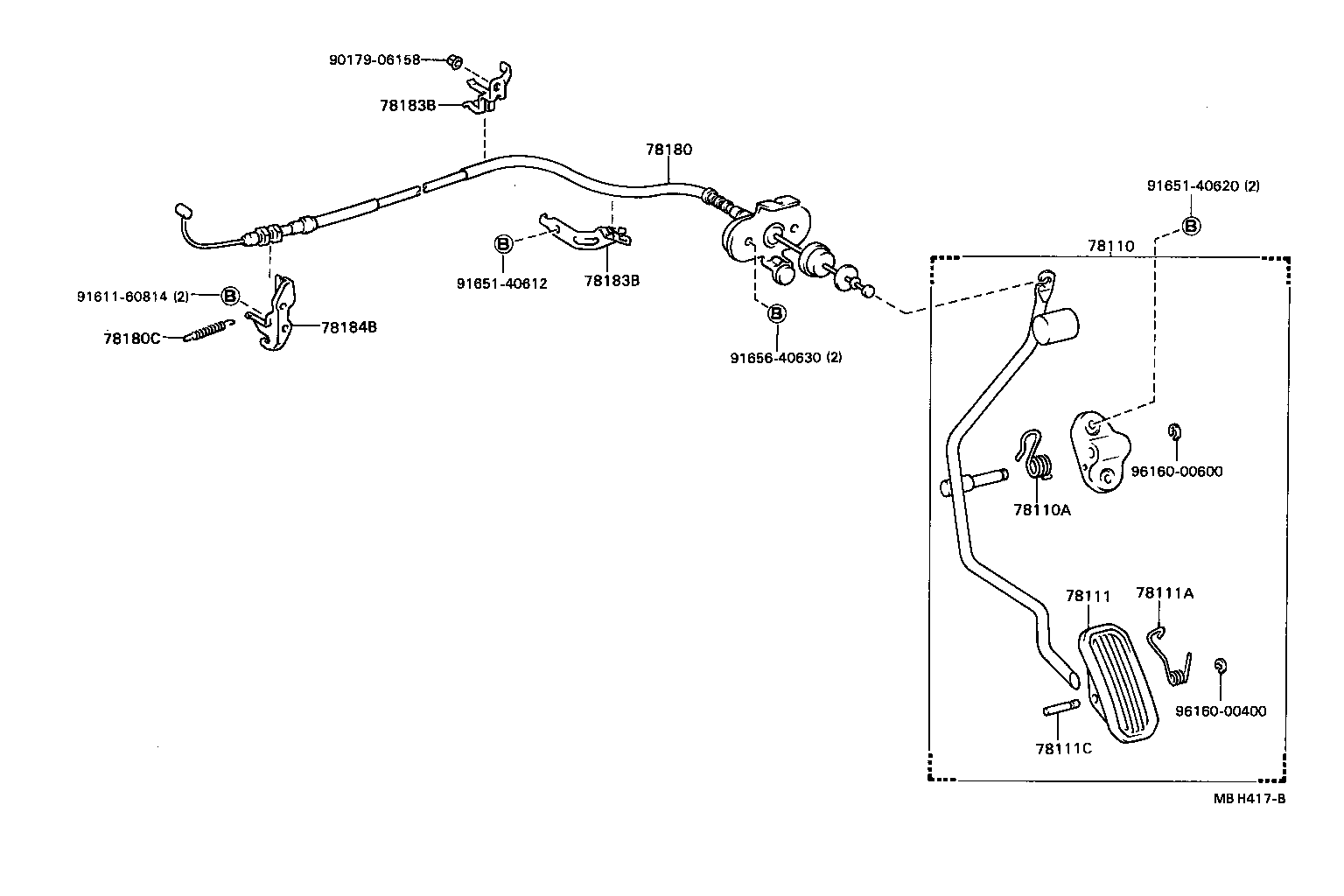

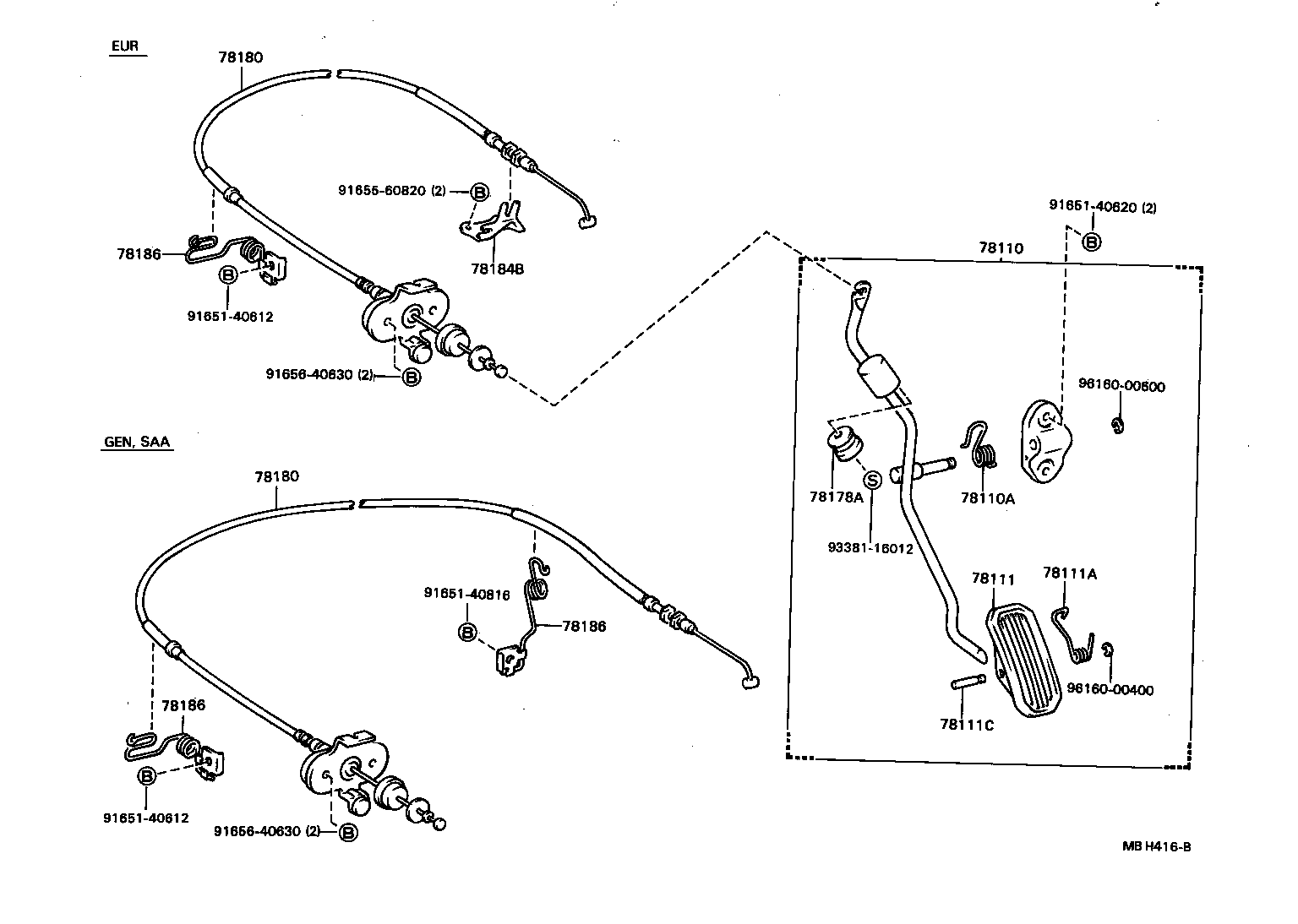

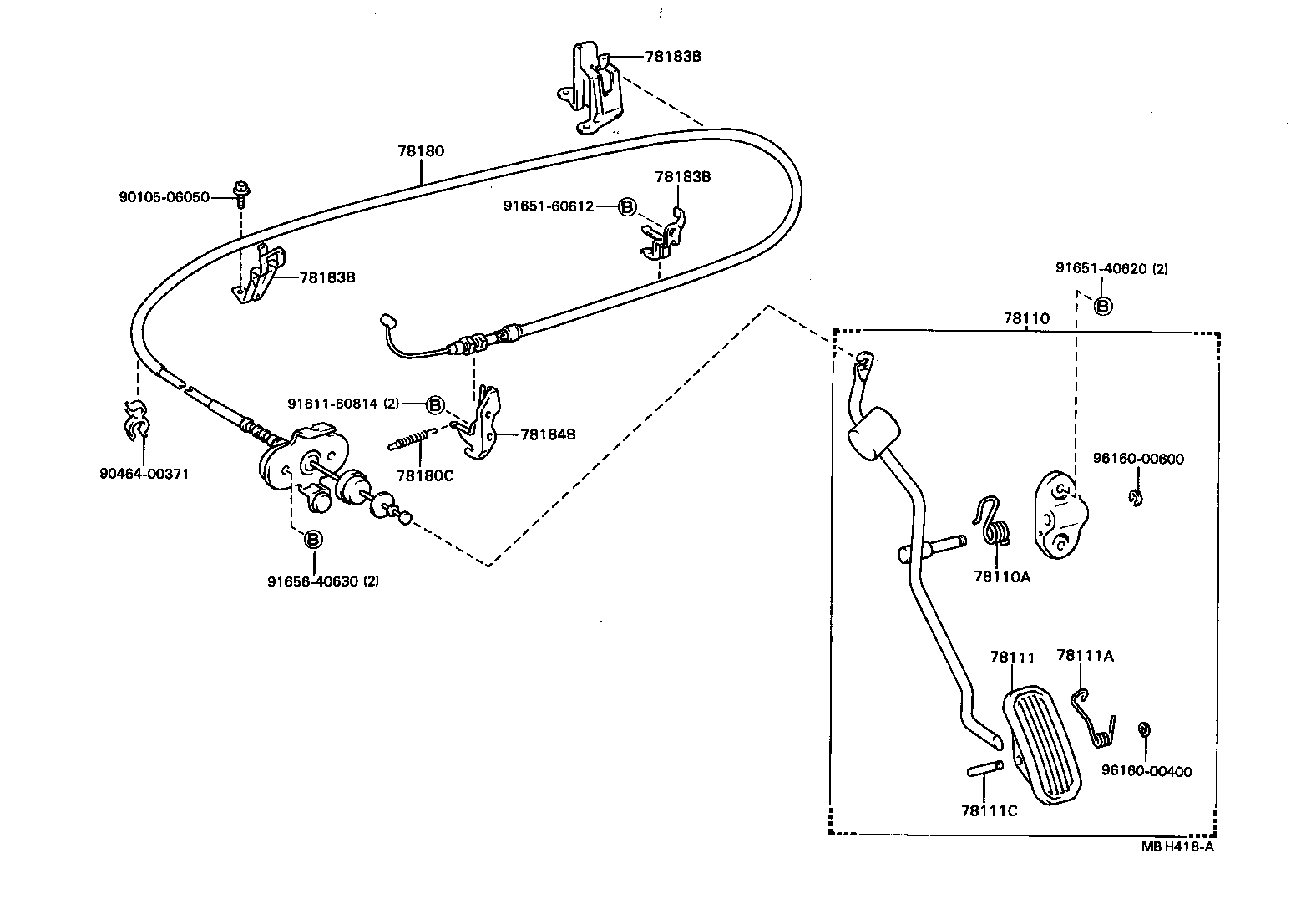

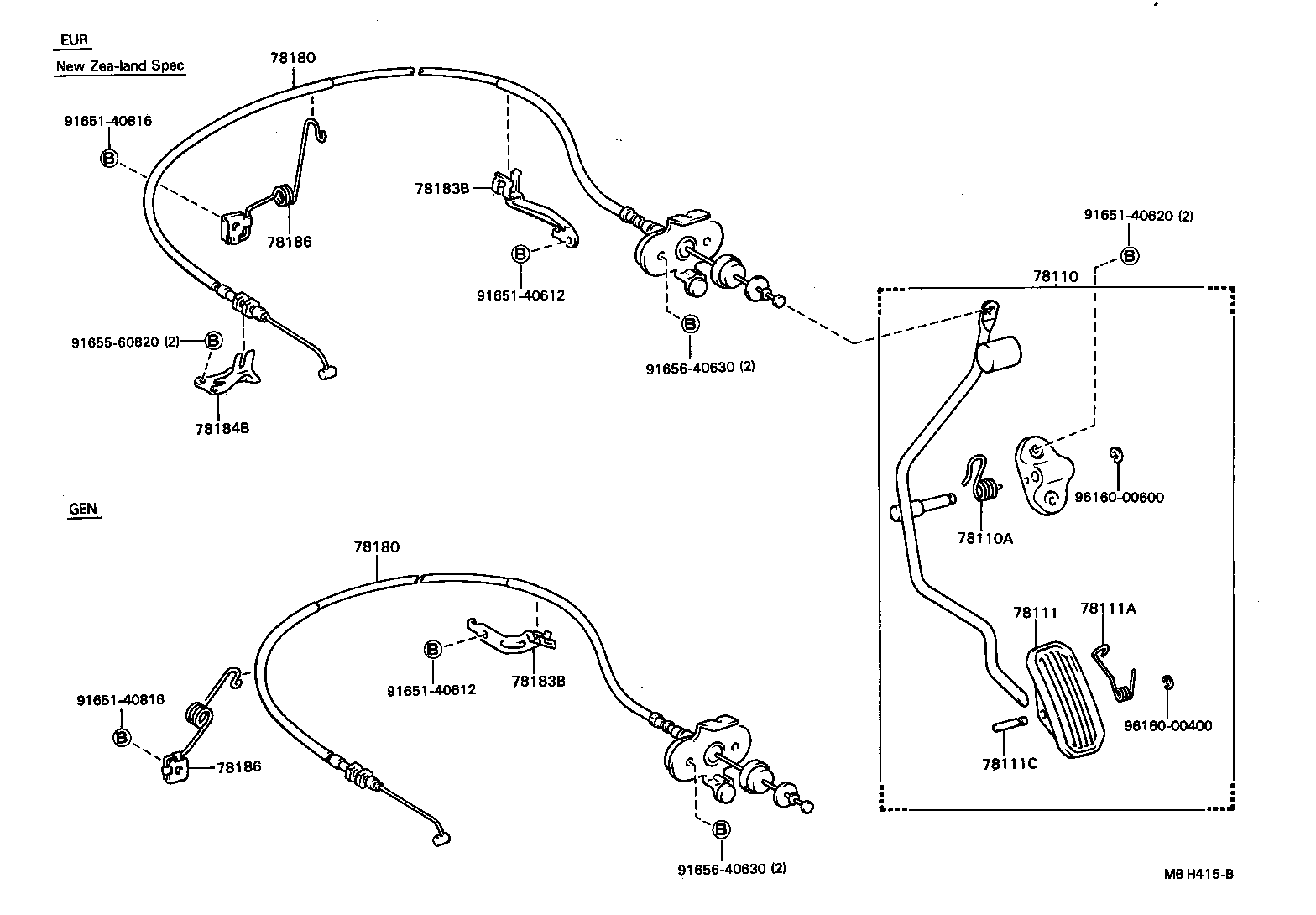

Accelerator Link
16 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 78110 | Rod Assy, Accelerator Pedal |
| 78110A | Spring (FOR ACCELERATOR PEDAL ROD) |
| 78111 | Pedal, Accelerator |
| 78111A | Spring (FOR ACCELERATOR PEDAL) |
| 78111C | Pin (FOR ACCELERATOR PEDAL) |
| 78178A | Damper, Accelrator Pedal Rod Dynamic |
| 78180 | Wire Assy, Accelerator |
| 78180C | Spring, Tension (FOR ACCELERATOR WIRE) |
| 78183B | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78186 | Support, Accelerator Control Cable, NO.1 |
| 78194A | Support, Accelerator Control Cable, NO.4 |
| 78310 | Cable Assy, Choke |
| 78310A | Grommet, Choke Cable |
| 78310B | Clamp, Choke Cable |
| 78311 | Knob, Choke Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
