Toyota Corolla Sed/LB
1983-05 → 1988-07 · chassis EE80,AE8#,CE80 · catalogue 151210 · General
Discontinued model
Data version 1989-05
Switch & Relay & Computer

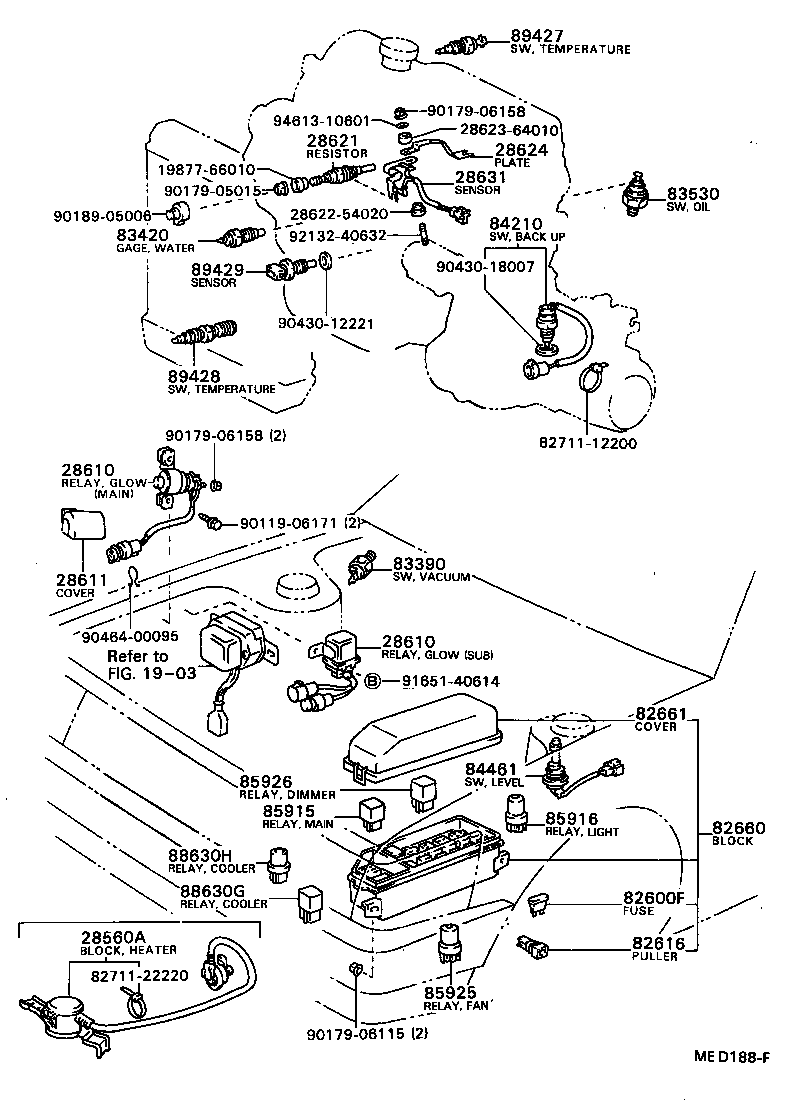

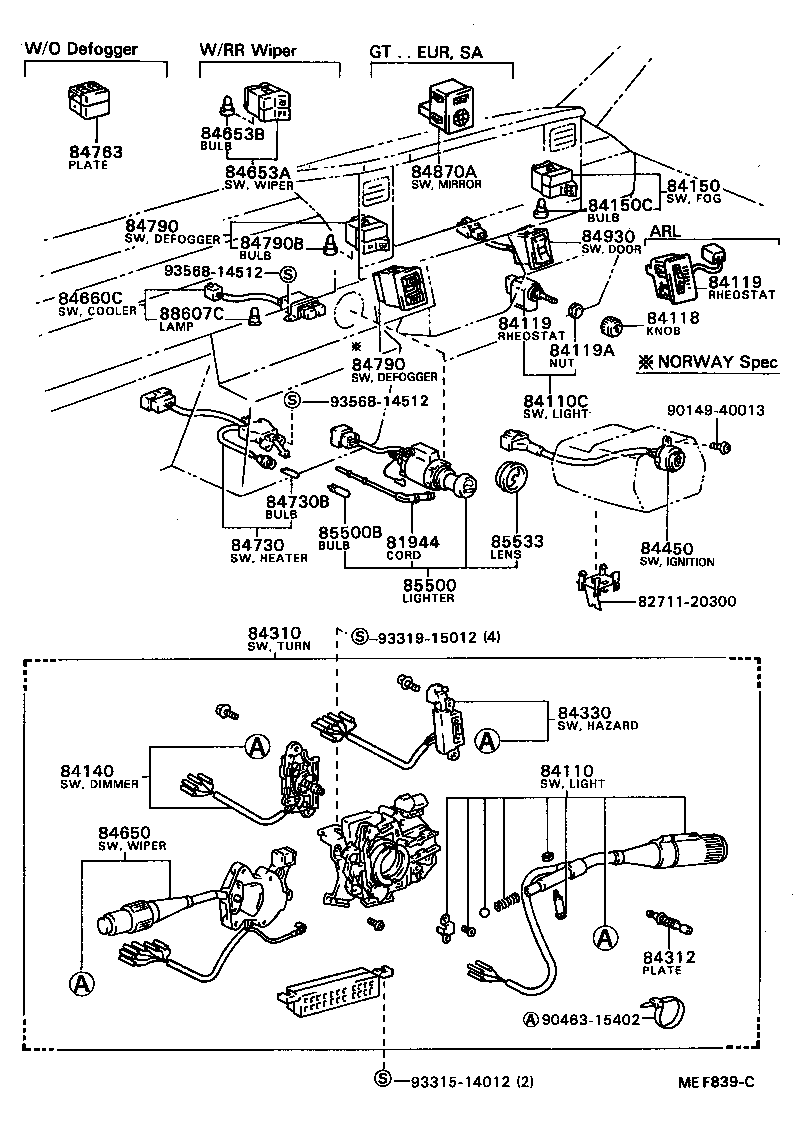

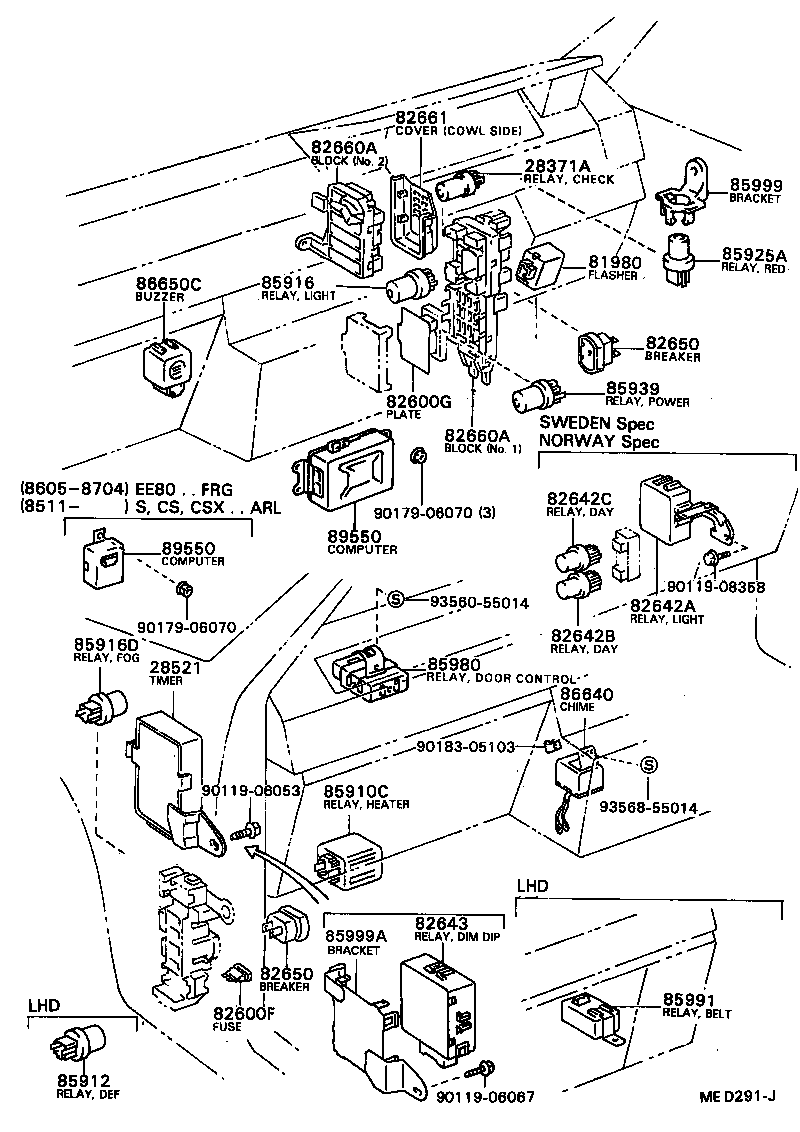

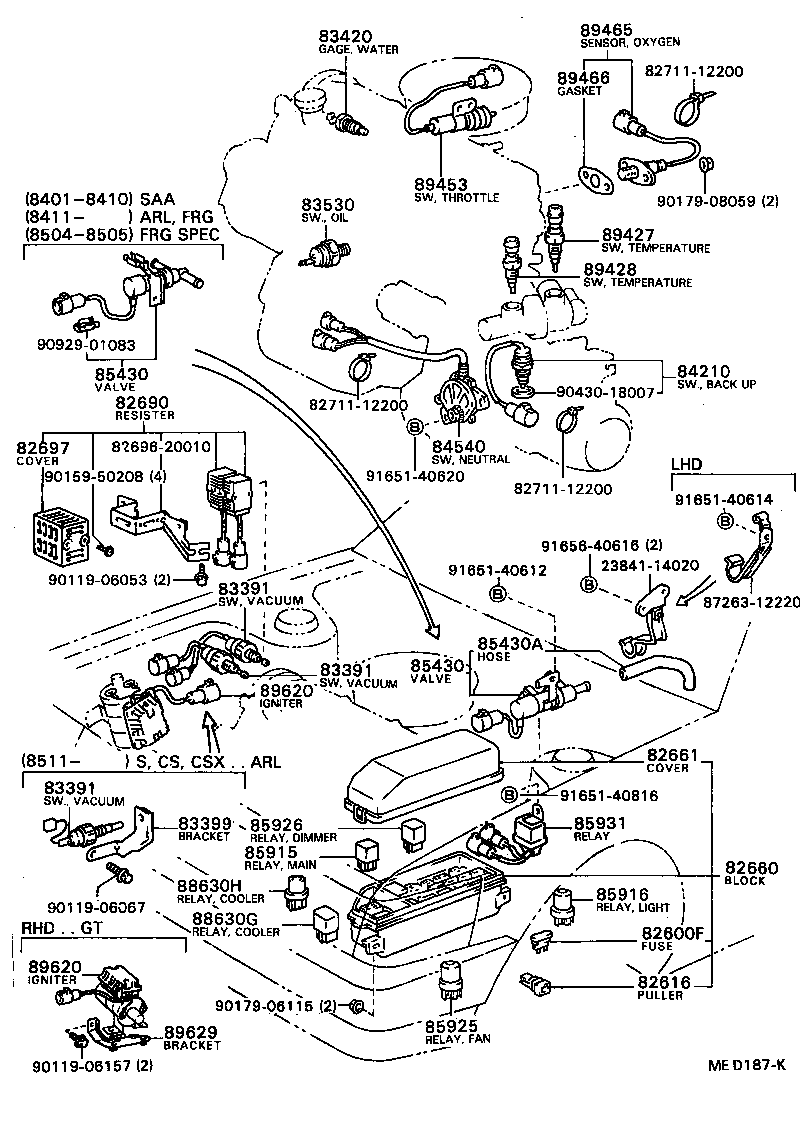

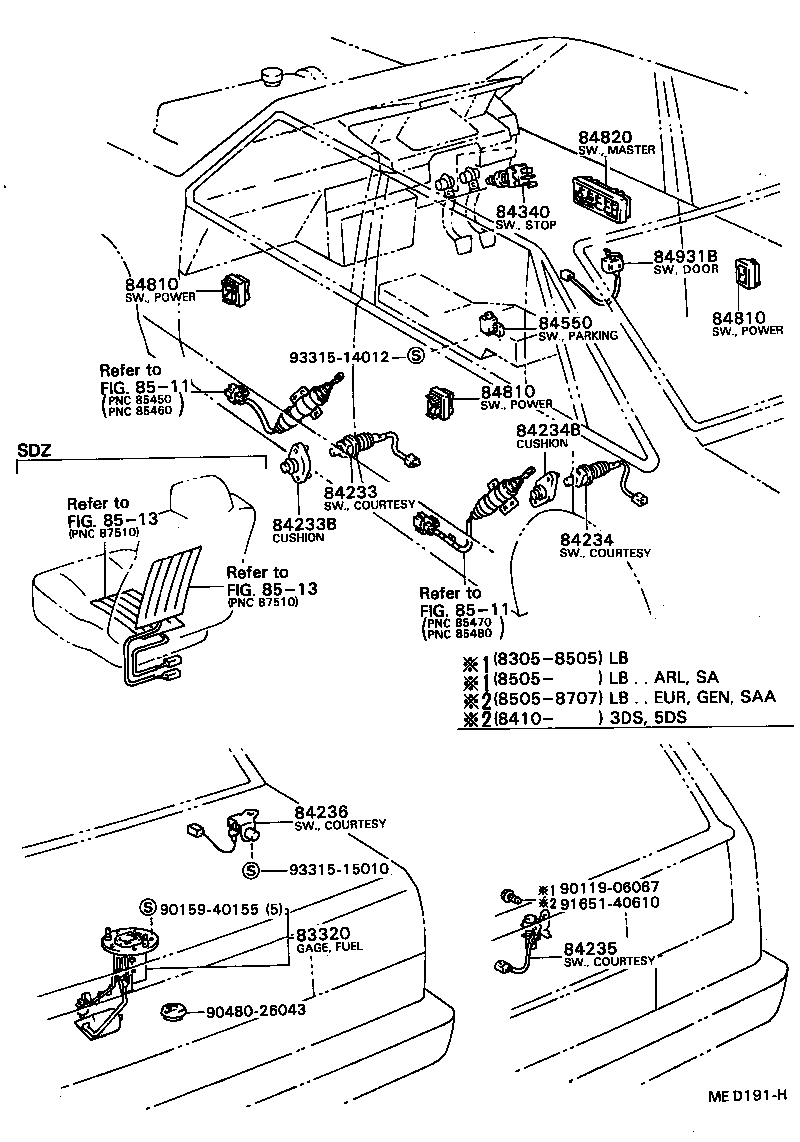

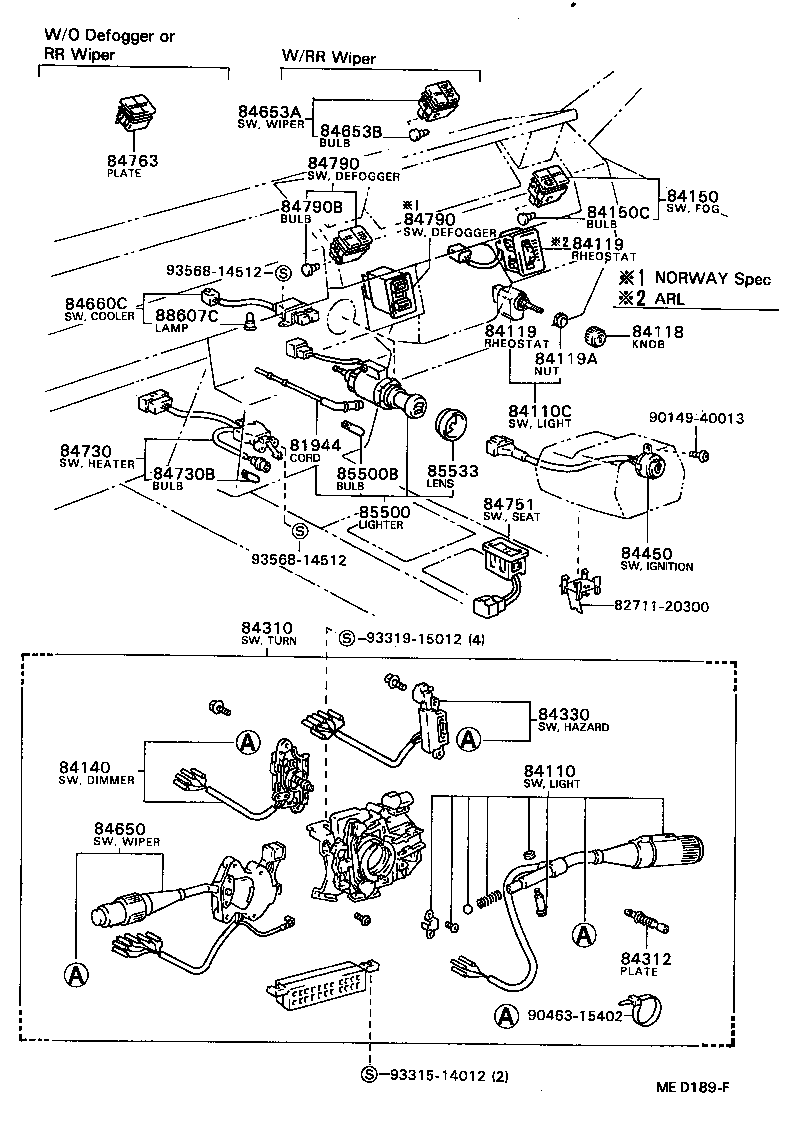

100 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 28371A | Relay, Bulb Check |
| 28521 | Timer, Preheating |
| 28560A | Block, Heater |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28624 | Plate, Current Sensor |
| 28631 | Sensor, Glow Plug Current |
| 81944 | Cord, Optical Fiber |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82616 | Puller, Fuse |
| 82642A | Relay, Running Light |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82642C | Relay, Day Time Running Light, NO.2 |
| 82643 | Relay, Dim-dip Lamp |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82660 | Block Assy, Relay, Engine Room |
| 82660A | Block Assy, Relay, Cowl Side |
| 82661 | Cover, Relay Block, NO.1 |
| 82690 | Resistor Assy, Dim Dip Lamp |
| 82697 | Cover, Dim-dip Lamp Resistor |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84110C | Switch Assy, Light Control, NO.2 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150 | Switch Assy, Fog Lamp |
| 84150C | Bulb, Fog Lamp Switch |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84233B | Cushion, Courtesy Switch (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84234B | Cushion, Courtesy Switch (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84653B | Bulb, Rear Wiper Switch |
| 84660C | Switch, Cooler |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84751 | Switch, Seat Heater |
| 84763 | Plate, Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84930 | Switch Assy, Door Control |
| 84931B | Switch, Door Control |
| 85430 | Valve, Outer Vent Control |
| 85430A | Hose |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85915 | Relay, Main |
| 85916 | Relay, Light Control |
| 85916D | Relay, Fog Lamp |
| 85925 | Relay, Radiator Fan |
| 85925A | Relay, Red Indicator |
| 85926 | Relay, Headlamp Dimmer |
| 85931 | Relay, Emission Control |
| 85939 | Relay, Power Window |
| 85980 | Relay Assy, Door Control |
| 85991 | Relay, Seat Belt Warning |
| 85999 | Bracket, Combination Relay |
| 85999A | Bracket, Relay, NO.2 |
| 86640 | Chime Assy |
| 86650C | Buzzer Assy, Sedimenter Warning |
| 88607C | Lamp Sub-assy, Indicator |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 89427 | Switch, Temperature Detect |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89429 | Sensor, Oil Temperature |
| 89453 | Switch, Throttle Position (FOR T.C.S.) |
| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |
| 89550 | Computer Assy, Emission Control |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
