Toyota Corolla Sed/LB/WG

1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General

Discontinued model Data version 1994-04

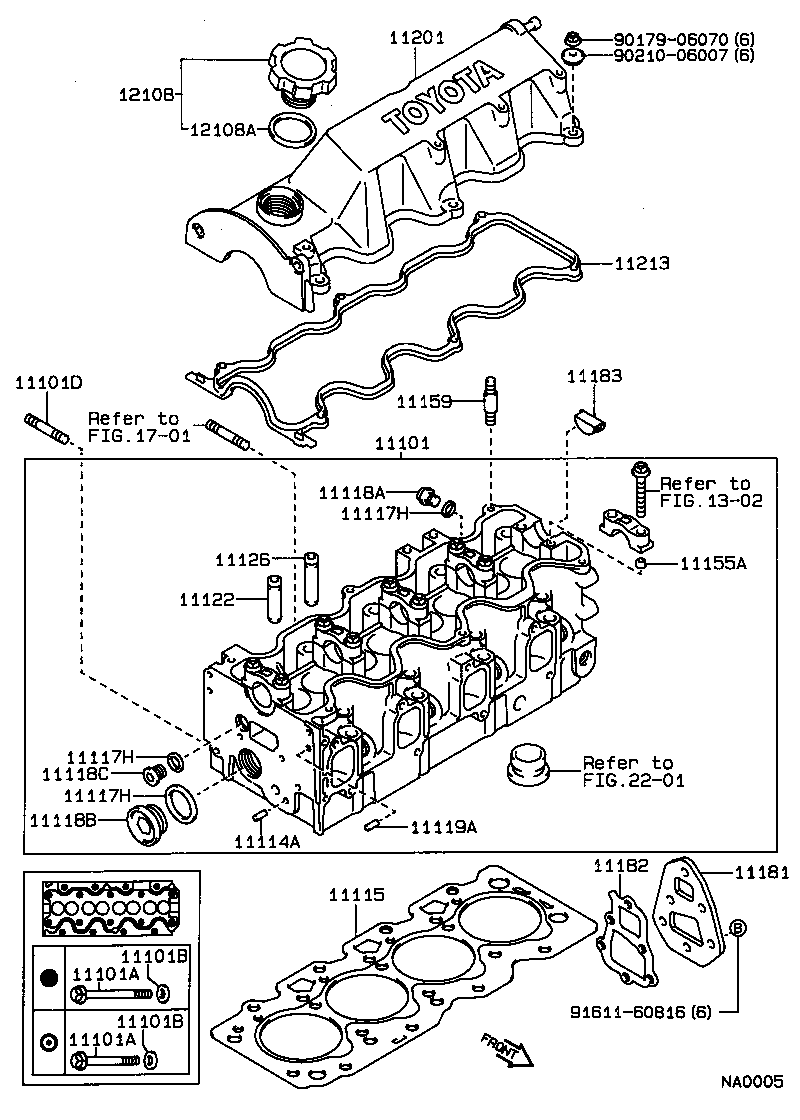

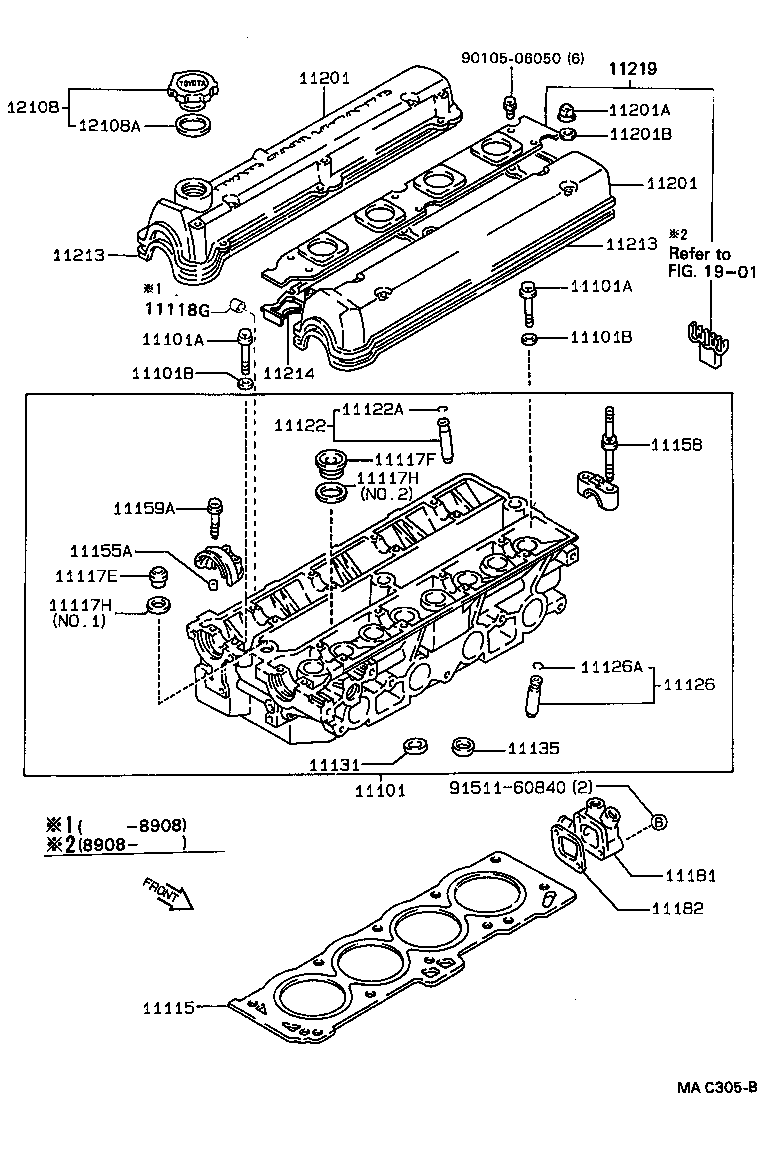

Cylinder Head

42 part groups · 4 illustrations

PNC	Description
11101	Head Sub-assy, Cylinder
11101A	Bolt(FOR CYLINDER HEAD SET)
11101B	Washer, Plate(FOR CYLINDER HEAD SET)
11101D	Bolt, Stud(FOR WATER OUTLET)
11114A	Pin, Straight
11115	Gasket, Cylinder Head
11116B	Plug, Tight, NO.2
11116D	Plug, Tight, NO.4
11117B	Plug, W/Head Taper Screw, NO.2
11117C	Plug, W/Head Taper Screw, NO.3
11117E	Plug, W/Head Straight Screw, NO.1
11117F	Plug, W/Head Straight Screw, NO.2
11117H	Gasket(FOR WATER HOLE)
11118A	Plug, Straight, NO.1
11118B	Plug, Straight, NO.2
11118C	Plug, Straight, NO.3
11118G	Pin, Slotted Spring, NO.1
11119A	Pin, Straight, NO.1
11122	Bush, Intake Valve Guide
11122A	Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126	Bush, Exhaust Valve Guide
11126A	Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
11131	Seat, Intake Valve
11135	Seat, Exhaust Valve
11151B	Seal, Oil(FOR CAMSHAFT SETTING)
11155A	Pin, Ring W/Head
11158	Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159	Bolt, Stud(FOR HEAD TO CAMSHAFT BEARING CAP)
11159A	Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11181	Plate, Cylinder Head, Rear
11182	Gasket, Cylinder Head Rear Plate
11183	Plug, Semicircular
11191A	Gasket(FOR SPARK PLUG TUBE)
11201	Cover Sub-assy, Cylinder Head
11201A	Nut, Cap(FOR CYLINDER HEAD COVER)
11201B	Washer, Seal(FOR CYLINDER HEAD COVER)
11201E	Bolt, Stud(FOR CYLINDER HEAD COVER SET)
11213	Gasket, Cylinder Head Cover
11214	Gasket, Cylinder Head Cover, NO.2
11219	Cover, Cylinder Head, NO.3
12108	Cap Sub-assy, Oil Filler
12108A	Gasket(FOR OIL FILLER CAP)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
