Toyota Corolla Sed/LB/WG

1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

32 part groups · 4 illustrations

Illustrations

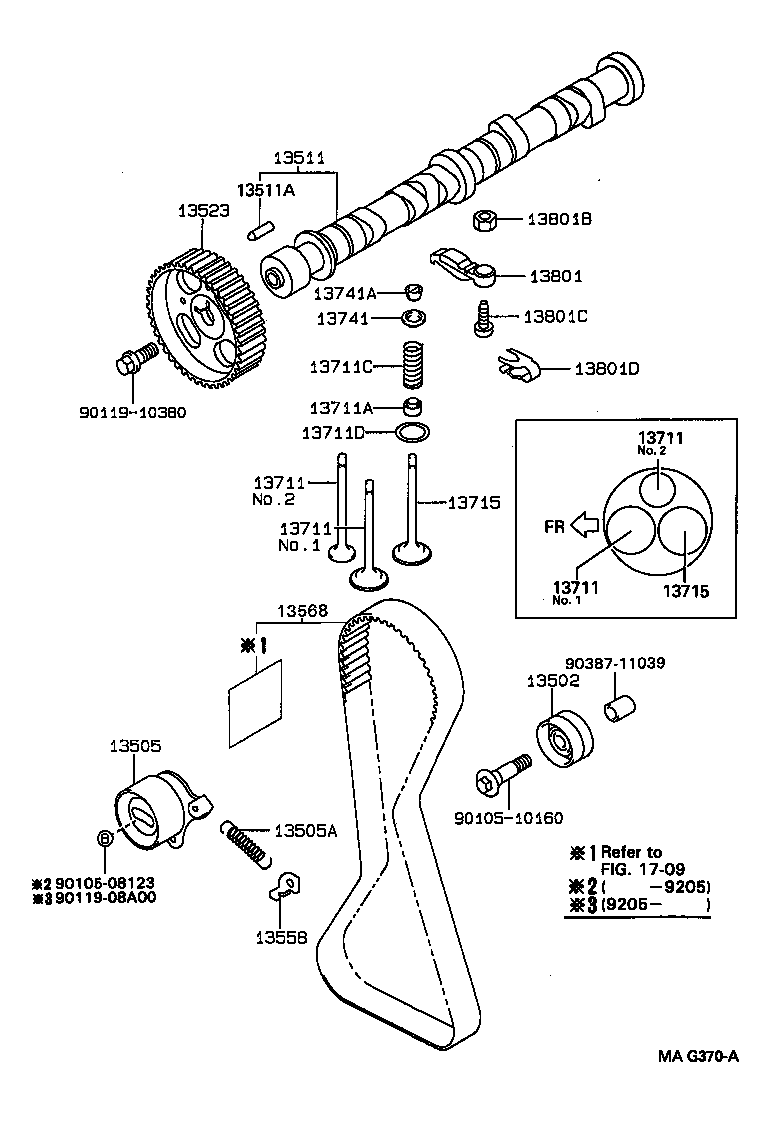

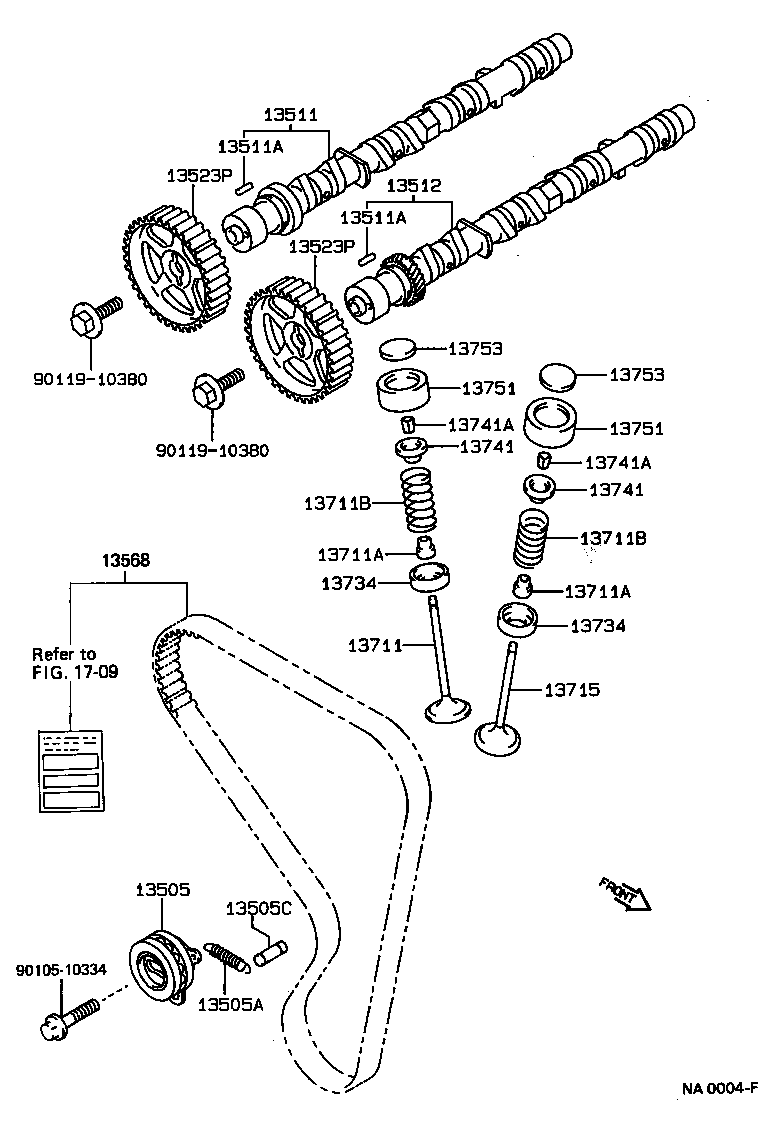

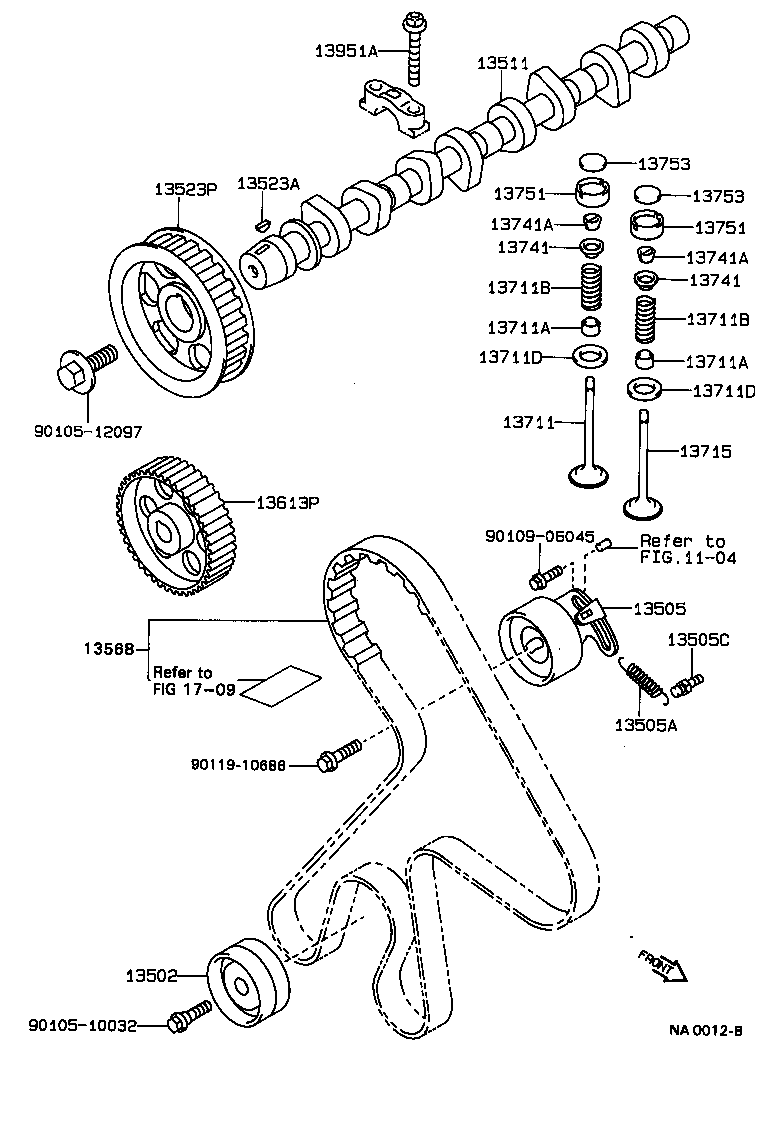

Figure MAF857 MAF857 1987-05 → — Figure NA0004F NA0004F 1987-05 → — Figure NA0012B NA0012B 1987-05 → — Figure MAG370A MAG370A 1987-05 → —

Part groups

PNCDescription
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13505B Bolt, Flange (FOR IDLER)
13505C Pin(FOR IDLER SPRING TENSION)
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13512 Camshaft, NO.2
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523P Pulley, Camshaft Timing
13529 Gear, Camshaft Sub
13558 Bracket, Spring(FOR IDLER)
13568 Belt, Timing
13579 Washer, Camshaft Timing Gear Bolt
13613P Pulley, Injection Pump Drive
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711C Spring, Compression(FOR OUTER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13753 Shim, Valve Adjusting
13801 Arm Sub-assy, Valve Rocker, NO.1
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13801D Spring, Compression(FOR ROCKER ARM)
13951A Bolt(FOR ROCKER SUPPORT SET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
