Toyota Corolla Sed/LB/WG

1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

15 part groups · 4 illustrations

Illustrations

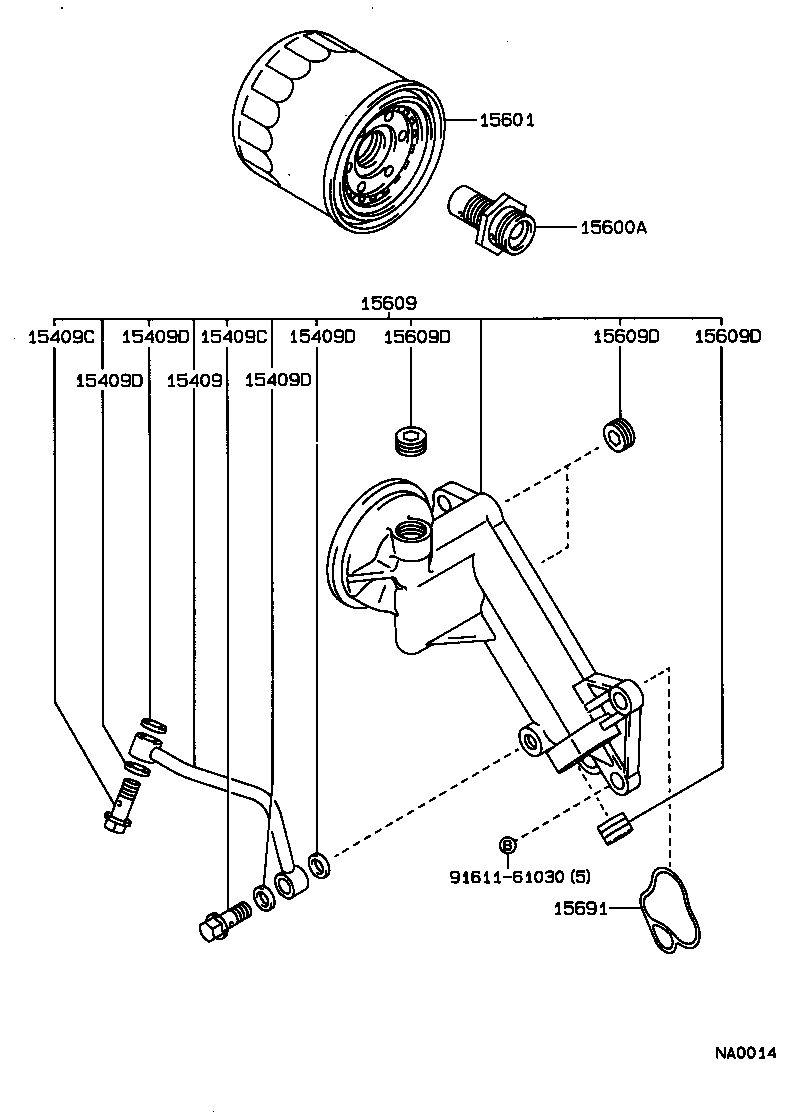

Figure NA0088 NA0088 1987-05 → — Figure NA0166 NA0166 1988-02 → — Figure NA0014 NA0014 1987-05 → — Figure 150460 150460 1987-05 → —

Part groups

PNCDescription
15409 Pipe OR Hose, Oil Filter Outlet
15409C Bolt, Union(FOR OIL FILTER OUTLET PIPE)
15409D Gasket(FOR OIL FILTER OUTLET PIPE)
15600A Union(FOR OIL FILTER)
15600B Ring, O, NO.1(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609B Union(FOR OIL FILTER BRACKET)
15609C Gasket(FOR OIL FILTER BRACKET UNION)
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15609F Spring(FOR OIL FILTER BRACKET)
15609G Bolt, Union(FOR OIL FILTER BRACKET)
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
