Toyota Corolla Sed/LB/WG

1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

18 part groups · 2 illustrations

Illustrations

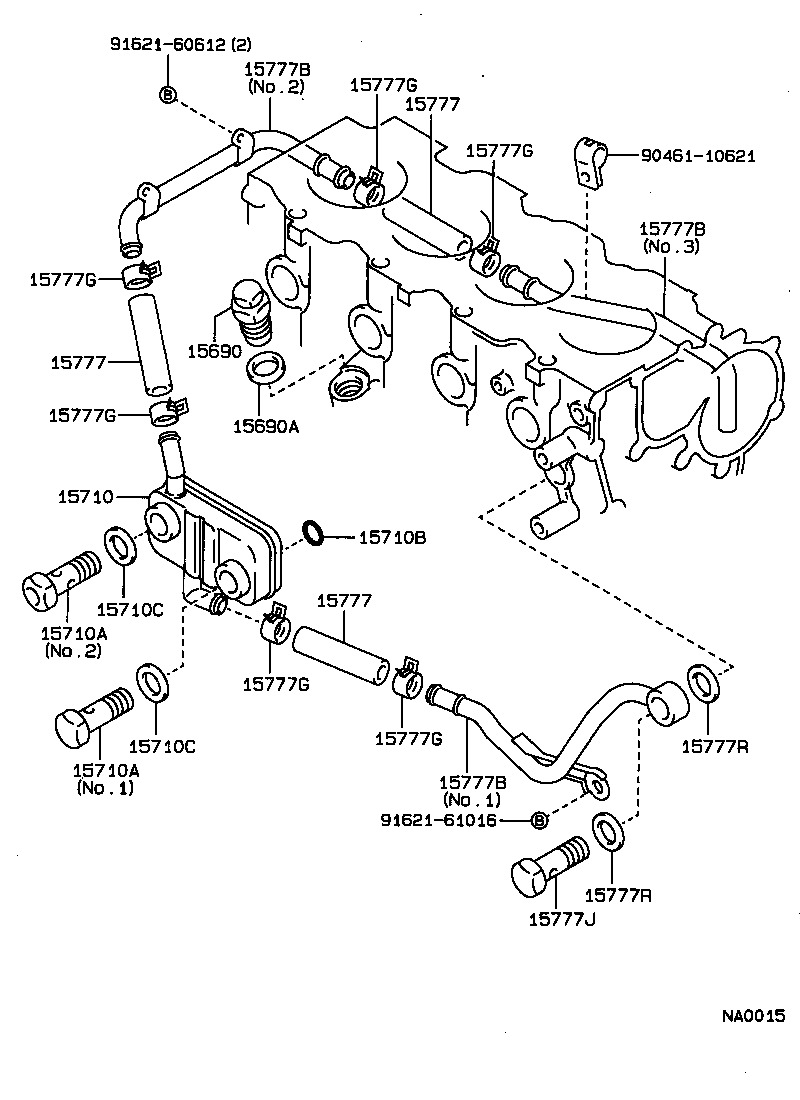

Figure NA0174E NA0174E 1988-02 → — Figure NA0015 NA0015 1989-08 → —

Part groups

PNCDescription
15690 Valve Assy, Oil Cooler Relief
15690A Gasket(FOR OIL COOLER RELIEF VALVE)
15710 Cooler Assy, Oil
15710A Bolt, Union(FOR OIL COOLER)
15710B Ring, O(FOR OIL COOLER)
15710C Gasket(FOR OIL COOLER)
15772A Union(FOR OIL PIPE)
15772E Gasket(FOR OIL PIPE)
15772F Bolt, Union(FOR OIL PIPE)
15777 Hose, Oil Cooler
15777A Hose, Oil Cooler
15777B Pipe, Oil Cooler
15777C Hose, Oil Cooler
15777D Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
15777G Clamp OR Crip, Hose
15777J Bolt, Union(FOR OIL COOLER PIPE)
15777R Gasket(FOR OIL COOLER PIPE UNION BOLT)
15777S Clamp OR Clip, Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
