Exhaust Pipe

23 part groups · 6 illustrations

Illustrations

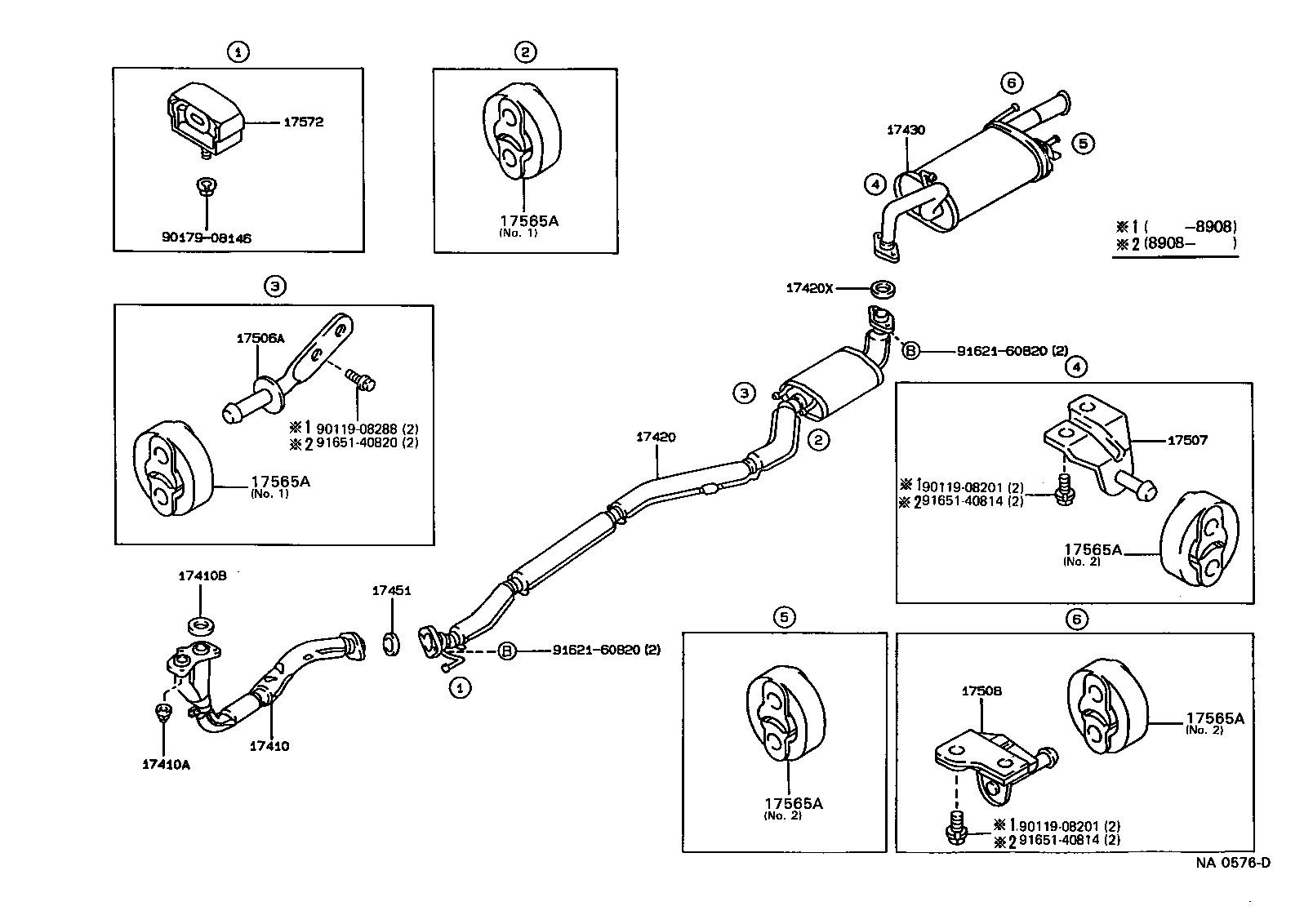

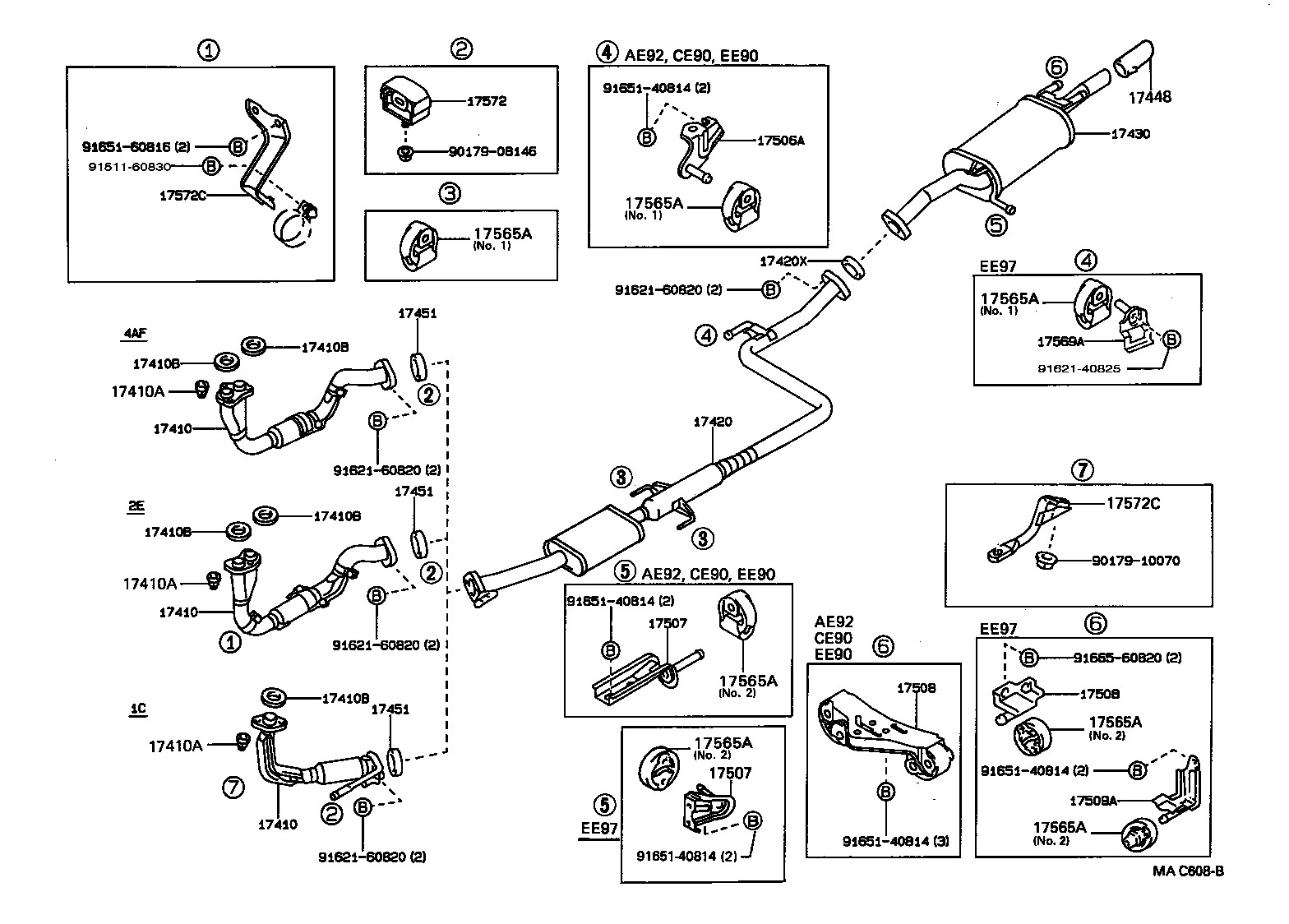

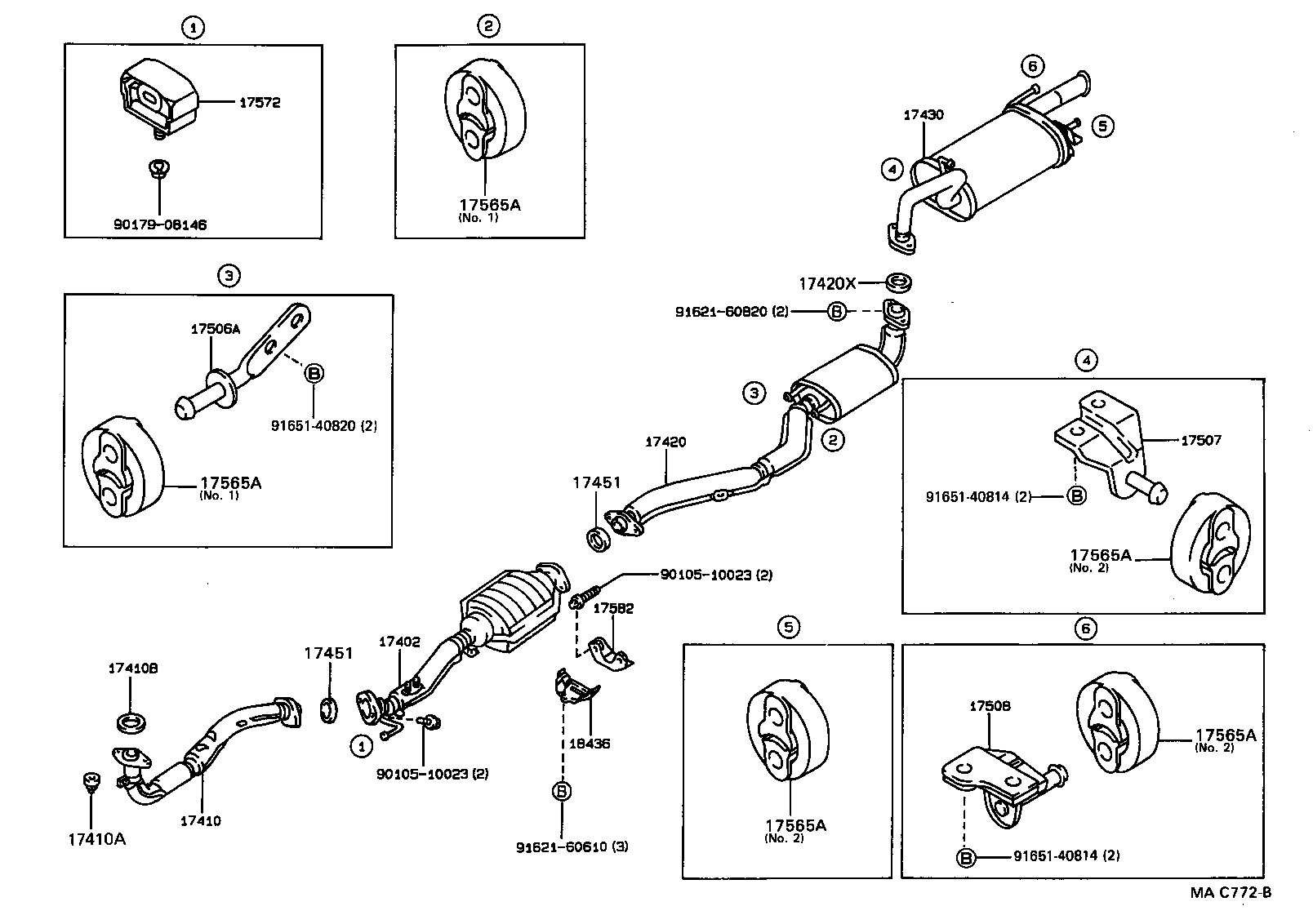

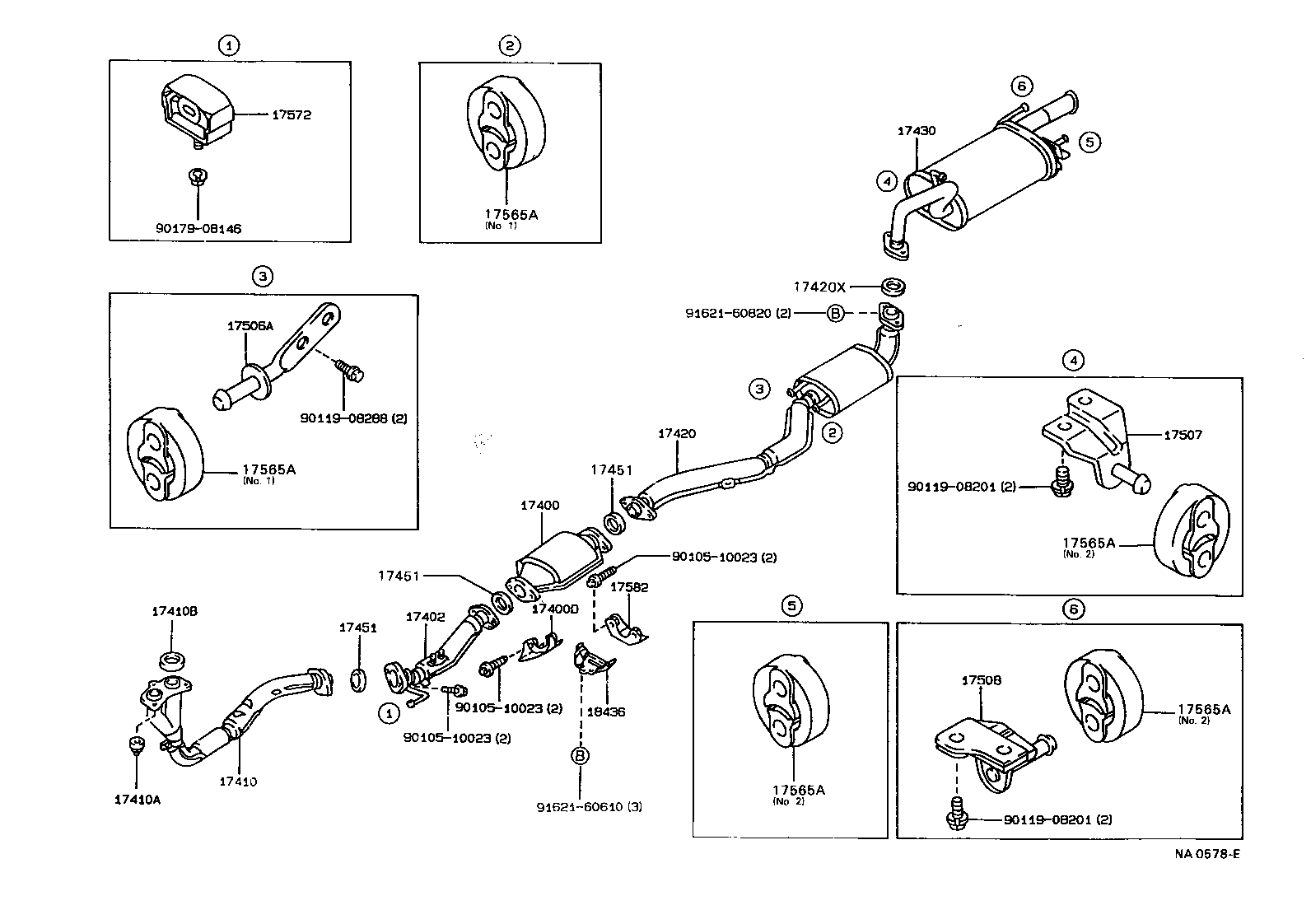

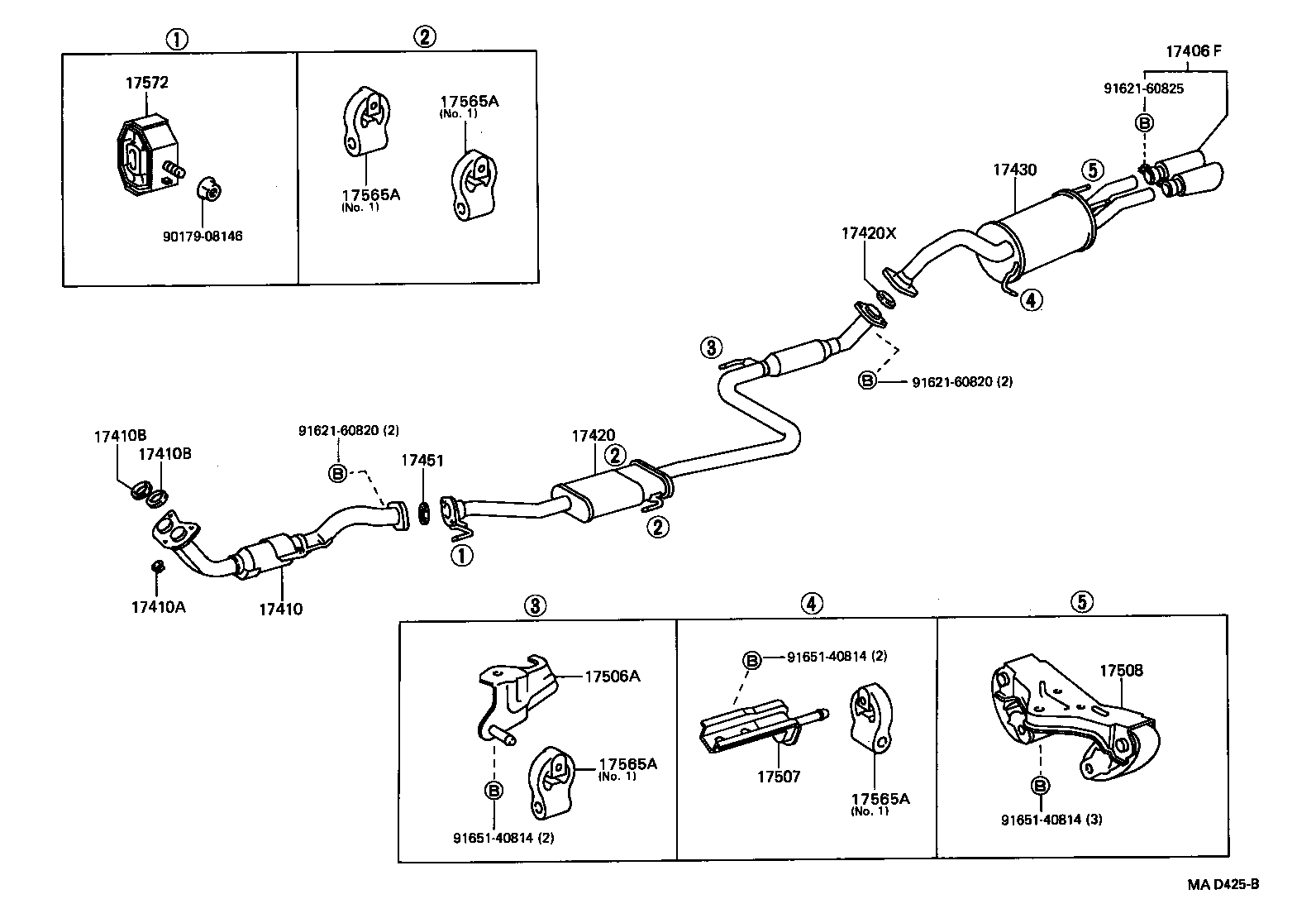

Figure NA0141H NA0141H 1987-05 → 1989-08 Figure MAC608B MAC608B 1989-08 → — Figure MAD425B MAD425B 1989-08 → — Figure NA0576D NA0576D 1987-10 → — Figure NA0578E NA0578E 1988-02 → 1989-08 Figure MAC772B MAC772B 1989-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400D Bracket, Catalytic Converter Support
17402 Pipe Sub-assy, Exhaust, Front NO.2
17406F Diffuser Sub-assy, Exhaust Gas
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17448 Baffle, Tailpipe
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17565A Support, Exhaust Pipe, NO.4
17569A Plate, Exhaust Pipe Support
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17572C Bracket, Exhaust Pipe Front (FOR FRONT)
17582 Bracket, Catalytic Converter Support, Upper
18436 Protector, Monolithic Converter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
