Toyota Corolla Sed/LB/WG
1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General
Discontinued model
Data version 1994-04
Carburetor

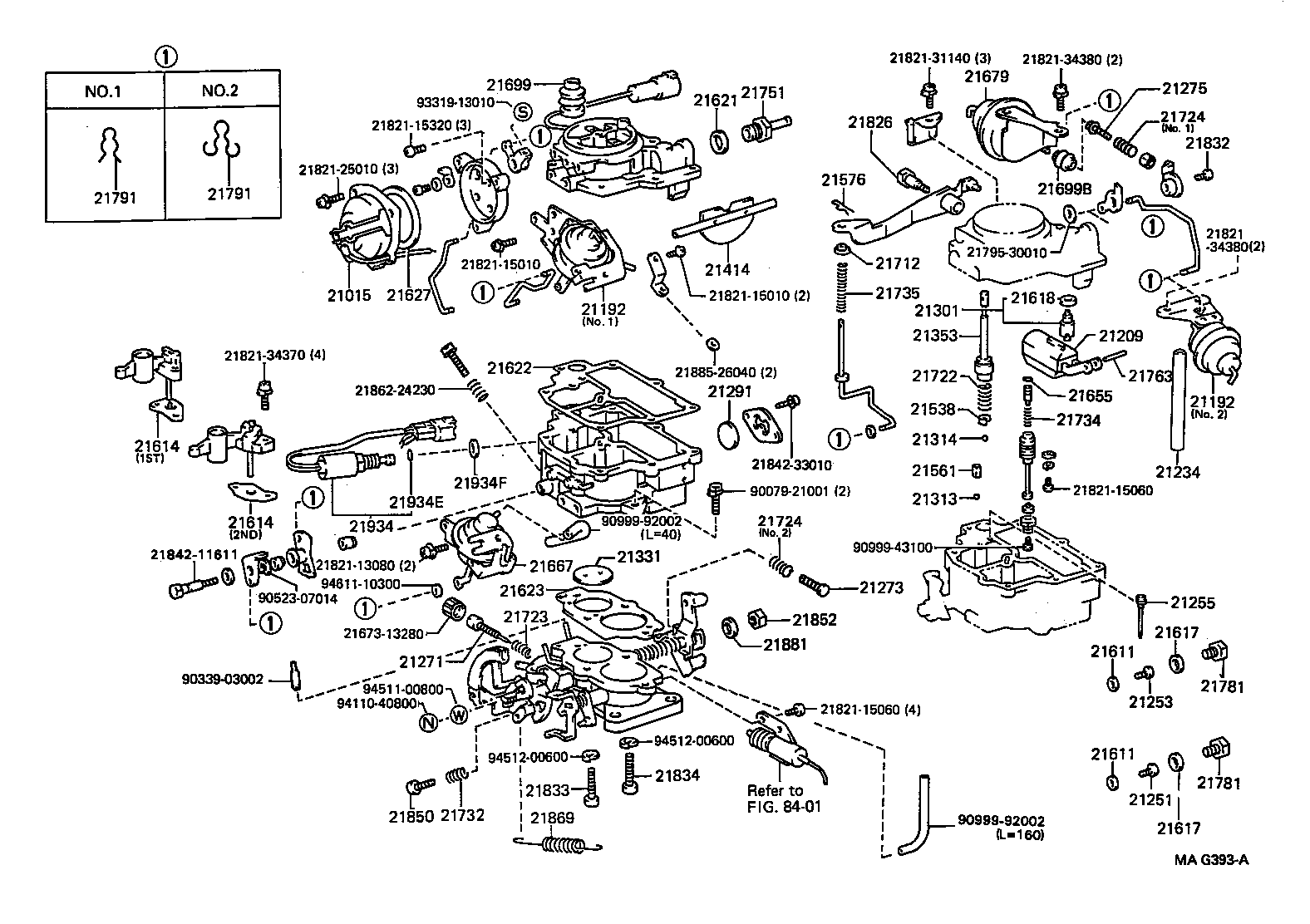

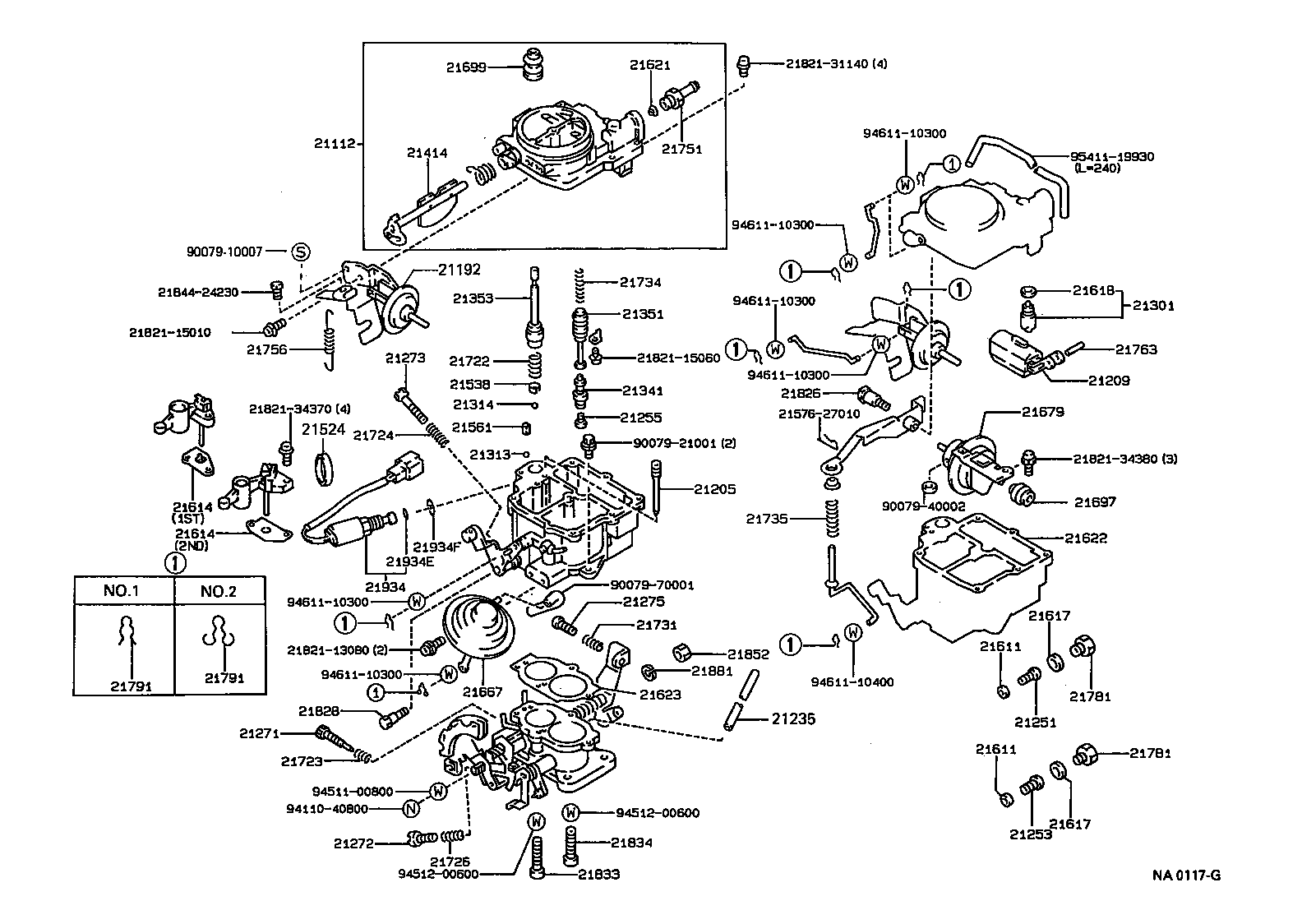

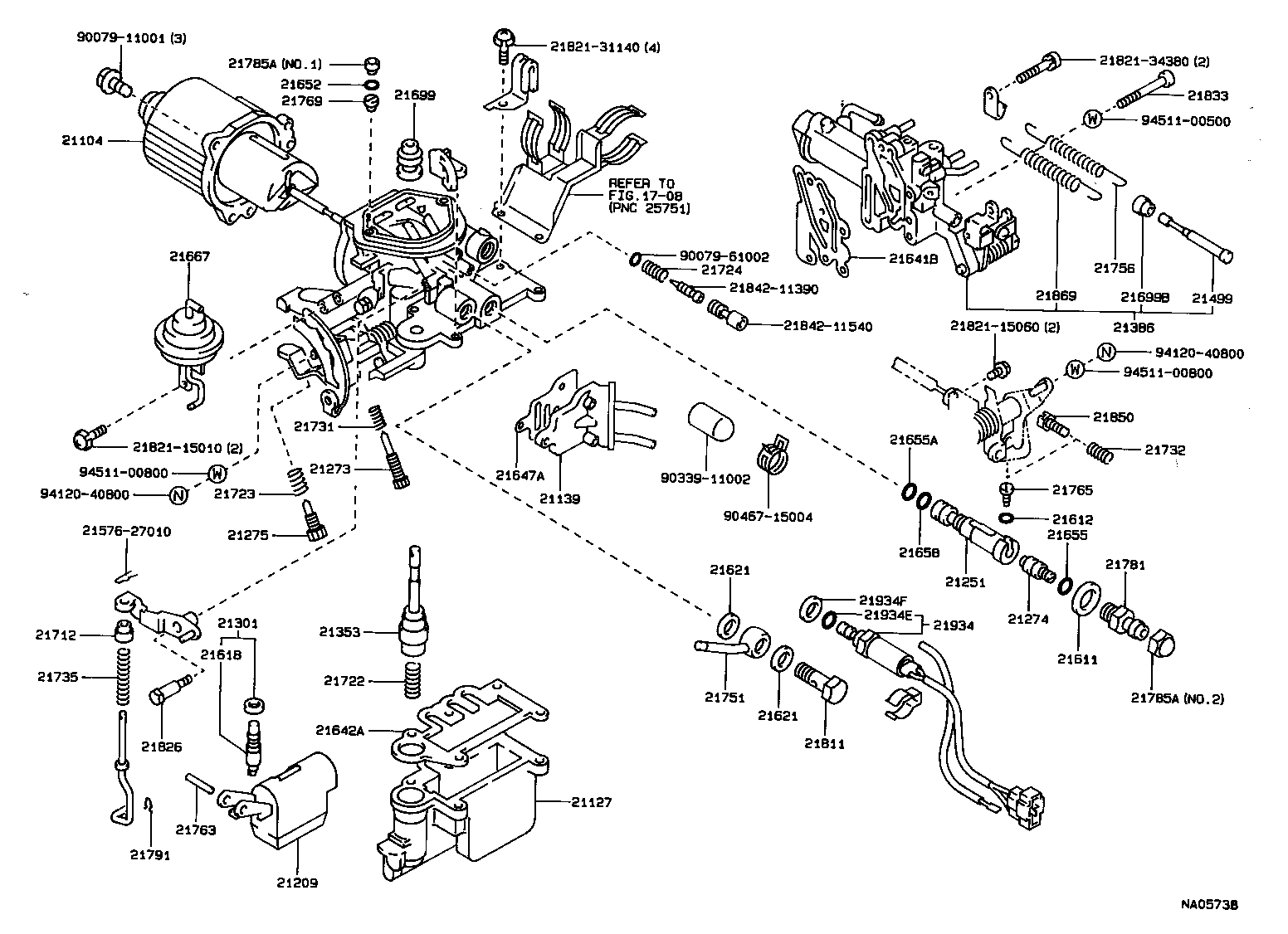

100 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 21015 | Housing Sub-assy, Coil |
| 21054 | Shaft, Choke |
| 21069 | Dash Pot Sub-assy |
| 21104 | Chamber Sub-assy, Suction |
| 21112 | Horn, Air |
| 21127 | Bowl, Float |
| 21139 | Adapter(FOR CARBURETOR CONNECTING PIPE) |
| 21192 | Breaker |
| 21205 | Jet Sub-assy, Slow |
| 21209 | Float Sub-assy |
| 21234 | Pipe OR Hose |
| 21235 | Pipe OR Hose, Connecting |
| 21251 | Jet, 1ST Main |
| 21253 | Jet, 2ND Main |
| 21255 | Jet, Power |
| 21257B | Spring(FOR PUMP JET) |
| 21271 | Screw, Idle Adjusting |
| 21272 | Screw, 1ST Idle Adjusting |
| 21273 | Screw, Throttle Adjusting |
| 21274 | Screw, 1ST Throttle Adjusting |
| 21275 | Screw, Adjusting |
| 21291 | Glass, Level Gage |
| 21301 | Valve Sub-assy, Needle |
| 21313 | Ball, Steel, NO.1(FOR DISCHARGE WEIGHT) |
| 21314 | Ball, Steel, NO.2(FOR PUMP PLUNGER) |
| 21331 | Valve, 1ST Throttle |
| 21335 | Valve, Thermostatic |
| 21341 | Valve, Power |
| 21351 | Piston, Power |
| 21353 | Plunger, Pump |
| 21386 | Compensator |
| 21414 | Shaft, Choke |
| 21499 | Rod, Push(FOR CARBURETOR) |
| 21524 | Bracket(FOR DASH POT) |
| 21538 | Retainer, Ball Check |
| 21561 | Weight, Pump Discharge |
| 21576 | Clip, Pump Strainer |
| 21611 | Gasket, Main Jet |
| 21612 | Gasket, Power Valve |
| 21614 | Gasket, Venturi |
| 21617 | Gasket, Main Passage Plug |
| 21618 | Gasket, Needle Valve Seat |
| 21621 | Gasket, Union Nipple |
| 21622 | Gasket, Air Horn |
| 21623 | Gasket, Body Flange |
| 21625 | Gasket, Level Gage |
| 21627 | Gasket, Coil Housing |
| 21633 | Gasket, Union Nipple |
| 21641 | Gasket(FOR THERMOSTATIC VALVE COVER) |
| 21641A | Gasket(FOR THERMOSTATIC VALVE COVER NO.2) |
| 21641B | Gasket, Compensator |
| 21642A | Gasket, Float Bowl |
| 21647 | Gasket, Diaphragm Housing Cap |
| 21647A | Gasket, Adapter |
| 21649 | Gasket(FOR PUMP DISCHARGE WEIGHT STOPPER) |
| 21652 | Ring, O(FOR SUCTION CHANBER ADJUSTING) |
| 21655 | Ring, O(FOR LIFTER ROD) |
| 21655A | Ring, O(FOR SLOW JET) |
| 21658 | Ring, O(FOR MAIN GUIDE UPPER) |
| 21659B | Ring(FOR CARBURETOR) |
| 21667 | Diaphragm |
| 21669 | Diaphragm |
| 21679 | Positioner |
| 21697 | Boot(FOR SLIDING ROD) |
| 21699 | Boot(FOR PUMP PLUNGER) |
| 21699B | Boot(FOR COMPENSATOR) |
| 21712 | Bush, Sliding Rod |
| 21722 | Spring, Pump Damping |
| 21723 | Spring, Idle Adjusting |
| 21724 | Spring, Throttle Adjusting |
| 21726 | Spring, 1ST Idle Adjusting |
| 21728 | Spring, Throttle Valve Return |
| 21731 | Spring, Dash Pot OR Positioner Adjusting |
| 21732 | Spring, Throttle Adjusting |
| 21734 | Spring, Power Piston |
| 21735 | Spring, Pump Arm |
| 21751 | Union, Nipple |
| 21756 | Spring, Back(FOR THROTTLE SHAFT) |
| 21763 | Pin, Float Lever |
| 21765 | Pin(FOR PUMP PLUNGER) |
| 21769 | Pin(FOR SUCTION CHANBER ADJUSTING) |
| 21781 | Plug, Main Passage(FOR CARBURETOR JET) |
| 21785A | Plug, Plate(FOR SUCTION CHANBER ADJUSTING) |
| 21791 | Ring, Snap, NO.1(FOR CARBURETOR LINK) |
| 21811 | Bolt, Union Nipple |
| 21826 | Screw, Pump Arm Set |
| 21828 | Screw, 1ST Idle Set |
| 21832 | Screw(FOR CHOKE LEVER ADAPTER SET) |
| 21833 | Screw, Set, NO.1(FOR CARBURETOR BODY SET) |
| 21834 | Screw, Set, NO.2(FOR CARBURETOR BODY SET) |
| 21842 | Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET) |
| 21850 | Screw, Throttle Switch Adjusting |
| 21852 | Nut, Throttle Lever Set |
| 21865 | Spring |
| 21869 | Spring(FOR MAIN JET) |
| 21869A | Spring(FOR THROTTLE) |
| 21881 | Washer, Lock(FOR THROTTLE SHAFT) |
| 21934 | Solenoid, Throttle Valve |
| 21934E | Ring, O(FOR SOLENOID VALVE) |
| 21934F | Gasket |
