Toyota Corolla Sed/LB/WG

1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

13 part groups · 3 illustrations

Illustrations

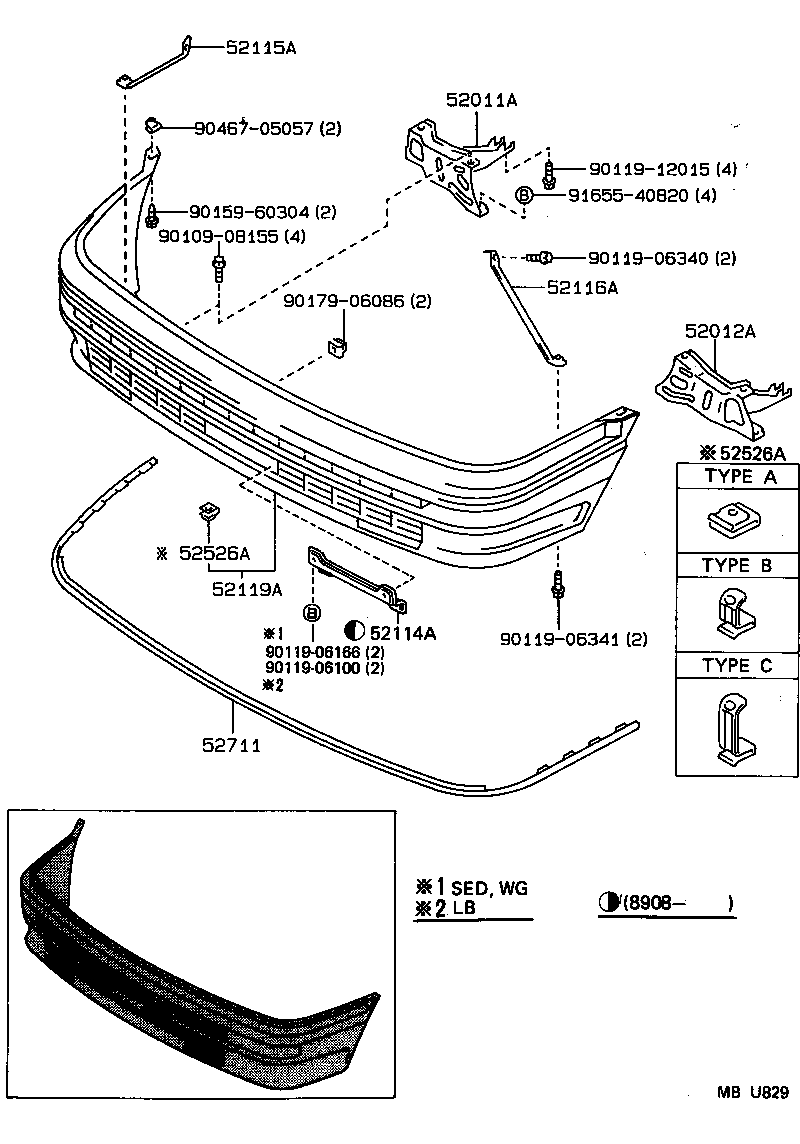

Figure MBS962A MBS962A 1989-08 → — Figure MBU829 MBU829 1987-05 → 1989-08 Figure MBU829 MBU829 1989-08 → —

Part groups

PNCDescription
51467 Retainer, Engine Under Cover
51473 Cover, Engine Under, NO.5 Front
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52526A Retainer, Front Bumper, Lower NO.1
52711 Moulding, Front Bumper
52713 Plug, Front Bumper Moulding
52714 Plug, Front Bumper Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
