Toyota Corolla Sed/LB/WG
1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General
Discontinued model
Data version 1994-04

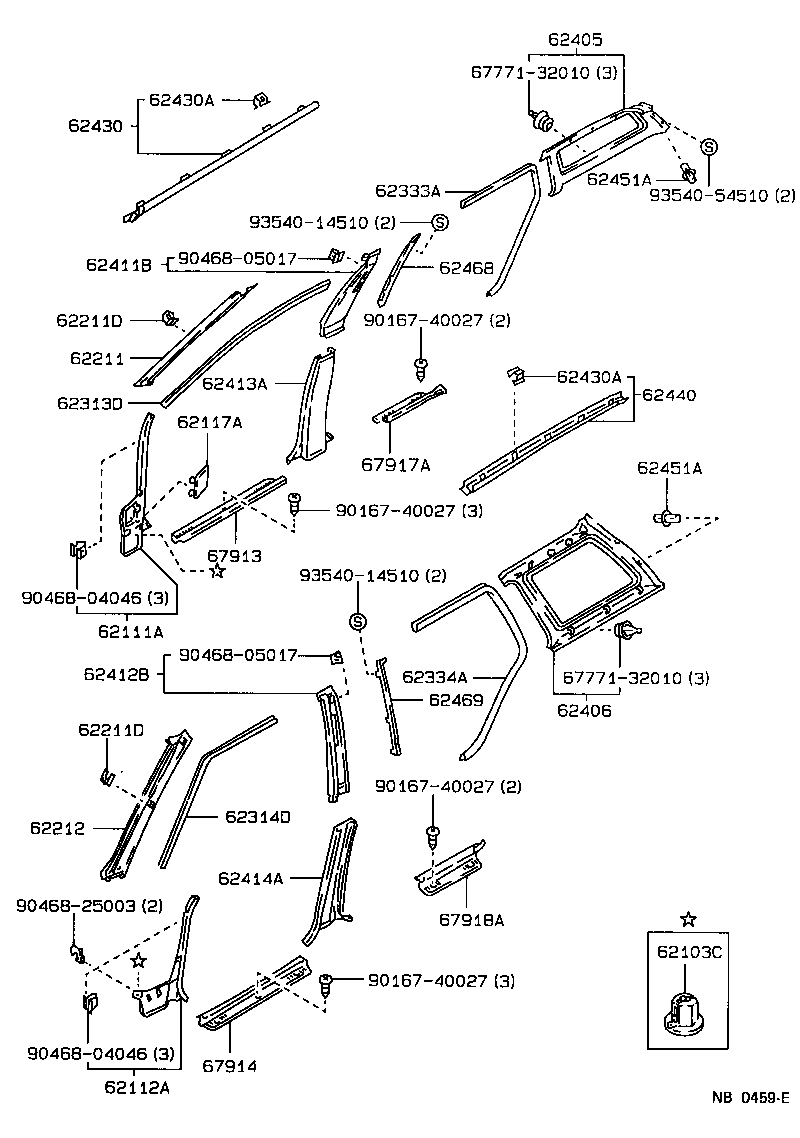

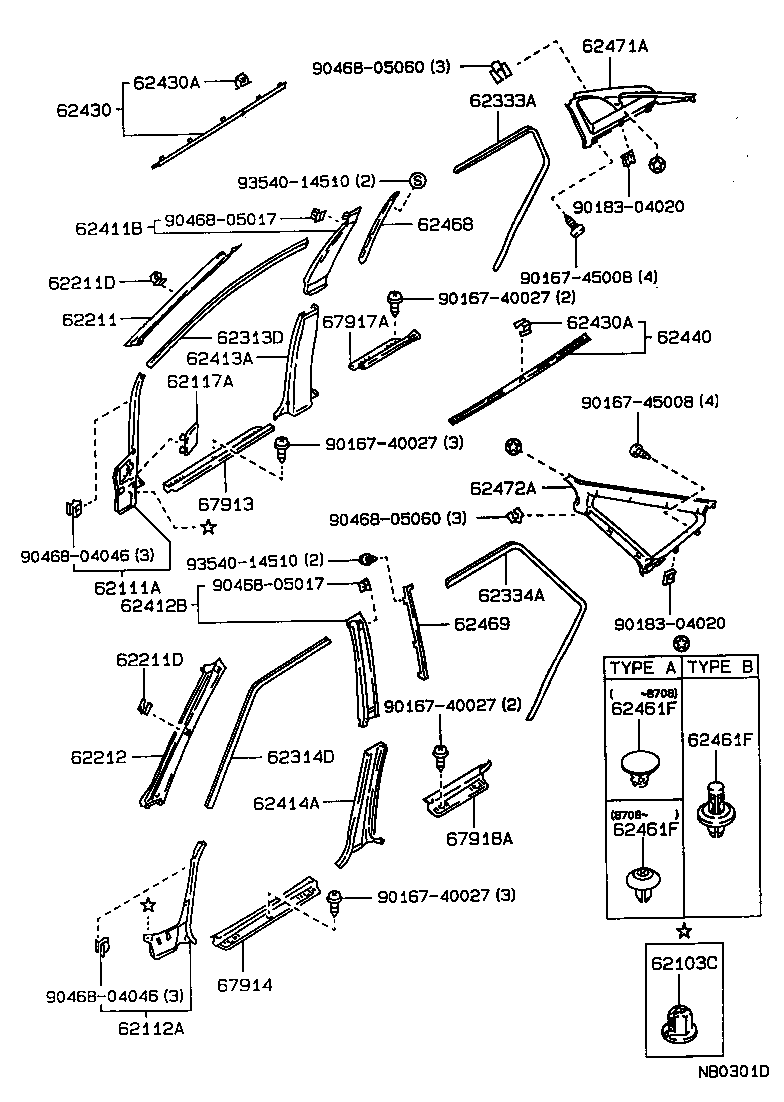

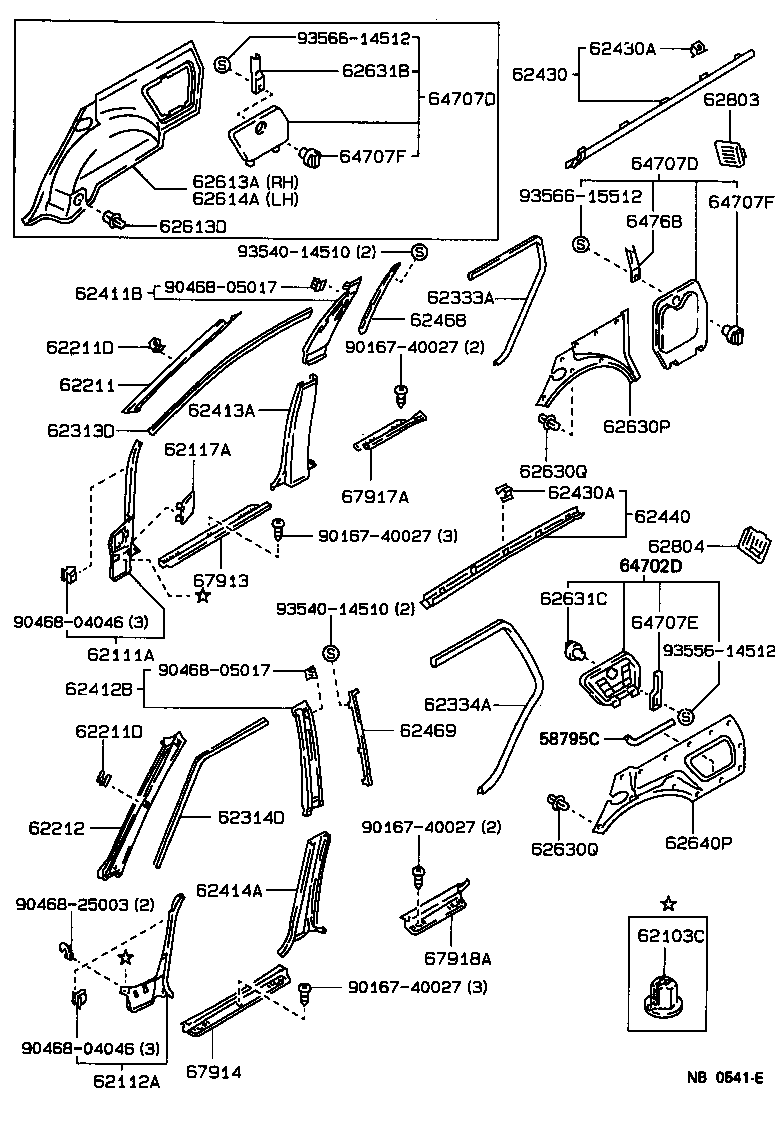

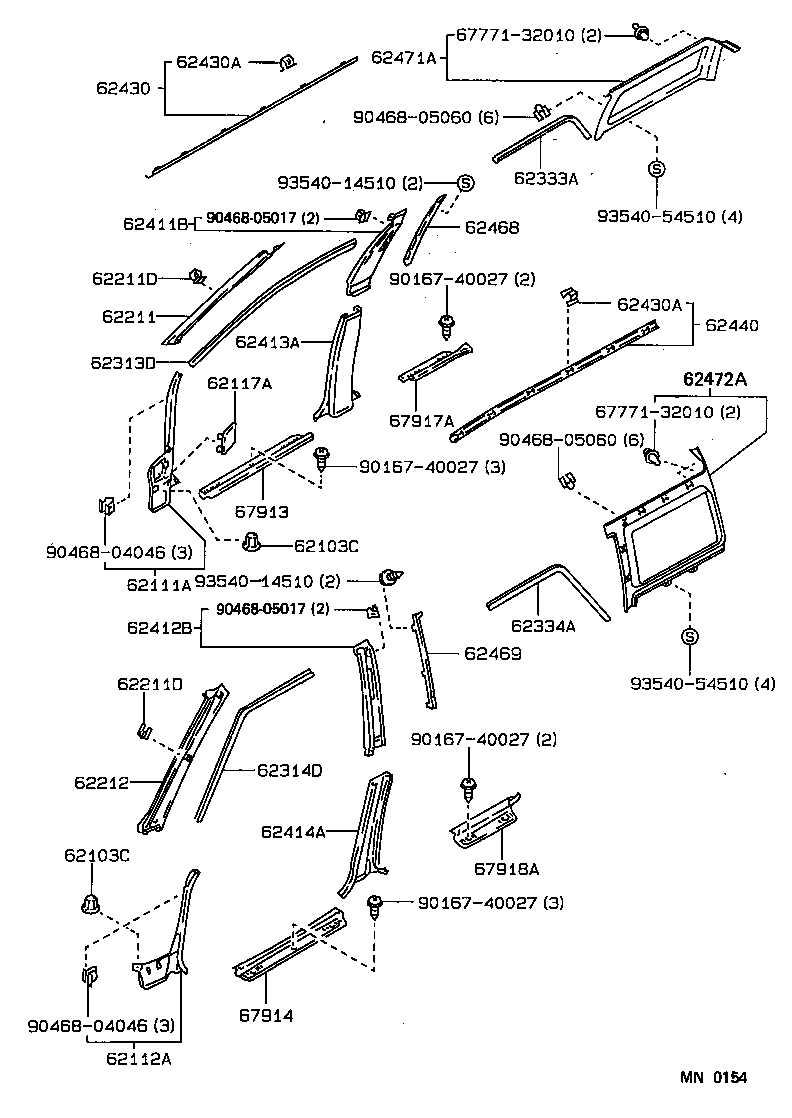

Inside Trim Board & Door Opening Trim Moulding
49 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 58795C | Trim, Jack House Opening |
| 62103C | Clip, Cowl Side Trim Board Set |
| 62111A | Trim Sub-assy, Cowl Side, RH |
| 62112A | Trim Sub-assy, Cowl Side, LH |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62314D | Trim, Front Door Opening, LH |
| 62333A | Trim, Rear Door Opening, RH |
| 62334A | Trim, Rear Door Opening, LH |
| 62405 | Garnish Sub-assy, Roof Side, Inner RH |
| 62406 | Garnish Sub-assy, Roof Side, Inner LH |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62430A | Clip, Roof Side Rail Garnish |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62451A | Clip, Side Garnish |
| 62461F | Clip (FOR ROOF SIDE TRIM GARNISH) |
| 62468 | Garnish, Center Pillar, Rear RH |
| 62469 | Garnish, Center Pillar, Rear LH |
| 62471A | Garnish, Roof Side, Inner RH |
| 62472A | Garnish, Roof Side, Inner LH |
| 62551E | Clip(FOR REAR SEAT SIDE GARNISH) |
| 62551F | Garnish, Rear Seat Side, RH |
| 62552F | Garnish, Rear Seat Side, LH |
| 62613A | Cover, Quarter Wheel House, RH |
| 62613D | Clip (FOR QUARTER WHEEL HOUSE COVER) |
| 62614A | Cover, Quarter Wheel House, LH |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62630Q | Clip (FOR QUARTER TRIM) |
| 62631B | Stopper, Jack Cover |
| 62631C | Knob, Washer Tank Cover |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62803 | Grille Sub-assy, Room Ventilation, RH |
| 62804 | Grille Sub-assy, Room Ventilation, LH |
| 64702D | Cover Sub-assy, Deck Trim Side Service Hole |
| 64707D | Cover Sub-assy, Quarter Trim Jack |
| 64707E | Stopper, Washer Tank Cover |
| 64707F | Knob, Jack Cover |
| 64768 | Stopper, Jack Cover |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
| 67917A | Plate, Rear Door Scuff, RH |
| 67918A | Plate, Rear Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
