Toyota Corolla Sed/LB/WG
1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General
Discontinued model
Data version 1994-04

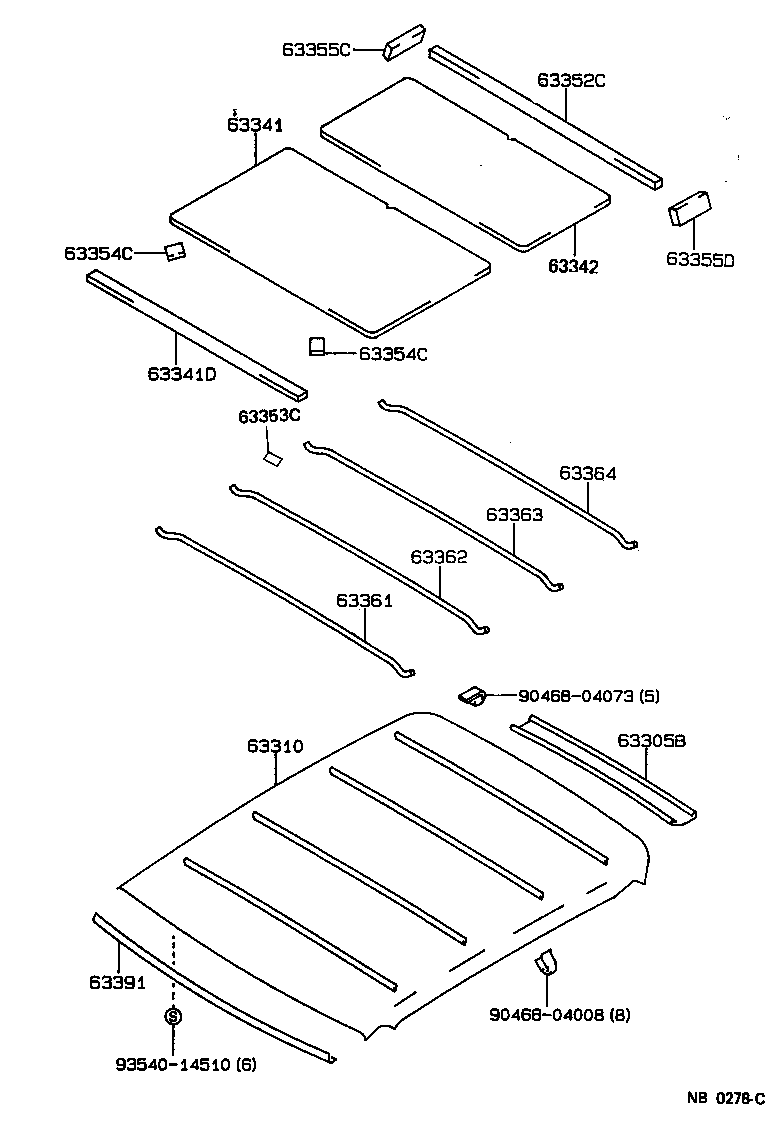

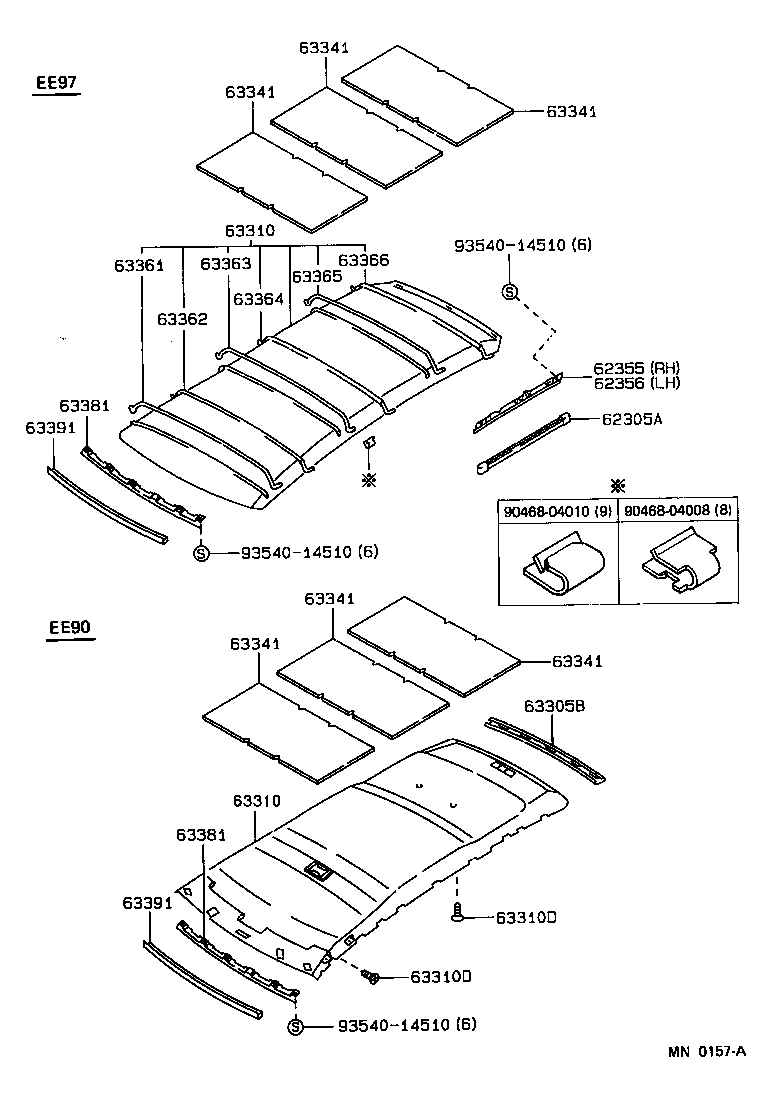

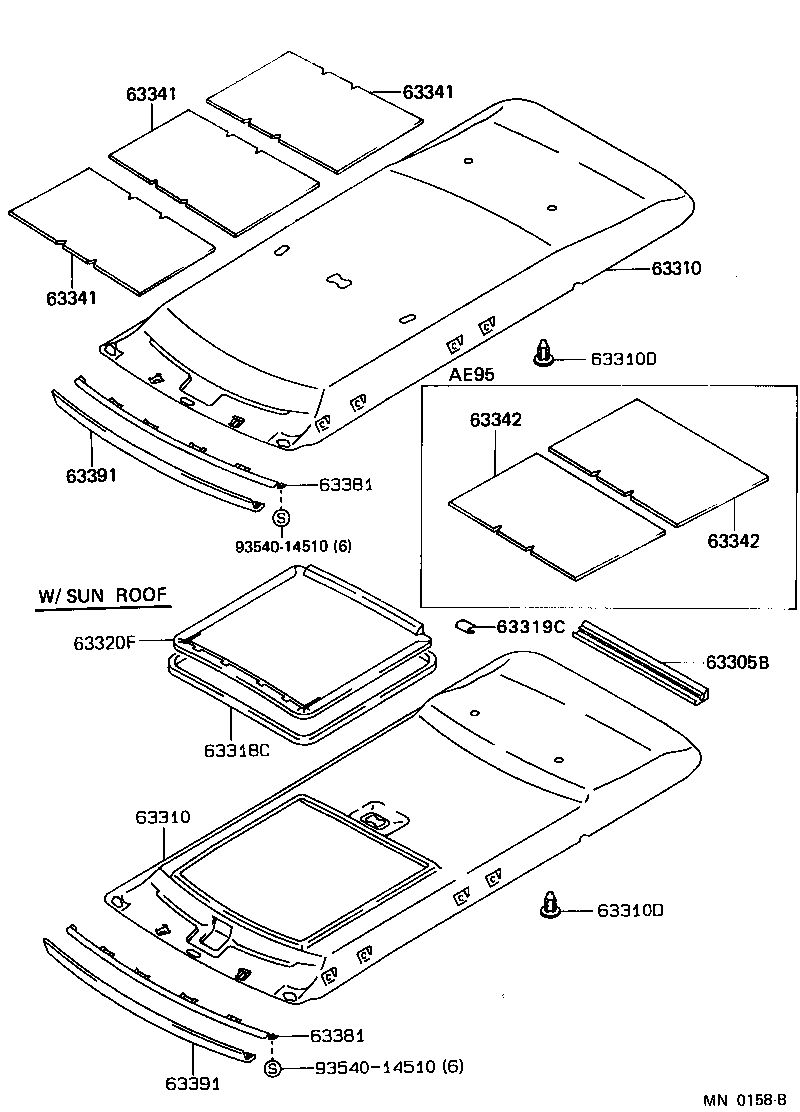

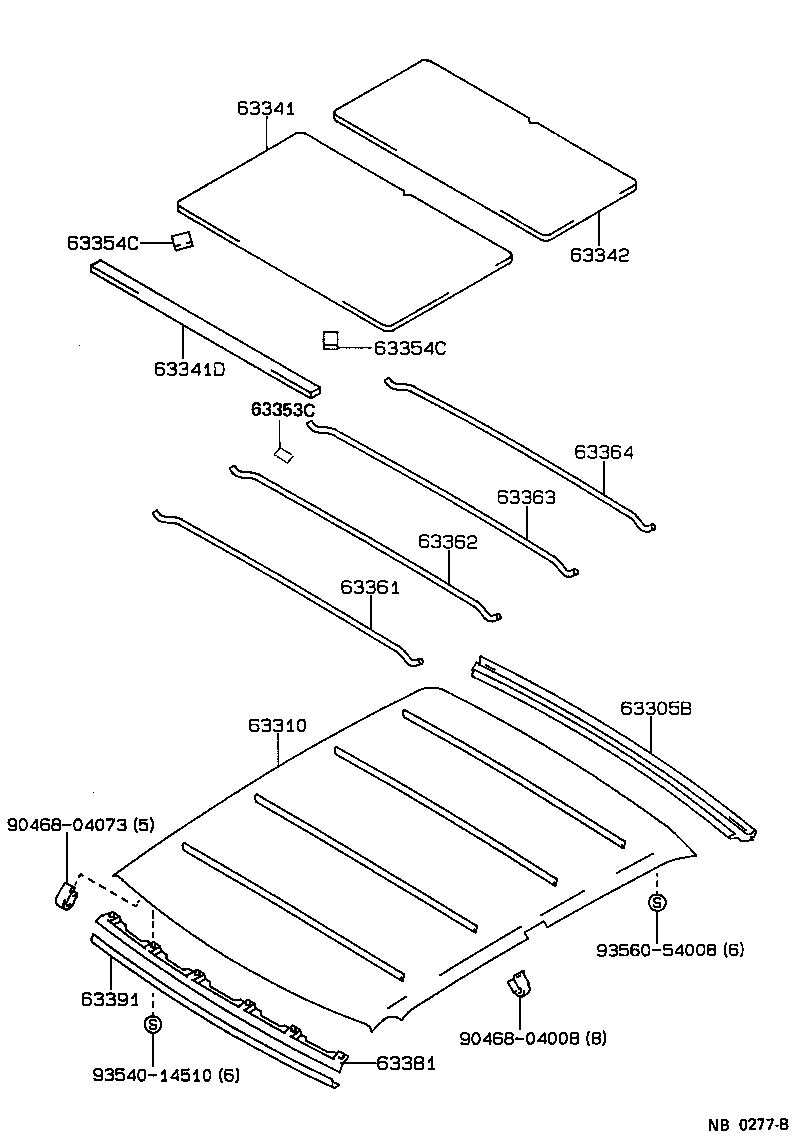

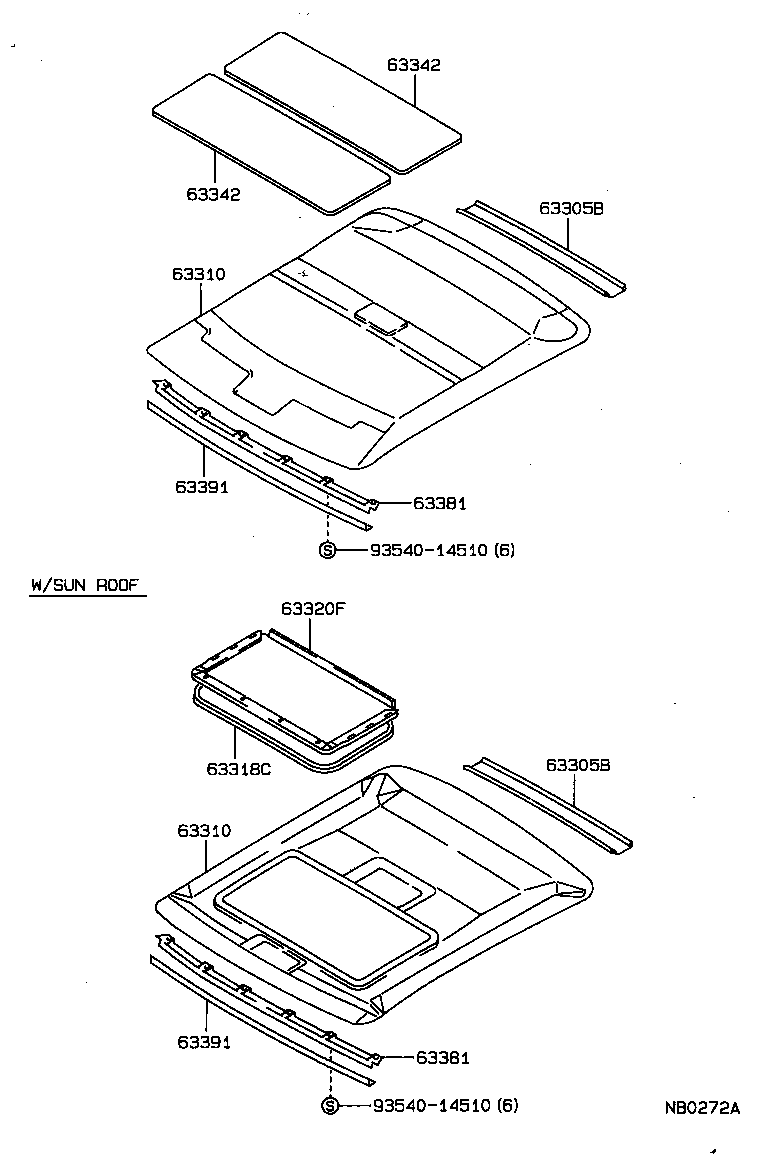

Roof Headlining & Silencer Pad
38 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 62305A | Trim Sub-assy, Quarter Window Inside |
| 62355 | Retainer, Quarter Window Inside Trim, RH |
| 62356 | Retainer, Quarter Window Inside Trim, LH |
| 63005 | Lock Set, Roof Inner Rack, Front |
| 63006 | Lock Set, Roof Inner Rack, Rear |
| 63305B | Trim Sub-assy, Roof Headlining, Rear |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63319C | Joint, Sun Roof Opening Trim |
| 63320F | Headlining Assy, Sun Roof |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341D | Pad, Roof Silencer, Front |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63352C | Pad, Roof Headlining, End |
| 63353C | Pad, Roof Headlining, Center |
| 63354C | Pad, Roof Headlining Front Side |
| 63355C | Pad, Roof Headlining, RH |
| 63355D | Pad, Roof Headlining, LH |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63366 | Support, Roof Headlining, NO.6 |
| 63381 | Retainer, Headlining, Front |
| 63391 | Trim, Roof Headlining, Front |

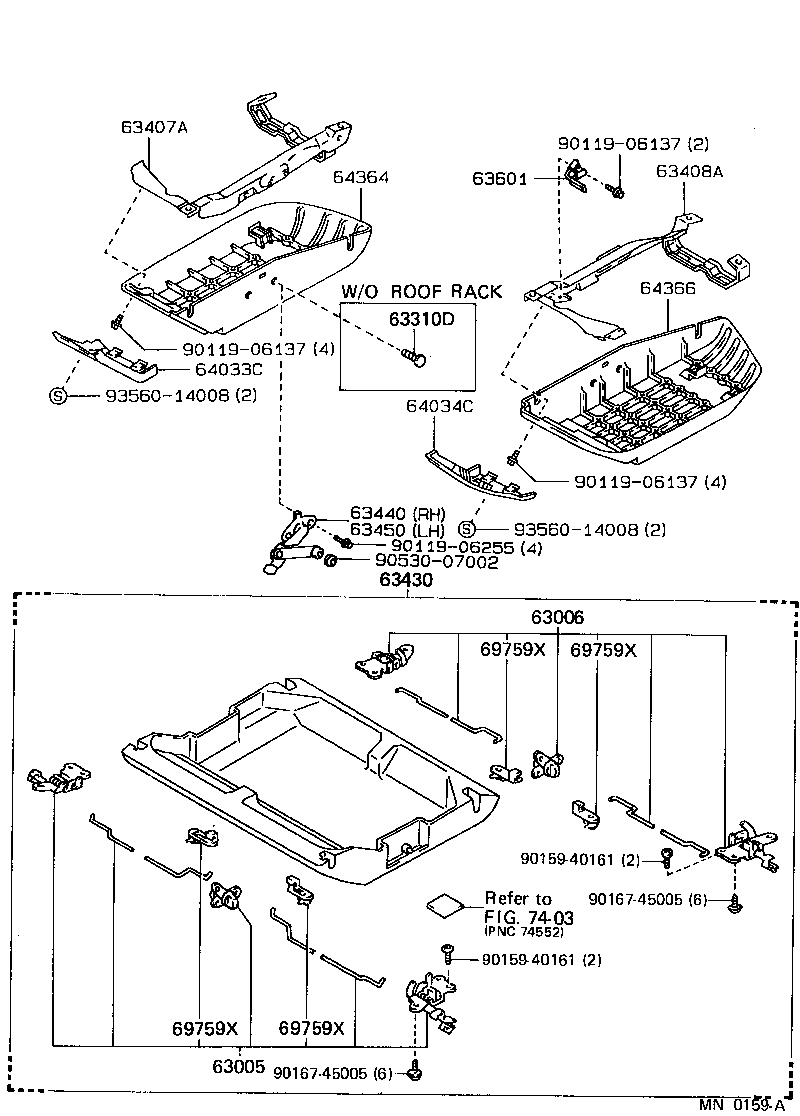

| 63407A | Bracket Sub-assy, Roof Inner Rack, RH |
| 63408A | Bracket Sub-assy, Roof Inner Rack, LH |
| 63430 | Rack Assy, Roof, Inner |
| 63440 | Hinge Assy, Roof Inner Rack, RH |
| 63450 | Hinge Assy, Roof Inner Rack, LH |
| 63601 | Striker Sub-assy, Roof Inner Rack Lock |
| 64033C | Grille Sub-assy, Rear Speaker, RH |
| 64034C | Grille Sub-assy, Rear Speaker, LH |
| 64364 | Cover, Rear Speaker Grille, NO.1 |
| 64366 | Cover, Rear Speaker Grille, NO.2 |
| 69759X | Snap, Roof Inner Rack Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
