Toyota Corolla Sed/LB/WG

1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General

Discontinued model Data version 1994-04

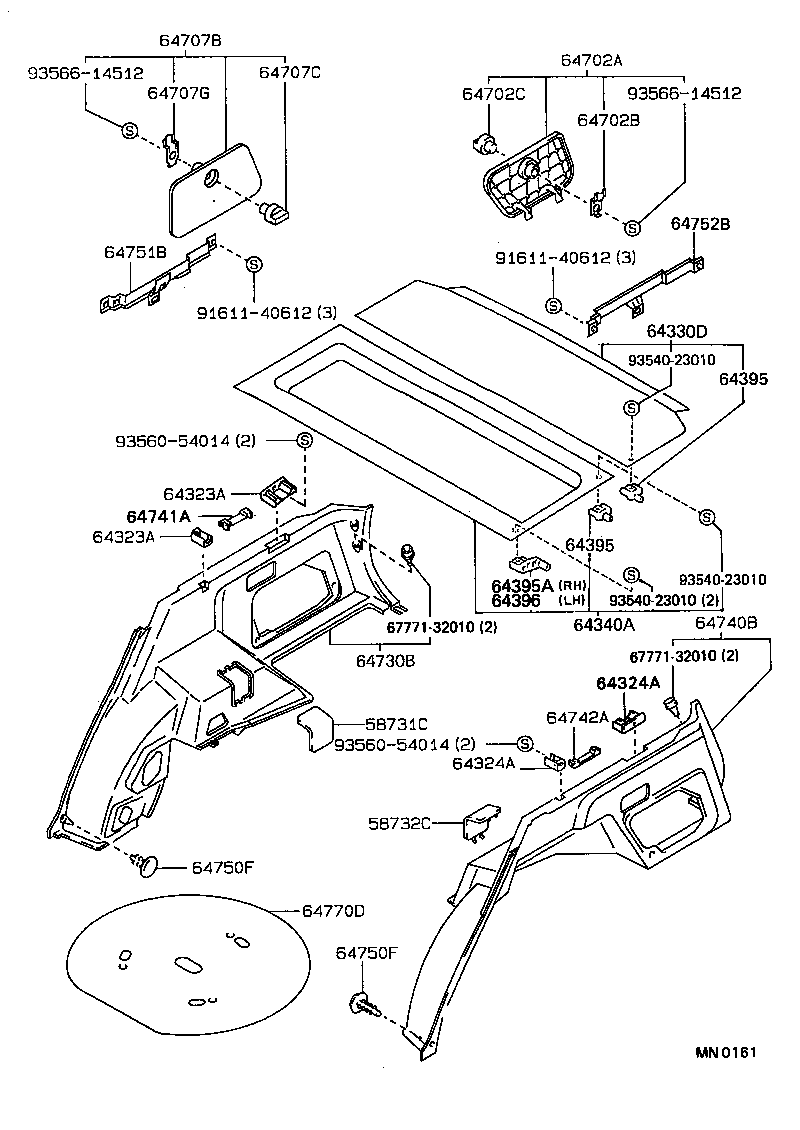

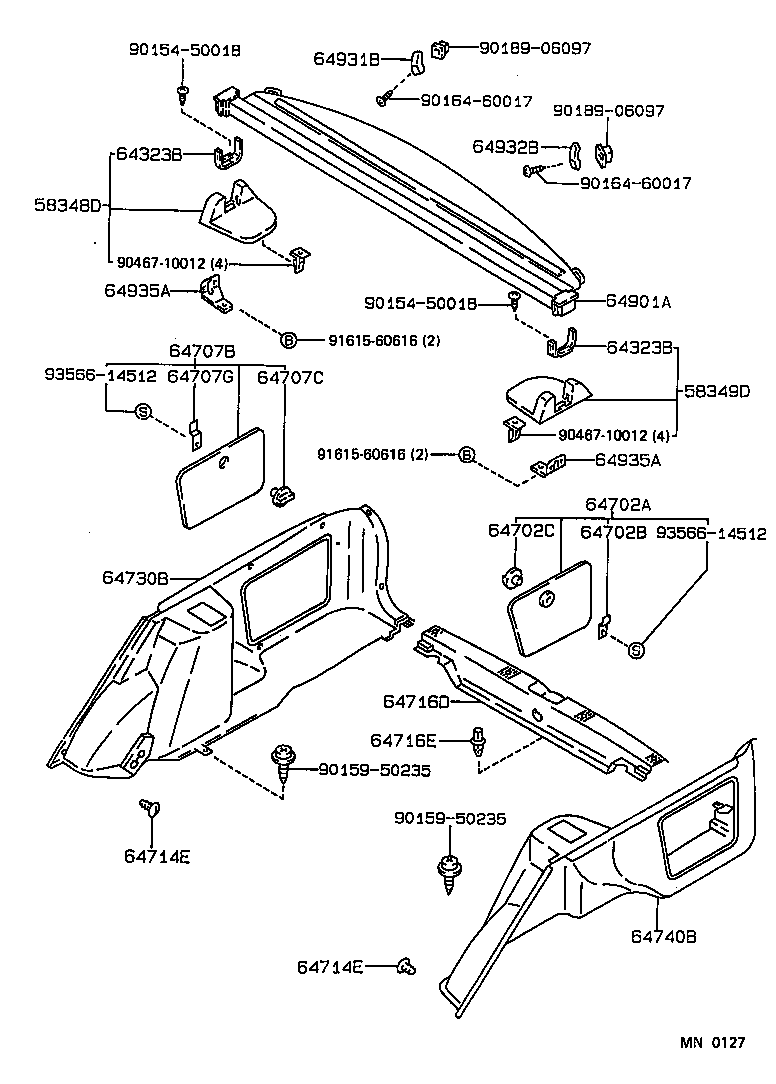

Deck Board & Deck Trim Cover

42 part groups · 3 illustrations

PNC	Description
58348D	Cover, Rear Absorber Service Hole, RH
58349D	Cover, Rear Absorber Service Hole, LH
58731C	Cap, Rear Absorber
58732C	Cap, Rear Absorber
64033A	Grille Sub-assy, Rear Speaker, RH
64034A	Grille Sub-assy, Rear Speaker, LH
64310	Bracket, Package Tray Trim, RH
64320	Bracket, Package Tray Trim, LH
64323A	Clamp, Package Tray Trim, RH
64323B	Clamp, Tonneau Cover
64324A	Clamp, Package Tray Trim, LH
64330D	Panel Assy, Package Tray Trim
64333B	Cover, Package Tray Trim Side, RH
64340A	Panel Assy, Package Tray Trim, NO.2
64349B	Cover, Package Tray Trim Side, LH
64395	Pin, Package Tray Trim Hinge
64395A	Pin, Package Tray Trim Hinge, RH
64396	Pin, Package Tray Trim Hinge, LH
64702A	Cover Sub-assy, Deck Trim Side Service Hole
64702B	Stopper, Washer Tank Cover
64702C	Knob, Washer Tank Cover
64707B	Cover Sub-assy, Quarter Trim Jack
64707C	Knob, Jack Cover
64707G	Stopper, Jack Cover
64714E	Clip(FOR DECK TRIM SIDE COVER)
64716D	Cover, Deck Trim, Rear
64716E	Clip(FOR DECK TRIM REAR COVER)
64730B	Panel Assy, Deck Trim Side, RH
64740B	Board, Deck Trim Side, LH
64741A	Protector, Deck Trim Side, RH
64742A	Protector, Deck Trim Side, LH
64745	Cover, Rear Combination Lamp Service, RH
64746	Cover, Rear Combination Lamp Service, LH
64746A	Cover, Deck Trim Side Lamp Hole
64750F	Clip(FOR DECK SIDE TRIM PANEL)
64751B	Bracket, Speaker Set, NO.1 RH
64752B	Bracket, Speaker Set, NO.1 LH
64770D	Cover Assy, Spare Wheel
64901A	Retractor Sub-assy, Tonneau Cover
64931B	Hanger, Tonneau Cover, RH
64932B	Hanger, Tonneau Cover, LH
64935A	Holder, Tonneau Cover

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
