Toyota Corolla Sed/LB/WG

1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

8 part groups · 4 illustrations

Illustrations

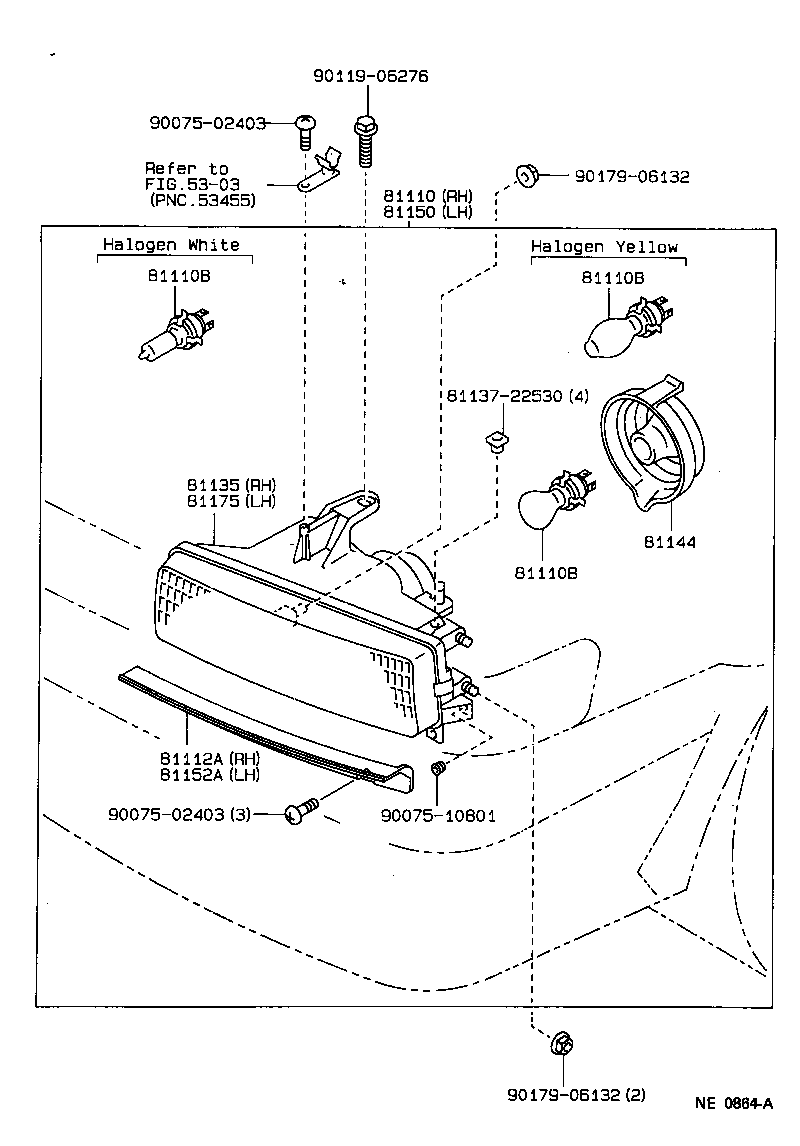

Figure NE0031A NE0031A 1987-05 → — Figure NE0031A NE0031A 1987-08 → — Figure NE0864A NE0864A 1987-05 → — Figure NE0864A NE0864A 1988-02 → 1990-08

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81112A Rim, Headlamp, RH
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81152A Rim, Headlamp, LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
