Toyota Corolla Sed/LB/WG

1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

12 part groups · 8 illustrations

Illustrations

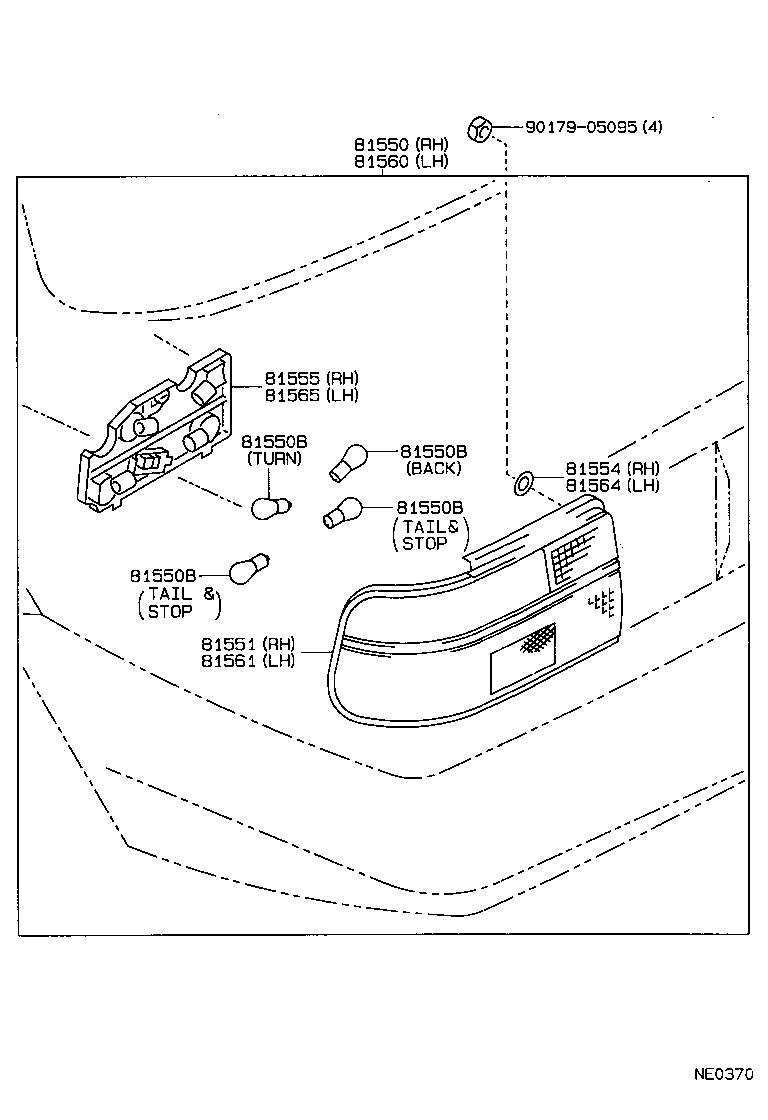

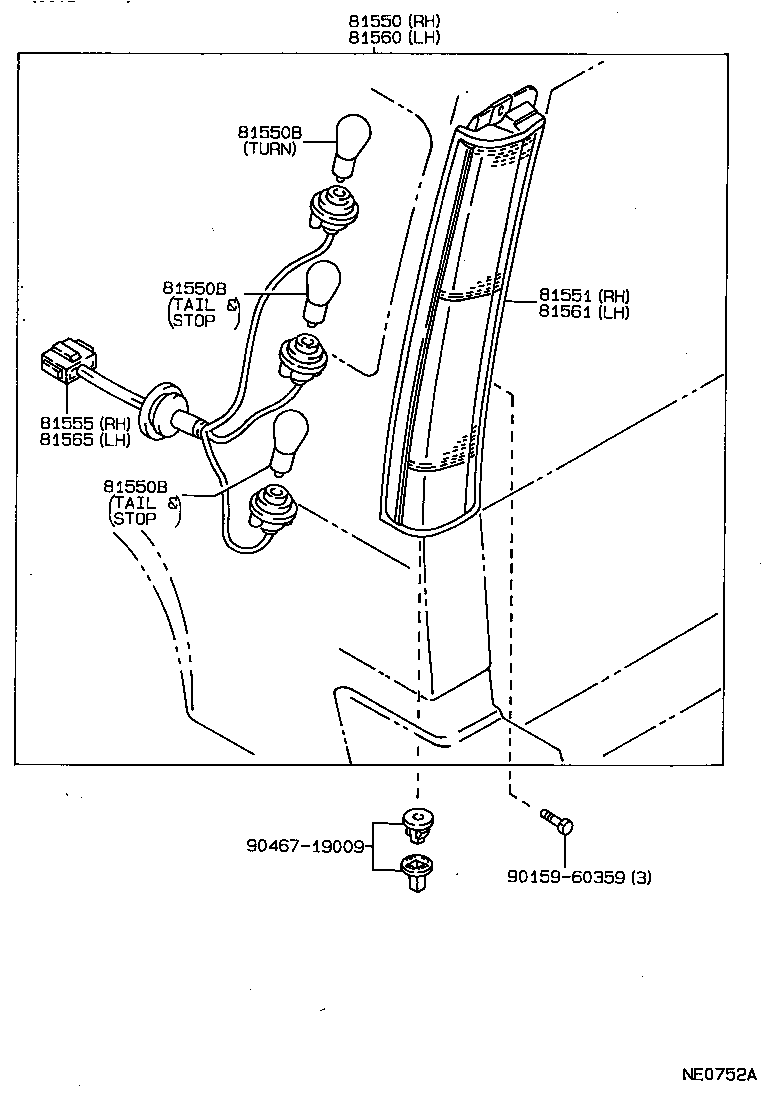

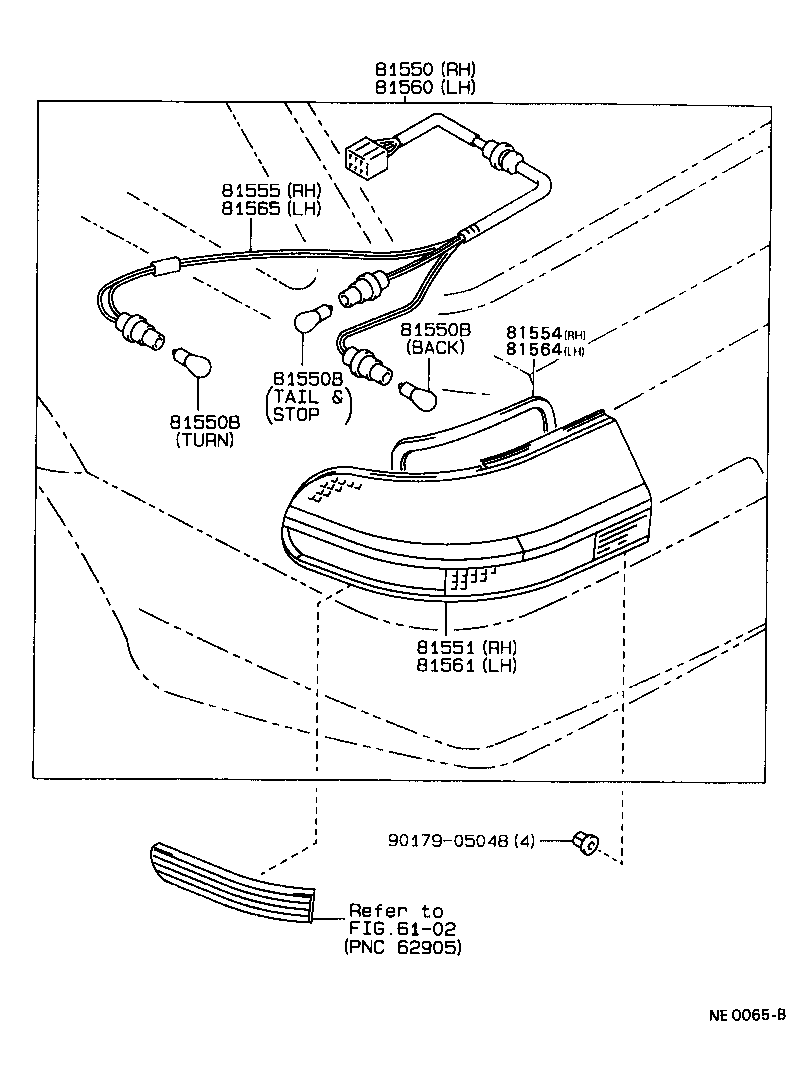

Figure NE0063A NE0063A 1987-05 → 1990-08 Figure NE0063A NE0063A 1990-08 → — Figure NE0370 NE0370 1988-08 → — Figure NE0370 NE0370 1990-09 → — Figure NE0065B NE0065B 1987-05 → — Figure MEP101 MEP101 1987-08 → — Figure NE0369B NE0369B 1987-08 → — Figure NE0752A NE0752A 1988-02 → 1990-08

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81580A Lamp Assy, Rear
81581 Lens, Rear Lamp
81582 Gasket, Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
