Toyota Corolla Sed/LB/WG

1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

49 part groups · 14 illustrations

Illustrations

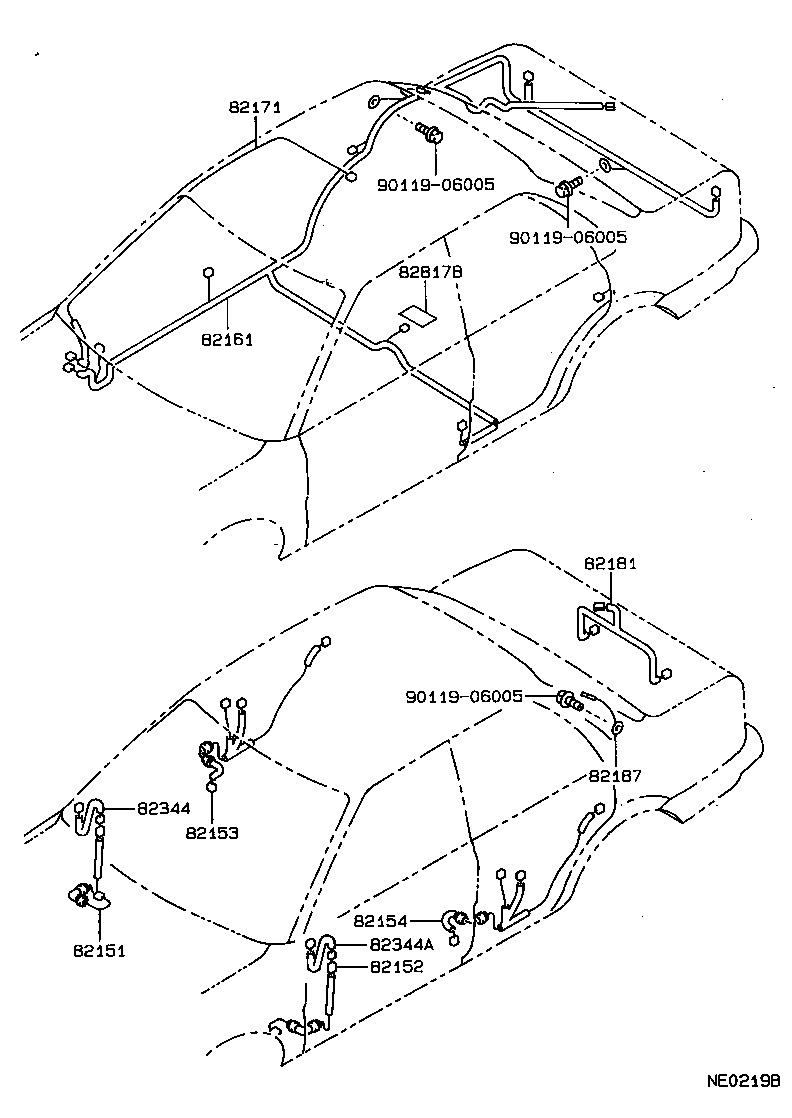

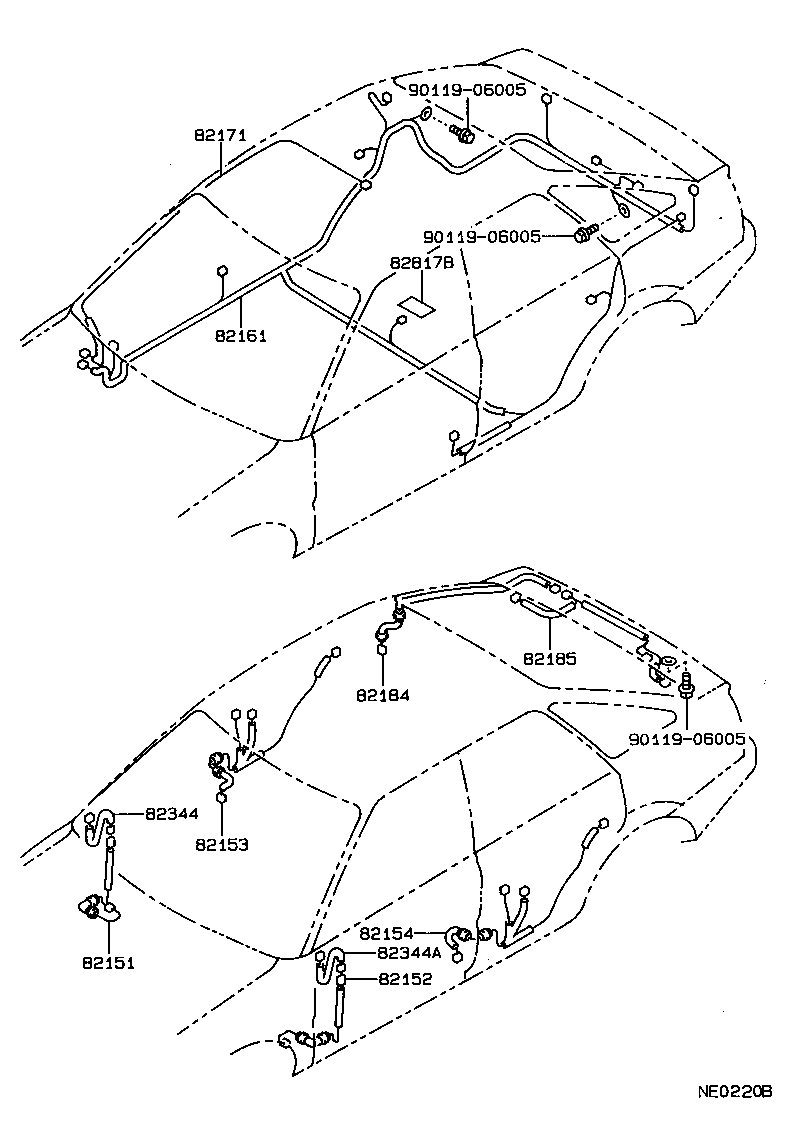

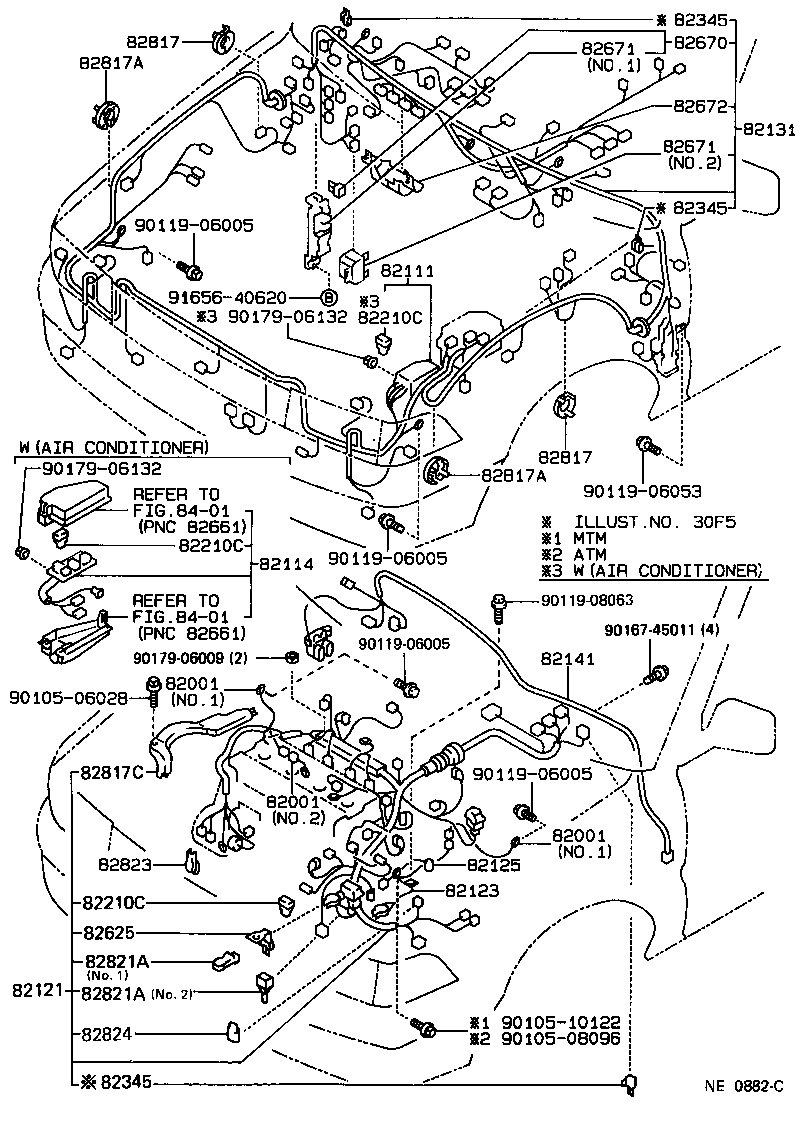

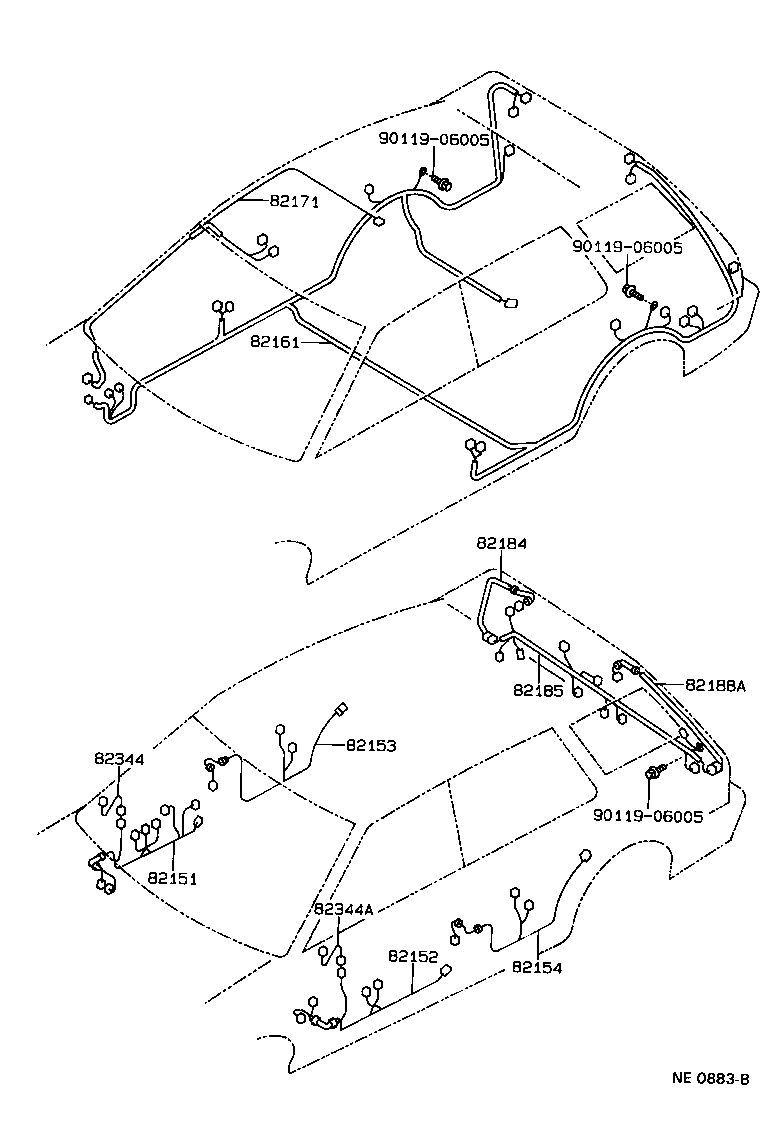

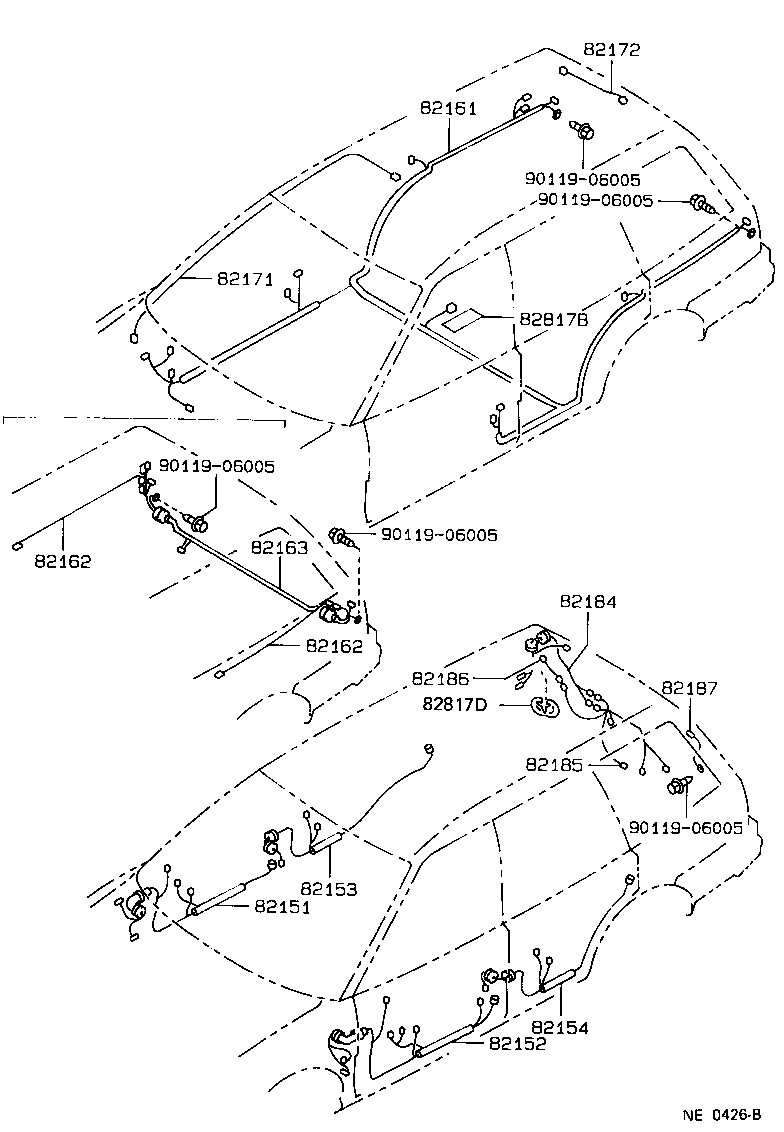

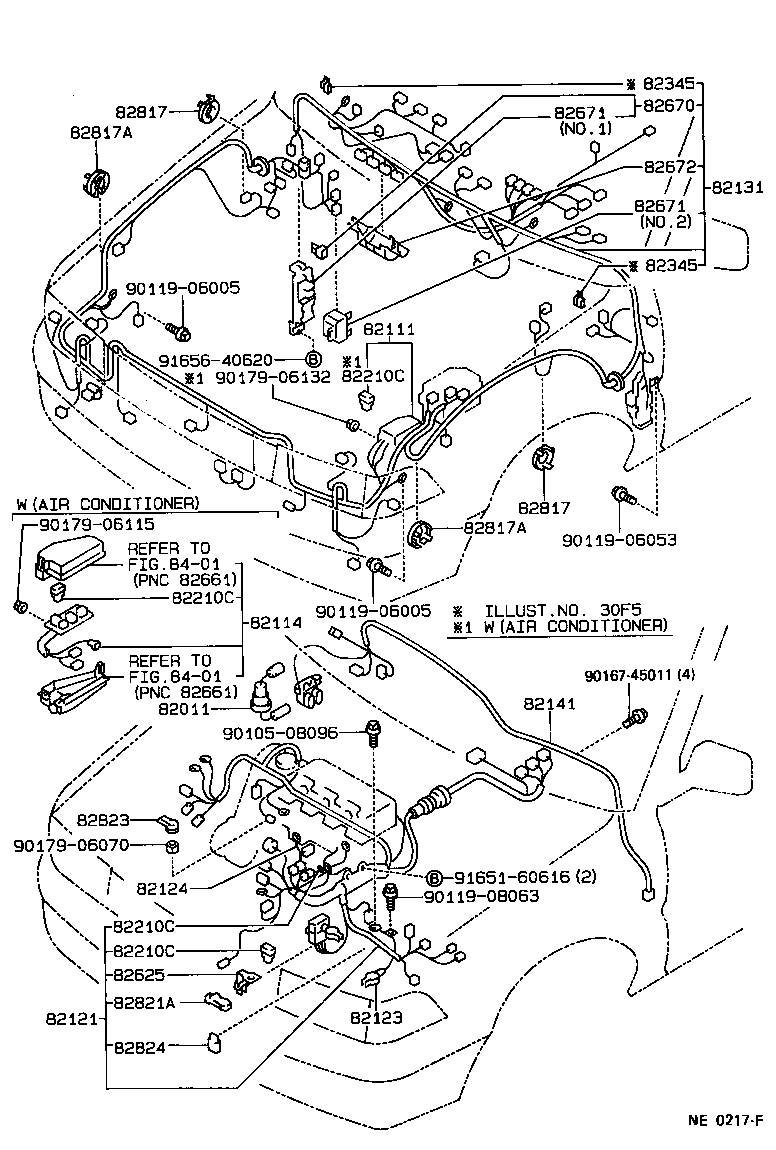

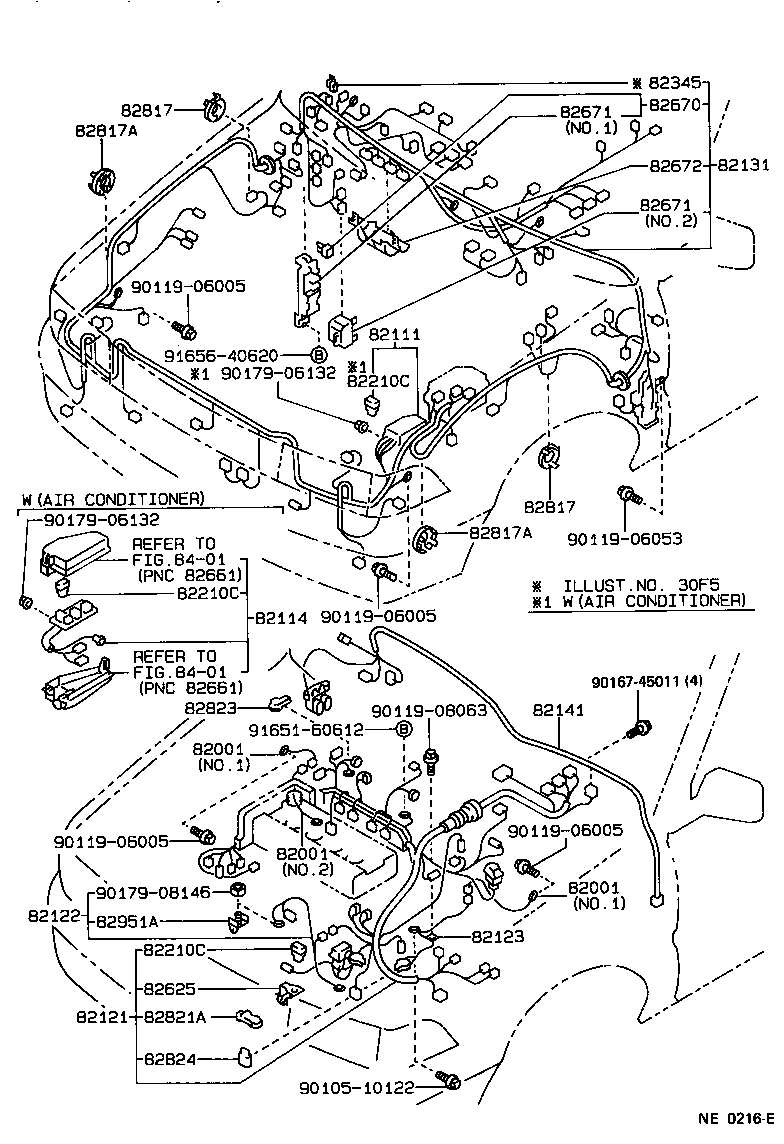

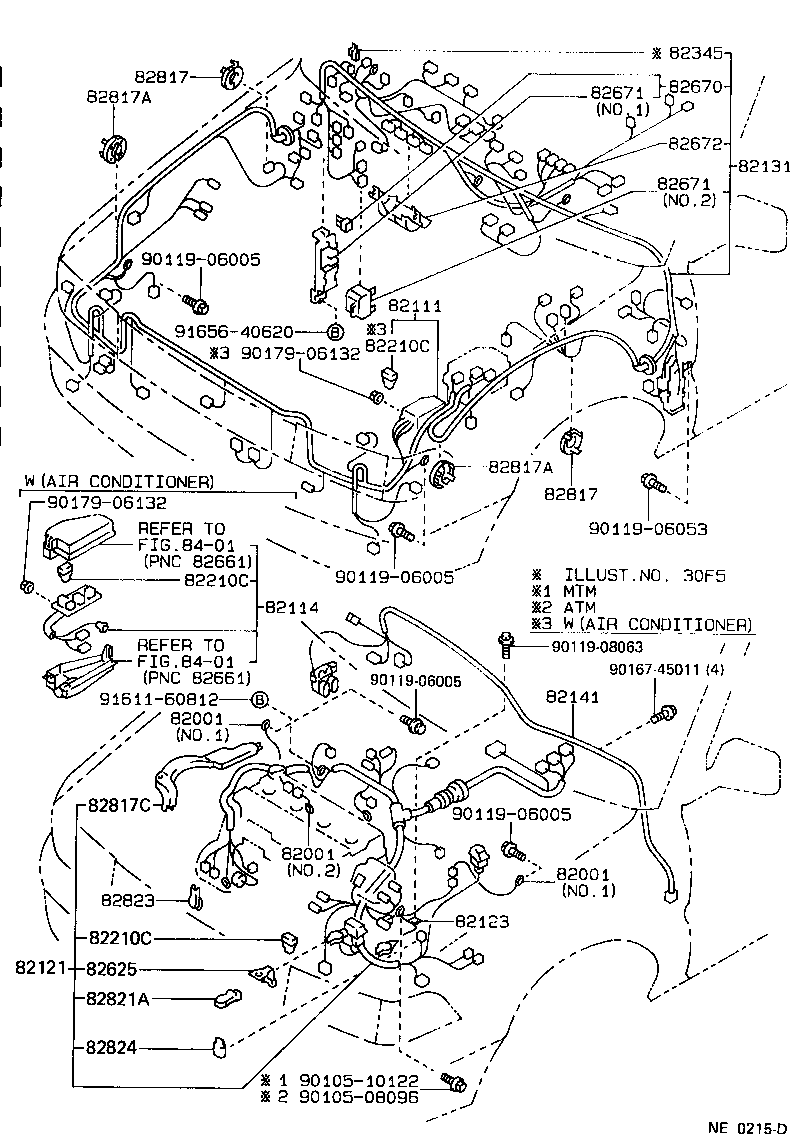

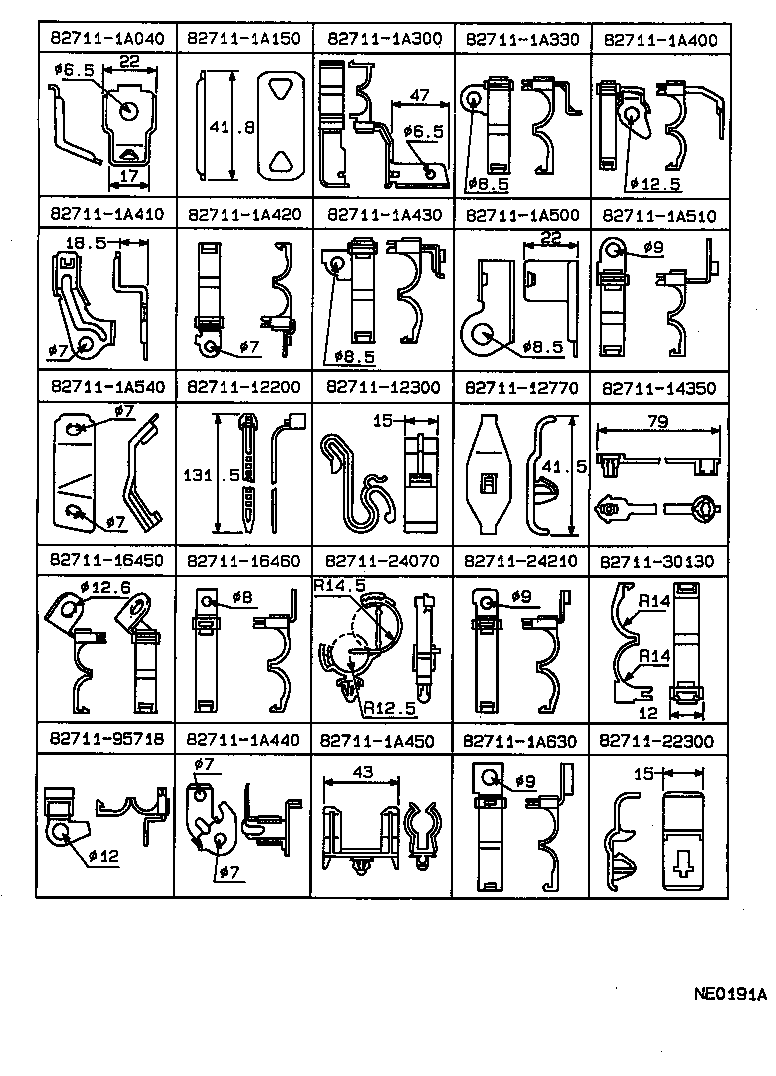

Figure NE0214C NE0214C 1987-05 → — Figure NE0215D NE0215D 1987-05 → — Figure NE0882C NE0882C 1988-02 → 1990-08 Figure NE0216E NE0216E 1987-05 → — Figure NE0217F NE0217F 1987-05 → — Figure NE0219B NE0219B 1987-05 → — Figure NE0220B NE0220B 1987-05 → — Figure NE0426B NE0426B 1987-08 → — Figure NE0883B NE0883B 1988-02 → 1990-08 Figure NE0763A NE0763A 1987-05 → — Figure NE0758A NE0758A 1987-05 → — Figure MEQ781 MEQ781 1987-05 → — Figure NE0191A NE0191A 1987-05 → — Figure NE0851C NE0851C 1987-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82188A Wire, Back Door, NO.3
82210C Fusible Link
82344 Wire, Mirror, RH
82344A Wire, Mirror, LH
82345 Diode
82625 Terminal, Fusible Link
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82672 Cover, Junktion Block
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82951A Bracket, Terminal
82981 Wire, Headlamp Repair
82982 Wire, Clearance Lamp Repair
82983 Wire, Front Turn Signal Lamp Repair
82984 Wire, Horn Repair
82985 Wire, Side Turn Signal Lamp Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
