Toyota Corolla Sed/LB/WG

1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 3 illustrations

Illustrations

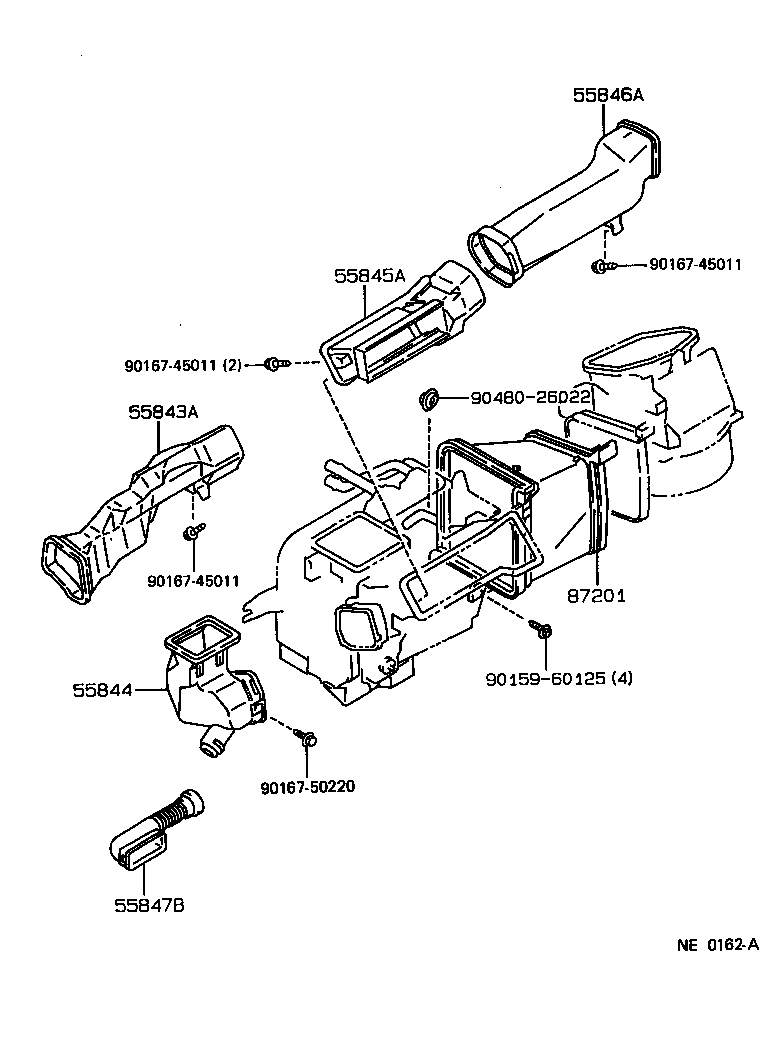

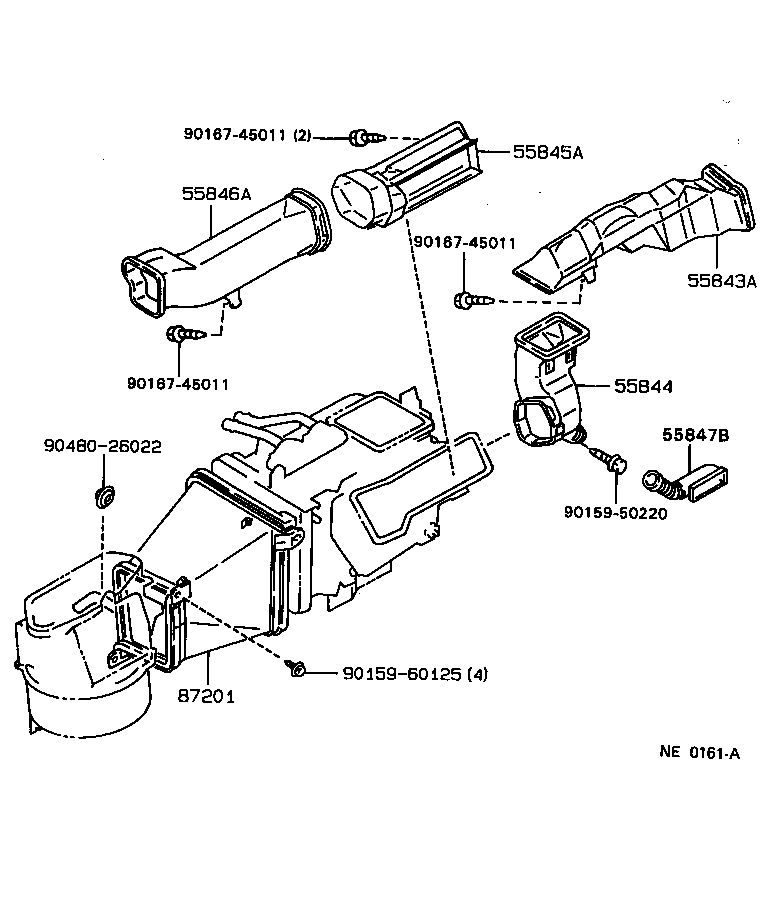

Figure NE0160E NE0160E 1987-05 → — Figure NE0161A NE0161A 1987-05 → — Figure NE0162A NE0162A 1987-05 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55846A Duct, Heater TO Register, NO.4
55847B Duct, Heater TO Register, NO.5
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55917A Lever, Temperature Damper Control
55921A Retainer, Heater Control
55931 Clamp, Heater Control Wire
55931A Shaft, Heater Control Lever
55941A Guide, Heater Control
87201 Duct Sub-assy, Air, NO.1
87284 Resistor Sub-assy, Variable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
