Toyota Corolla Sed/LB/WG

1987-05 → 1993-08 · chassis EE9#,AE9#,CE90 · catalogue 151320 · General

Discontinued model Data version 1994-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

9 part groups · 4 illustrations

Illustrations

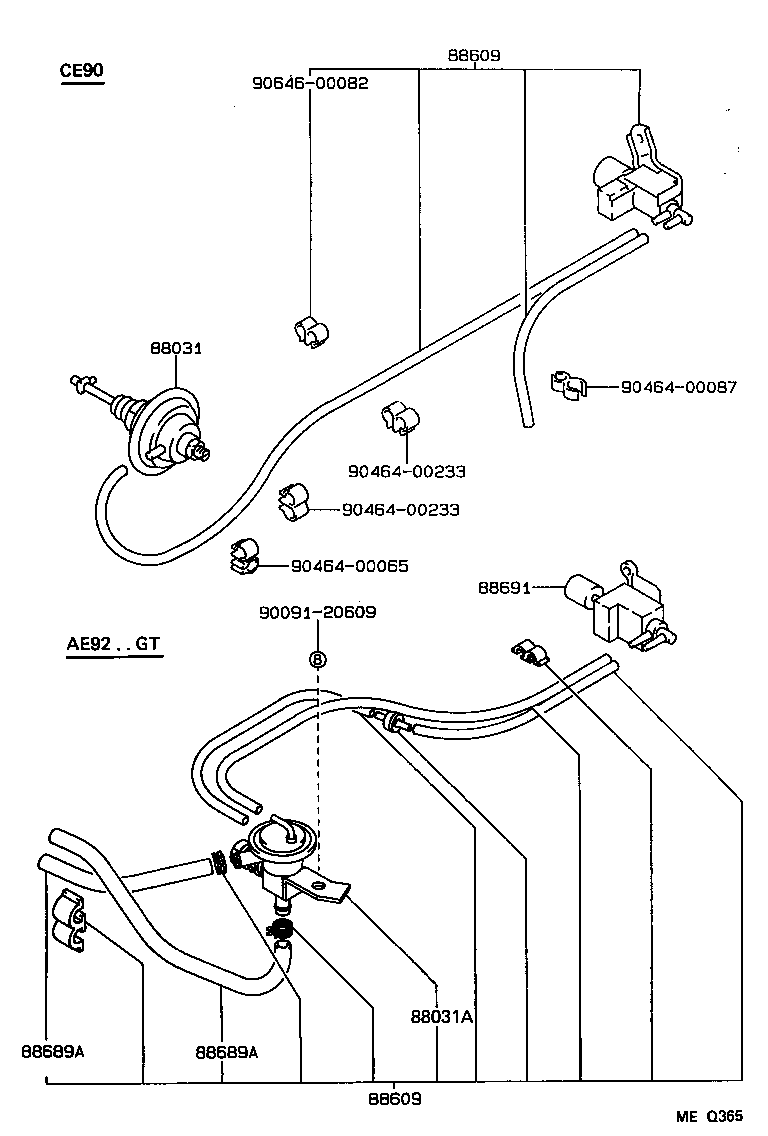

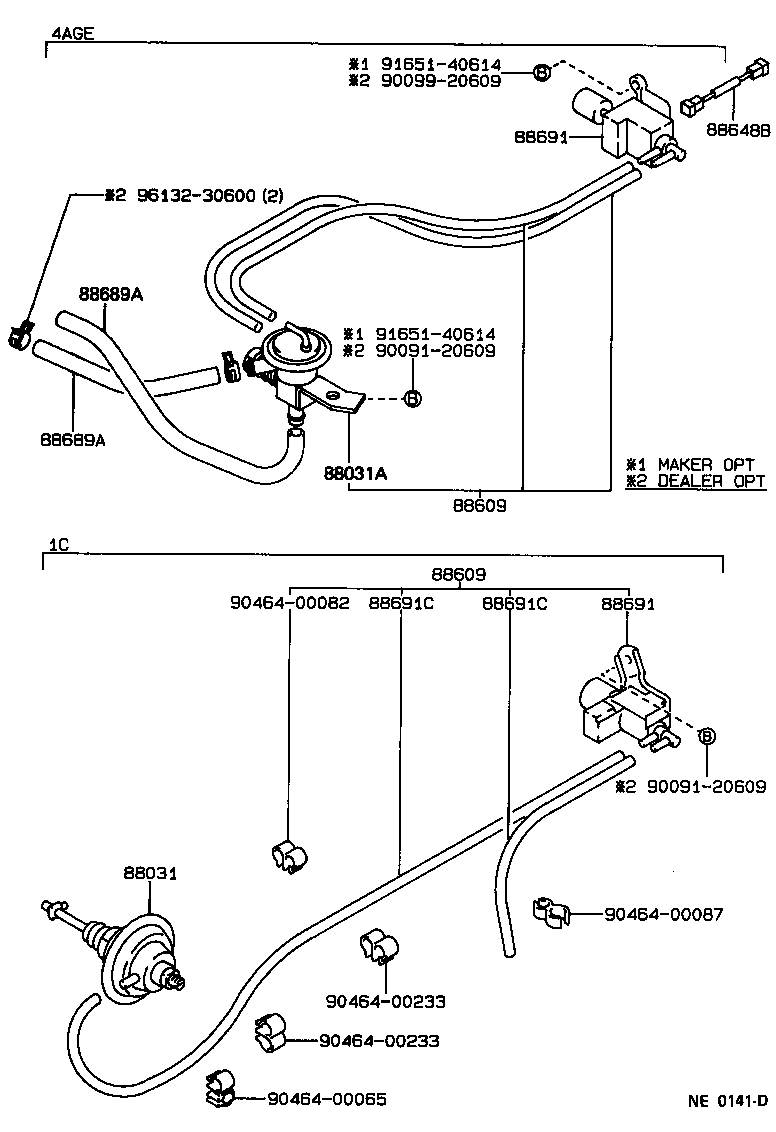

Figure MEP105B MEP105B 1987-05 → — Figure MEP106 MEP106 1987-05 → — Figure NE0141D NE0141D 1987-05 → 1989-08 Figure MEQ365 MEQ365 1989-08 → —

Part groups

PNCDescription
83391C Switch, Cooler Vacuum
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88609 Device Sub-assy, Idle UP
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88648B Wiring, Cooler, NO.1
88689A Hose, Cooler Vacuum NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
