Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

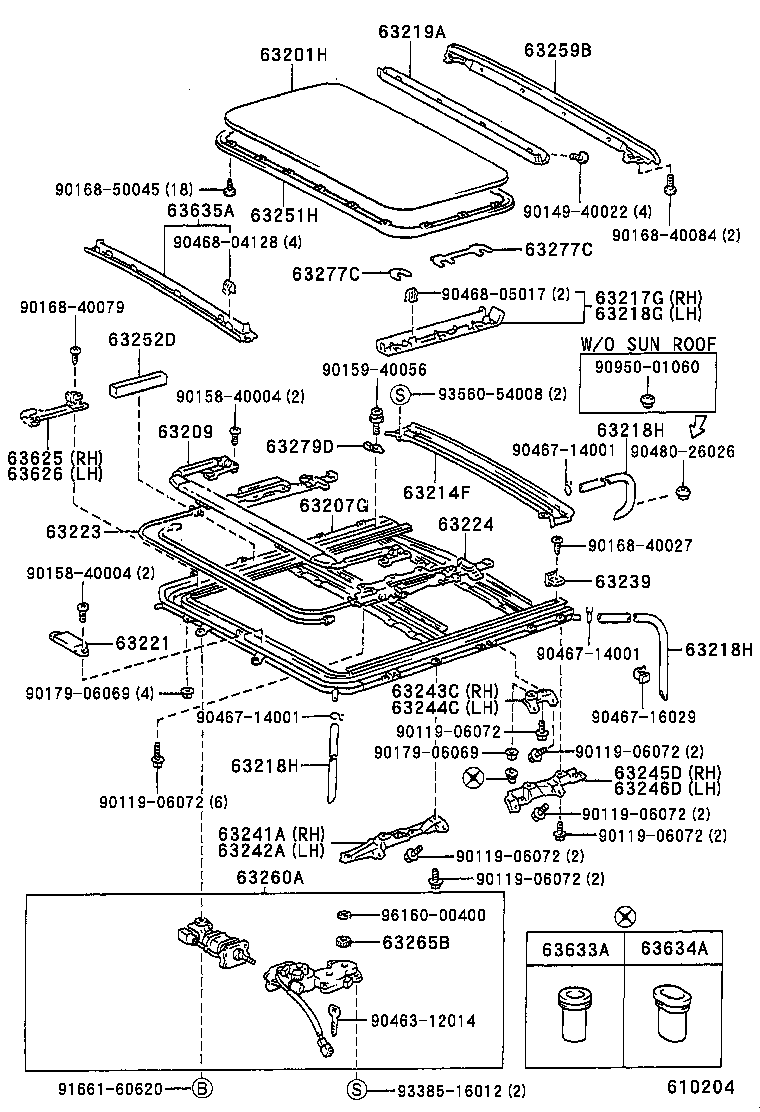

Exploded illustration 610204 63219A — GARNISH, SLIDING ROOF, REAR (2 parts) 63259B — HOLDER, SLIDING ROOF WEATHERSTRIP (2 parts) 63201H — PANEL SUB-ASSY, SLIDE ROOF (2 parts) 9016850045 — not listed in this catalogue 63635A — GARNISH, SLIDING ROOF, FRONT (2 parts) 9014940022 — not listed in this catalogue 63251H — WEATHERSTRIP, SLIDING ROOF (4 parts) 9016840084 — not listed in this catalogue 9046804128 — not listed in this catalogue 63277C — SHIM, SLIDING ROOF PANEL (8 parts) 63277C — SHIM, SLIDING ROOF PANEL (8 parts) 9046805017 — not listed in this catalogue 63217G — GARNISH, SLIDING ROOF SIDE, RH (2 parts) 9016840079 — not listed in this catalogue 63218G — GARNISH, SLIDING ROOF SIDE, LH (2 parts) 63252D — WEATHERSTRIP, SLIDING ROOF HOUSING (3 parts) 9095001060 — not listed in this catalogue 9015940056 — not listed in this catalogue 9356054008 — not listed in this catalogue 9015840004 — not listed in this catalogue 63218H — HOSE, SLIDING ROOF DRAIN (7 parts) 63209 — PANEL SUB-ASSY, ROOF WIND DEFLECTOR (3 parts) 63279D — STOPPER, SLIDING ROOF GUIDE RAIL (2 parts) 9046714001 — not listed in this catalogue 9048026026 — not listed in this catalogue 63625 — BLOCK, SLIDING ROOF GUIDE, RH (3 parts) 63626 — BLOCK, SLIDING ROOF GUIDE, LH (3 parts) 63214F — CHANNEL, ROOF DRIP, REAR (3 parts) 63207G — RAIL SUB-ASSY, SLIDING ROOF GUIDE (7 parts) 63224 — CABLE, SLIDING ROOF DRIVE, LH (5 parts) 63223 — CABLE, SLIDING ROOF DRIVE, RH (5 parts) 9016840027 — not listed in this catalogue 9015840004 — not listed in this catalogue 63239 — STOPPER, SLIDING ROOF PANEL (1 parts) 63221 — CASING, SLIDING ROOF CABLE GUIDE (2 parts) 63218H — HOSE, SLIDING ROOF DRAIN (7 parts) 9046714001 — not listed in this catalogue 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (2 parts) 9017906069 — not listed in this catalogue 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (2 parts) 9046716029 — not listed in this catalogue 9046714001 — not listed in this catalogue 9011906072 — not listed in this catalogue 9011906072 — not listed in this catalogue 9017906069 — not listed in this catalogue 63218H — HOSE, SLIDING ROOF DRAIN (7 parts) 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (3 parts) 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (3 parts) 9011906072 — not listed in this catalogue 9011906072 — not listed in this catalogue 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (3 parts) 9011906072 — not listed in this catalogue 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (3 parts) 9011906072 — not listed in this catalogue 63260A — GEAR SUB-ASSY, SLIDING ROOF DRIVE (2 parts) 9011906072 — not listed in this catalogue 9616000400 — not listed in this catalogue 63265B — GEAR, SLIDING ROOF DRIVE (2 parts) 63634A — BUSH, SLIDING ROOF HOUSING, NO.2 (2 parts) 63633A — BUSH, SLIDING ROOF HOUSING, NO.1 (2 parts) 9046312014 — not listed in this catalogue 9166160620 — not listed in this catalogue 9338516012 — not listed in this catalogue
610204 · 33 callouts, 30 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
92 parts on this figure
Part number Description Fitment Price
63201H — Panel Sub-assy, Slide Roof
63201-12190 Panel Sub-assy, Slide Roof
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63201-12190 Panel Sub-assy, Slide Roof
1991-08 → 1997-04 ended
AE101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63207G — Rail Sub-assy, Sliding Roof Guide
63207-12100 Rail Sub-assy, Sliding Roof Guide
1994-01 → 1995-05 ended
AE101 CP —
63207-12110 Rail Sub-assy, Sliding Roof Guide
1991-08 → 1991-09 ended
AE10#,EE100 GL,GLI,SEG,XL —
63207-12111 Rail Sub-assy, Sliding Roof Guide
1991-09 → 1994-01 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) —
63207-12112 Rail Sub-assy, Sliding Roof Guide
1994-01 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63207-12112 Rail Sub-assy, Sliding Roof Guide
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63207-12120 Rail Sub-assy, Sliding Roof Guide
1991-08 → 1991-12 ended
AE101 CP —
63207-12121 Rail Sub-assy, Sliding Roof Guide
1991-12 → 1994-01 ended
AE101 CP —
63209 — Panel Sub-assy, Roof Wind Deflector
63209-12080 Panel Sub-assy, Roof Wind Deflector
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63209-12080 Panel Sub-assy, Roof Wind Deflector
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63209-12090 Panel Sub-assy, Roof Wind Deflector
1991-08 → 1995-05 ended
AE101 CP —
63214F — Channel, Roof Drip, Rear
63214-12040 Channel, Roof Drip, Rear
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63214-12040 Channel, Roof Drip, Rear
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63214-12050 Channel, Roof Drip, Rear
1991-08 → 1995-05 ended
AE101 CP —
63217G — Garnish, Sliding Roof Side, RH
63217-12060 Garnish, Sliding Roof Side, RH
1991-08 → 1995-05 ended
AE100 GLI —
63217-12070 Garnish, Sliding Roof Side, RH
1991-08 → 1995-05 ended
AE101 CP —
63218G — Garnish, Sliding Roof Side, LH
63218-12070 Garnish, Sliding Roof Side, LH
1991-08 → 1995-05 ended
AE100 GLI —
63218-12080 Garnish, Sliding Roof Side, LH
1991-08 → 1995-05 ended
AE101 CP —
63218H — Hose, Sliding Roof Drain
63249-12160 note Hose, Sliding Roof Drain
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63249-12160 note Hose, Sliding Roof Drain
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63249-12170 note Hose, Sliding Roof Drain
1991-08 → 1995-05 ended
AE101 CP —
63249-12180 note Hose, Sliding Roof Drain
1991-08 → 1991-12 ended
AE101 CP —
63249-12181 note Hose, Sliding Roof Drain
1991-12 → 1995-05 ended
AE101 CP —
63249-12210 note Hose, Sliding Roof Drain
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63249-12210 note Hose, Sliding Roof Drain
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63219A — Garnish, Sliding Roof, Rear
63219-12040 Garnish, Sliding Roof, Rear
1991-08 → 1995-05 ended
AE100 GLI —
63219-12050 Garnish, Sliding Roof, Rear
1991-08 → 1995-05 ended
AE101 CP —
63221 — Casing, Sliding Roof Cable Guide
63221-12070 Casing, Sliding Roof Cable Guide
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 (CP,SED) (GL,GLI,GTAPX,SEG,SJ,XL,XLI) (GCC,GEN) —
63221-12070 Casing, Sliding Roof Cable Guide
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63223 — Cable, Sliding Roof Drive, RH
63223-12080 Cable, Sliding Roof Drive, RH
1991-08 → 1997-04 ended
AE101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63223-12080 Cable, Sliding Roof Drive, RH
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63223-12090 Cable, Sliding Roof Drive, RH
1991-08 → 1991-09 ended
AE100 GLI —
63223-12091 Cable, Sliding Roof Drive, RH
1991-09 → 1995-05 ended
AE100 GLI —
63223-12100 Cable, Sliding Roof Drive, RH
1991-08 → 1995-05 ended
AE101 CP —
63224 — Cable, Sliding Roof Drive, LH
63224-12070 Cable, Sliding Roof Drive, LH
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63224-12070 Cable, Sliding Roof Drive, LH
1991-08 → 1997-04 ended
AE101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63224-12080 Cable, Sliding Roof Drive, LH
1991-08 → 1991-09 ended
AE100 GLI —
63224-12081 Cable, Sliding Roof Drive, LH
1991-09 → 1995-05 ended
AE100 GLI —
63224-12090 Cable, Sliding Roof Drive, LH
1991-08 → 1995-05 ended
AE101 CP —
63239 — Stopper, Sliding Roof Panel
63239-12020 Stopper, Sliding Roof Panel
1991-08 → 1995-05 ended
AE101 CP;AE100 GLI —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-12040 Bracket, Sliding Roof Housing Front Mounting, RH
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63241-12040 Bracket, Sliding Roof Housing Front Mounting, RH
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63241-12050 Bracket, Sliding Roof Housing Front Mounting, RH
1991-08 → 1995-05 ended
AE101 CP —
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63242-12020 Bracket, Sliding Roof Housing Front Mounting, LH
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63242-12020 Bracket, Sliding Roof Housing Front Mounting, LH
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63242-12030 Bracket, Sliding Roof Housing Front Mounting, LH
1991-08 → 1995-05 ended
AE101 CP —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-12060 Bracket, Sliding Roof Housing Center Mounting, RH
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63243-12060 Bracket, Sliding Roof Housing Center Mounting, RH
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-12060 Bracket, Sliding Roof Housing Center Mounting, LH
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63244-12060 Bracket, Sliding Roof Housing Center Mounting, LH
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-12030 Bracket, Sliding Roof Housing Rear Mounting, RH
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63245-12030 Bracket, Sliding Roof Housing Rear Mounting, RH
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63245-12040 Bracket, Sliding Roof Housing Rear Mounting, RH
1991-08 → 1995-05 ended
AE101 CP —
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-12020 Bracket, Sliding Roof Housing Rear Mounting, LH
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63246-12020 Bracket, Sliding Roof Housing Rear Mounting, LH
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63246-12030 Bracket, Sliding Roof Housing Rear Mounting, LH
1991-08 → 1995-05 ended
AE101 CP —
63251H — Weatherstrip, Sliding Roof
63250-12020 Weatherstrip, Sliding Roof
1991-08 → 1997-04 ended
AE101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63250-12020 Weatherstrip, Sliding Roof
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63251-12120 Weatherstrip, Sliding Roof
1991-08 → 1995-05 ended
AE100 GLI —
63251-12130 Weatherstrip, Sliding Roof
1991-08 → 1995-05 ended
AE101 CP —
63252D — Weatherstrip, Sliding Roof Housing
63252-12030 Weatherstrip, Sliding Roof Housing
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63252-12030 Weatherstrip, Sliding Roof Housing
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63252-12040 Weatherstrip, Sliding Roof Housing
1991-08 → 1995-05 ended
AE101 CP —
63259B — Holder, Sliding Roof Weatherstrip
63259-12070 Holder, Sliding Roof Weatherstrip
1991-08 → 1995-05 ended
AE100 GLI —
63259-12080 Holder, Sliding Roof Weatherstrip
1991-08 → 1995-05 ended
AE101 CP —
63260A — Gear Sub-assy, Sliding Roof Drive
63260-12070 Gear Sub-assy, Sliding Roof Drive
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 (CP,SED) (GL,GLI,GTAPX,SEG,SJ,XL,XLI) (GCC,GEN) —
63260-12070 Gear Sub-assy, Sliding Roof Drive
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63265B — Gear, Sliding Roof Drive
63265-12020 Gear, Sliding Roof Drive
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 (CP,SED) (GL,GLI,GTAPX,SEG,SJ,XL,XLI) (GCC,GEN) —
63265-12020 Gear, Sliding Roof Drive
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63277C — Shim, Sliding Roof Panel
63277-20020 note Shim, Sliding Roof Panel
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 (CP,SED) (GL,GLI,GTAPX,SEG,SJ,XL,XLI) (GCC,GEN) —
63277-20020 note Shim, Sliding Roof Panel
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63277-20030 note Shim, Sliding Roof Panel
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 (CP,SED) (GL,GLI,GTAPX,SEG,SJ,XL,XLI) (GCC,GEN) —
63277-20030 note Shim, Sliding Roof Panel
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63277-20040 note Shim, Sliding Roof Panel
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 (CP,SED) (GL,GLI,GTAPX,SEG,SJ,XL,XLI) (GCC,GEN) —
63277-20040 note Shim, Sliding Roof Panel
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63277-20050 note Shim, Sliding Roof Panel
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 (CP,SED) (GL,GLI,GTAPX,SEG,SJ,XL,XLI) (GCC,GEN) —
63277-20050 note Shim, Sliding Roof Panel
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63279D — Stopper, Sliding Roof Guide Rail
63279-12020 Stopper, Sliding Roof Guide Rail
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 (CP,SED) (GL,GLI,GTAPX,SEG,SJ,XL,XLI) (GCC,GEN) —
63279-12020 Stopper, Sliding Roof Guide Rail
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63625 — Block, Sliding Roof Guide, RH
63625-12010 Block, Sliding Roof Guide, RH
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63625-12010 Block, Sliding Roof Guide, RH
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63625-12020 Block, Sliding Roof Guide, RH
1991-08 → 1995-05 ended
AE101 CP —
63626 — Block, Sliding Roof Guide, LH
63626-12010 Block, Sliding Roof Guide, LH
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63626-12010 Block, Sliding Roof Guide, LH
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63626-12020 Block, Sliding Roof Guide, LH
1991-08 → 1995-05 ended
AE101 CP —
63633A — Bush, Sliding Roof Housing, NO.1
63633-12010 Bush, Sliding Roof Housing, NO.1
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63633-12010 Bush, Sliding Roof Housing, NO.1
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63634A — Bush, Sliding Roof Housing, NO.2
63634-12010 Bush, Sliding Roof Housing, NO.2
1991-08 → 1997-04 ended
AE100,101,CE100,EE100,101 SED (GL,GLI,SEG,XL,XLI) (GCC,GEN) —
63634-12010 Bush, Sliding Roof Housing, NO.2
1997-04 → —
EE100 LHD GEN;AE101 LHD +4 —
63635A — Garnish, Sliding Roof, Front
63635-12030 Garnish, Sliding Roof, Front
1991-08 → 1995-05 ended
AE100 GLI —
63635-12040 Garnish, Sliding Roof, Front
1991-08 → 1995-05 ended
AE101 CP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
