Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

17 part groups · 12 illustrations

Illustrations

Figure 110319B 110319B 1991-08 → 1997-11 Figure 110320C 110320C 1991-08 → 1997-11 Figure 110321 110321 1991-08 → 1997-11 Figure 110712 110712 1993-09 → 1997-11 Figure MAF809 MAF809 1991-08 → 1995-05 Figure 110902A 110902A 1997-11 → — Figure 110673A 110673A 1992-05 → 1997-11 Figure 110674B 110674B 1997-11 → — Figure 110473C 110473C 1991-08 → — Figure 110277 110277 1991-08 → 1997-04 Figure 110285 110285 1992-05 → 1997-04 Figure 110286 110286 1992-05 → 1997-04

Part groups

PNCDescription

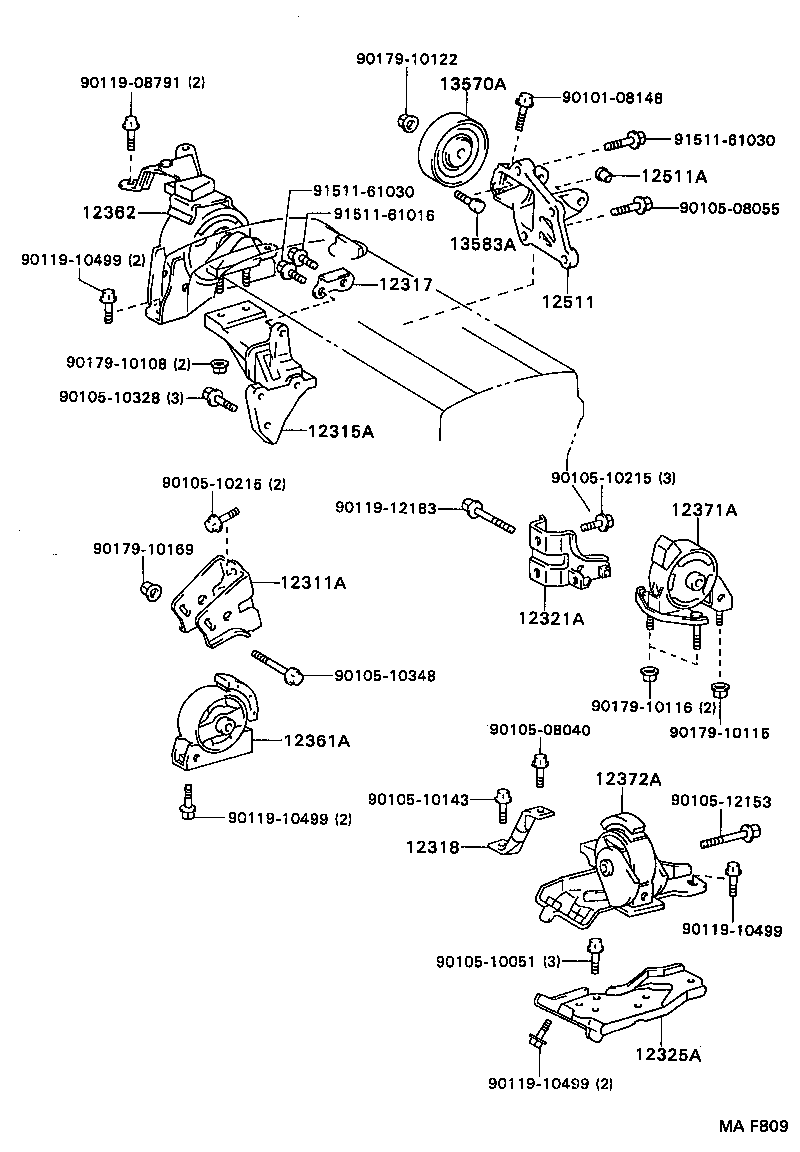

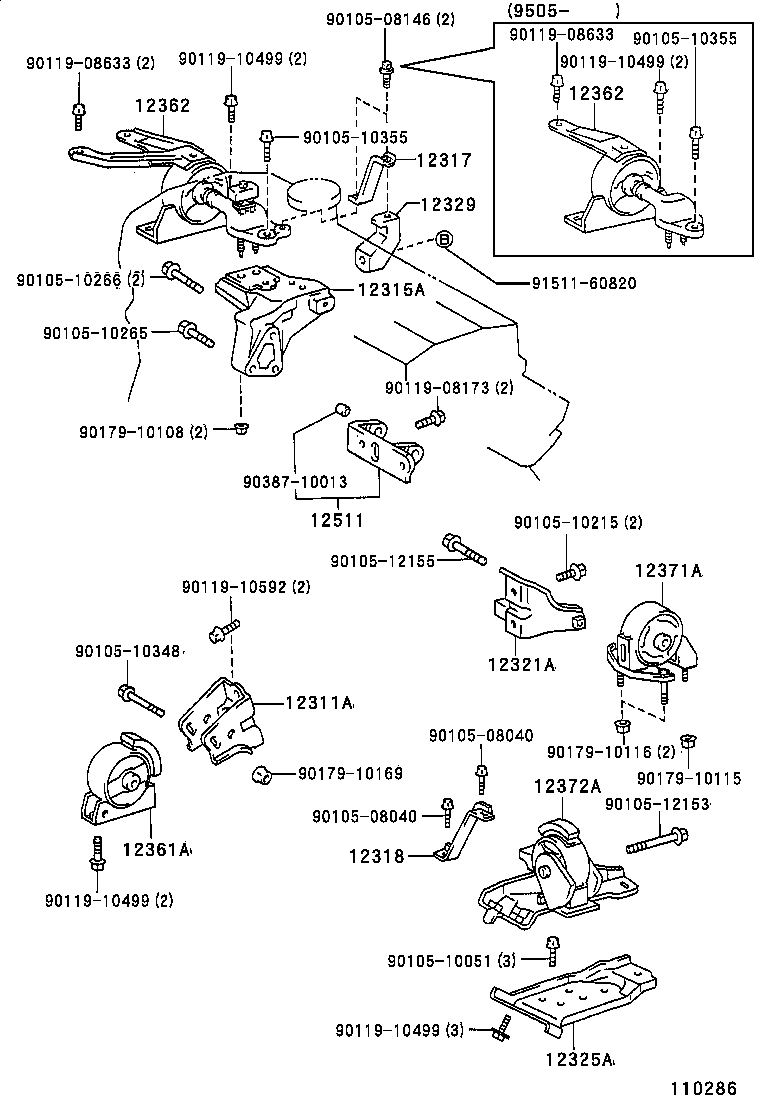

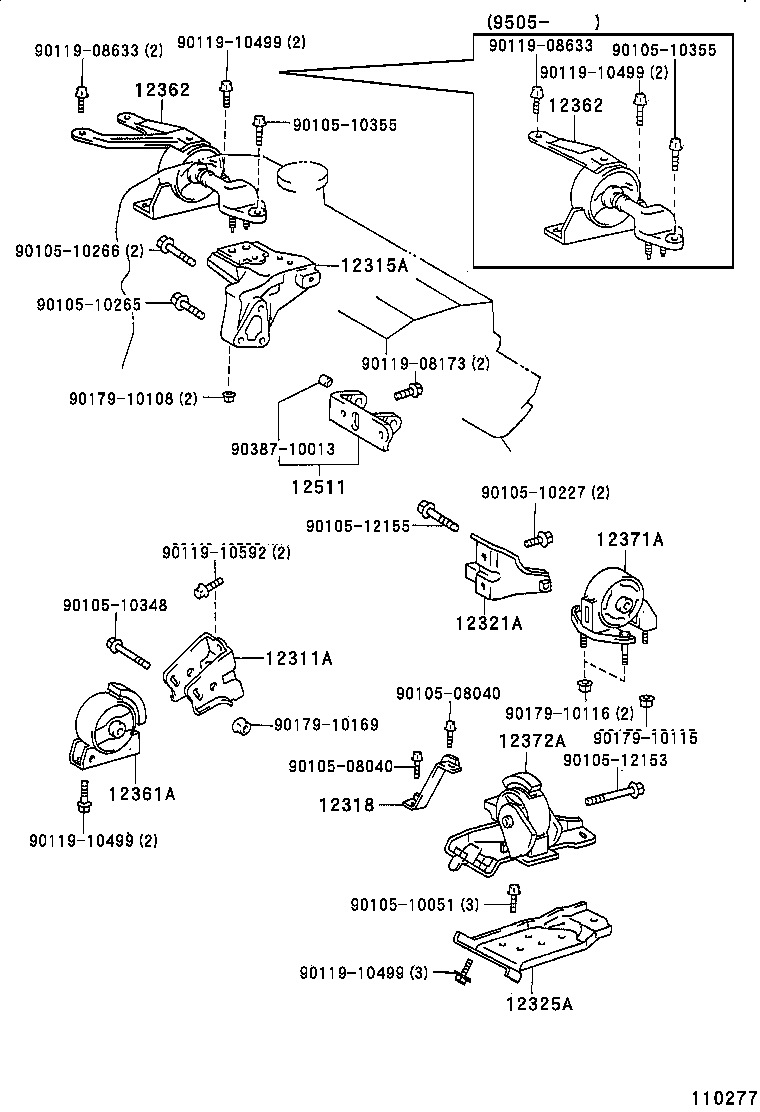

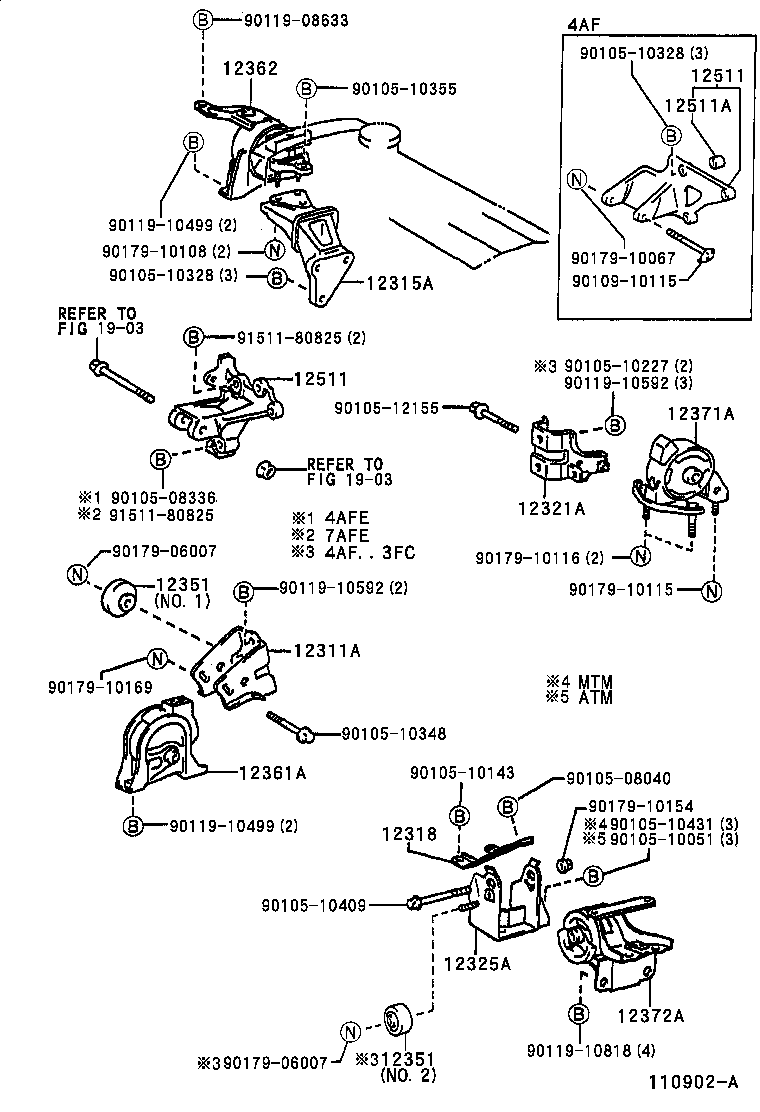

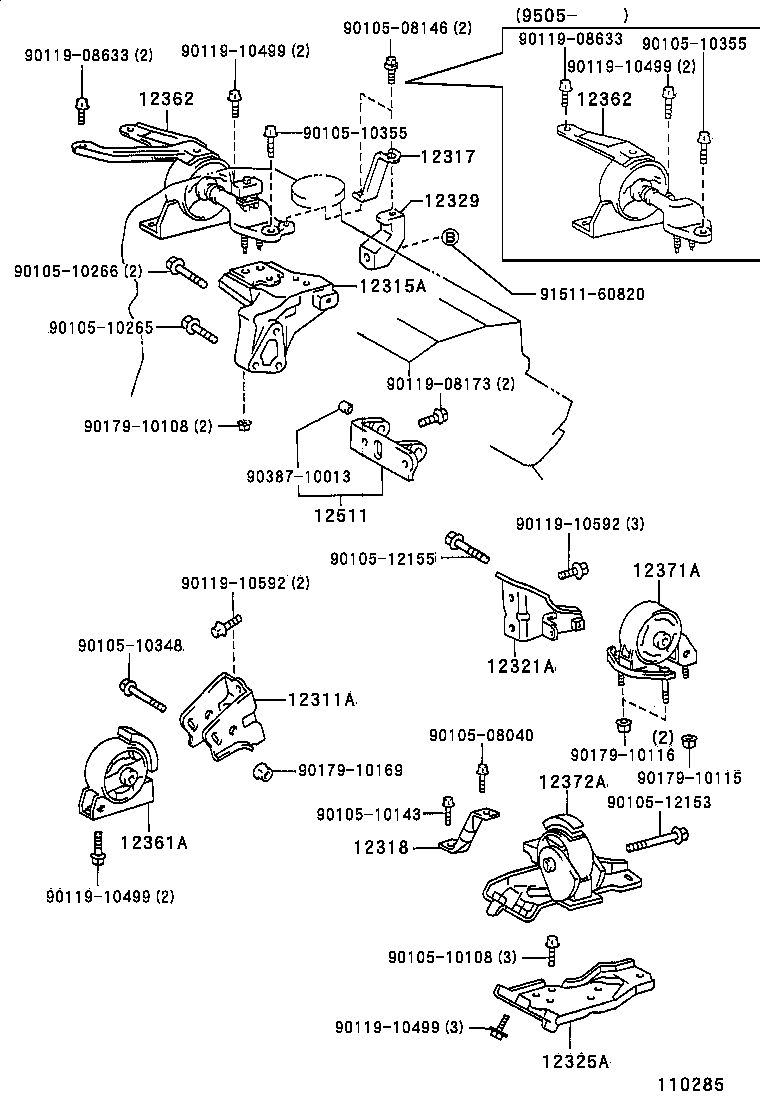

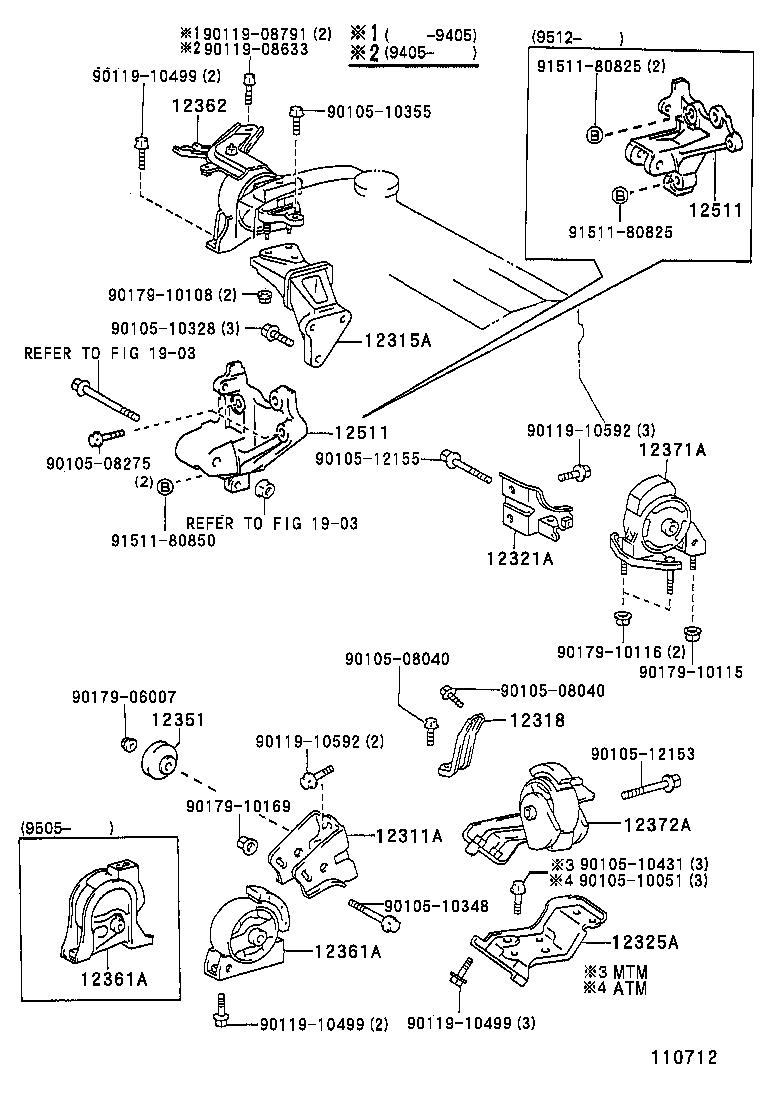

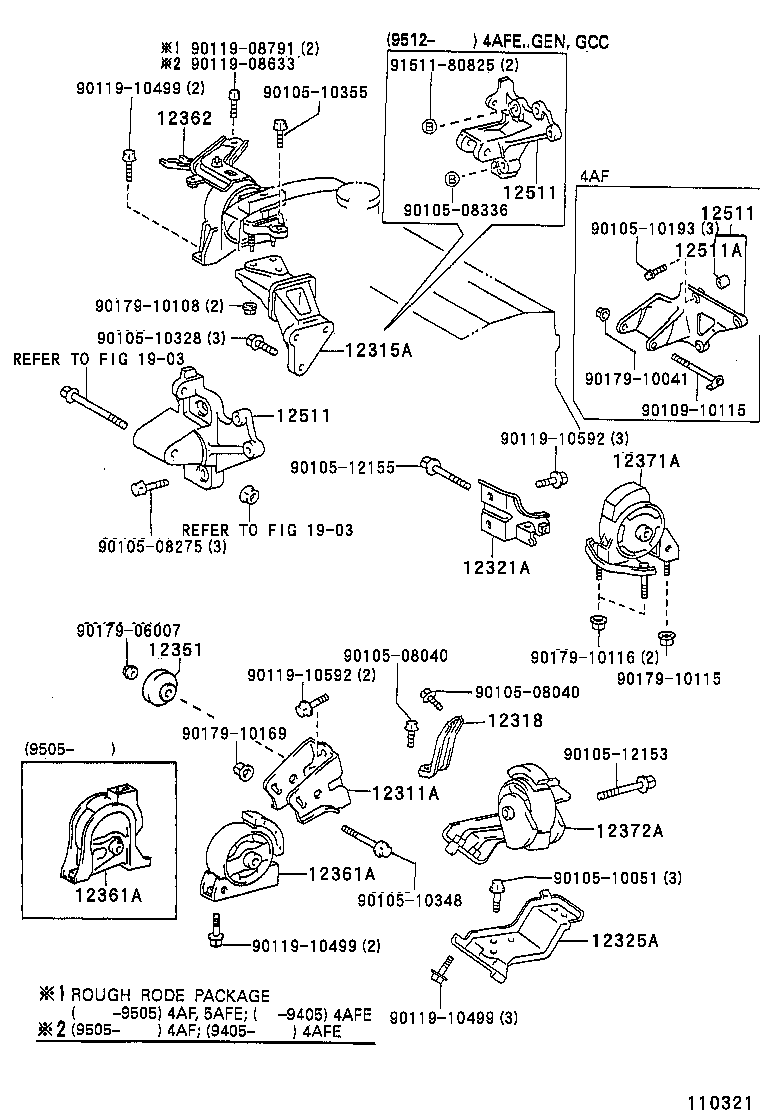

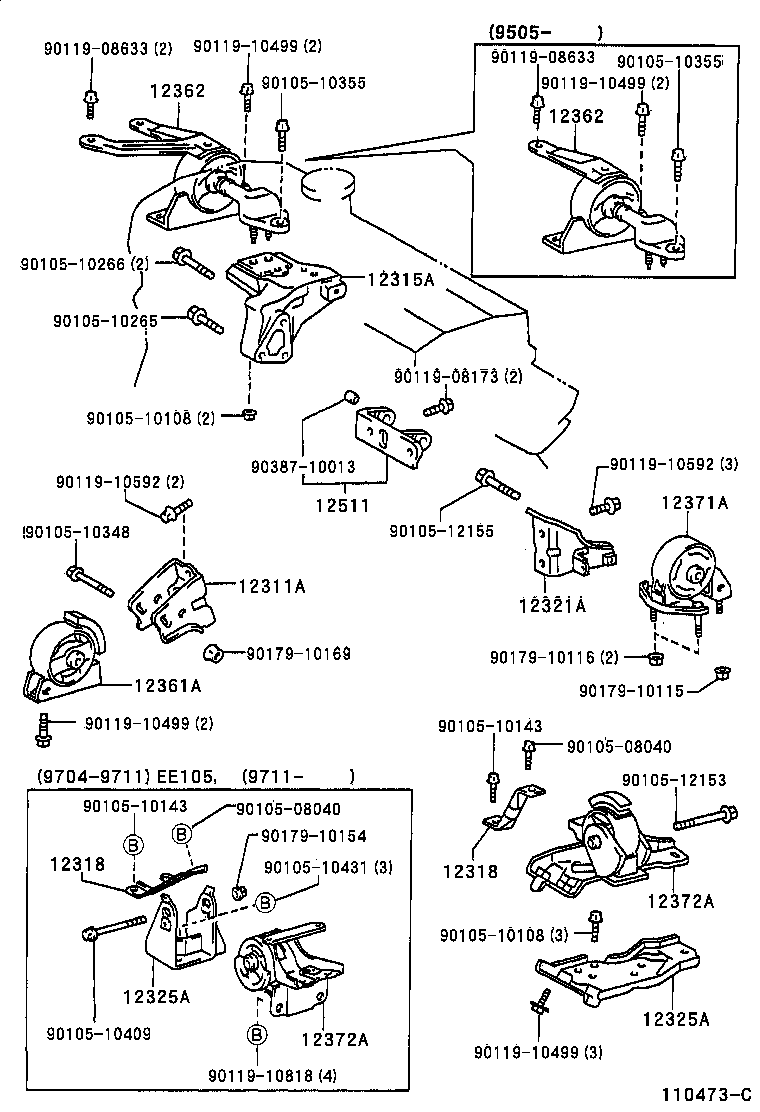

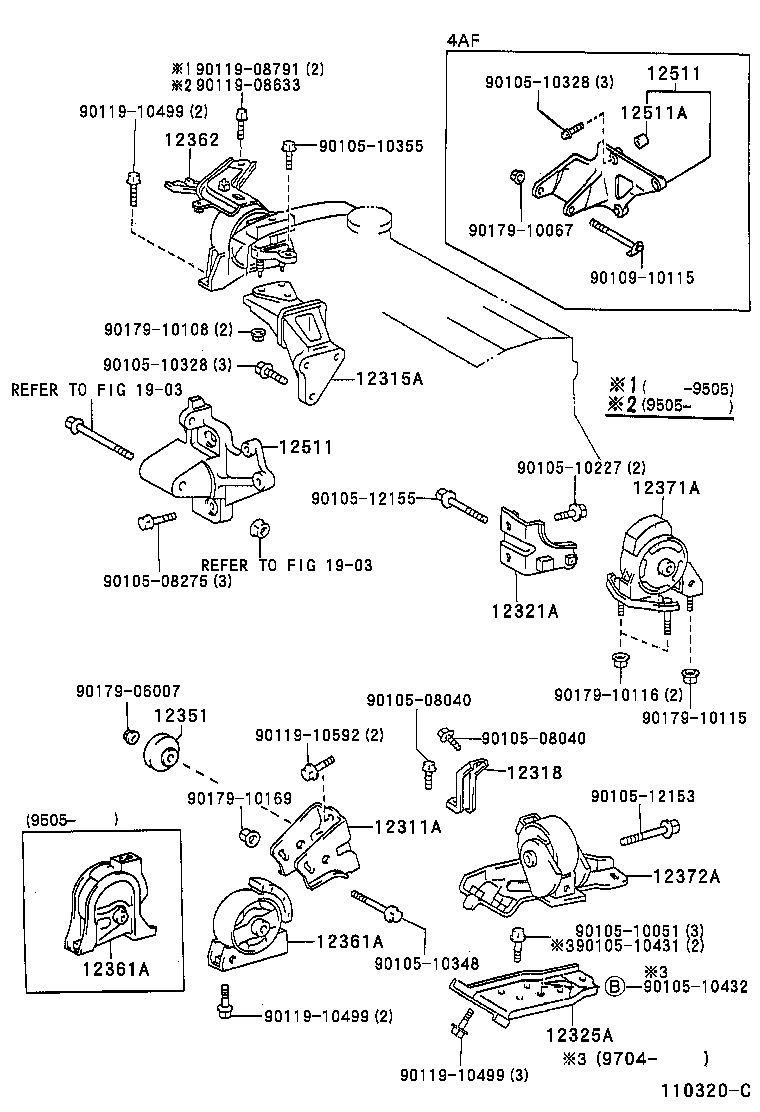

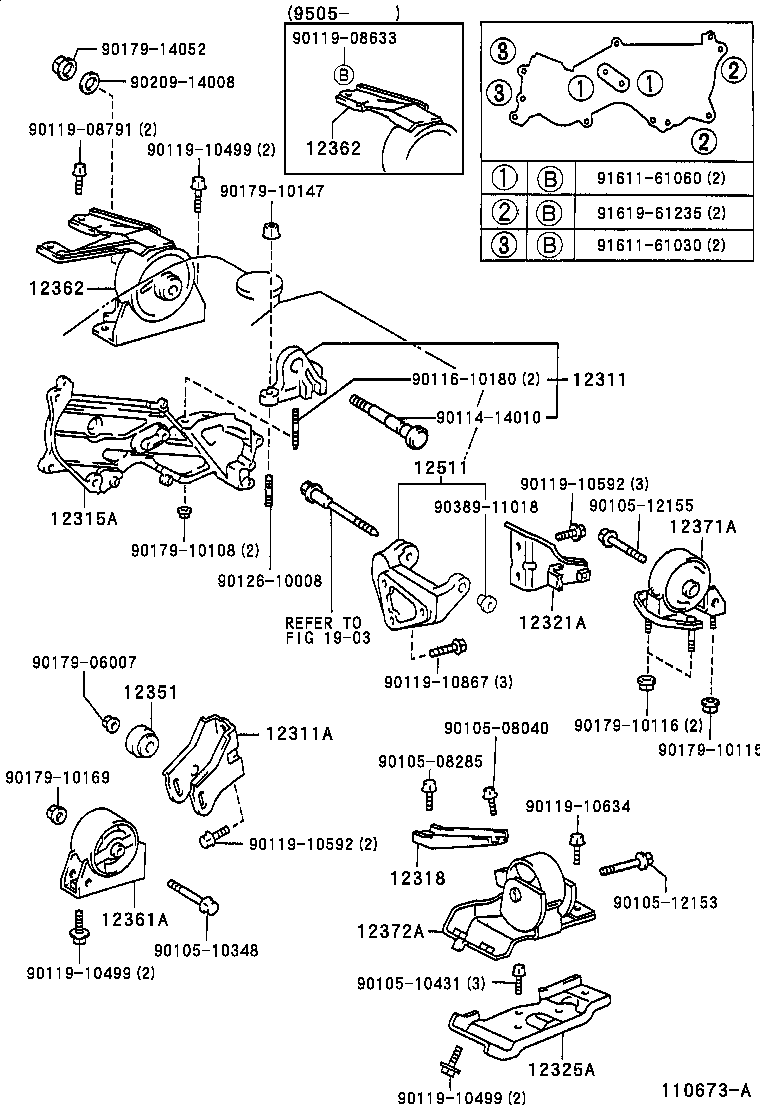

12311 Bracket, Engine Mounting, Front NO.1 RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12317 Stay, Engine Mounting, RH
12318 Stay, Engine Mounting, LH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12329 Support, Engine Mounting Stay
12351 Damper, Engine Mounting
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
13570A Idler Assy, V-ribbed, NO.1
13583A Shaft, Idler, V-ribbed Belt
