Toyota Corolla Sed/CP/WG
1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General
Discontinued model
Data version 2002-04

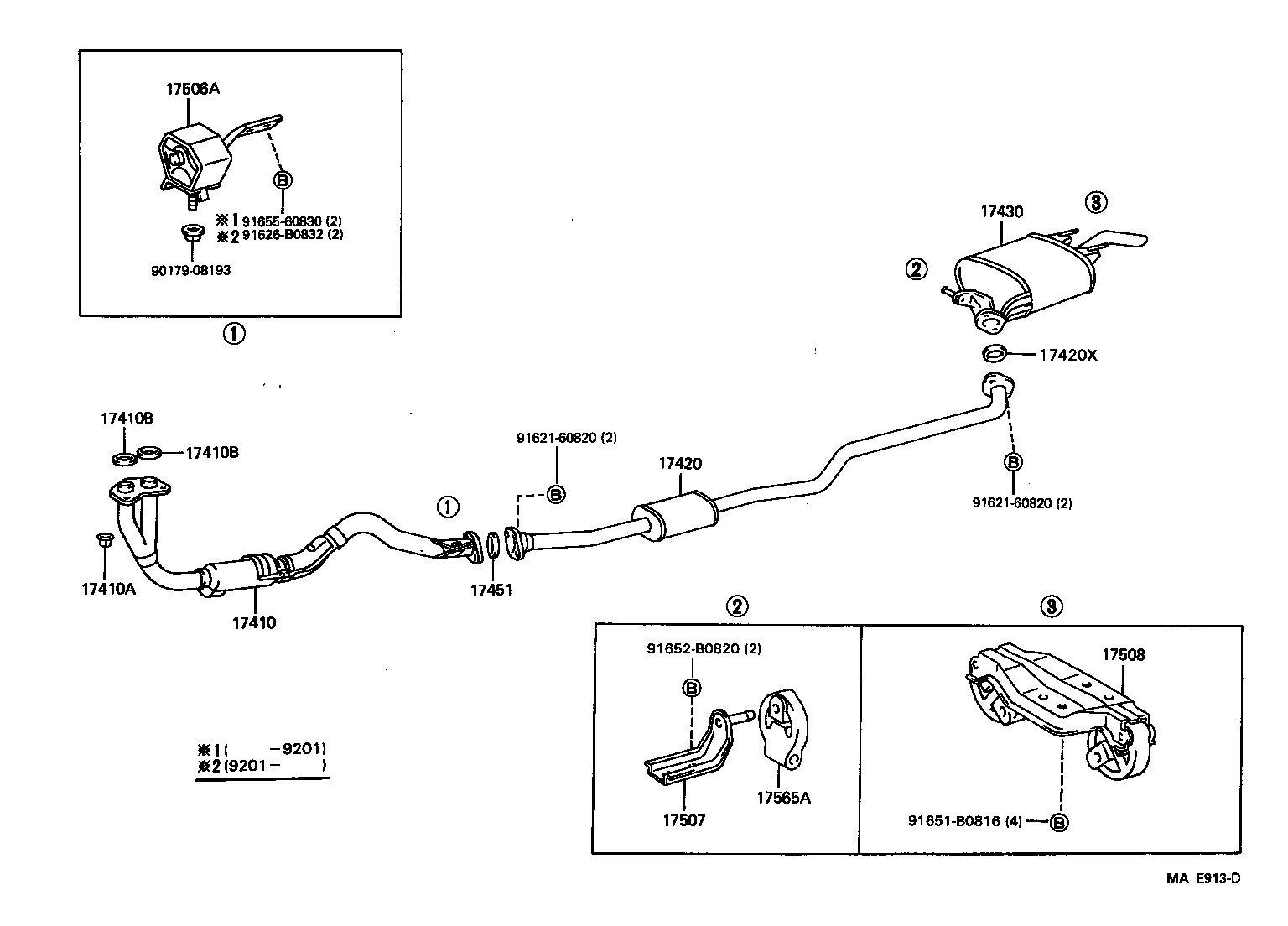

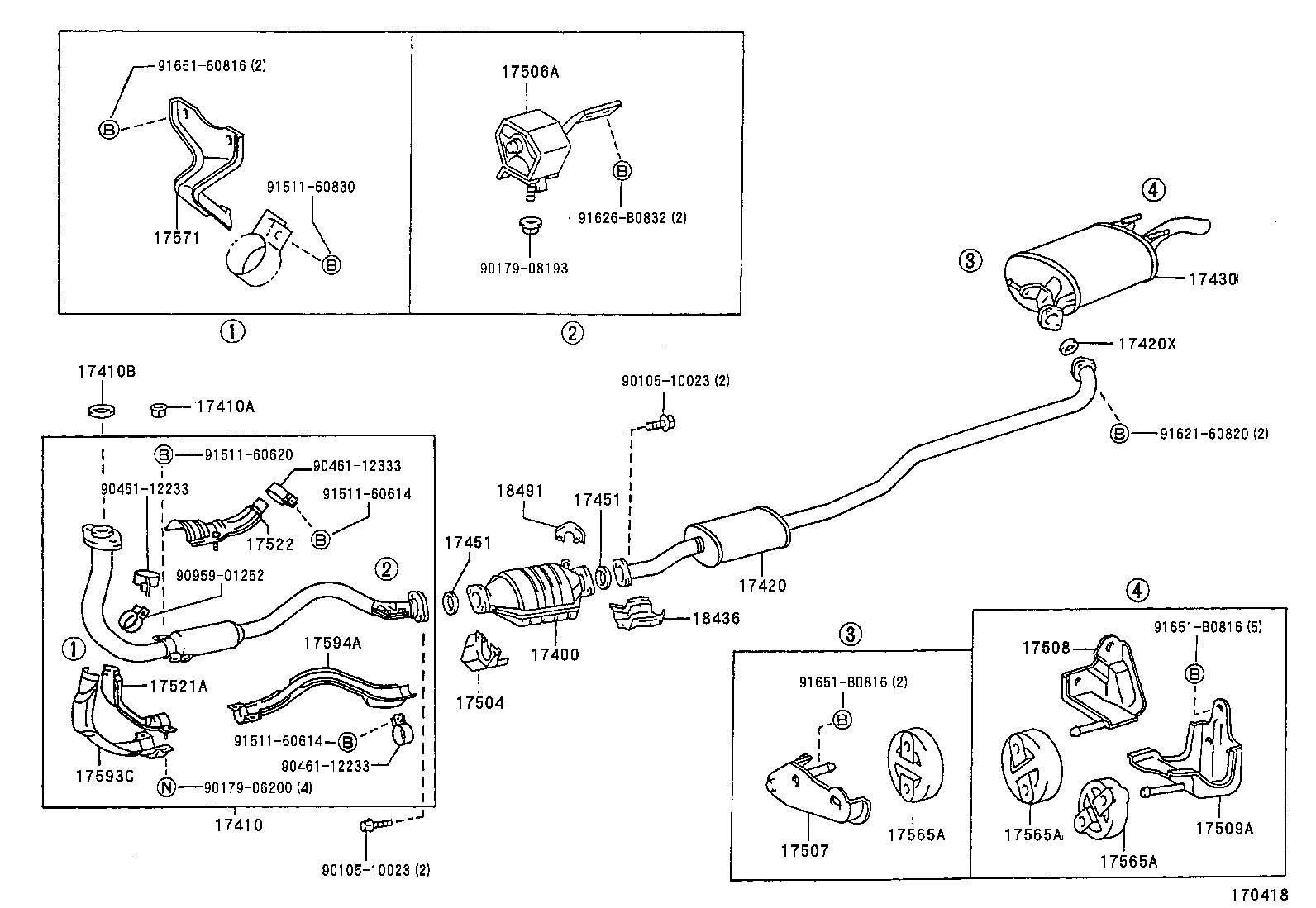

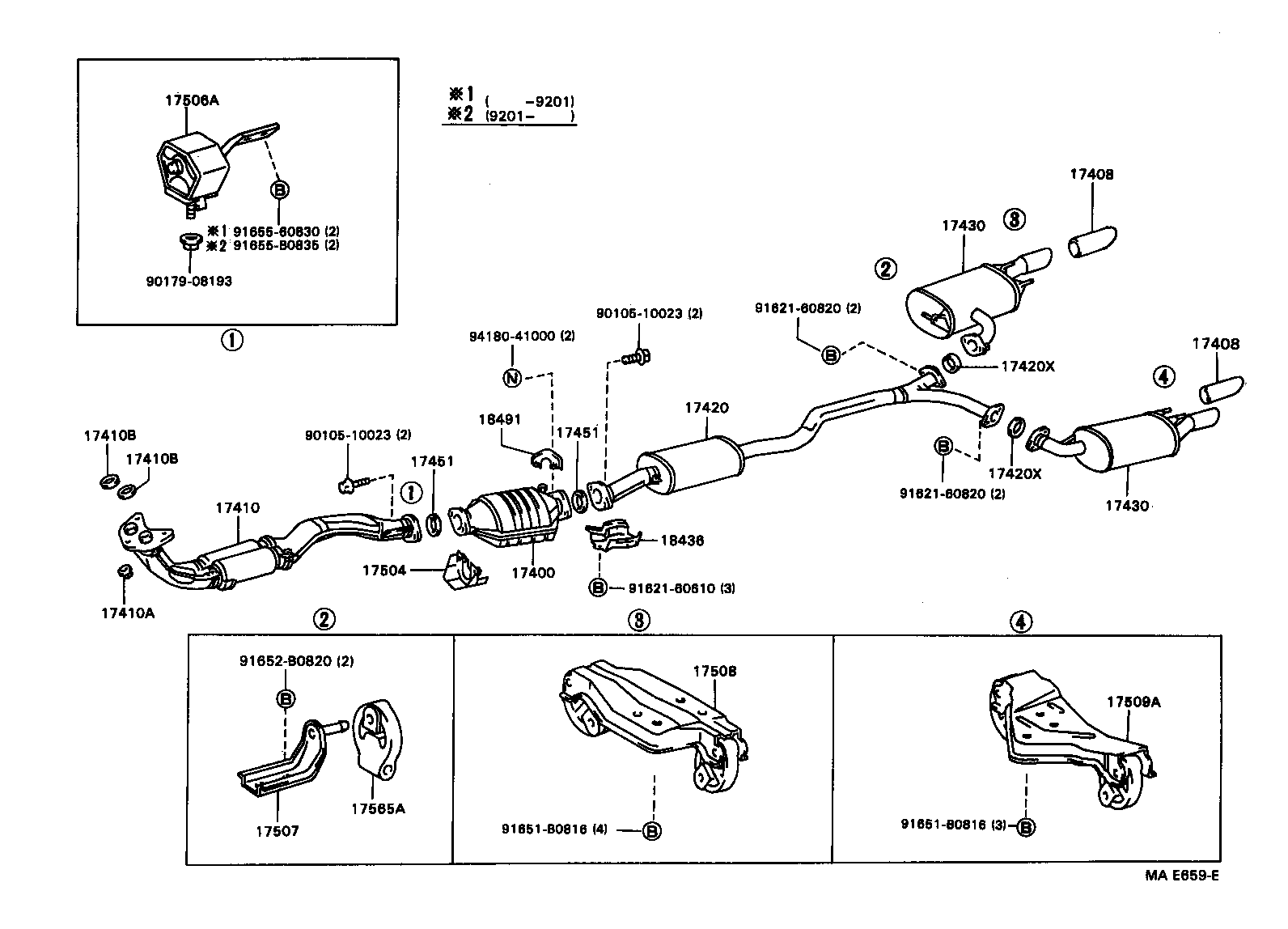

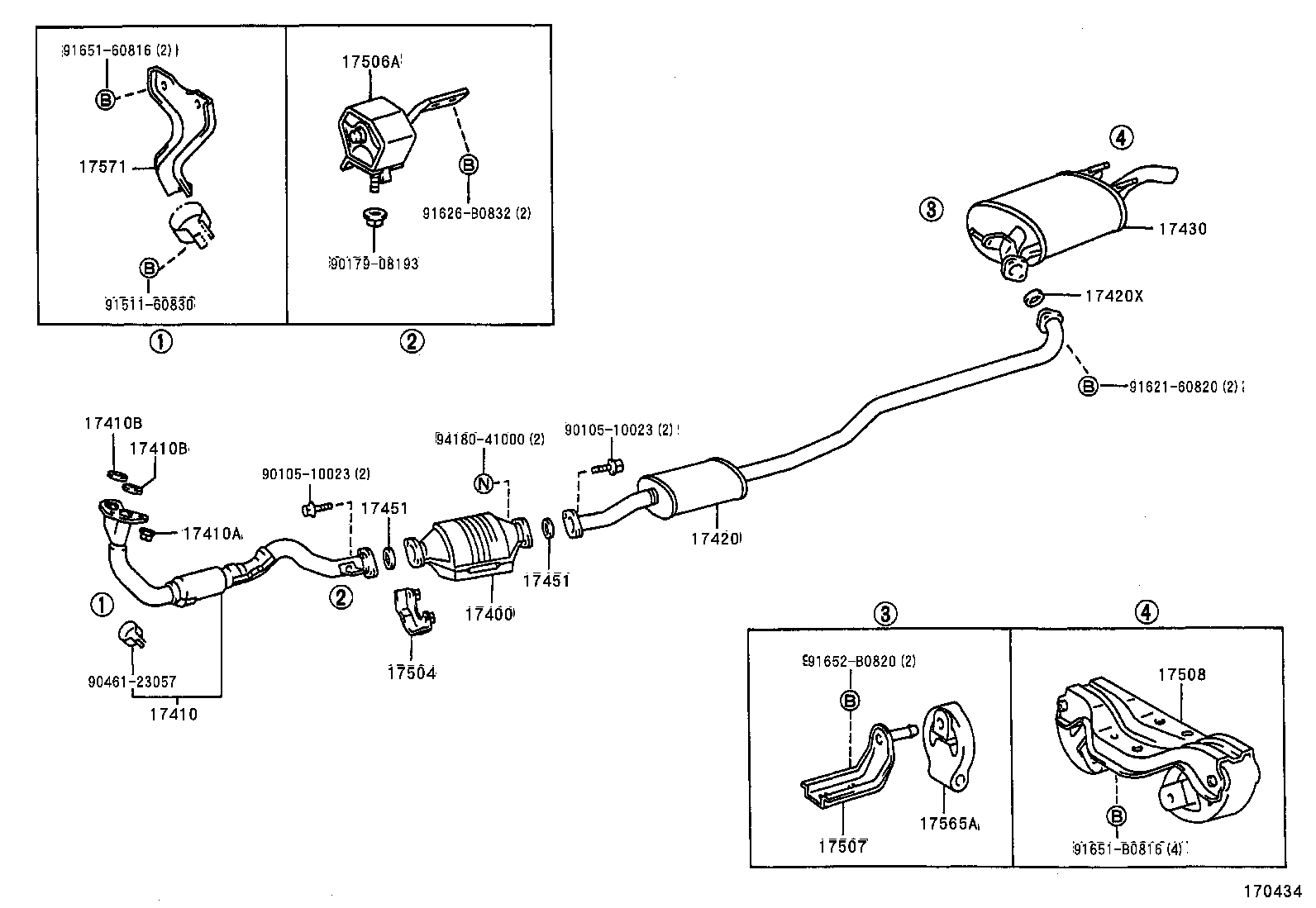

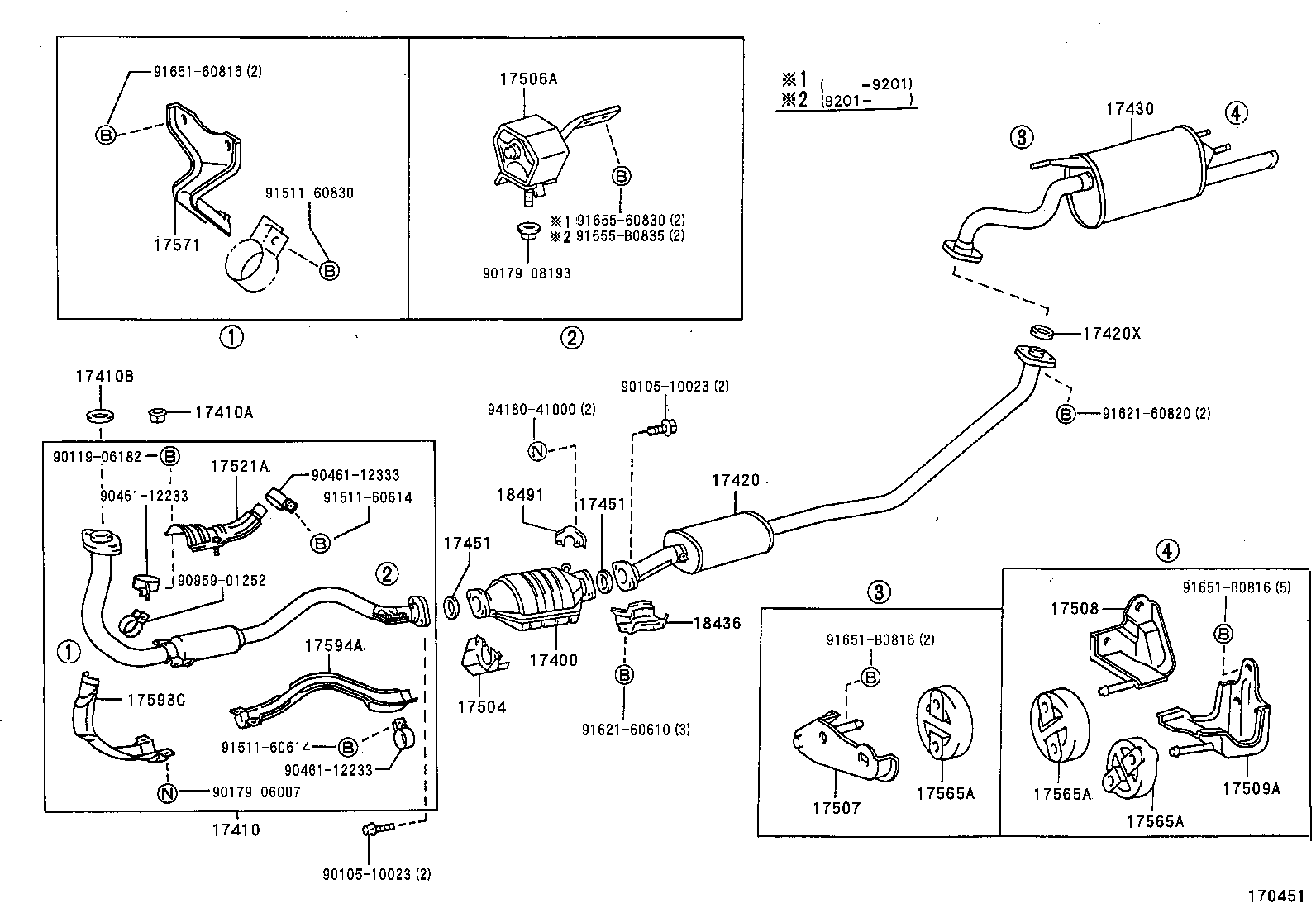

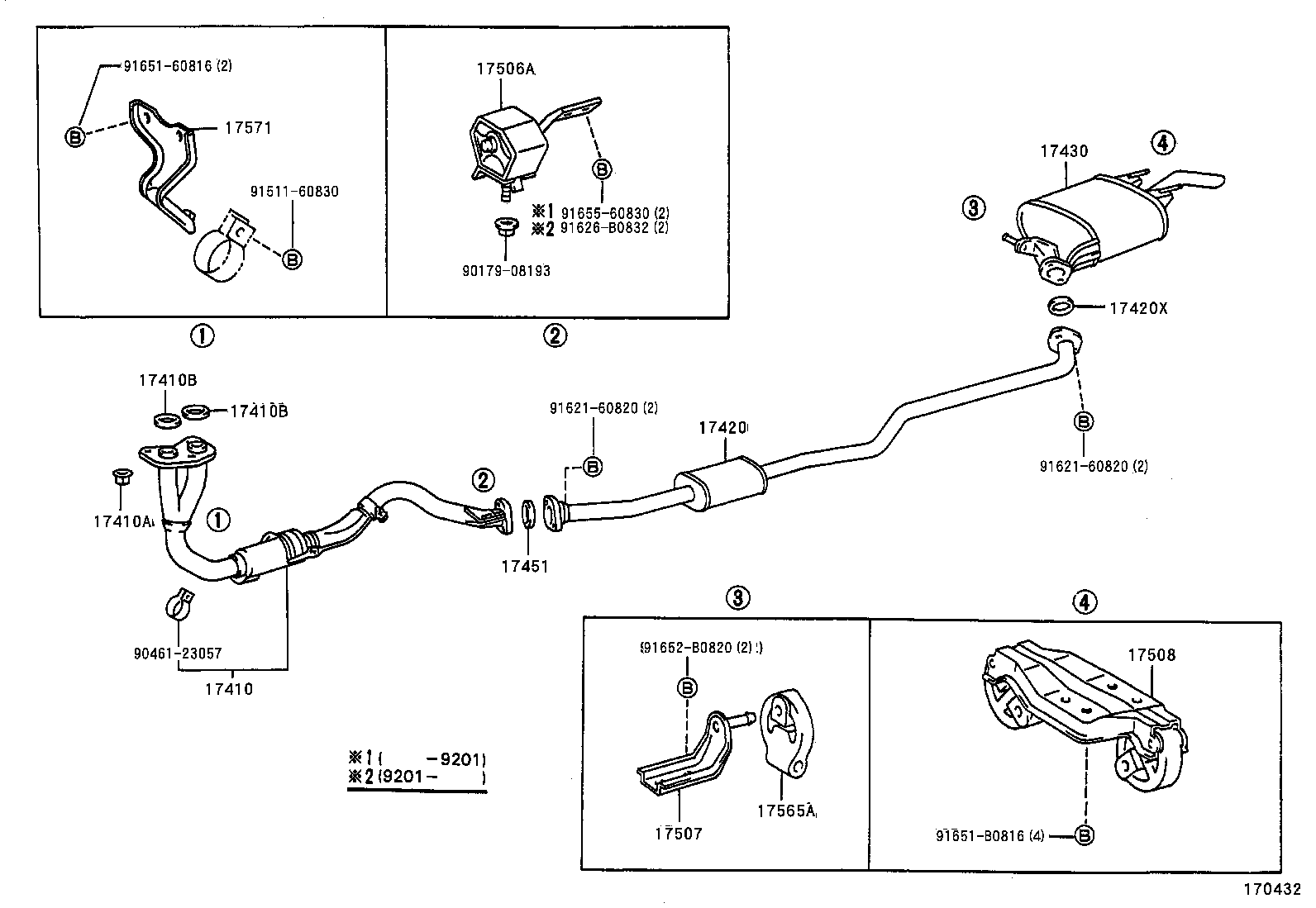

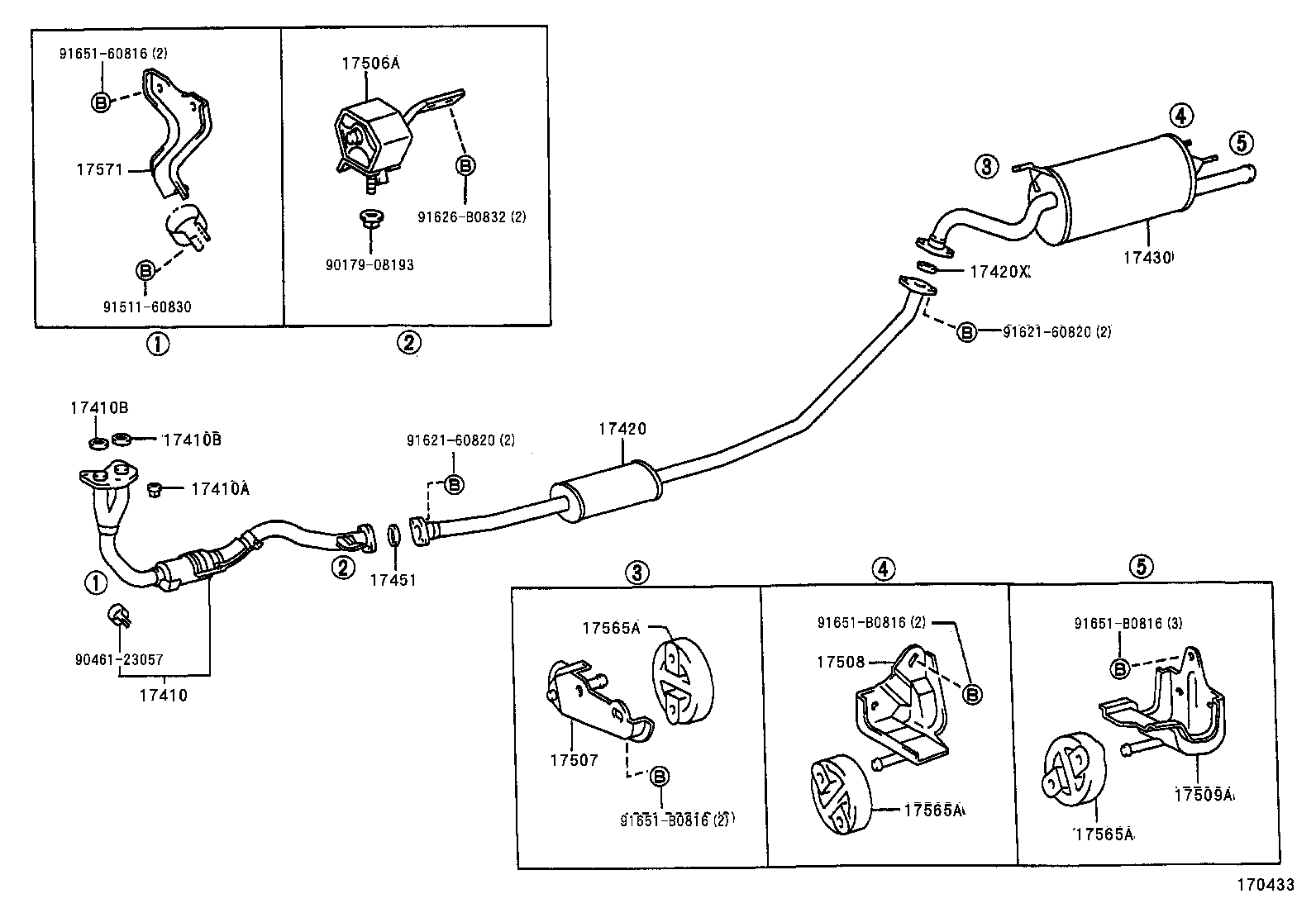

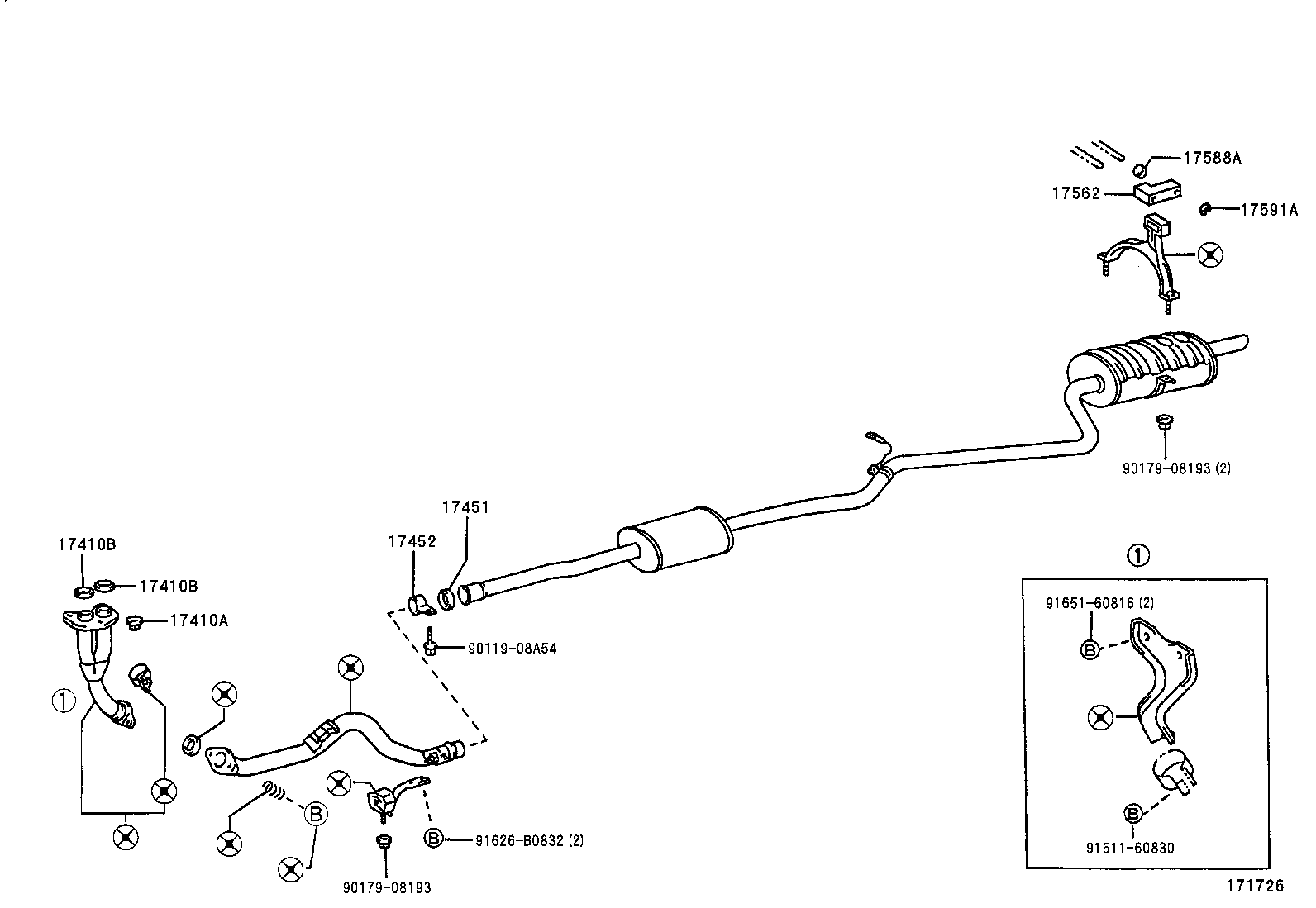

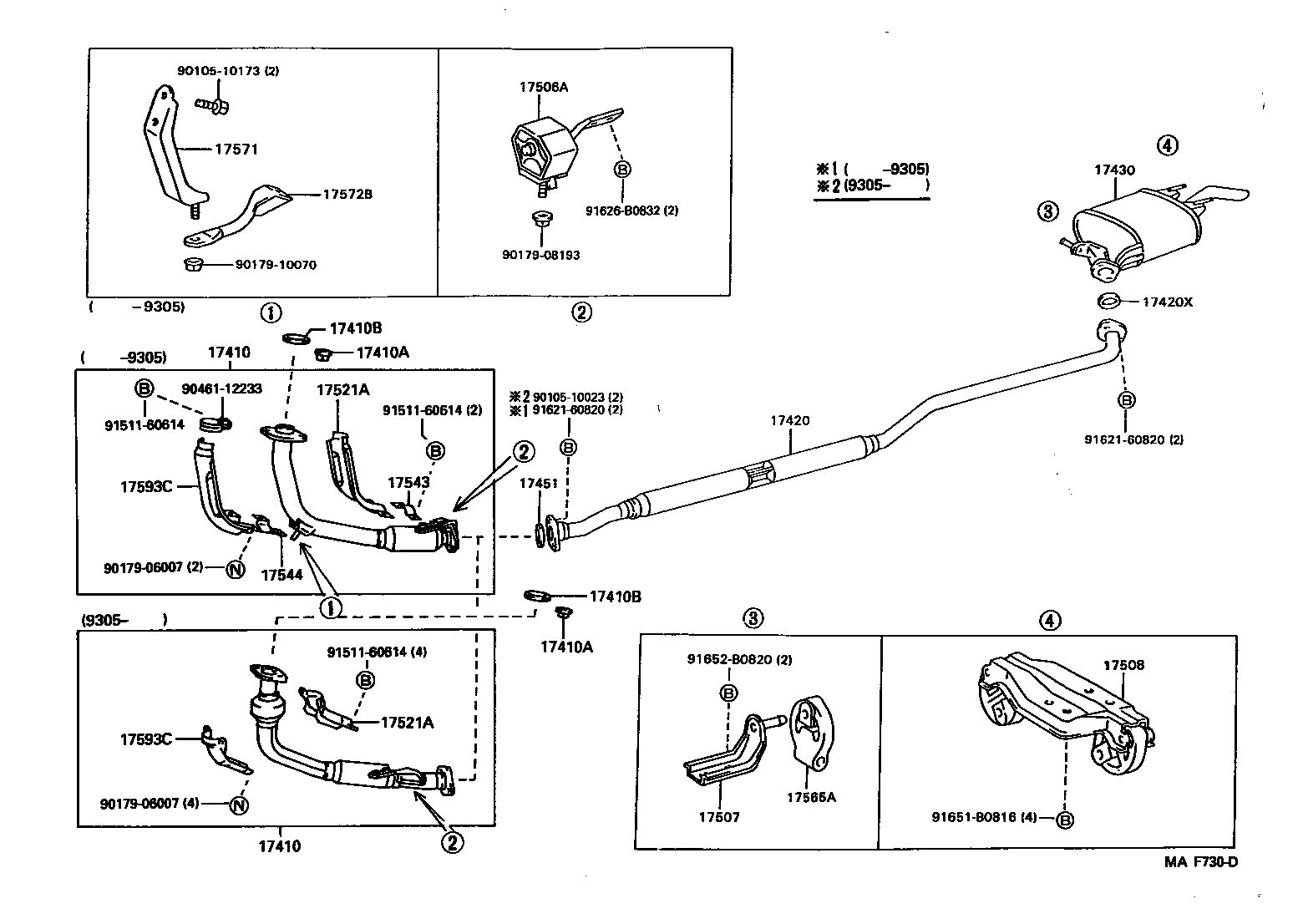

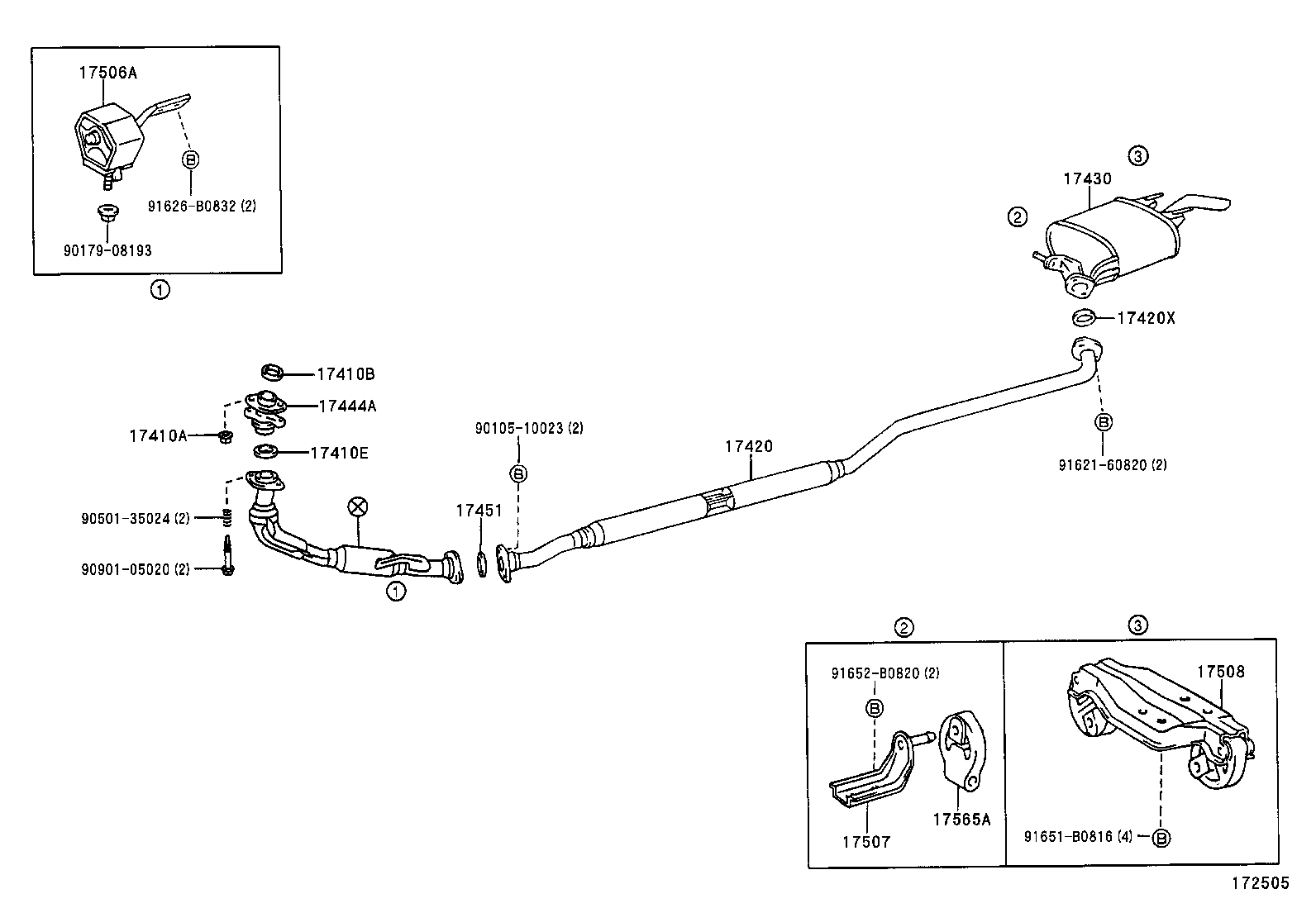

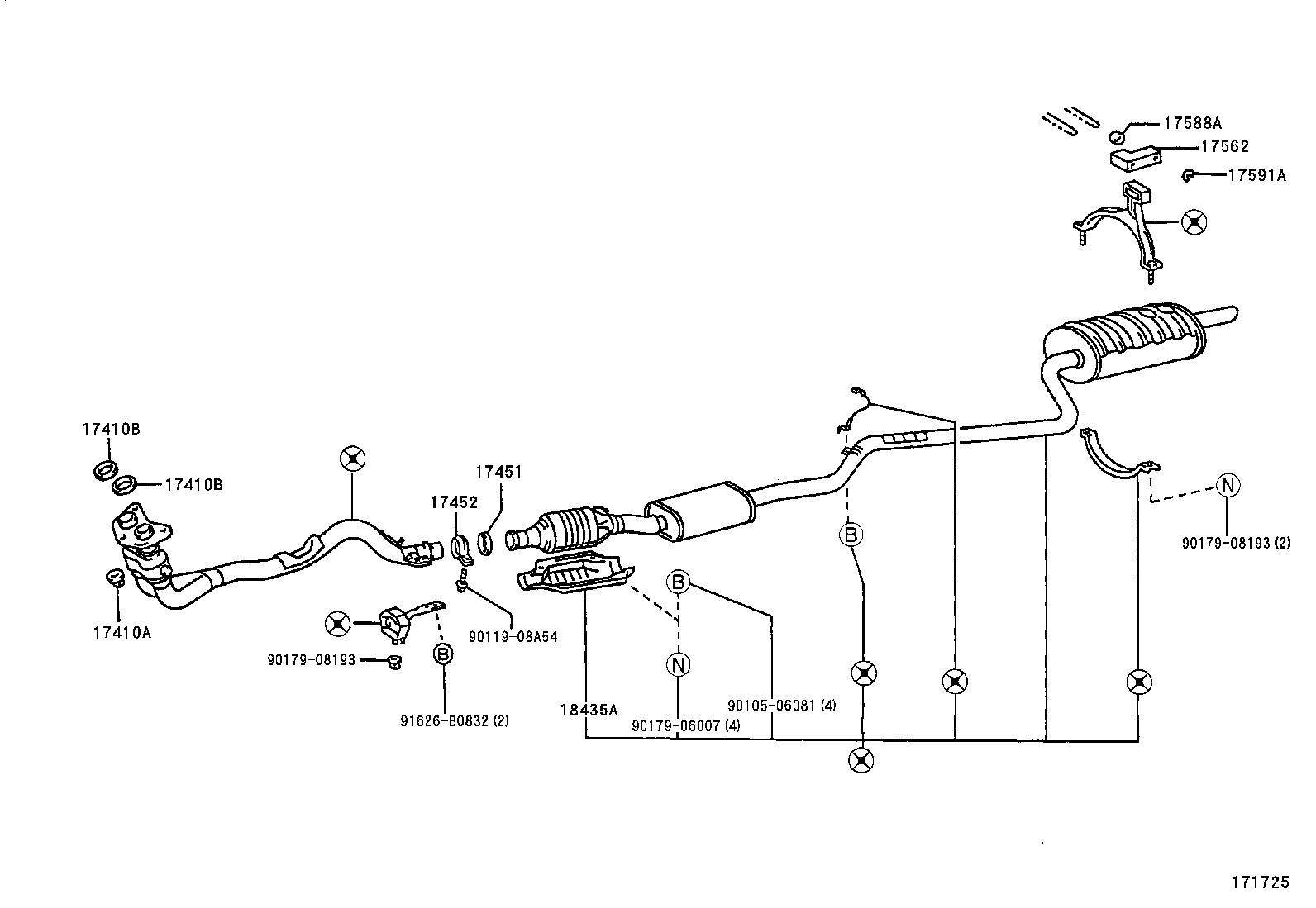

Exhaust Pipe
33 part groups · 16 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17408 | Baffle Sub Assy, Exhaust Tailpipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17444A | Spacer, Exhaust Front Pipe |
| 17448 | Baffle, Tailpipe |
| 17451 | Gasket, Exhaust Pipe |
| 17452 | Clamp, Exhaust Pipe |
| 17504 | Bracket Sub-assy, Catalytic Converter |
| 17506A | Bracket Sub-assy, Exhaust Pipe NO.1 Support |
| 17507 | Bracket Sub-assy, Exhaust Pipe NO.2 Support |
| 17508 | Support Sub-assy, Exhaust Pipe, NO.3 |
| 17509A | Bracket Sub-assy, Exhaust Pipe NO.4 Support |
| 17521A | Protector, Exhaust Pipe, Upper NO.1 |
| 17522 | Protector, Exhaust Pipe, Upper NO.2 |
| 17543 | Stay, Exhaust Pipe Protector, NO.3 |
| 17544 | Stay, Exhaust Pipe Protector, NO.4 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572B | Bracket, Exhaust Pipe Support, NO.2 |
| 17588A | Spacer, Exhaust Pipe Hanger |
| 17591A | Stopper, Exhaust Pipe Support |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17594A | Protector, Exhaust Pipe, Lower NO.2 |
| 18435A | Protector, Monolithic Converter |
| 18436 | Protector, Monolithic Converter, NO.1 |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
