Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

28 part groups · 10 illustrations

Illustrations

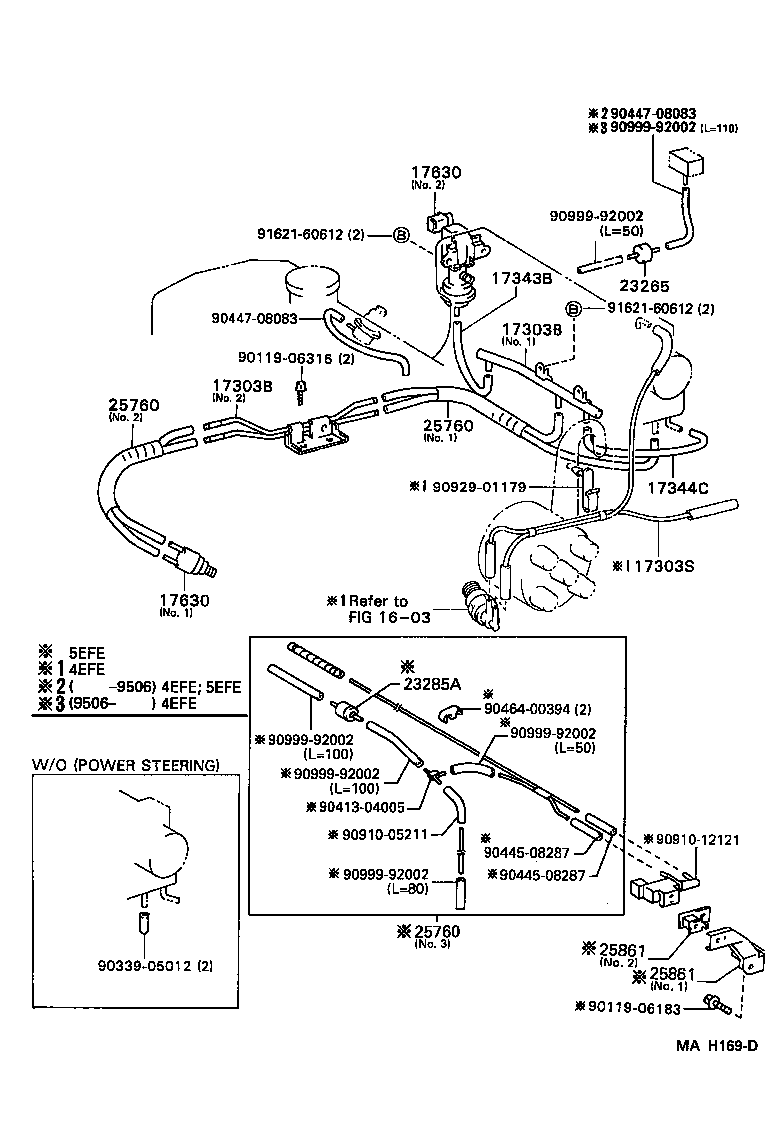

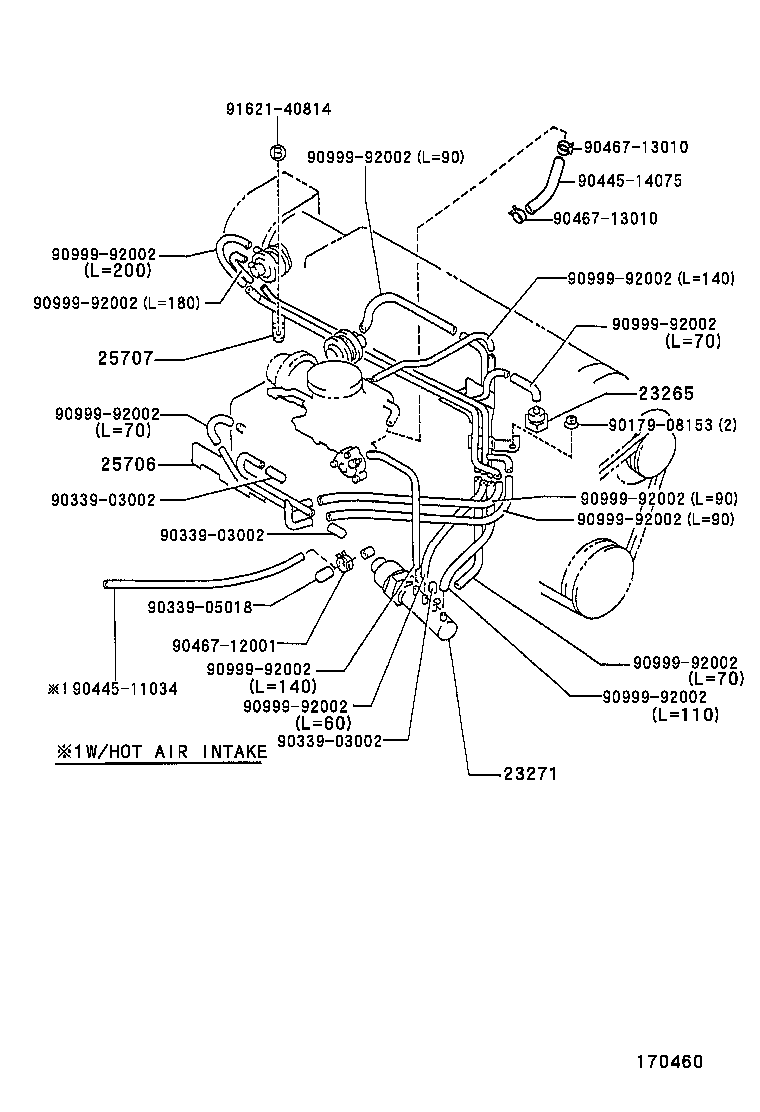

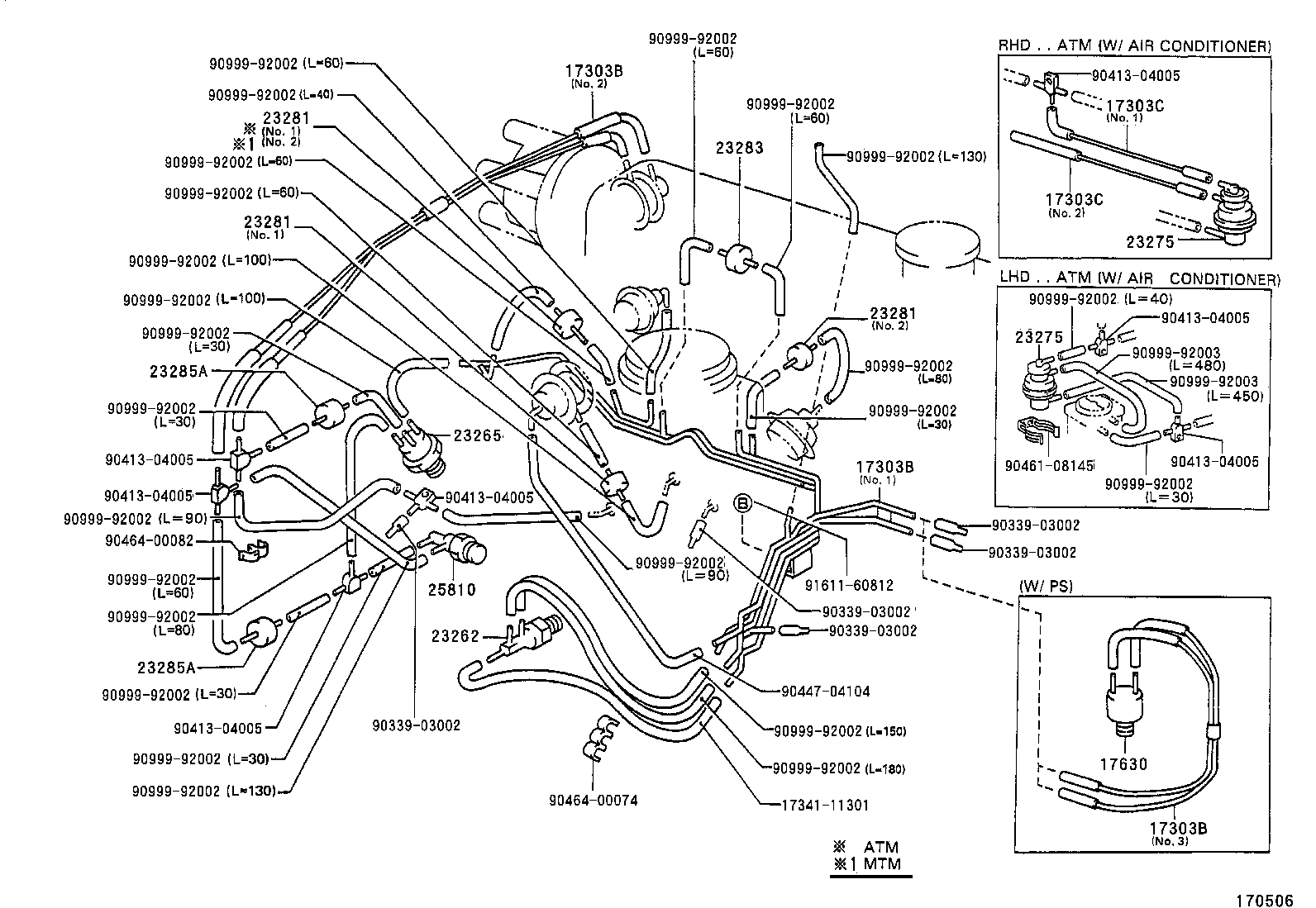

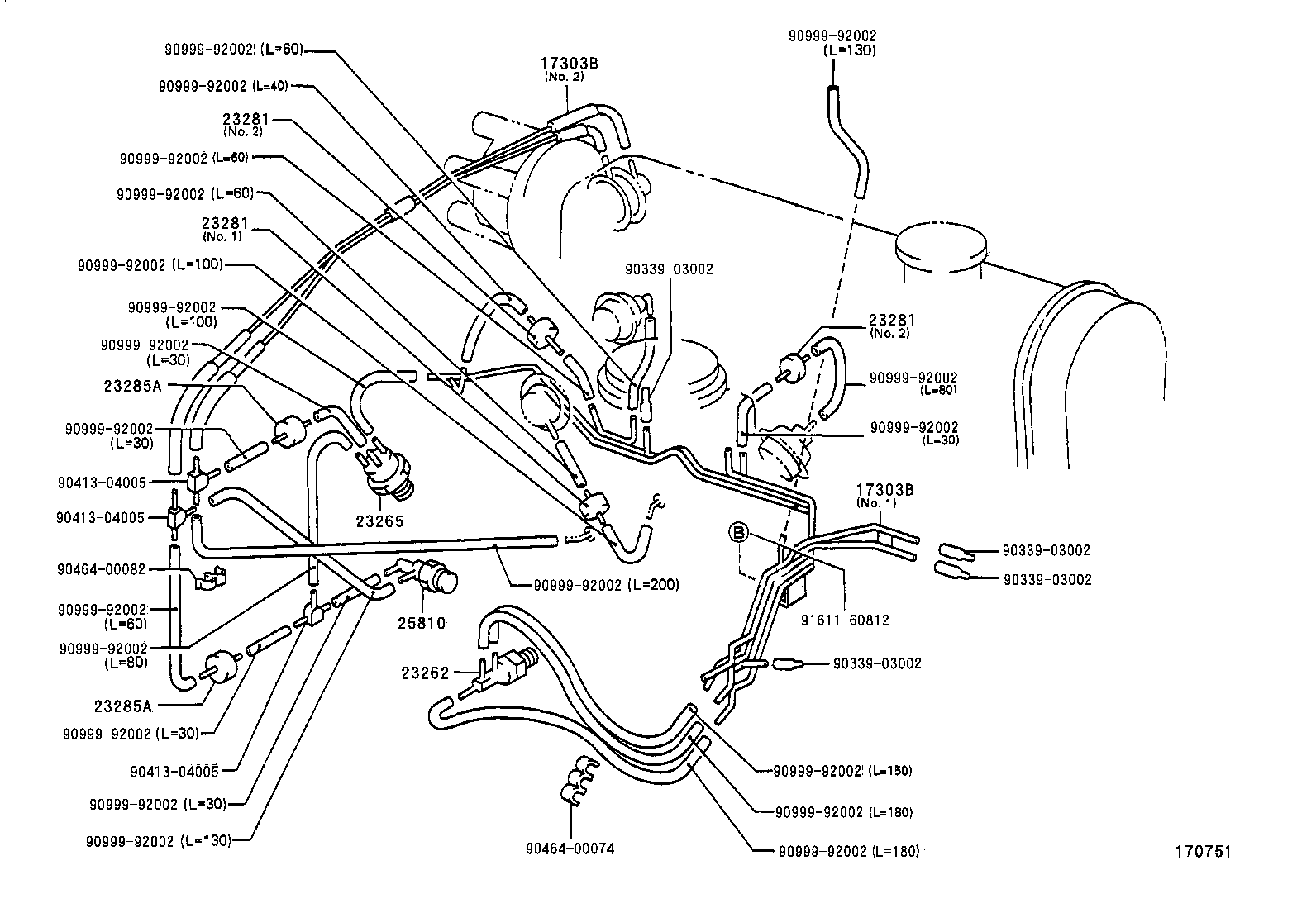

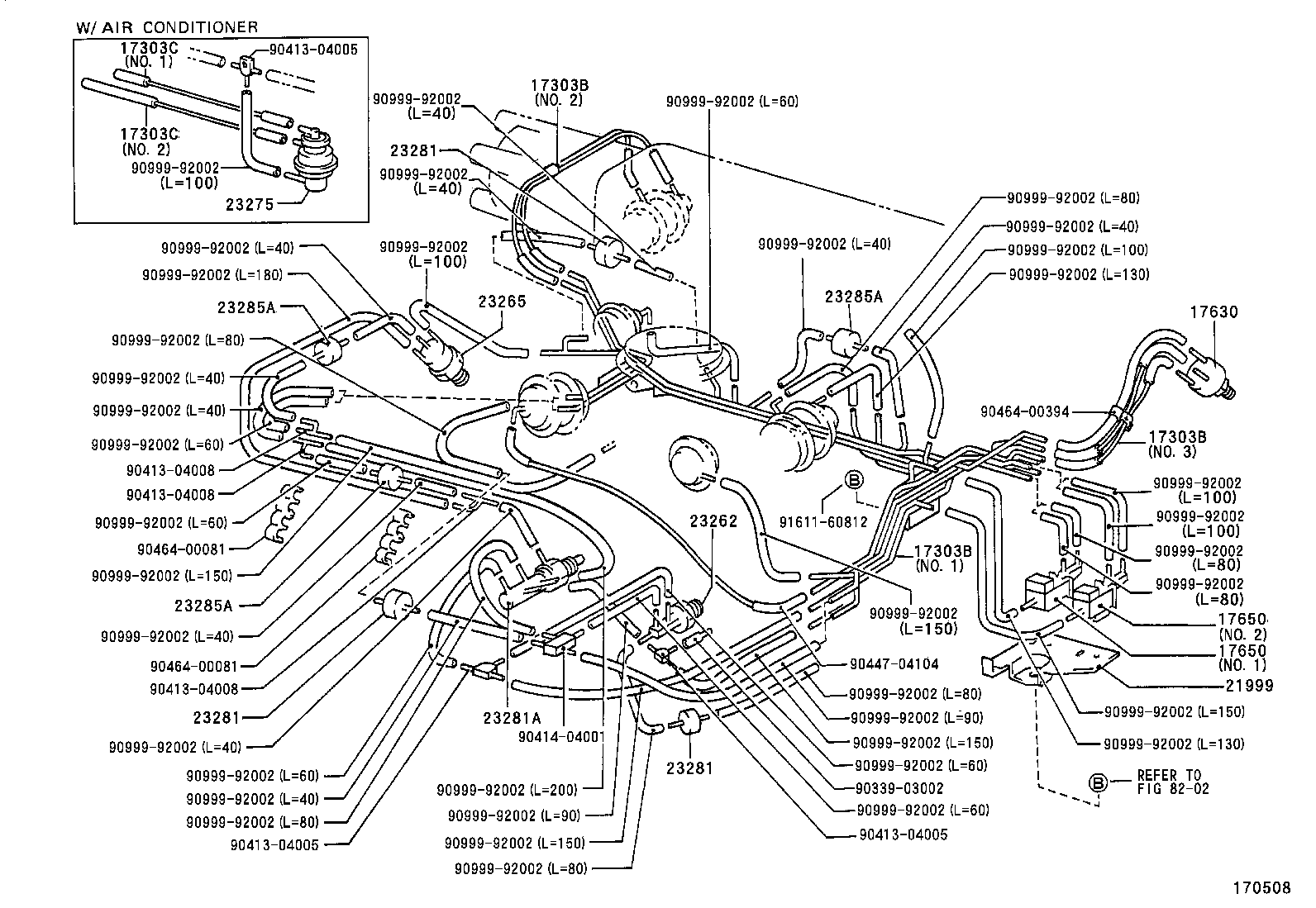

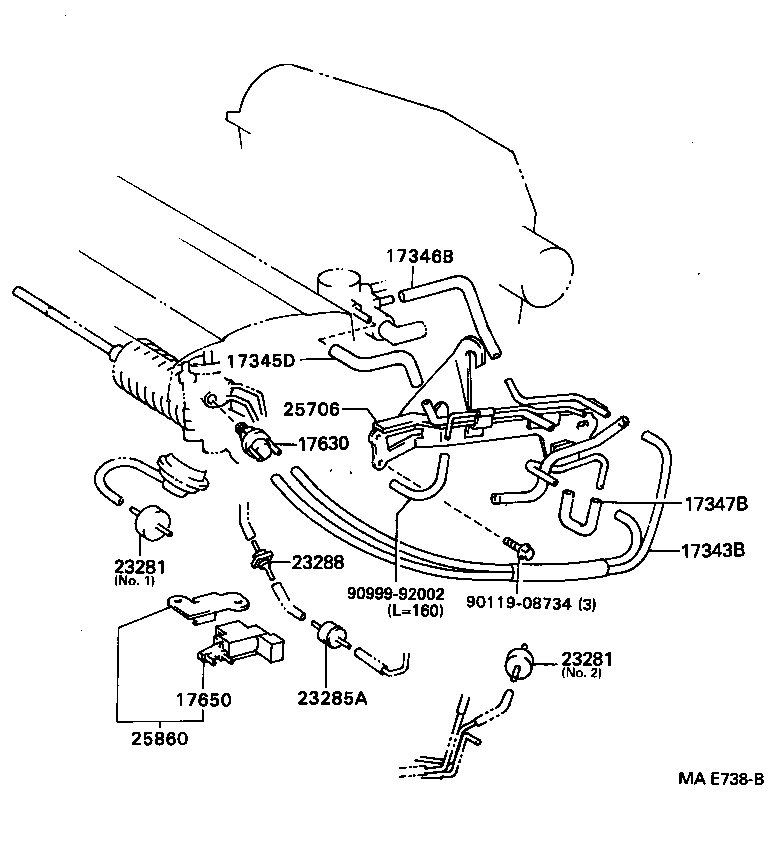

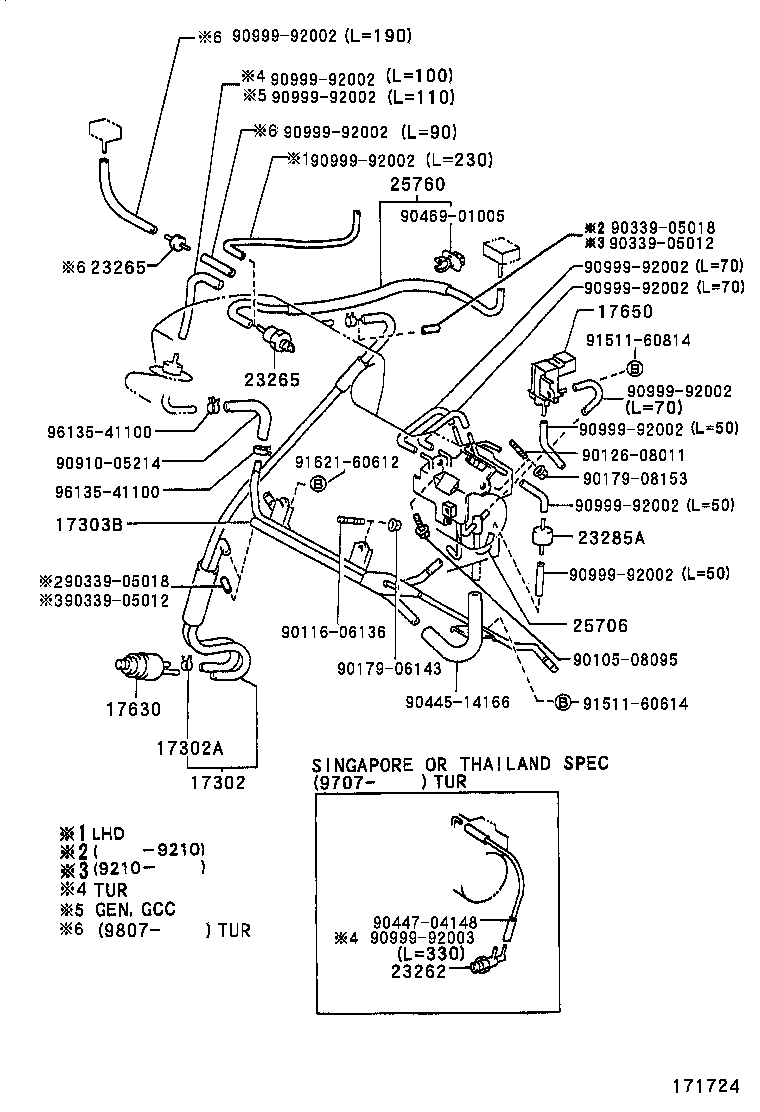

Figure 170021 170021 1991-06 → — Figure 170460 170460 1992-05 → — Figure 171724 171724 1991-08 → — Figure MAE738B MAE738B 1991-08 → 1995-05 Figure MAG975A MAG975A 1992-05 → 1998-05 Figure 170506 170506 1991-08 → — Figure 170751 170751 1991-08 → 1992-05 Figure 170507 170507 1991-08 → — Figure 170508 170508 1991-09 → 1994-01 Figure MAH169D MAH169D 1992-05 → 1997-04

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17302A Clip, Hose
17303B Pipe Sub-assy, Air, NO.1
17303C Pipe Sub-assy, Air, NO.2
17303S Pipe Sub-assy, Air, NO.3
17343B Hose, NO.3(FOR IDLE-UP)
17344C Hose, NO.4(FOR IDLE-UP)
17345D Hose, Air, NO.5
17346B Hose, Air, NO.6
17347B Hose, Air, NO.7
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
21999 Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23281A Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
