Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

18 part groups · 6 illustrations

Illustrations

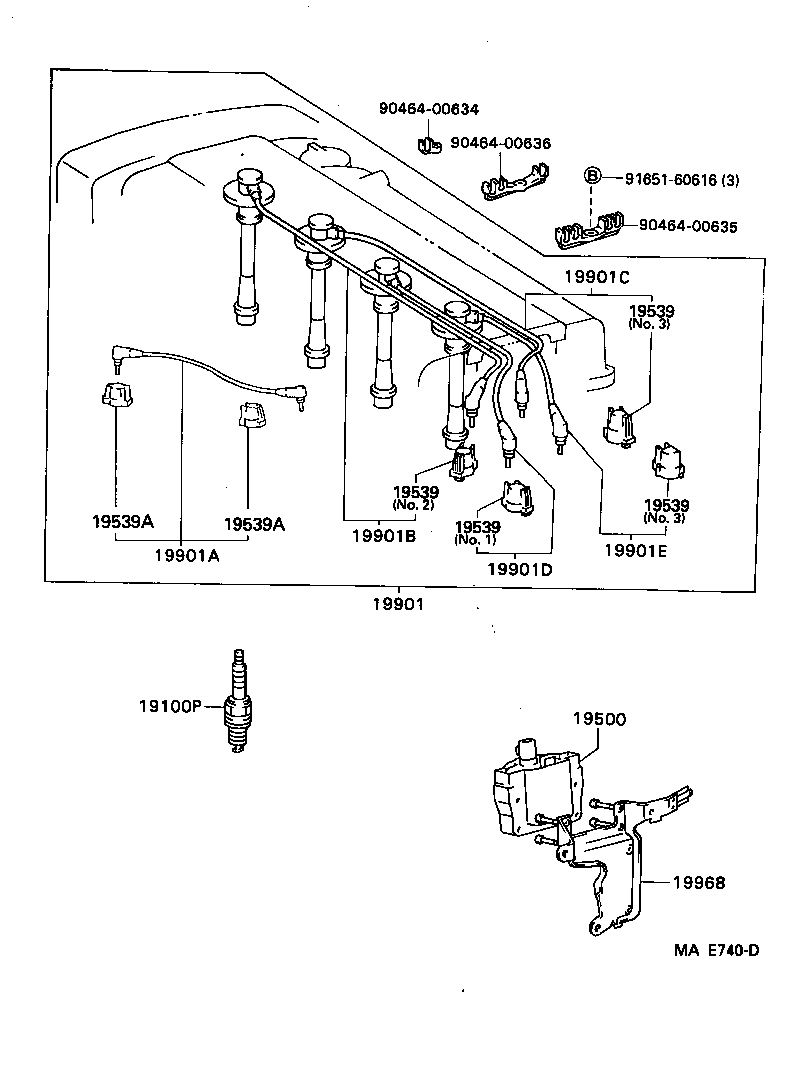

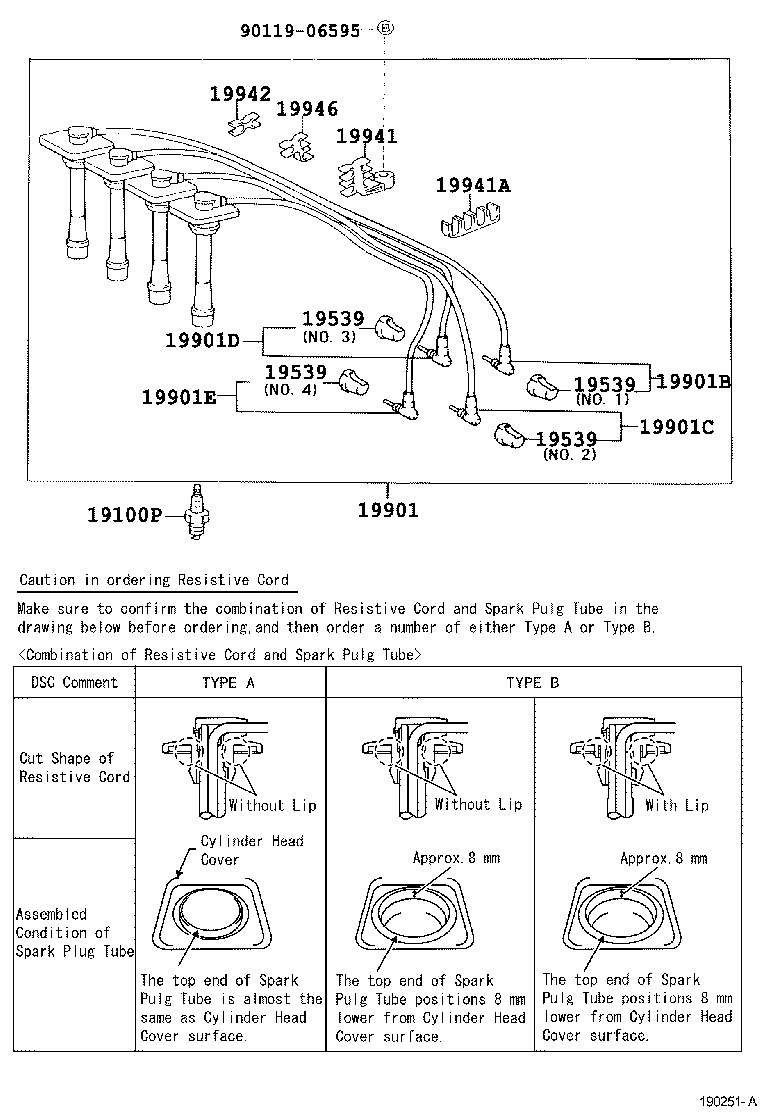

Figure 191262 191262 1992-05 → — Figure 190961 190961 1991-08 → — Figure MAE740D MAE740D 1991-08 → 1995-05 Figure NA0020 NA0020 1992-05 → — Figure MAE846A MAE846A 1991-08 → — Figure 190251A 190251A 1992-05 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19539 Holder, Resistive Code, NO.4
19539A Holder, Resistive Code, NO.5
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
19942 Clamp, Resistive Cord, NO.2
19946 Clamp, Resistive Cord, NO.3
19968 Bracket, Ignition Coil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
