Toyota Corolla Sed/CP/WG
1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General
Discontinued model
Data version 2002-04

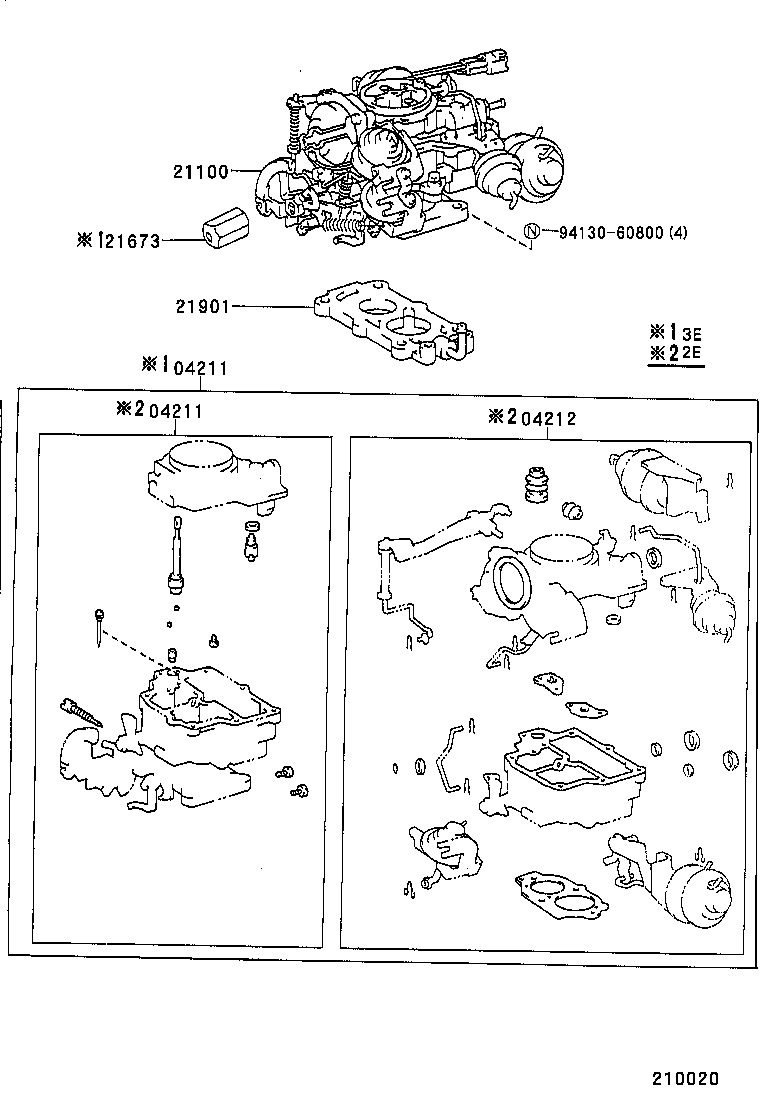

Carburetor Assembly
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04211 | Carburetor Kit |
| 04212 | Gasket Kit, Carburetor |
| 21100 | Carburetor Assy |
| 21673 | Cap, Idle Limit |
| 21901 | Insulator Sub-assy, Carburetor Heat, NO.1 |
| 21911 | Gasket, Carburetor |
| 21916 | Gasket, Carburetor, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
