Toyota Corolla Sed/CP/WG
1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General
Discontinued model
Data version 2002-04
Fuel Injection System
44 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|

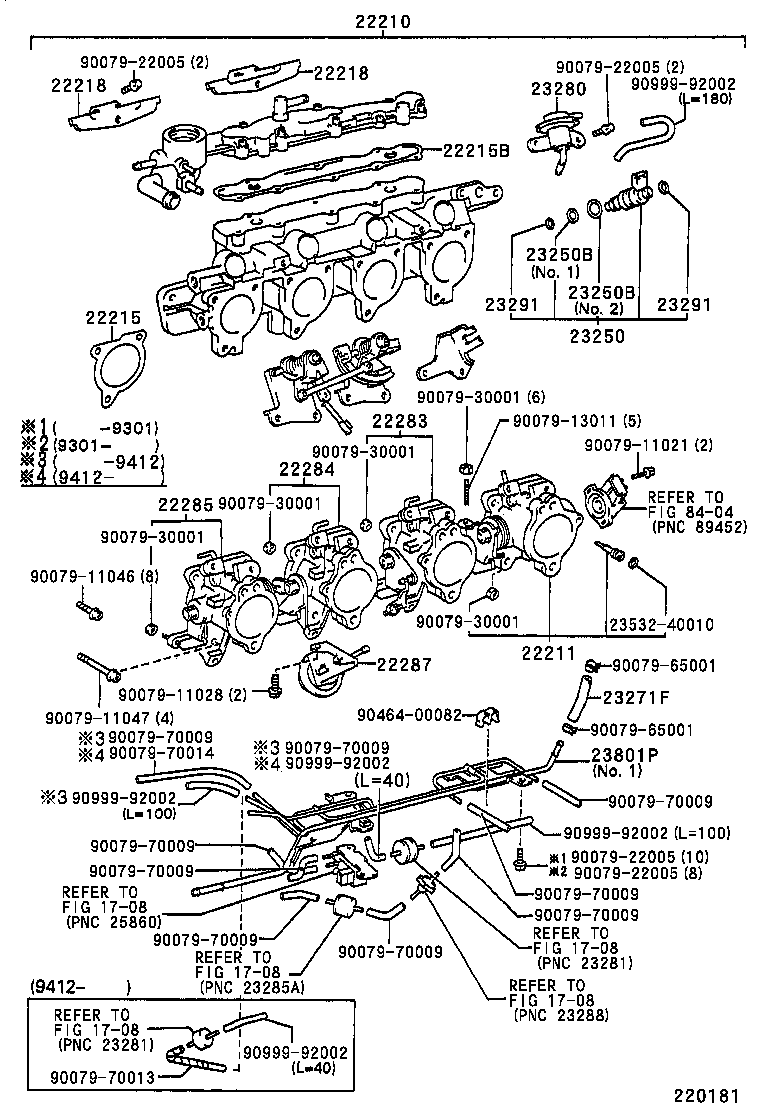

| 22210 | Body Assy, Throttle |
| 22210Y | Ring, O(FOR AIR TUBE) |
| 22211 | Body, Throttle |
| 22215 | Gasket, Throttle Body Cover |
| 22215B | Gasket, Throttle Body Cover, NO.2 |
| 22218 | Cover(FOR THROTTLE BODY) |
| 22230 | Valve Assy, Auxiliary Air |

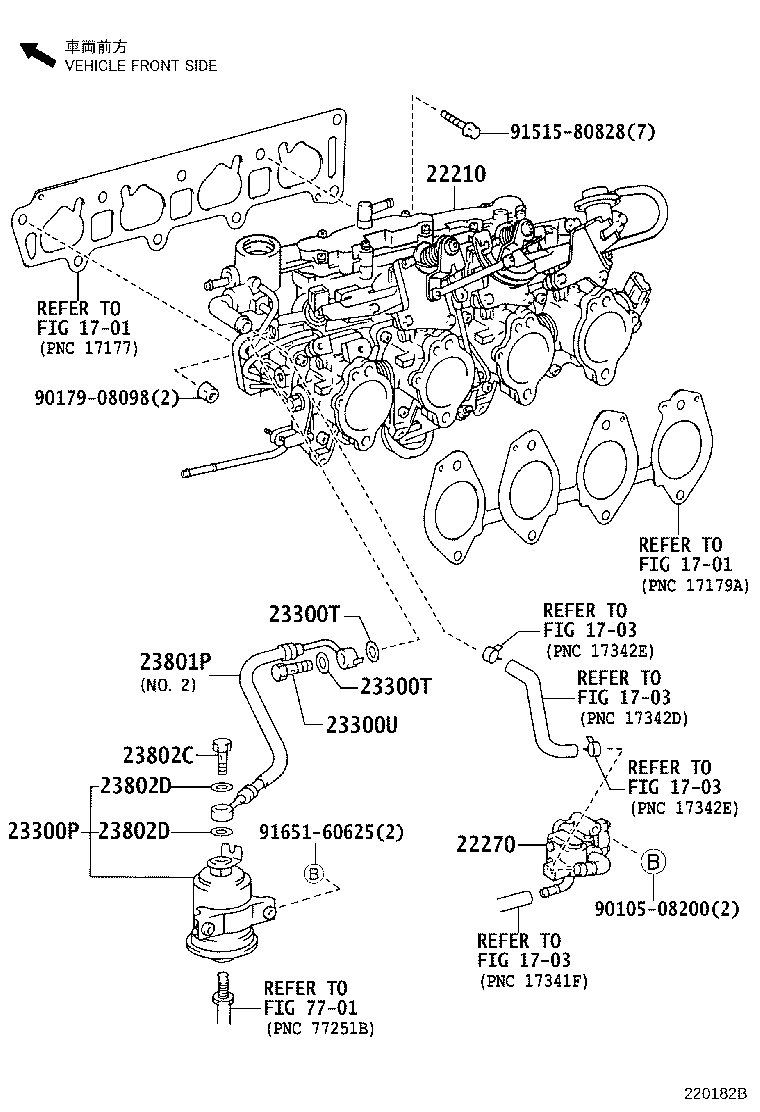

| 22270 | Valve Assy, Idle Speed Control(FOR THLOTTLE BODY) |
| 22271 | Gasket, Throttle Body |
| 22283 | Body, Throttle, NO.2 |
| 22284 | Body, Throttle, NO.3 |
| 22285 | Body, Throttle, NO.4 |
| 22287 | Opener |

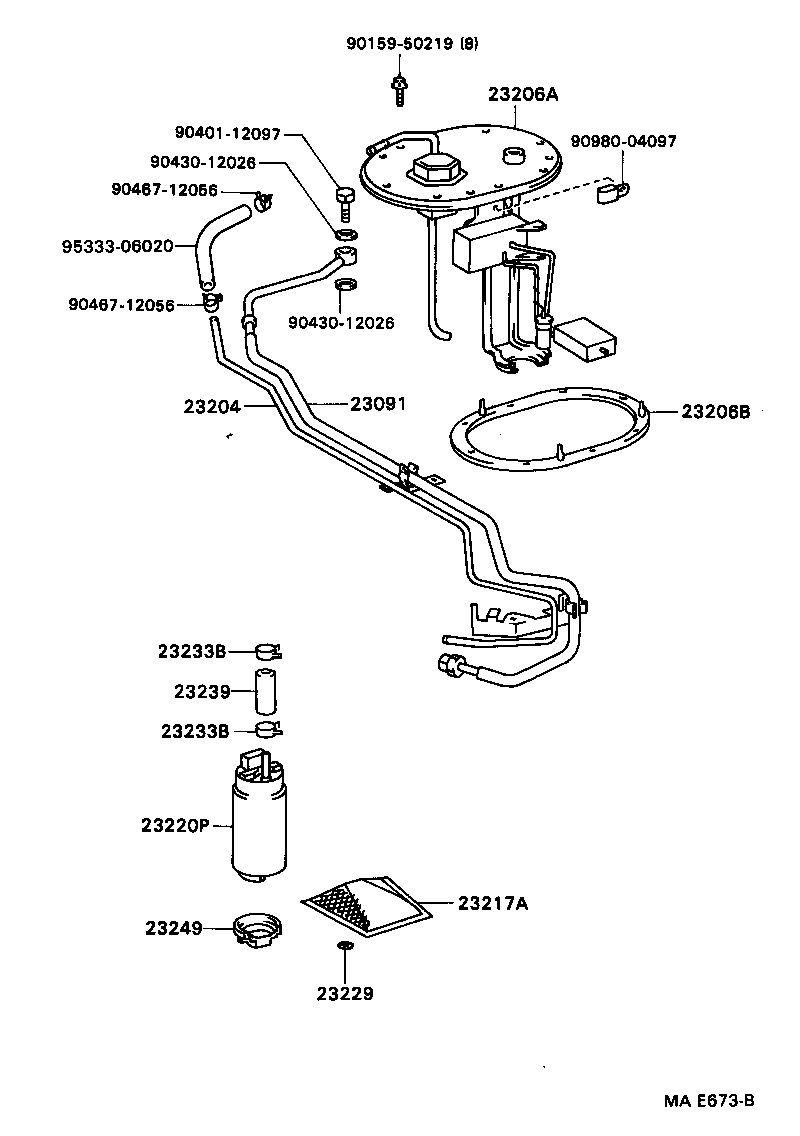

| 23091 | Tube Sub-assy, Fuel Pump |
| 23204 | Tube Sub-assy, Fuel Pump Return |
| 23206A | Bracket, Fuel Pump |
| 23206B | Gasket, Fuel Pump Bracket |
| 23217A | Filter, Fuel Pump |
| 23220P | Pump Assy, Fuel |
| 23229 | Clip(FOR FUEL PUMP FILTER) |
| 23233B | Clip(FOR FUEL PUMP HOSE) |
| 23239 | Hose |
| 23249 | Rubber, Cushion(FOR FUEL PUMP) |

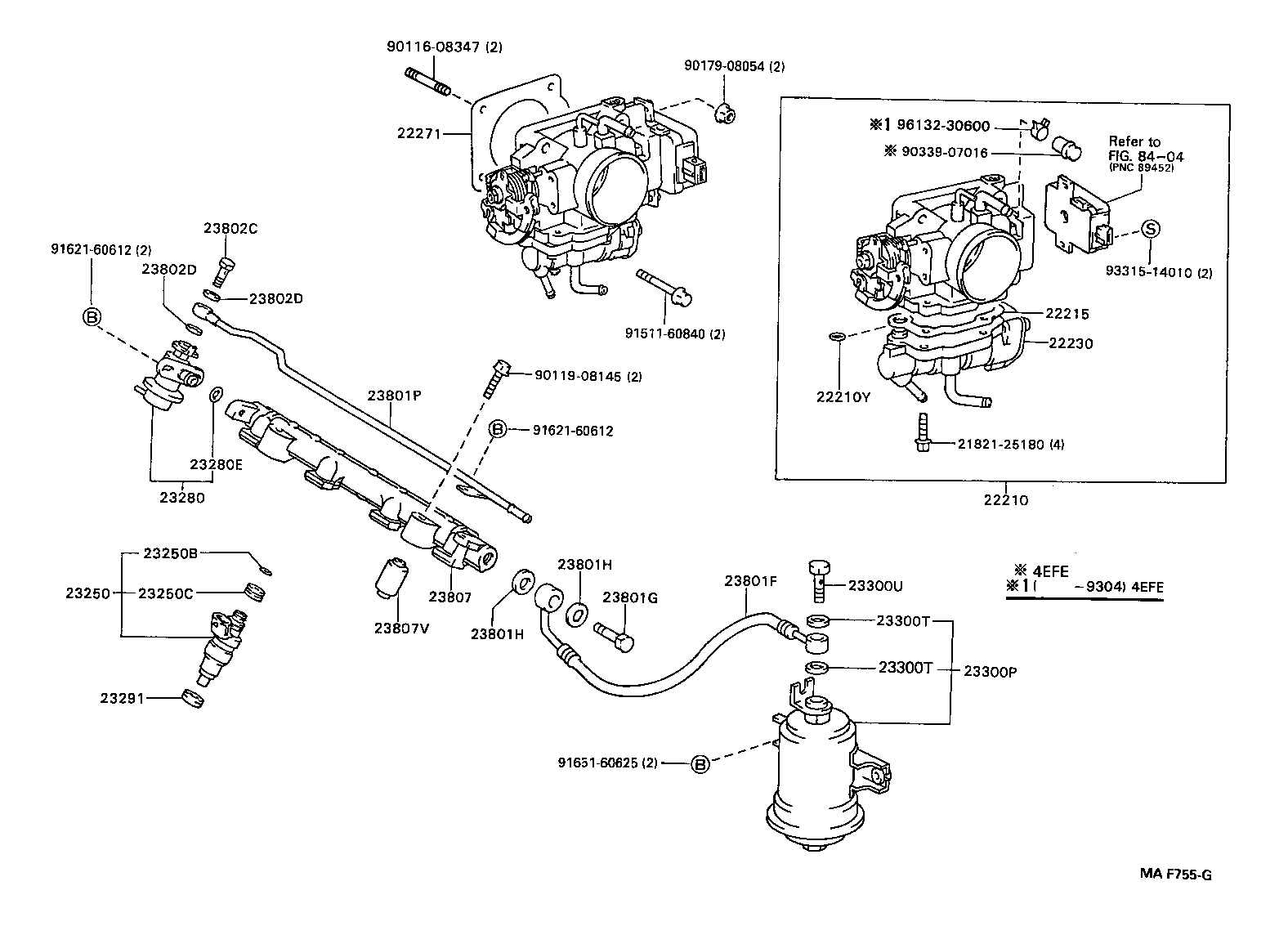

| 23250 | Injector Assy, Fuel |
| 23250B | Ring, O(FOR FUEL INJECTOR) |
| 23250C | Grommet(FOR FUEL INJECTOR) |
| 23264C | Bracket, Fuel Filter |
| 23271F | Hose, Fuel |
| 23280 | Regulator Assy, Fuel Pressure |
| 23280E | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23291 | Insulator, Injector Vibration |
| 23300P | Filter, Fuel(FOR EFI) |
| 23300T | Gasket(FOR FUEL FILTER) |
| 23300U | Bolt, Union(FOR FUEL FILTER) |
| 23801F | Hose, Fuel, NO.1 |
| 23801G | Bolt, Union(FOR FUEL PIPE) |
| 23801H | Gasket(FOR FUEL PIPE) |
| 23801P | Pipe Sub-assy, Fuel, NO.1 |
| 23802C | Bolt, Union(FOR FUEL PIPE NO.2) |
| 23802D | Gasket(FOR FUEL PIPE NO.2) |
| 23807 | Pipe Sub-assy, Fuel Delivery |
| 23807B | Hose, Fuel Delivery Pipe |
| 23807J | Gasket, Pipe Fuel Delivary Inlet |
| 23807V | Spacer, NO.1(FOR DELIVERY PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
