Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

7 part groups · 4 illustrations

Illustrations

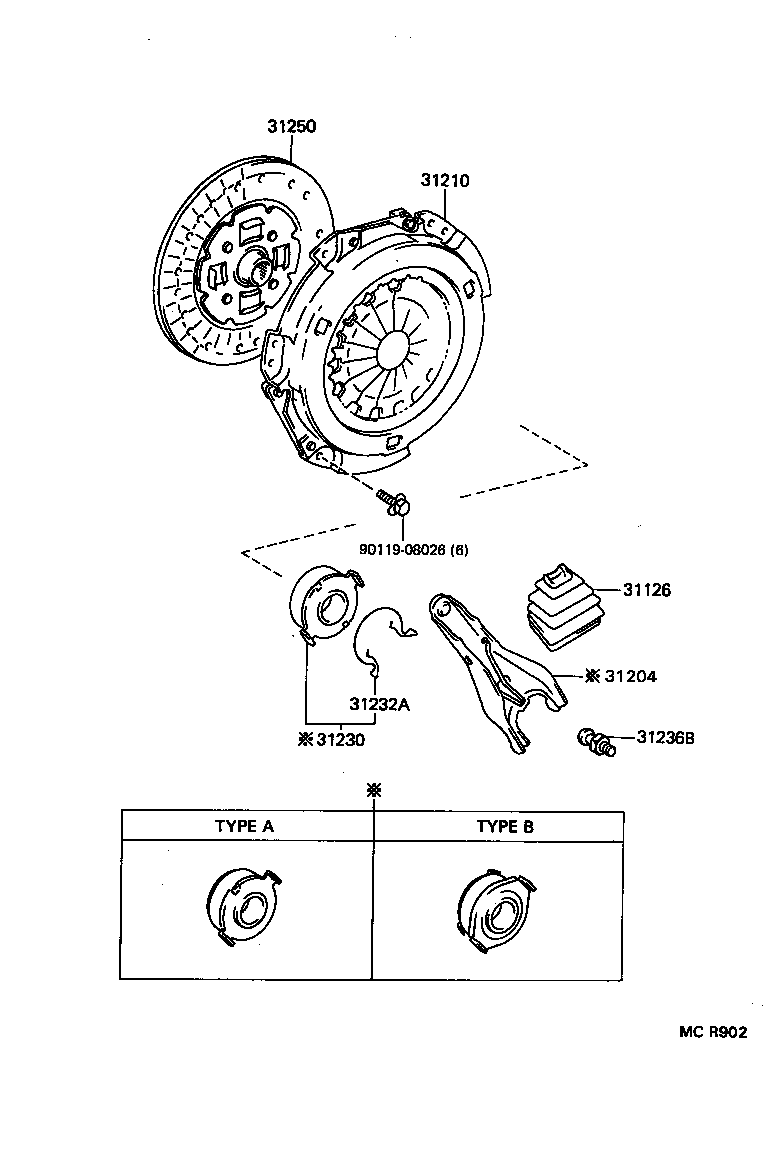

Figure 310133 310133 1991-08 → — Figure 310133 310133 1994-09 → — Figure MCR902 MCR902 1994-09 → — Figure 310507 310507 1991-08 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31236B Support, Release Fork
31250 Disc Assy, Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
