Toyota Corolla Sed/CP/WG

1991-08 → 2001-11 · chassis AE10#,CE100,EE10# · catalogue 151330 · General

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

2 part groups · 4 illustrations

Illustrations

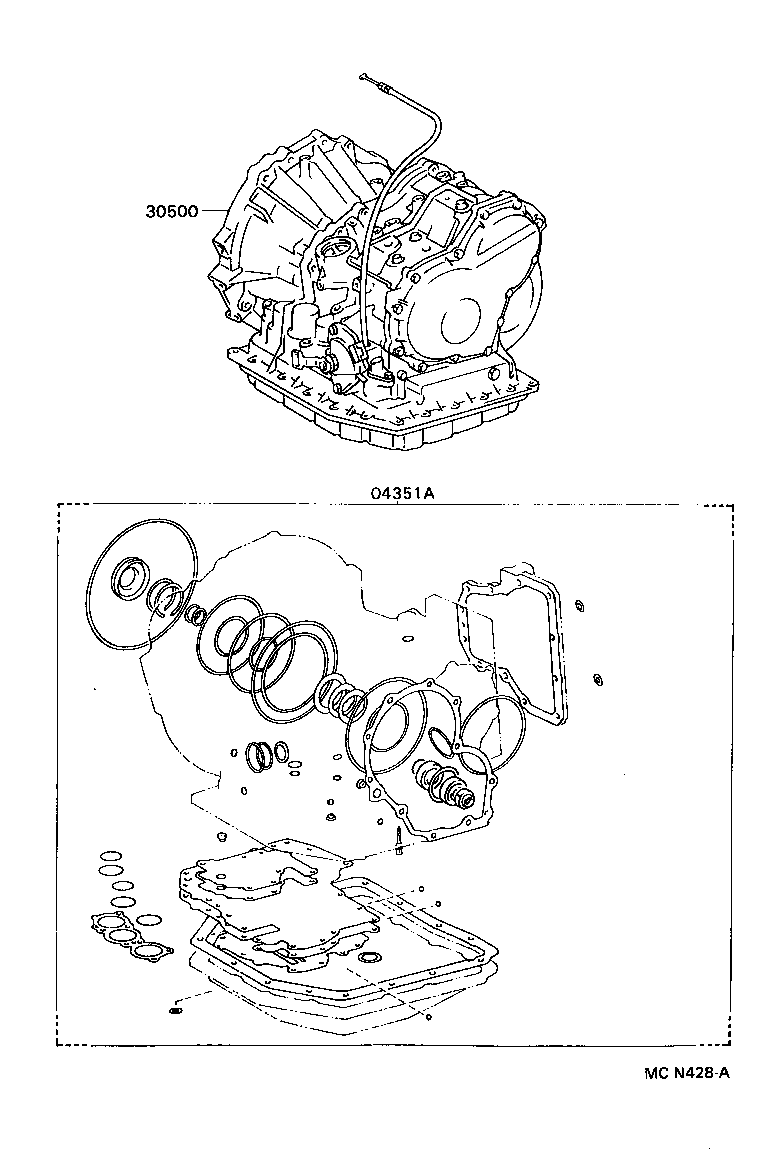

Figure 352828 352828 1991-08 → — Figure 352829 352829 1991-08 → 1993-05 Figure 352829 352829 1993-05 → — Figure MCN428A MCN428A 1993-05 → 1995-05

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
