Valve Body & Oil Strainer (ATM)

196 part groups · 21 illustrations

Illustrations

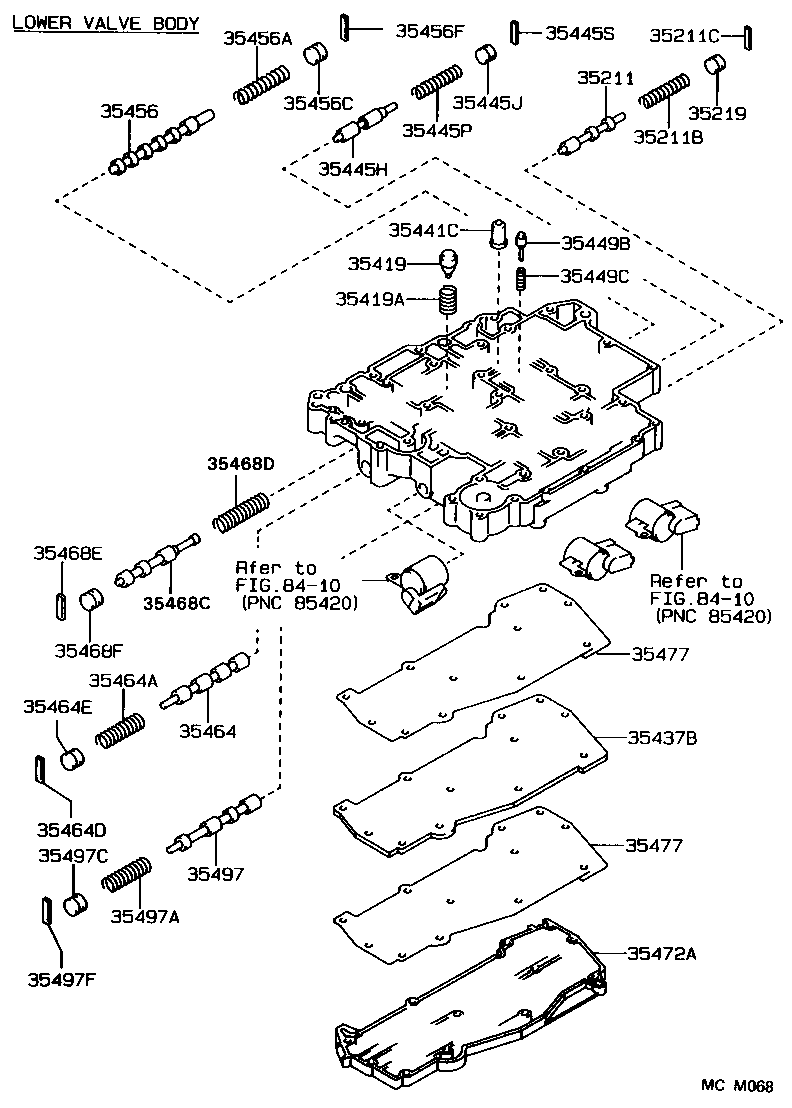

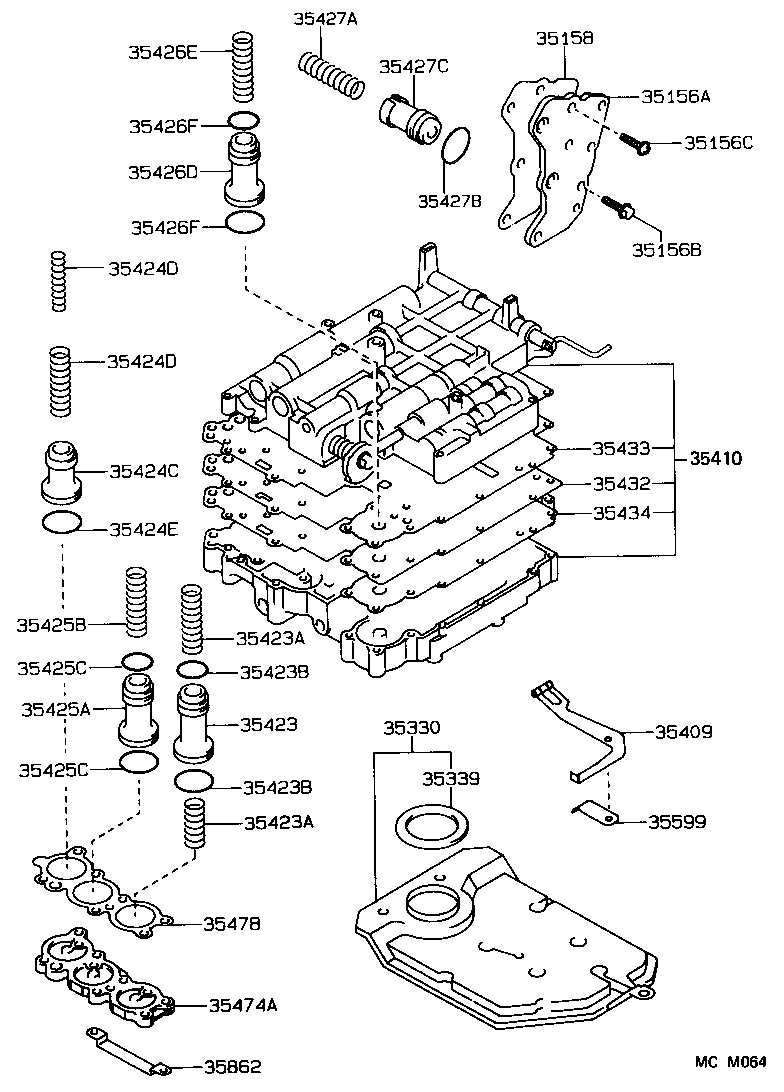

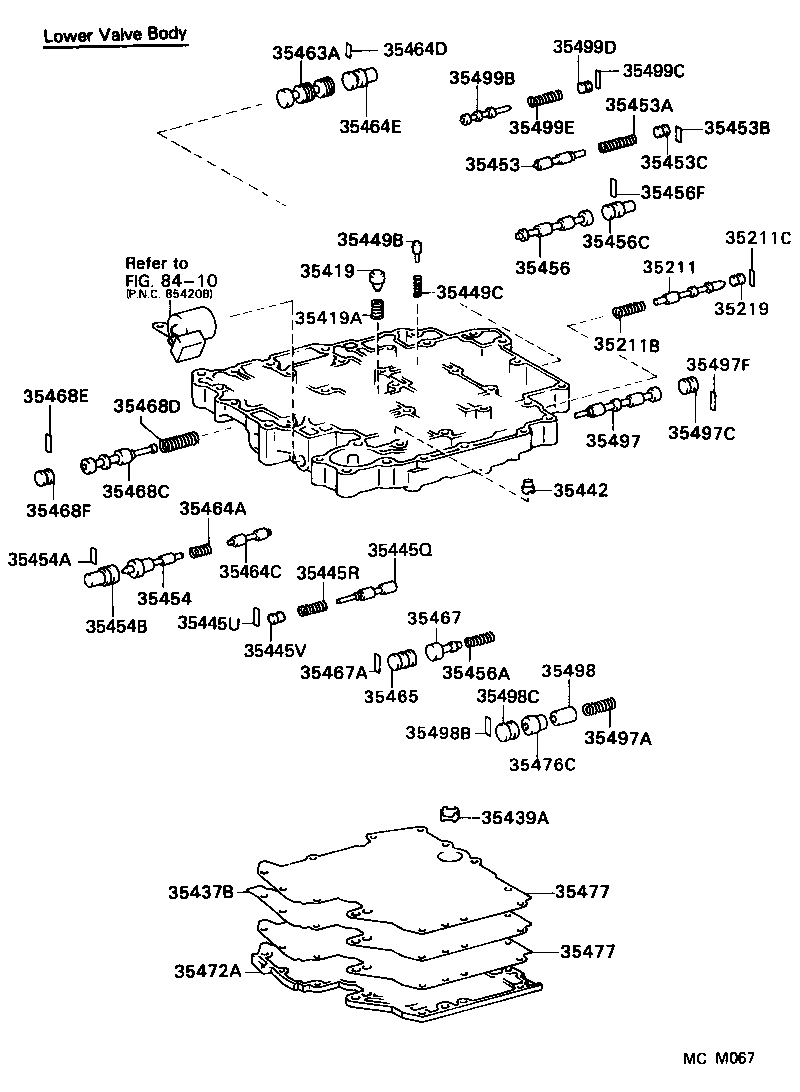

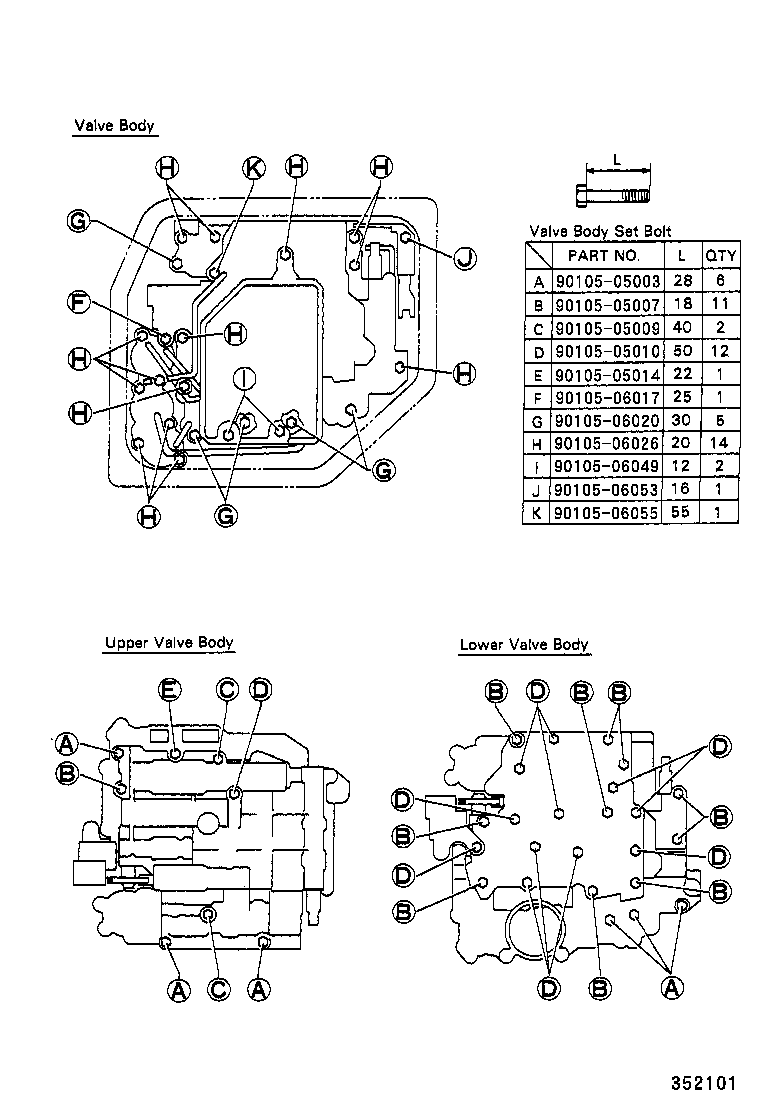

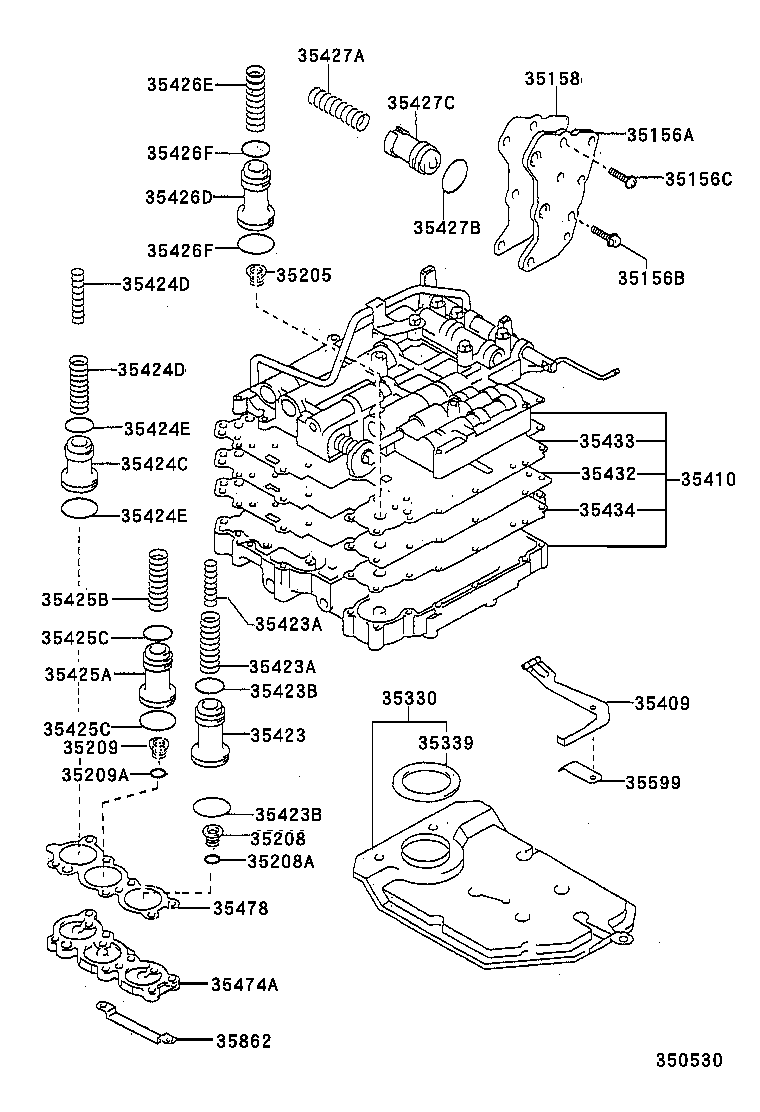

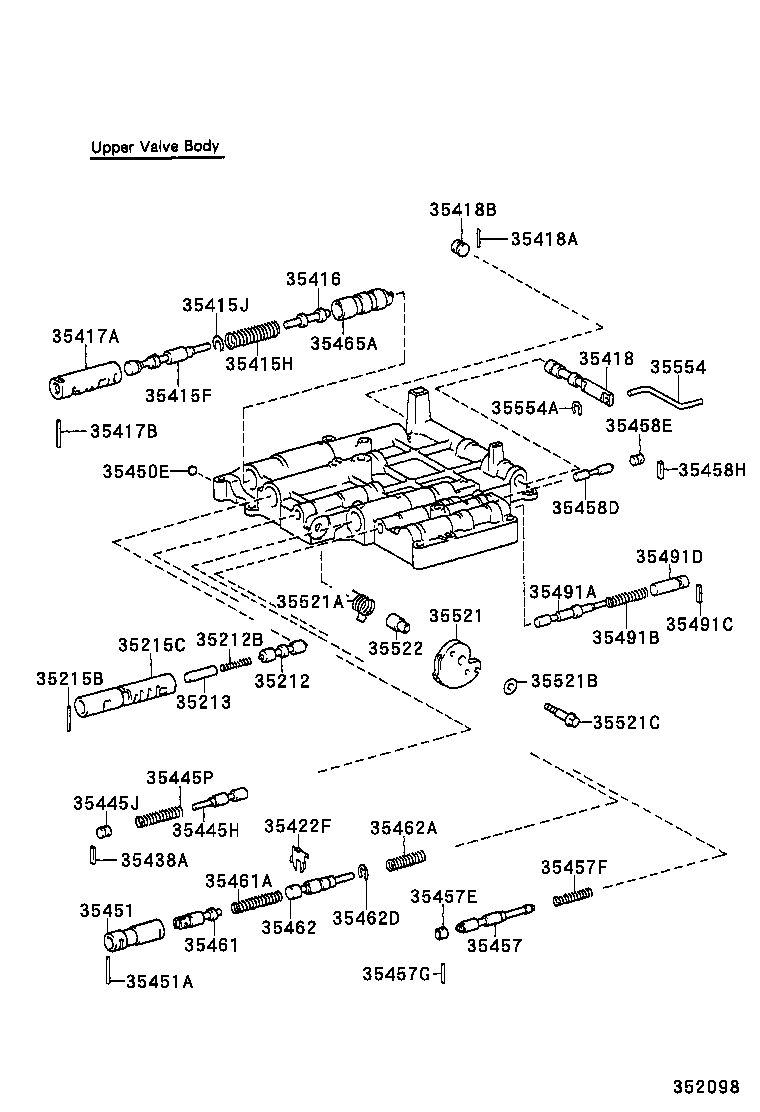

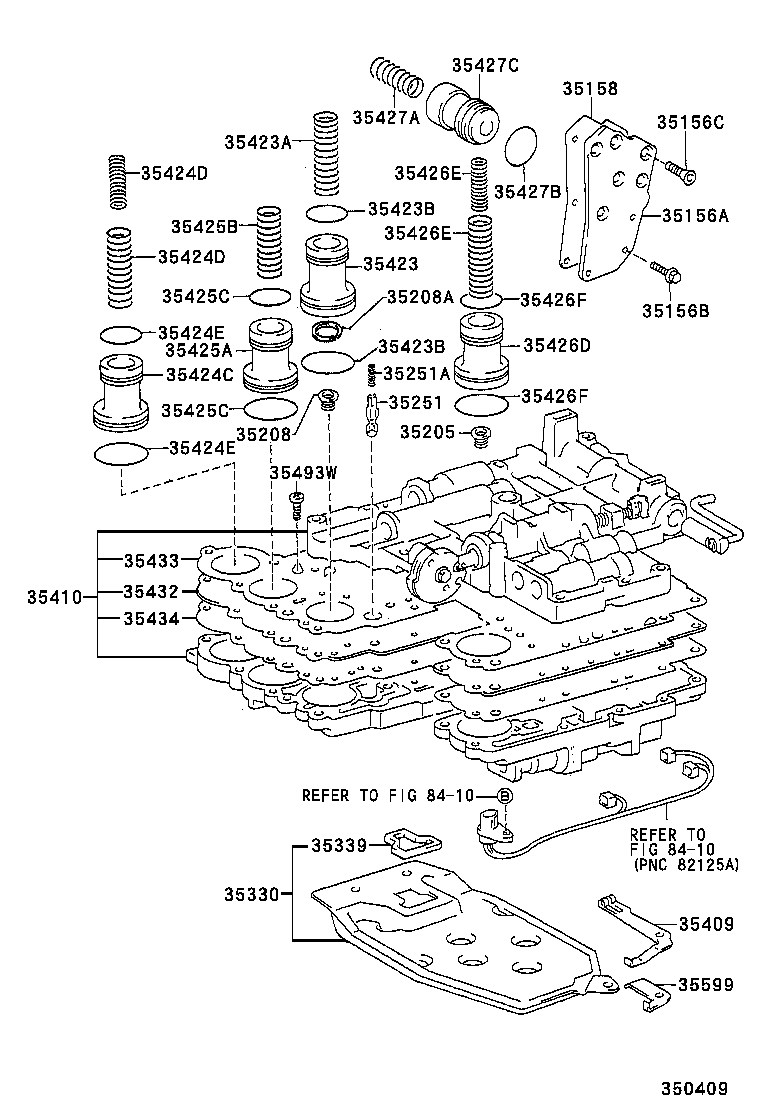

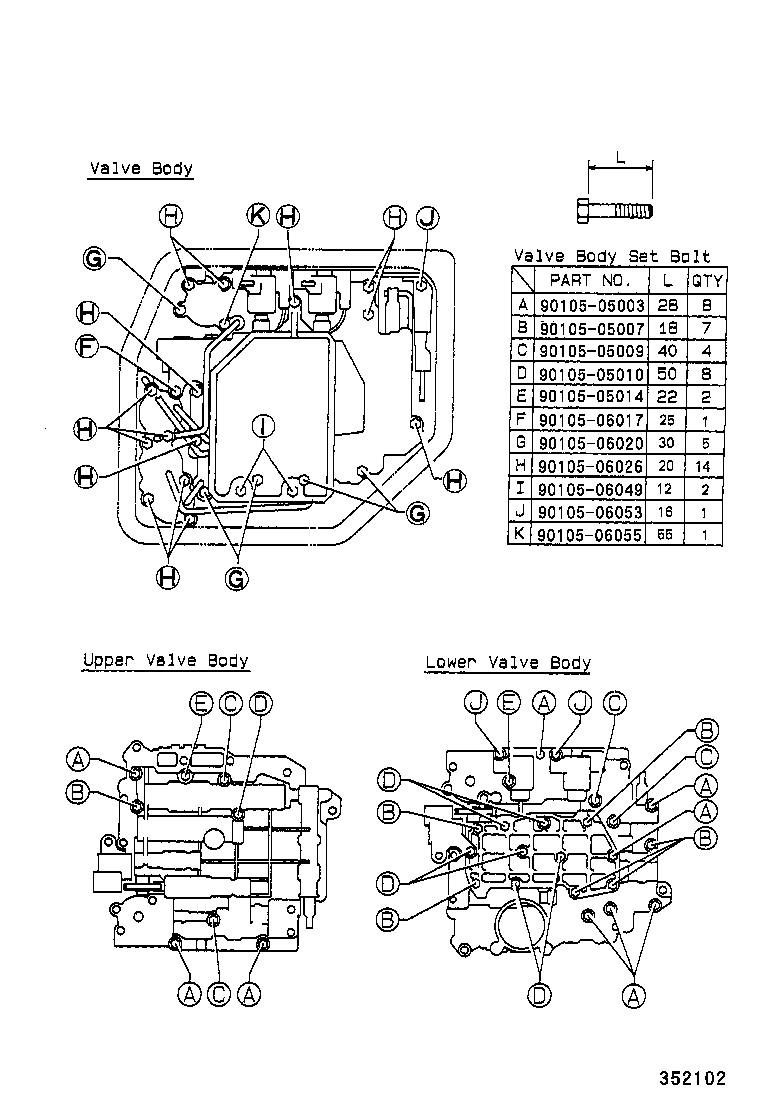

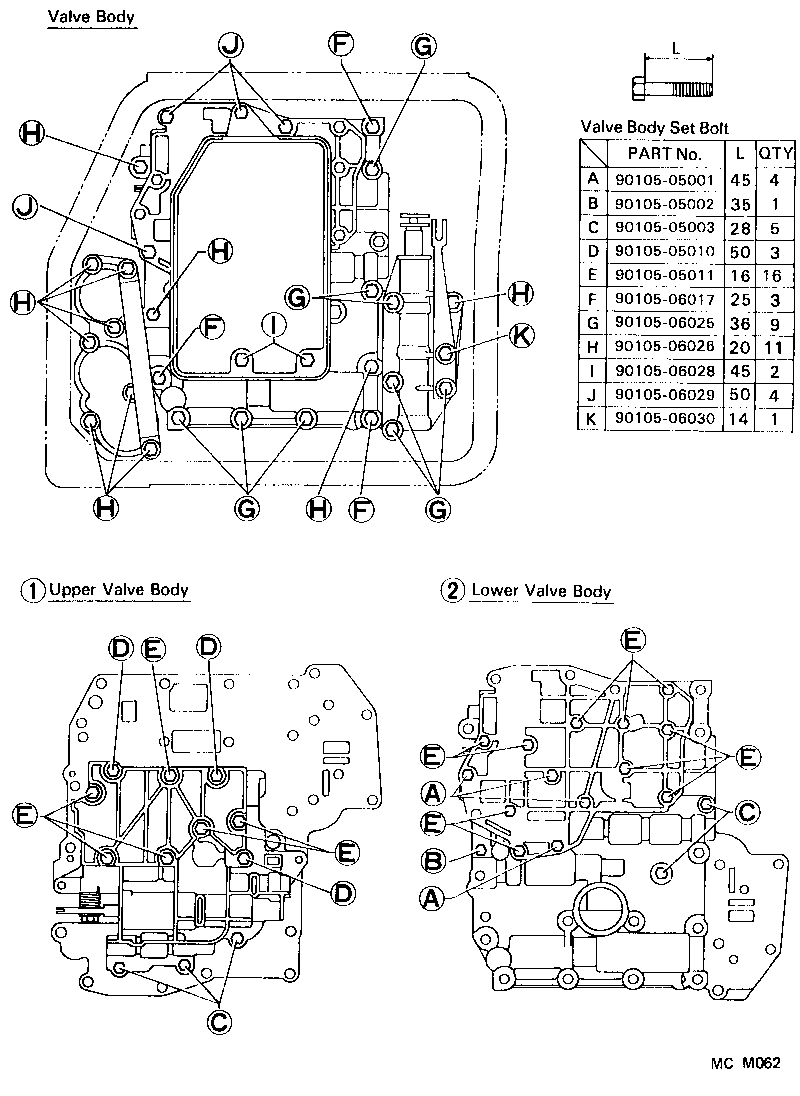

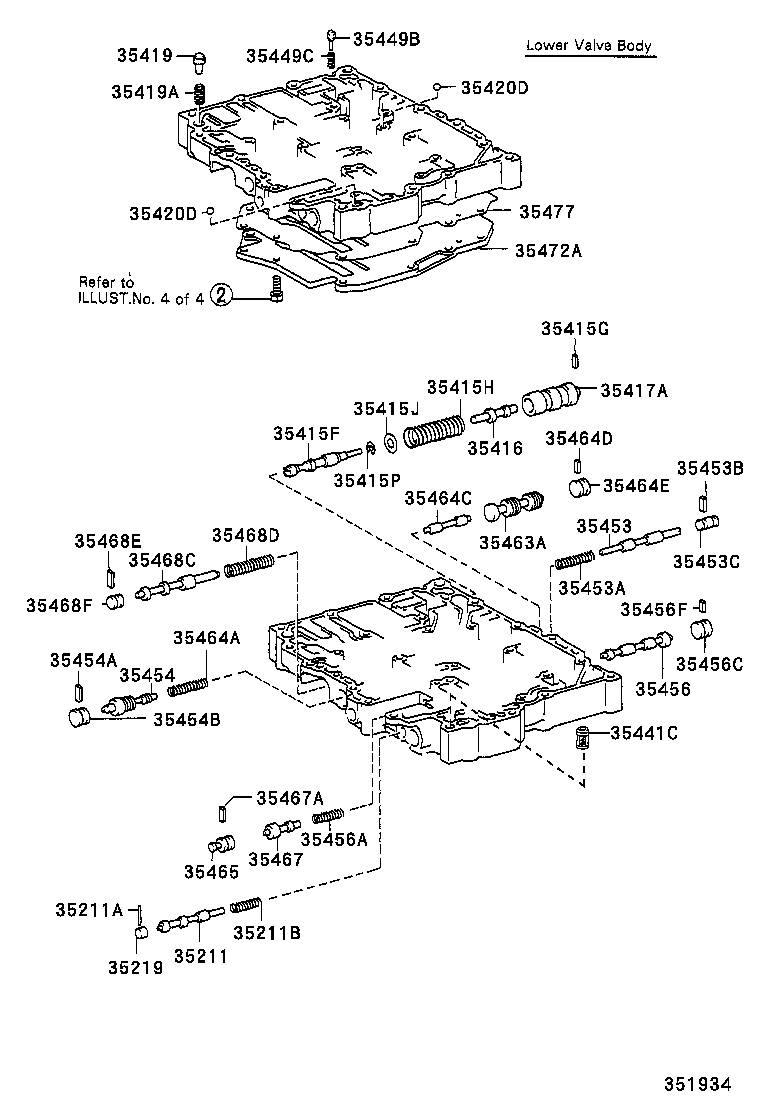

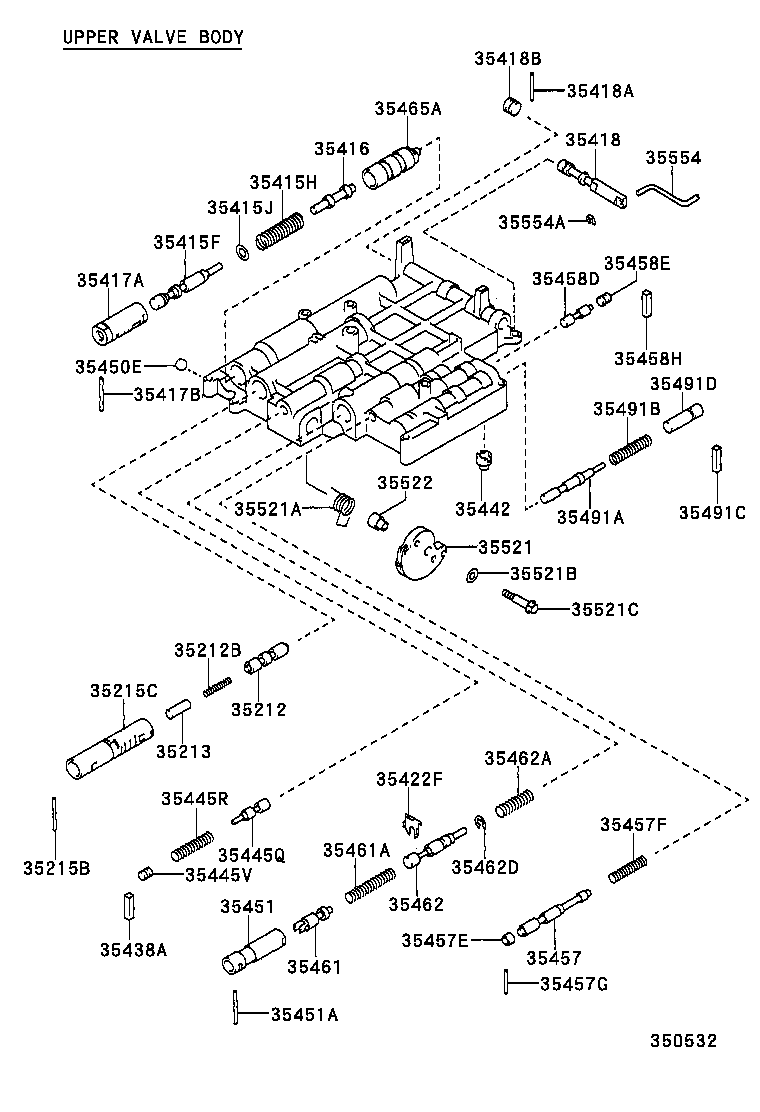

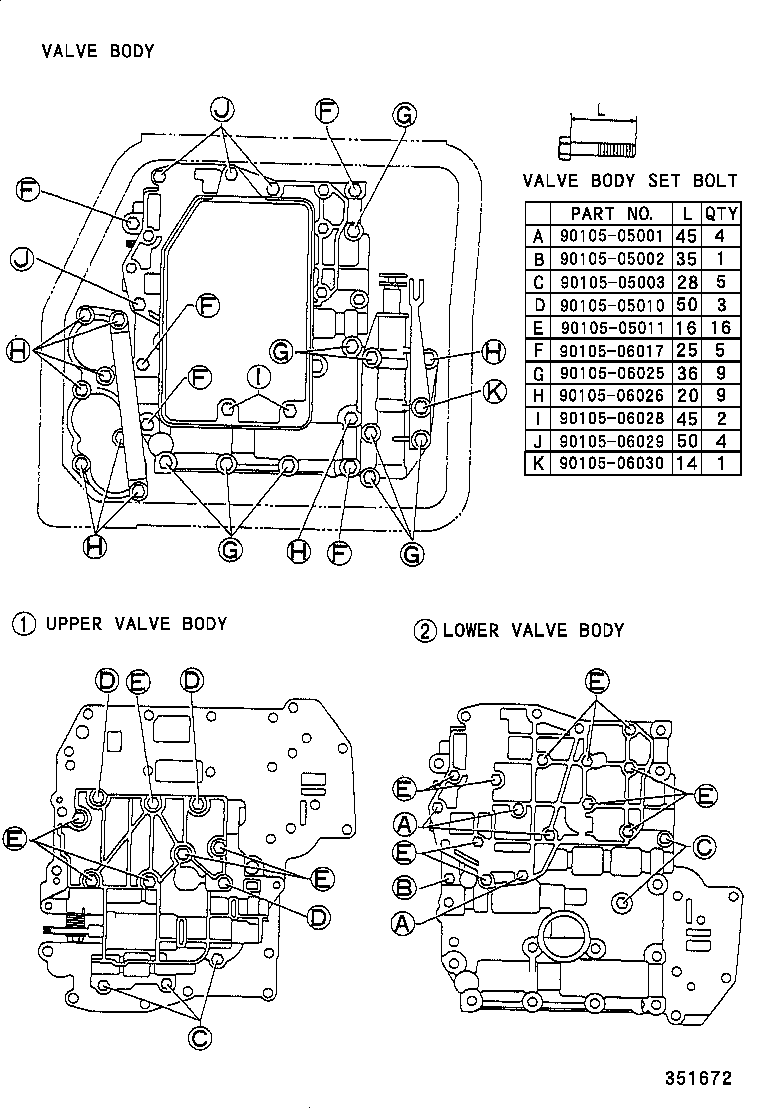

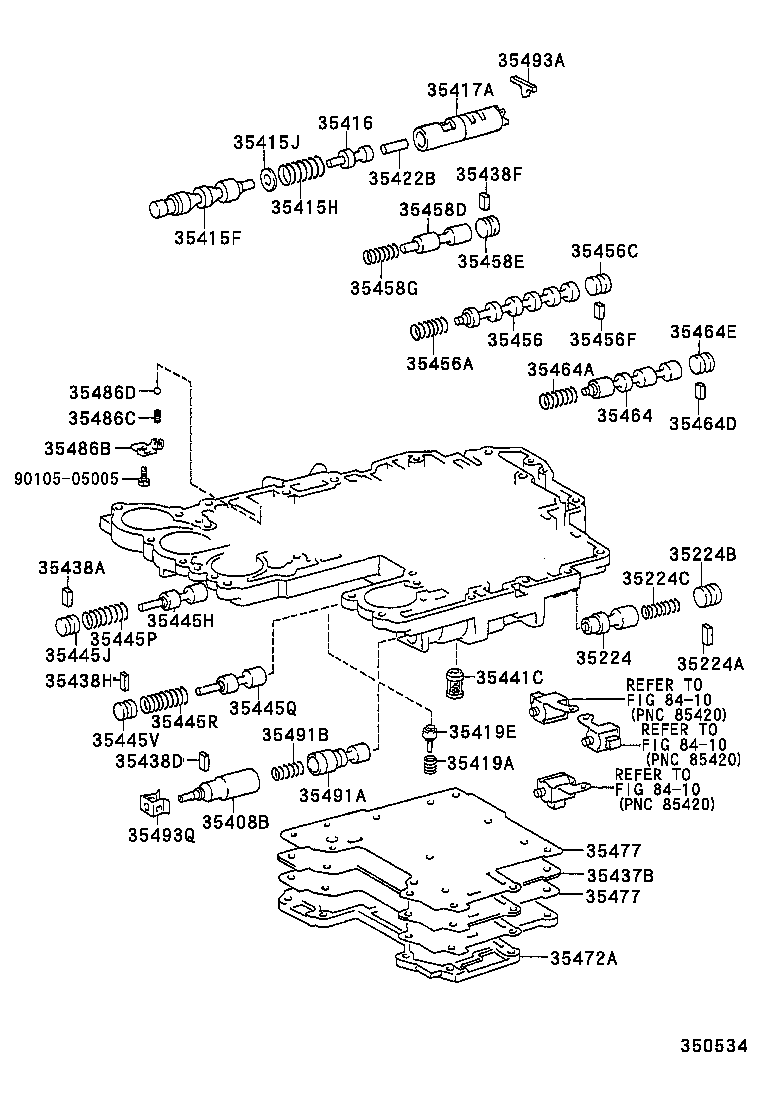

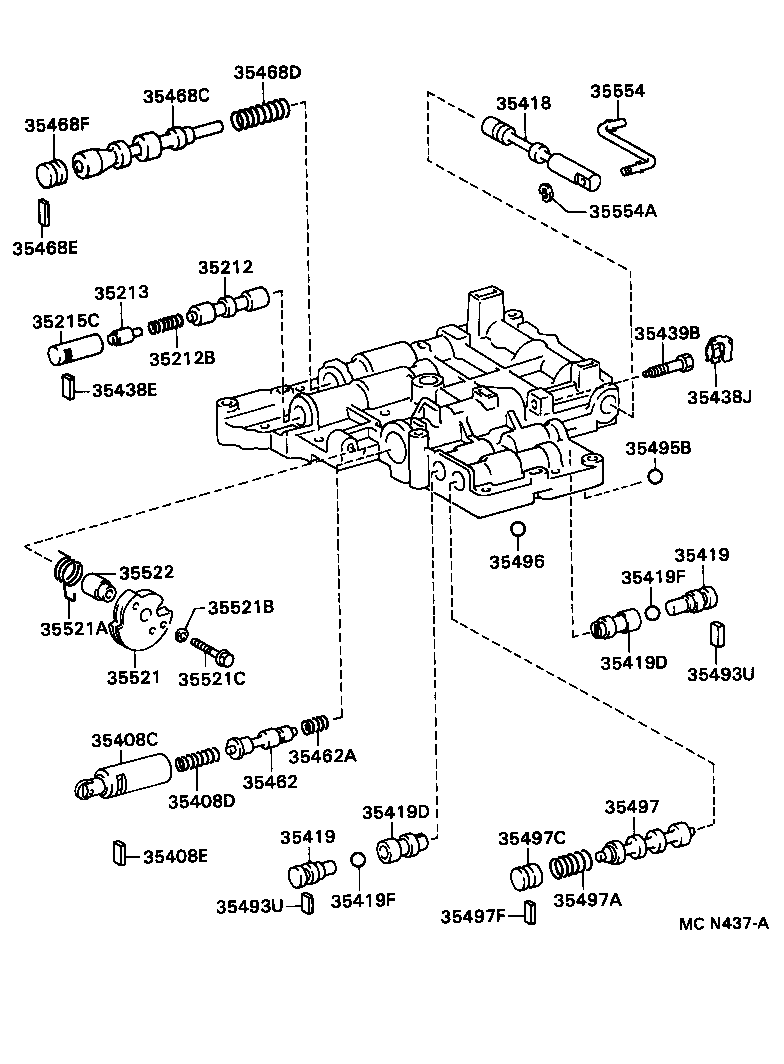

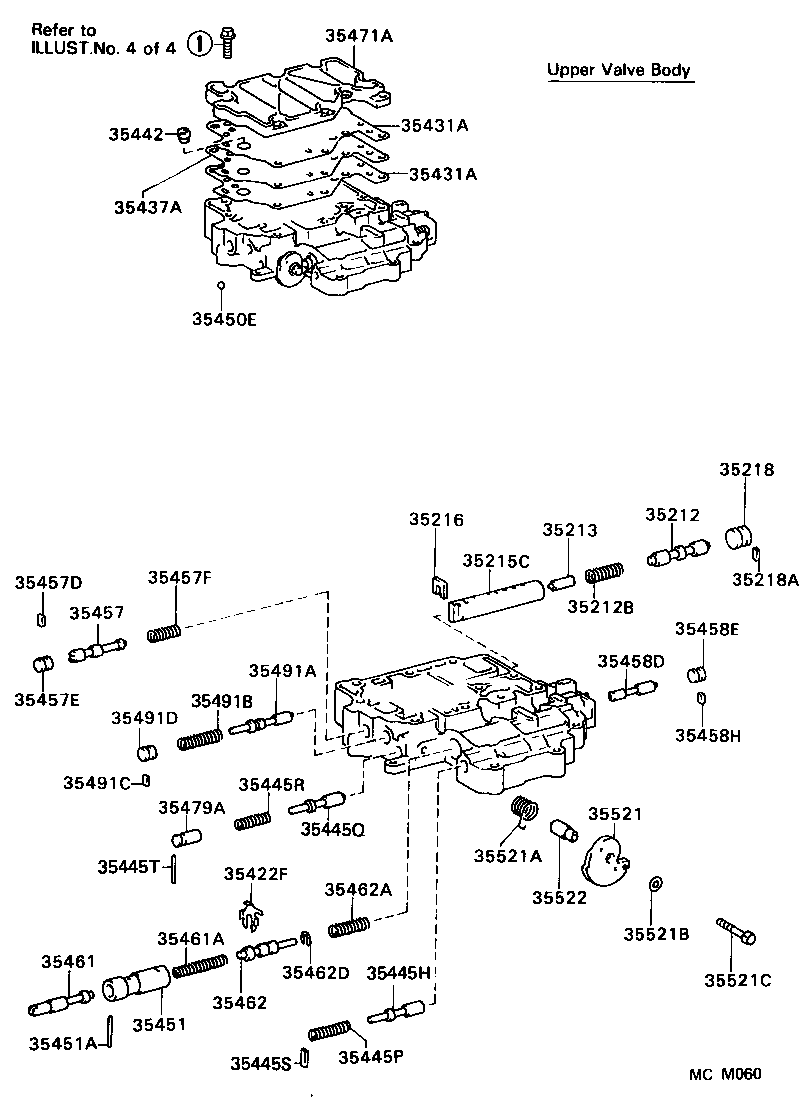

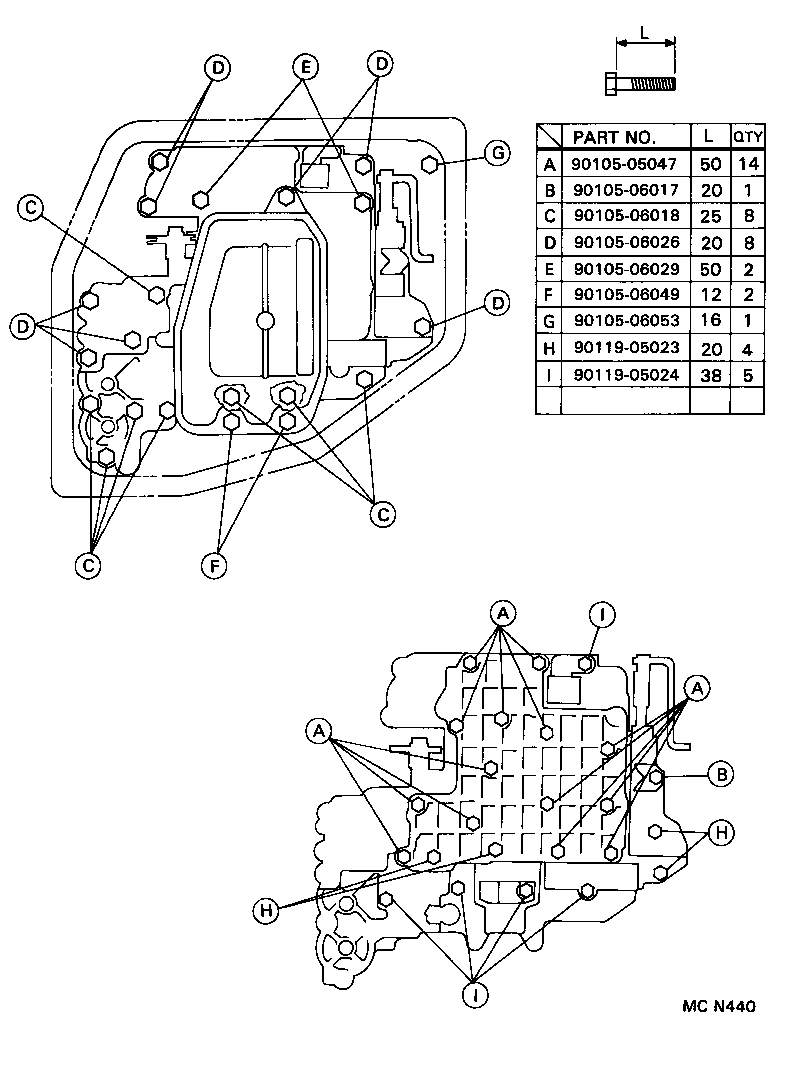

Figure MCN167B MCN167B 1991-08 → — Figure MCM060 MCM060 1991-08 → — Figure 351934 351934 1991-08 → — Figure MCM062 MCM062 1991-08 → — Figure 351672 351672 1991-08 → — Figure MCM064 MCM064 1991-08 → 1992-10 Figure 350530 350530 1992-10 → 1993-05 Figure 350530 350530 1993-05 → — Figure 350409 350409 1993-05 → 1995-05 Figure 352098 352098 1991-08 → — Figure 350532 350532 1991-08 → 1993-05 Figure MCN437A MCN437A 1993-05 → 1995-05 Figure MCM067 MCM067 1991-08 → — Figure MCM068 MCM068 1991-08 → 1993-05 Figure 350534 350534 1993-05 → 1995-05 Figure 352099 352099 1991-08 → 1993-05 Figure 352099 352099 1993-05 → — Figure 352100 352100 1993-05 → 1995-05 Figure 352101 352101 1991-08 → — Figure 352102 352102 1991-08 → 1993-05 Figure MCN440 MCN440 1993-05 → 1995-05

Part groups

PNCDescription
35156A Plate, Transmission Case, NO.2
35156B Bolt(FOR TRANSMISSION CASE NO.2 PLATE)
35156C Screw(FOR TRANSMISSION CASE NO.2 PLATE)
35158 Gasket, Transmission Case, NO.2 Plate
35171 Cover, Transaxle Housing
35172 Gasket, Transaxle Housing Cover
35195A Clamp, Transaxle Apply Tube, NO.1
35196 Clamp, Transaxle Apply Tube, NO.2
35197 Clamp, Transaxle Apply Tube, NO.3
35198 Clamp, Transaxle Apply Tube, NO.4
35205 Spring Sub-assy, C-3 Accumulator
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35209A Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35211 Valve, Lock UP Signal
35211A Pin, Straight (FOR LOCK UP SIGNAL VALVE)
35211B Spring, Compression (FOR LOCK UP SIGNAL VALVE)
35211C Key, Straight (FOR LOCK UP SIGNAL VALVE)
35212 Valve, Lock UP Relay
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35213 Valve, Lock UP Relay Control
35215B Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE)
35215C Sleeve, Lock UP Relay Valve, NO.1
35216 Stopper, Valve Sleeve
35218 Plug, Lock UP Relay Valve
35218A Key, Straight (FOR LOCK UP RELAY VALVE PLUG)
35219 Plug, Lock UP Signal Valve
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224B Plug (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35330 Strainer Assy, Valve Body Oil
35339 Gasket, Oil Strainer
35408B Plug Sub-assy, Accumulator Control Valve
35408C Plug Sub-assy, Throttle Valve
35408D Spring, Compression (FOR THROTTLE VALVE PLUG)
35408E Key, Straight (FOR THROTTLE VALVE PLUG)
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35412A Body, Manual Valve
35415F Valve, Primary Regulator
35415G Key, Straight (FOR PRIMARY REGULATOR VALVE)
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35415P Ring, E (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417A Sleeve, Primary Regulator Valve
35417B Pin, Straight (FOR PRIMARY REGULATOR VALVE SLEEVE)
35418 Valve, Manual
35418A Pin, Straight (FOR MANUAL VALVE)
35418B Plug (FOR MANUAL VALVE)
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35419D Valve, Check, NO.2
35419E Valve, Check, NO.3
35419F Ball, Check Valve
35420D Ball (FOR LOWER VALVE BODY)
35422B Plunger, Primary Regulator Valve, NO.2
35422F Stopper, Valve Vibrating
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426D Piston, C-3 Accumulator
35426E Spring, Compression (FOR C-3 ACCUMULATOR PISTON)
35426F Ring, O (FOR C-3 ACCUMULATOR PISTON)
35427A Spring, Compression (FOR B-4 ACCUMULATOR PISTON)
35427B Ring, O (FOR B-4 ACCUMULATOR PISTON)
35427C Piston, B-4 Accumulator
35429 Tube, Line Pressure
35431A Gasket, Upper Valve Body Cover
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35437A Plate, Upper Valve Body Cover
35437B Plate, Valve Body Cover
35438A Seat, 2ND Coast Modulator Valve Spring
35438D Seat, Accumulator Control Valve Spring
35438E Seat, Lock UP Relay Valve Spring
35438F Seat, Detent Spring
35438H Seat, Low Coast Modulator Valve Spring
35438J Seat, Throttle Valve Spring
35439A Strainer, Line Pressure Oil
35439B Screw, Throttle Valve
35441C Strainer, Solenoid Oil
35442 Strainer, Throttle Modulator Oil
35445H Valve, 2ND Coast Modulator
35445J Plug (FOR 2ND COAST MODULATOR VALVE)
35445P Spring, Compression (FOR 2ND COAST MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445S Key, Straight (FOR 2ND COAST MODULATOR VALVE)
35445T Pin, Straight (FOR LOW COAST MODULATOR VALVE)
35445U Key, Straight (FOR LOW COAST MODULATOR VALVE)
35445V Plug (FOR LOW COAST MODULATOR VALVE)
35449B Valve, Pressure Relief
35449C Spring, Compression (FOR VALVE PRESSURE RELIEF)
35450E Ball (FOR UPPER VALVE BODY)
35451 Sleeve, Throttle Valve
35451A Pin, Straight (FOR THROTTLE VALVE SLEEVE)
35453 Valve, Detent Regulator
35453A Spring, Compression (FOR DETENT REGULATOR VALVE)
35453B Key, Straight (FOR DETENT REGULATOR VALVE)
35453C Plug (FOR DETENT REGULATOR VALVE)
35454 Valve, Low Coast Shift
35454A Key, Straight (FOR LOW COAST SHIFT VALVE)
35454B Plug (FOR LOW COAST SHIFT VALVE)
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456F Key, Straight (FOR 2-3 SHIFT VALVE)
35457 Valve, Throttle Modulator
35457D Key, Straight (FOR THROTTLE MODULATOR VALVE)
35457E Plug (FOR THROTTLE MODULATOR VALVE)
35457F Spring, Compression (FOR THROTTLE MODULATOR VALVE)
35457G Pin, Straight (FOR THROTTLE MODULATOR VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35458G Spring, Compression (FOR CUT BACK VALVE)
35458H Key, Straight (FOR CUT BACK VALVE)
35461 Plug, Down Shift
35461A Spring, Compression (FOR DOWN SHIFT PLUG)
35462 Valve, Throttle
35462A Spring, Compression (FOR THROTTLE VALVE)
35462D Ring, E (FOR THROTTLE VALVE)
35463A Valve, 1-2 Shift, Lower
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464C Valve, 1-2 Shift, Upper
35464D Key, Straight (FOR 1-2 SHIFT VALVE)
35464E Plug (FOR 1-2 SHIFT VALVE)
35465 Plug, Intermediate Shift Valve
35465A Sleeve, Primary Regulator Valve Plunger
35467 Valve, Intermediate Shift
35467A Key, Straight (FOR INTERMEDIATE SHIFT VALVE)
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35471A Cover, Upper Valve Body
35472A Cover, Lower Valve Body
35474A Cover, Accumulator
35476C Valve, 3RD Coast
35477 Gasket, Valve Body Cover
35478 Gasket, Accumulator Cover
35479A Seat, Low Modulator Valve Spring
35486B Seat, Pressure Relief Valve Spring
35486C Spring, Compression(FOR PRESSURE RELIFE VALVE)
35486D Ball (FOR PRESSURE RELIFE VALVE)
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35493A Seat, Primary Regulator Valve Plug
35493Q Seat, Accumulator Control Valve Plug, NO.1
35493U Seat, Check Valve, NO.1
35493W Seat, Valve Body
35495B Ball, Check, NO.1
35496 Ball, Check, NO.2
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497F Key, Straight (FOR 3-4 SHIFT VALVE)
35498 Valve, 3-4 Coast Shift
35498B Key, Straight (FOR 3-4 COAST SHIFT VALVE)
35498C Plug (FOR 3-4 COAST SHIFT VALVE)
35499B Valve, Overdrive Sequence
35499C Key, Straight (FOR OVERDRIVE SEQUENCE VALVE)
35499D Plug (FOR OVERDRIVE SEQUENCE VALVE)
35499E Spring, Compression (FOR OVERDRIVE SEQUENCE VALVE)
35521 Cam, Throttle Valve
35521A Spring (FOR THROTTLE VALVE CAM RETURN)
35521B Washer (FOR THROTTLE VALVE CAM SET)
35521C Bolt (FOR THROTTLE VALVE CAM SET)
35522 Pin, Throttle Valve Cam
35554 Rod, Manual Valve Connecting
35554A Ring, E (FOR MANUAL VALVE CONNECTING ROD)
35599 Cover, Manual Detent Spring
35844A Tube, Accumulator Back Pressure, NO.1
35845 Tube, RR Clutch Accumulator
35845A Tube, Direct Clutch Accumulator
35846 Tube, Brake Accumulator
35847 Tube, Transmission Lube Apply
35848 Tube, Forward Clutch Accumulator
35849 Tube, Governor Apply
35862 Bracket, Accumulator Apply Tube
35882A Tube, Differential Gear Lube Apply
35899 Tube, Governor Pressure
